Description

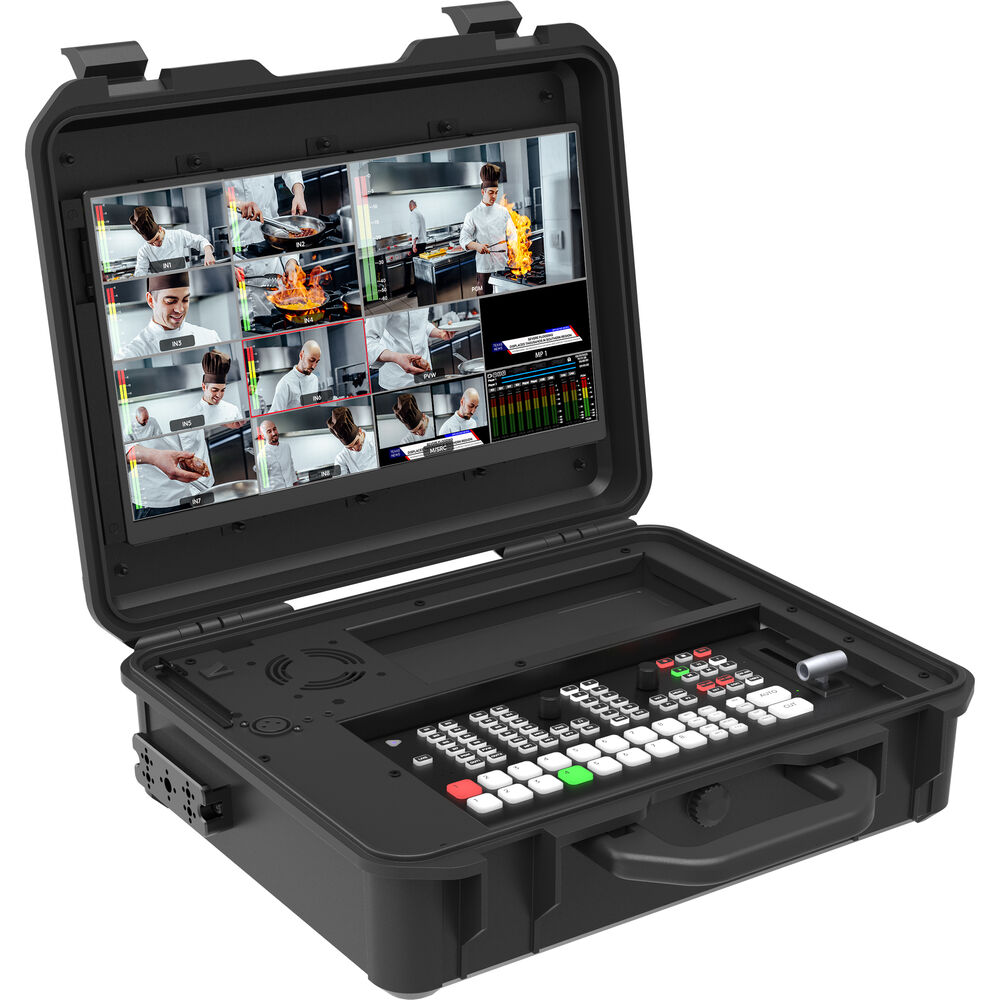

Osee GoStream Duet 8 ISO Kit - 8Ch multiple Camera SDI and HDMI Live Streaming and Video Mixer Switcher Kit

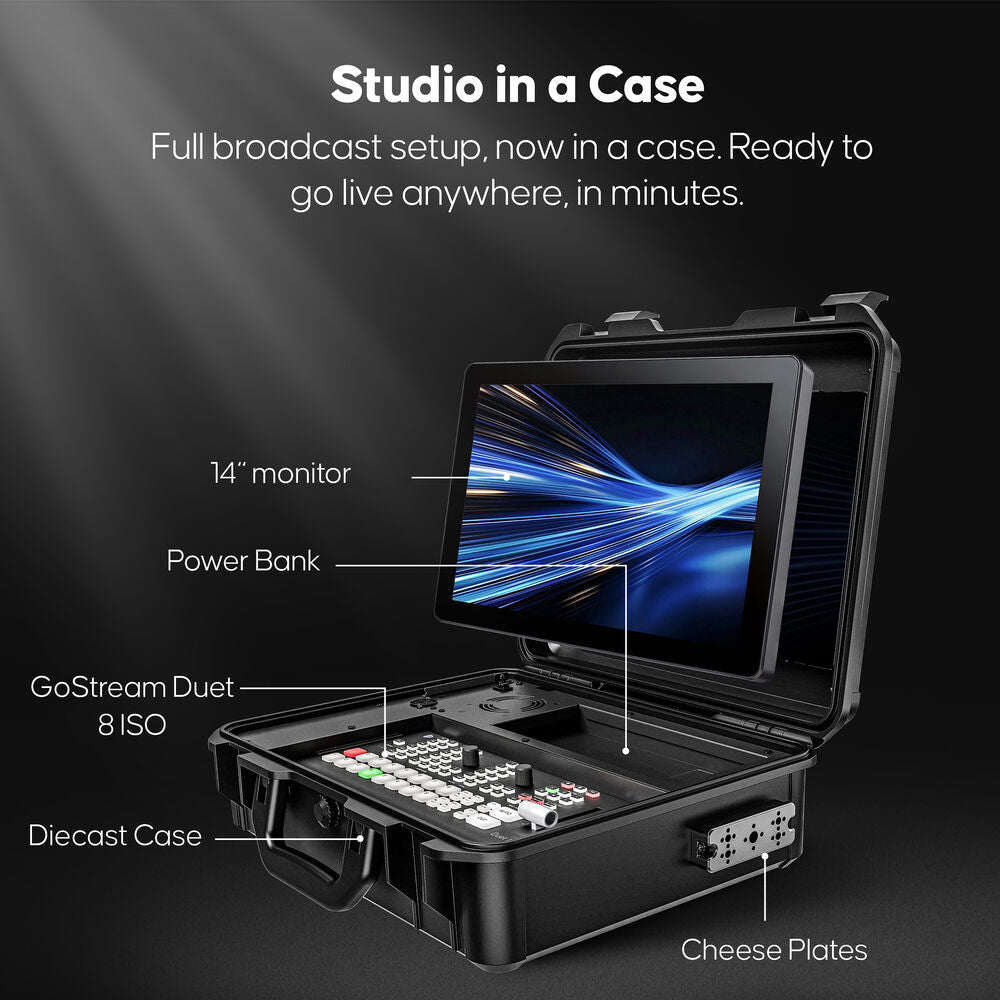

Includes a powerful GoStream Duet 8 ISO switcher, a 14'' 1080*1920 screen, a slient fan, 3 Cheese Plates with 1/4'' & 3/8'' Threads.
Powerful Switcher

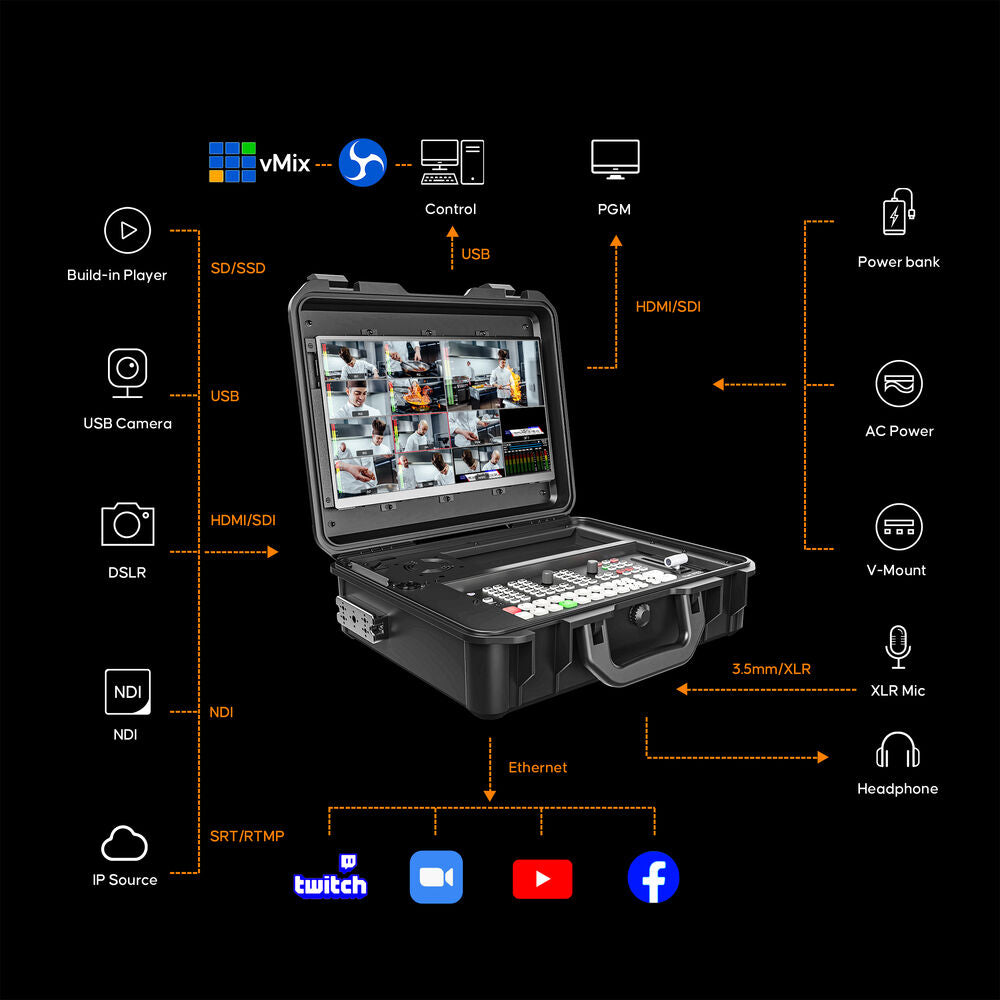

8 channels configure from: 4x SDI, 4x 4K-HDMI, 2x USB-3.0 Webcams, 4x NDI-HX, 2x MP4 Player, 4x SRT or RTMP. This video switcher also supports web browser and PNG/JPG images pool. ISO recording. 2 built-in video players, supports MP4 video file playback. 2 XLR microphones deliver professional-grade sound in podcasting. Up to 11 video layers: Multisource, Downstream key, green background, chroma, PIP.
Multiple Power solution
GoStream Duet 8 ISO Kit video switcher can be powered by AC IN, DC IN(V-mount), or a USB power bank. The three power supply modes can be switched seamlessly. And with a built-in USB DC 5V out, it effortlessly powers additional devices like your cameras.

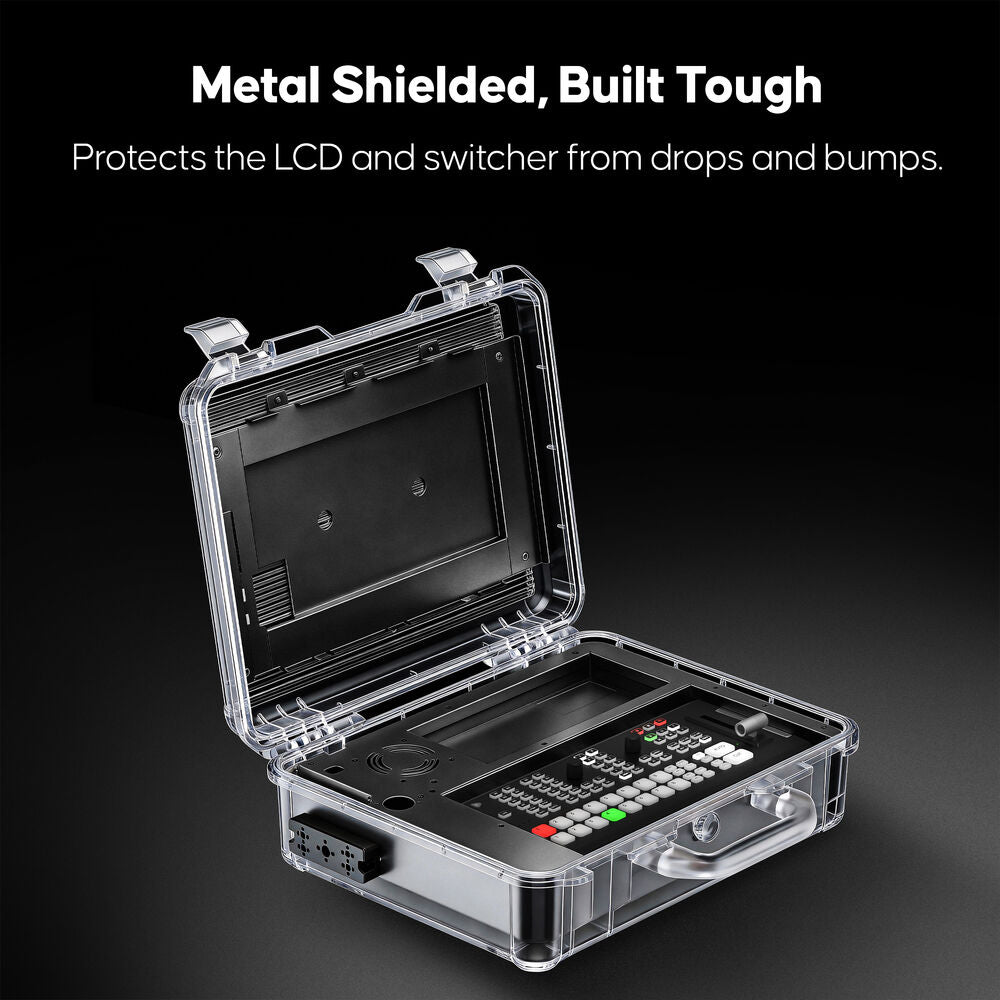

Carry Out and Cheese Plates
The robust bottom plate securely fastens to a light stand, ensuring stability in any setting. Two side plates open the door to limitless expansions—effortlessly customize your kit with additional equipment. The compact design ensures ultimate portability and durability. Where you go, the mobile live streaming is in your hands.
Excellent Experience
Auto-switching takes care of shooting angle switching without manual control, keeps smooth talking in a podcast. Hard panel with PVW / PGM bus / T-Bar / Macros, perfect for broadcast quality streaming for Education, Conference, Worship, Live Events, and Wedding. Osee professional multilingual customer service team to solve various after-sales problems, please feel free to contact us if you have any questions.
WHAT'S IN THE BOX
- GoStream Duet 8 ISO *1
- 14" Monitor *1
- Case (with 3 cheese plates attached) *1
- Spare FPC HDMI MINI-A cable *1
- Spare SD Slot Cable *1
- Spare D-tap to 2.1 DC Cable *1
- QSG *1
SPECIFICATIONS
|

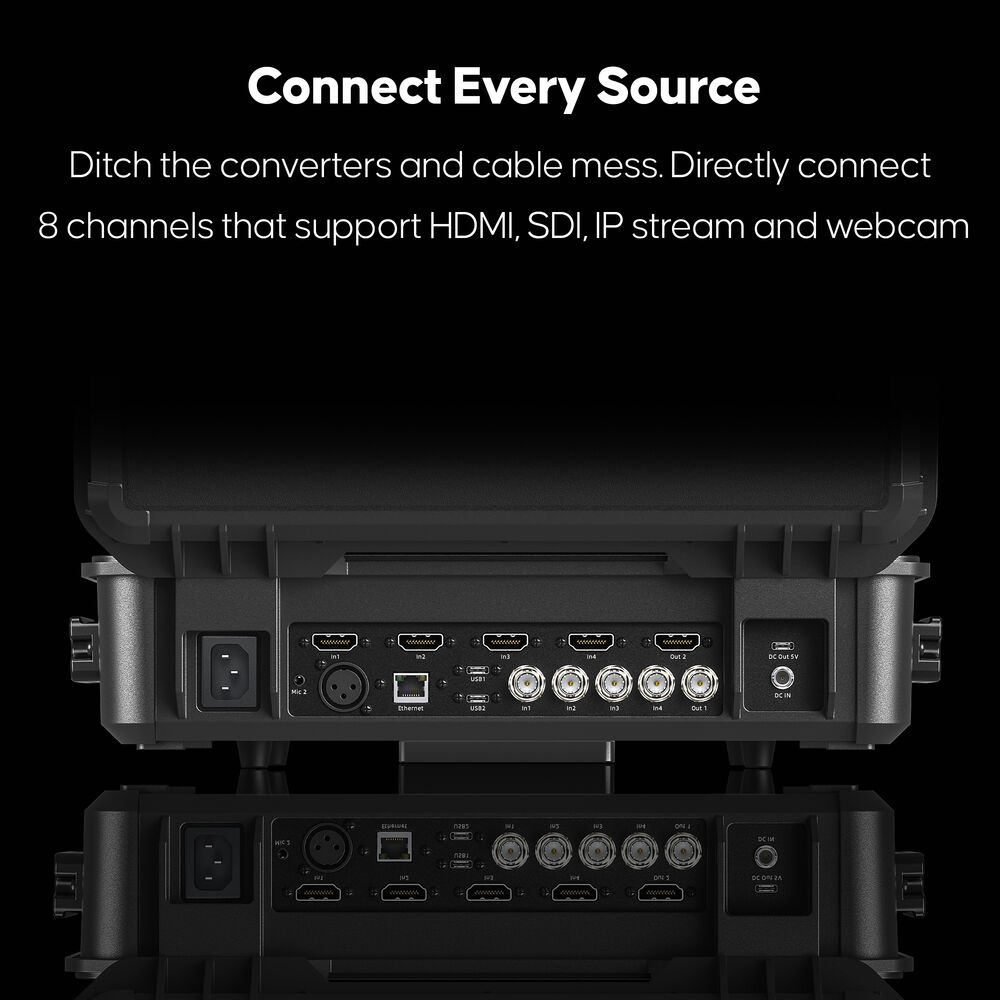

8 Video Input Channels |
8 Channel from: Simultaneously 4× HDMI, 4× SDI, also support 4× NDI HX, 4× SRT, 4× RTMP, 2× Webcam & 2× MP4 Player Inputs |
|
4 Video Outputs |
HDMI OUT 1–2, SDI 1: monitor Multiview, video input channels, PVW or PGM. USB 3.0: UVC webcam Output up to 1080p60 |
|
Audio Processing |
2 XLR or 3.5mm inputs. 3.5mm for line, XLR for dynamic microphone and condenser microphone. On/Off AFV control, fader gain, delay, preamp, Low Cut (High-pass filter), Noise Gate, Compressor, Limiter, Equalizer control; Audio meter display |
|
Control |
Internal menu on multiview, software for PC or MAC, Stream Deck via companion plug-in |
|
Direct Streaming |
3 platforms simultaneous streaming, RTMP, up to 10Mb/s |
|
Recording and Playback |
Isolated (ISO) and PGM recording and 2 player to playback high-quality videos up to 70Mb/s. Internal SD card slot or external USB 3.0 SSD is supported |
|
HDMI Input Video Format |
720p24(23.98), 720p25, 720p30(29.97), 720p50, 720p60(59.94), 1080i50, 1080i60(59.94), 1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94), 2160p24(23.98), 2160p25, 2160p30(29.97), 2160p50, 2160p60(59.94) |
|
Output Video Format |
1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94). SDI Level-A |
|
8 Video Layout |
1 Graphic (Background/Foreground) + 4 windows MultiSource + 1 UpStream Key (Chroma, PIP, Luma, Pattern) + 2 DSK |
|
MP (Media Player) |
2 MediaPlayers support 32 still images pool. Support web browser input for LOGO, lower-third or other animated dynamic alpha channel source. Note: Some Browser Source may display wrong font because there’s no embedded font sources |
|
Screen |
14 inch; 350 nit; 1080×1920 |
|
Body |
Item Weight: 7020 g; Dimension: 366 × 300 × 113 mm |
