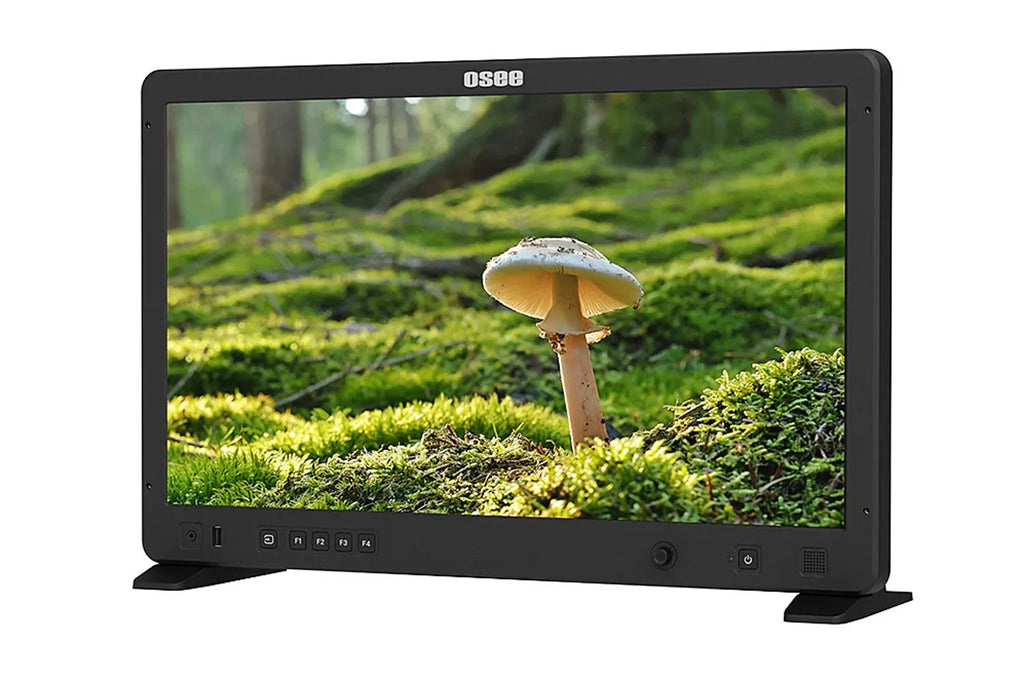

OSEE Mega 22S 21.5-inch Daylight Visible HDR Field Production Monitor
Osee Mega 22S adopts a built-in color calibration technology as its key advanced feature, no more computer is needed, and the monitor itself can correct the color inaccuracy of its display. Integrated self-calibration makes the monitor's color calibration on the field easier than ever, keeping the colors and tone reproduction true to life.
Super Bright Viewable Display Quality
This ultra HD field monitor with 1500 nits brightness and 1100:1 contrast ratio, viewable in sunlight, is designed for outdoor shooting. Supports the latest full HD 1920x1080 resolutions, 21.5 inch IPS LCD with 4K HDMI input, 3G-SDI input, and 100% Rec 709 color, presenting crisp and clear images in any daylight situation. On-site monitoring just gets easier for you and your customers.
Color Fidelity on 10 Bits Panel
Osee's Color-Fidelity V2 processor incorporates 22-bit precision processing and tetrahedral 3D-LUT interpolation, preserving the subtle detail and color tone of the image to be displayed on its 10-bit panel. Supporting HLG and PQ HDR as well as various camera logs, plus 10 user 3D LUTs for you to add your favorite color profile via USB as well.
Simplify Your Workflow
Now Osee's production monitor supports up to 8 customizable sets of analysis tools, 8 tools in each set can be configured. Switching between sets can be done instantly (Powered by Swift OS). The new UI greatly improves your working efficiency.
Custom Foam for Pelican 1600
Metal Uni-Body design, with customed dedicated foam to house the monitor and accessories into your Pelican 1600 hard case, making it much safer during transportation. Other accessories: sun hood for the highest quality monitoring, 1/4'' and 3/8'' mounting plate on multiple positions for wireless transceiver, focus controller, and more. C-stand adaptor for the easiest monitor mounting, optional VESA mounting. V or AB mount battery and AC power supply support the longest working time.
WHAT'S IN THE BOX
- 1x Mega 22S
- 1x Dedicated foam for Pelican 1600
- 1x Sun hood
- 1x Battery plate (V or AB)
- 1x C-stand adapter
- 1x Power cable
- 1x Cheese Plate
- 1x Basic Kit(537807)
SPECIFICATIONS
| DISPLAY | |
|---|---|
| Panel Size | 21.5 inch |
| Resolution | 1920 x 1080 |
| Brightness | 1500 nits |
| Colour Bit Depth | 10 bits |
| Contrast | 1100:01:00 |
| INPUT RESOLUTION | |
| HDMI | 4K (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30P |
| UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30P | |
| 2K (2048 x 1080): 23.98 / 24 / 25 / 50 | |
| HD (1920 x 1080): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60P, 50 / 59.94 / 60i | |
| HD (1280 x 720): 50 / 59.94 / 60P | |
| SDI | 2K (2048 x 1080): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60P |
| 23.98 / 24 / 25 / 29.97 / 30Psf | |
| HD (1920 x 1080): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60P, 50 / 59.94 / 60i | |
| HD (1280 x 720): 50 / 59.94 / 60P | |
| VIDEO I/O | |
| SDI | 2 x 3G / HD / SD-SDI signal inputs / outputs, |
| HDMI | 1 x 4K@30 HDMI input |
| 3D-LUT / CAMERA LOG | |
| 3D-LUT | 10 User 3D LUTs |
| Standard Log | 2.2, 2.4, HLG, PQ |
| ARRI Log C | |
| BMD Film, 4K Film, 4.6K Film | |
| Canon C Log, C Log2, C Log3 | |
| Fuji F-LOG | |
| Nikon N-LOG | |
| Panasonic V-LOG | |
| RED Log3G12, Log3G10, RedLogFilm | |
| Sony S-Log, S-Log 2, S-Log 3 | |
| DCI 2.6 | |
| POWER | |
| Power Supply | 100–240V (50/60Hz) AC / 11–17V / 5A (XLR Pin 4) |
| Power Consumption | 46W |
| OTHER I/O | |
| 1x USB Type-A | 3D-LUT upload, firmware upgrade |
| 1x USB Type-C | internal colour calibration via x-rite i1 display pro |
| 1x 3.5mm mini Jack | Headphone out |
| PHYSICAL | |
| Item Weight | 6700g |
| Shipping Weight | 9500g |
| FEATURES | |
| Framing and Exposure | Aspect, Safe, Centre, Crosshatch, Anamorphic |
| False Colour, Zebra, Waveform, Vector, Histogram | |
| Focus | Focus Assist, Peaking, DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter (Only SDI), Time Code (Only SDI) |
| WHAT'S IN THE BOX | |
| Mega 22S | |
| Dedicated foam for Pelican 1600 | |
| Sun hood | |
| Battery plate (V) | |
| C-stand adapter | |
| Cheese plate |
