Description

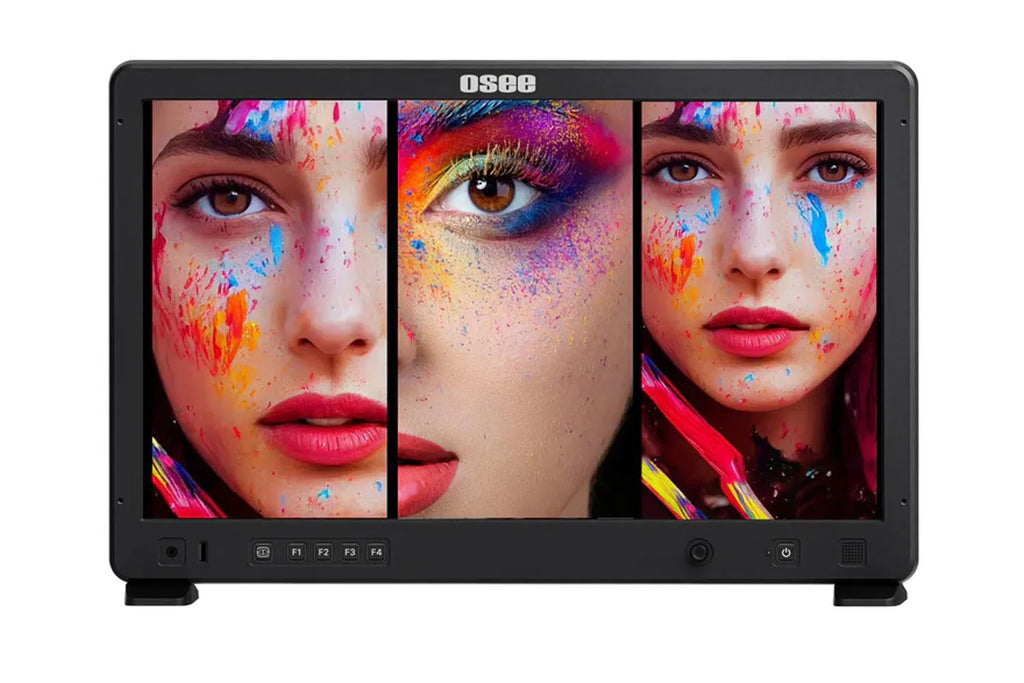

OSEE Mega 22S4 21.5-inch Ultimate Multi-camera and Portrait Broadcast Production Monitor

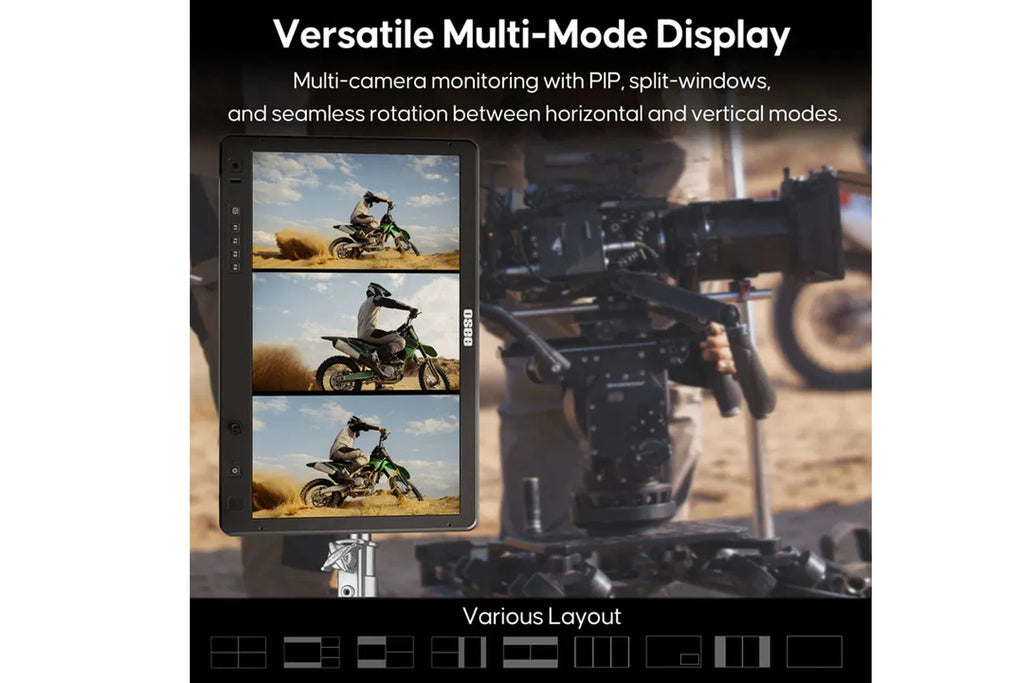

With a maximum brightness of 1500 nits, this monitor offers extremely sharp image rendering and 100% Rec. 709 colour gamut coverage via the 10-bit panel. The 22-bit colour fidelity v2 chip ensures accurate colour reproduction, making it ideal for professional use. The monitor also provides a wide range of built-in layouts for displaying multiple images at once, allowing for optimal use of screen space both horizontally and vertically.
The monitor features a rotatable VESA mount, allowing for horizontal or vertical installation on a C-stand. It can pass through the displayed image in Full HD via HDMI and SDI outputs, and each input can have its own specific LUT applied for uniform brightness and colour output. With features such as flexible multi-cam layouts, instant rotate VESA mount, and teamwide monitoring capabilities, this monitor is designed to maximise on-set efficiency and provide uncompromising clarity for daylight monitoring.
WHAT'S IN THE BOX
- 1x Mega 22S4
- 1x Dedicated foam for Pelican 1600
- 1x Sun hood
- 1x Battery plate (V/AB)
- 1x VESA adapter
- 1x Cheese plate
SPECIFICATIONS
|
Panel Size |
21.5inch |
|
Brightness |
1500nits |
|
Color bit Depth |
10 bits |
|
Video I/O |
3x3G/HD-SDI signal inputs, 3x4K@60HDMI inputs; 1x3G-SDI output, 1xHD@60 HDMI output |
|
Other I/O |
USB Type-A x 1: 3D-LUT upload, firmware upgrade USB Type-C x 1: internal color calibration via x-rite i1 display pro 3.5mm mini Jack: ear phone |
|
Power Supply |
100-240V(50/60Hz) AC / 11~17V/5A (XLR Pin4) |
|

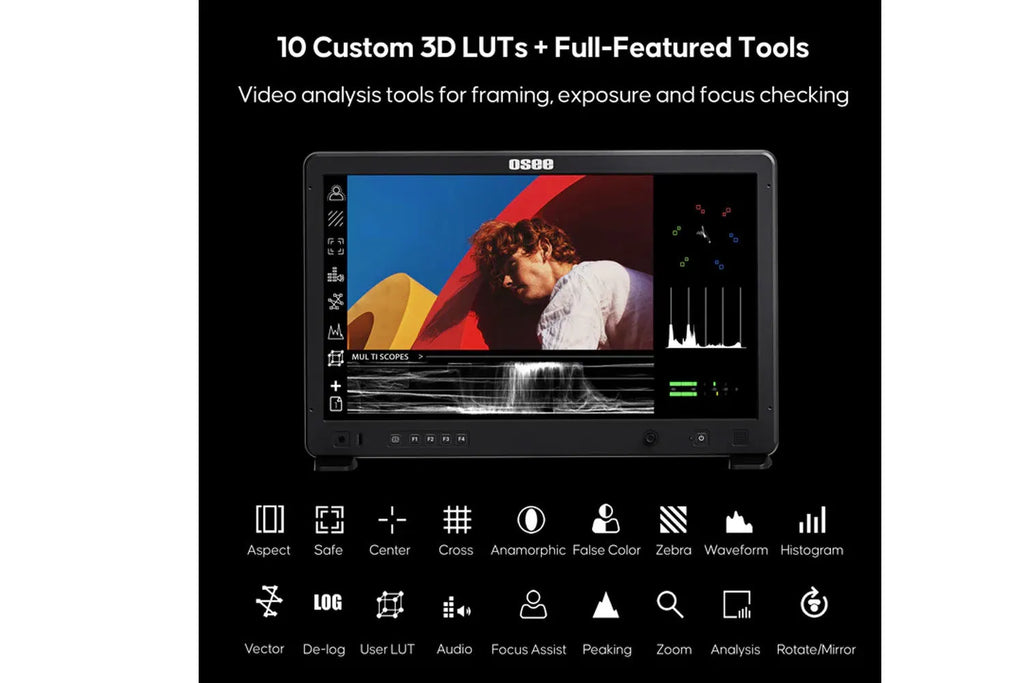

Framing Tools, Exposure Tools |
Aspect, Safe, Center, Crosshatch, Anamorphic; False Color, Zebra, Waveform, Vector, Histogram |
|
Focus Tools, Other Tools |
Focus Assist, Peaking; MULTI-SCOPES, Display Rotate, Audio Meter, Time Code |
|
Weight |
Item Weight: 6700g; Shipping Weight: 10400g |
|
Resolution |
1920X1080 |
|
Contrast |
1100:1 |
|
Video Format |
IN: 4K(4096x2160):23.98/24/25/29.97/30/50/59.94/60P; (Only for HDMI) UHD(3840x2160):23.98/2425/29.97/30/50/59.94/60P; (Only for HDMI) 2K(2048x1080):23.98/24/25/50/59.94/60P; HD(1920)1080):23.98/24/25/29.97/30/50/59.94/60P,50/59.94/60I; HD(1280x720):50/59.94/60P. OUT: HD(1920x1080):50/60P |
|
3D-LUT, Camera Log |
3D-LUT: 10 User 3D LUTs Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film, 4KFilm, 4.6K Film; Canon C Log, C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Lgo3G10, RedLogfilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6 |
|
Power Consumption |
60WMax |
|
What's in the Box |
Mega 2254, dedicated foam for Pelican 1600, sun hood, battery plate (V/AB ), VESA adapter, cheese plate |
