Description
OSEE T5+ 5.5-inch 1000nits 4K HDMI On-Camera LCD Monitor
FEATURES
- 1000 Nits
- 4K HDMI Input
- 3D LUT
- 1000:1 Cotrast Ratio
- REC-709 Colour Calibration
- Customisable False Colour
- 8 Workflow
- 178 Degree Viewing Angle
- Focus Peaking Assist
- Zebra Focus Assist
- Waveform
- SD Card LUTs
T5+ is the new upgraded version of osee's most popular model T5 with a brand new daylight viewable 1000nits panel. Making it suitable for both studio and outdoor videography.
What's more, with a contrast ratio of 1000:1 and osee's LOG/HDR processing technology, HDR realtime monitoring is not a problem anymore. Users can shoot HDR format and the monitor will help transform it into a standard image to monitor right in the field.

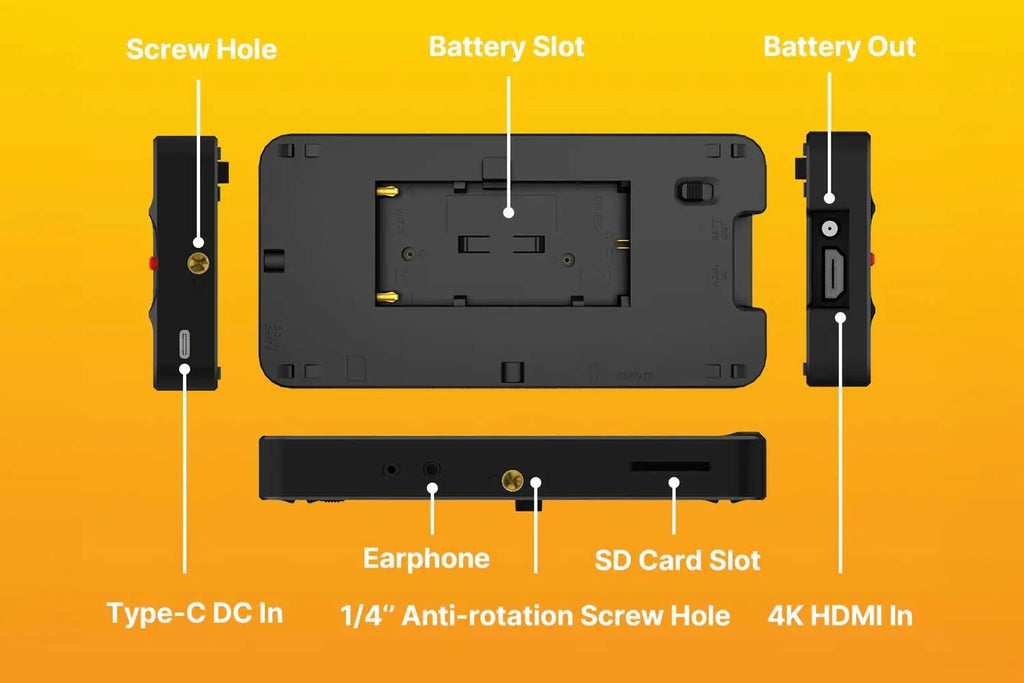

This monitor only weighs 175g without battery and has a size similar with your phone. With a plastic ABS polycarbonate shell and a built-in aluminum sheet, it is not only light but also quite sturdy as well. It also has two metal 1/4'' metal screw holes with anti-rotation pin holes, you can attach it on your camera, gimbal, cage... You can fit it into all kinds of setups without loose.
T5+ features the first generation of osee's MON OS, a convenient page style user interface that allows you to add up to 8 MySets, and up to 8 different image assist tools can be added in each MySet. When monitoring on location, users can switch between MySets to check different things at ease with simple toggles.
WHAT'S IN THE BOX
- T5+ Monitor
- Tilt Arm
- Sun Hood
- HDMI-Micro Cable(30cm), HDMI-mini Cable(30cm)
SPECIFICATIONS
| Display | |
|---|---|
| Panel Size | 5.5inch |
| Aspect Ratio | 16:9 |
| Resolution | 1920x1080 |
| PPI | 400 |
| Brightness | 1000nits |
| Contrast | 1000:1 |
| Color Depth | 1.06G |
| Backlight | Edge lit |
| Viewing Angle | 160x160 |
| Environmental | |
| Body | Polycarbonate ABS plastic (with aluminum sheet built-in) |
| Weight | 175g |
| Dimensions | 157.5mmx79mmx20mm |
| Mounting Points | 1/4”-20 anti-rotation screw mount, 1x bottom and 1x right |
| Operating Temp | 0-40℃ |
| Power | |
| Battery Type | Sony NP-F/Canon LP-E6 |
| Battery In | 5-17V |
| Type-C In | 5-17V |
| Battery Out | 5-8.4V |
| Consumption | 5.5W |
| Data I/O | |
| Signal Input | HDMI 1.4 |
| Signal Format | 3840x2160p(30/29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 720p(60/59.94/50) 480i/576i/480p/576p |
| SD Card Slot | User LUT Upload&Firmware Upgrade (FAT32 format and under 16G size recommended) |
| Audio Jack | 3.5mm |
| Remote Jack | 2.5mm |
| Control | |
| Backlight | Level 1-10 |
| Volume | Level 0-31 |
| Rotate/Mirror | Rotate (0, 180, auto), Mirror |
| Probe Location | Set this to let exposure tools analyze before or after User LUT |
| Frame Tools | |
| Aspect | 9:16 (Phone), 4:5, 1:1, 4:3 (SD TV), 1.375:1 (Cinema), 16:9 (HD TV), 1.85:1 (Cinema), 2.37:1 (Cinema), custom(1:3 - 3:1) |
| Safe | Action&Title |
| Center | Cross/Hollow |
| Crosshatch | 2x2, 3x3 ... 9x9 |
| Anamorphic | 1.33X, 1.4X, 1.5X, 1.6X, 1.8X, 1.9X, 2X with magnify function |
| Exposure Tools | |
| False Color | Spectrum/Follow camera/Custom |
| Zebra | Custom tone 1 and tone 2 |
| Waveform | Luma/RGB/Parade style, location, opacity&density adjustable |
| Histogram | Luma/RGB style, location, opacity&density adjustable |
| Vector Scope | Location, opacity&gain adjustable |
| Focus Tools | |
| Focus Assist | White, Red, Green, Blue，B&W background available |
| Peaking | Intensity 1-10 |
| Look Tools | |
| De-log | HLG, PQ, Arri, BMD, Canon, Fuji, JVC, Nikon, Panasonic, RED, Sony |
| User LUT | Up to 10 user LUTs can be uploaded, support LUT intensity adjustment |
| Audio Tools | |
| Audio Meter | Location&opacity adjustable |
| Analysis Tools | |
| Multi-scopes | Waveform, histogram, vector scope and audio meter around scaled image |
