Description

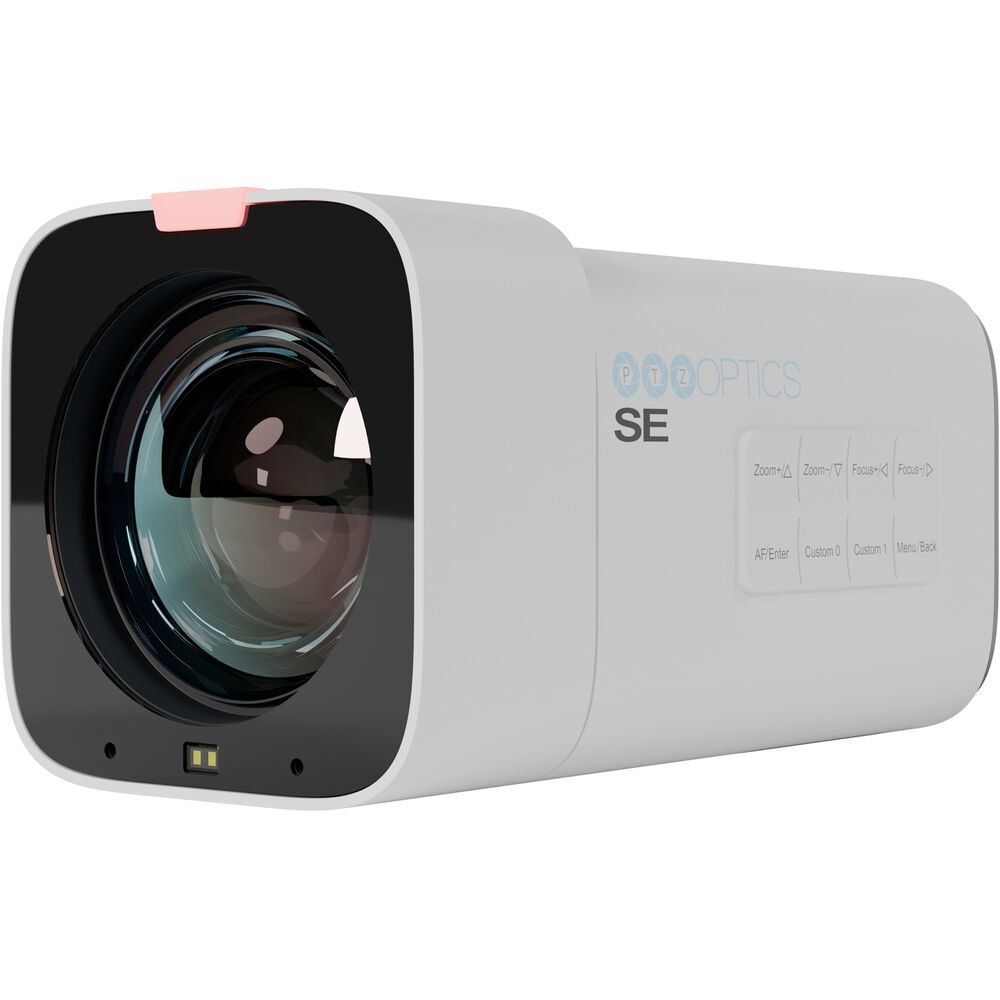

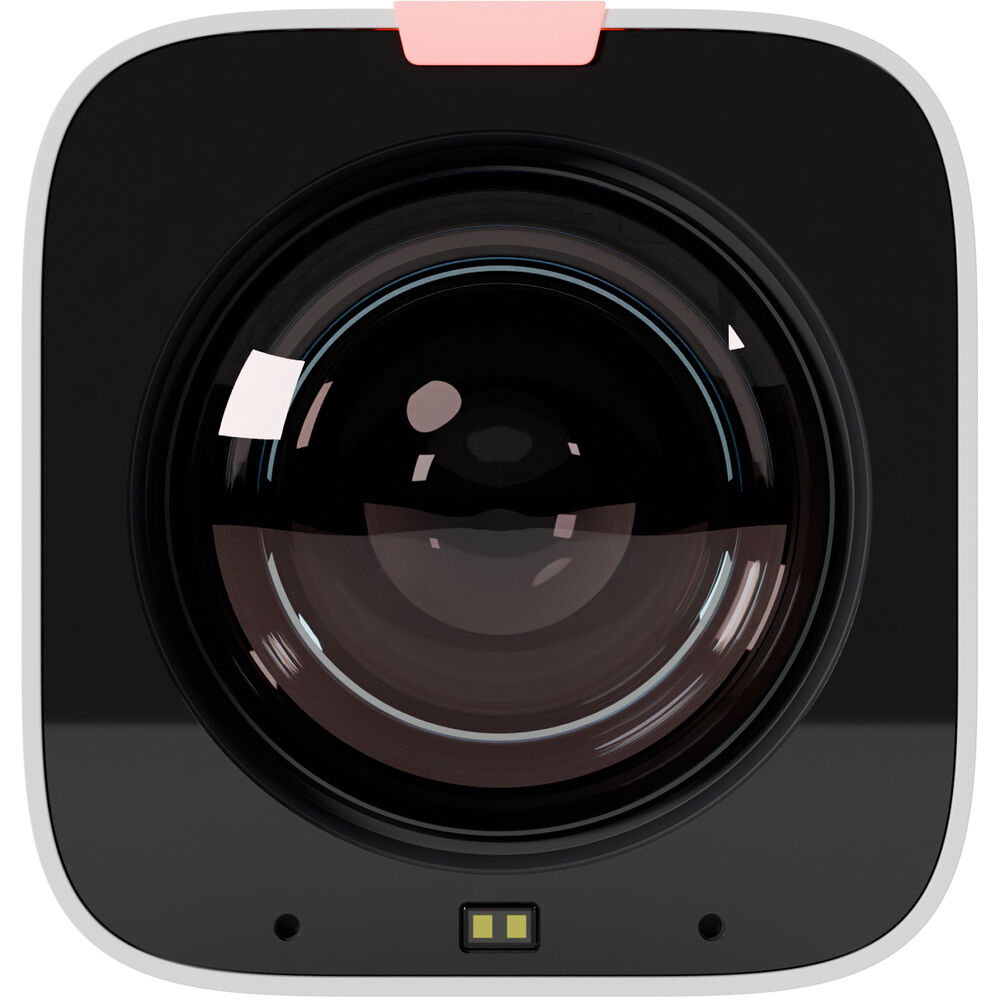

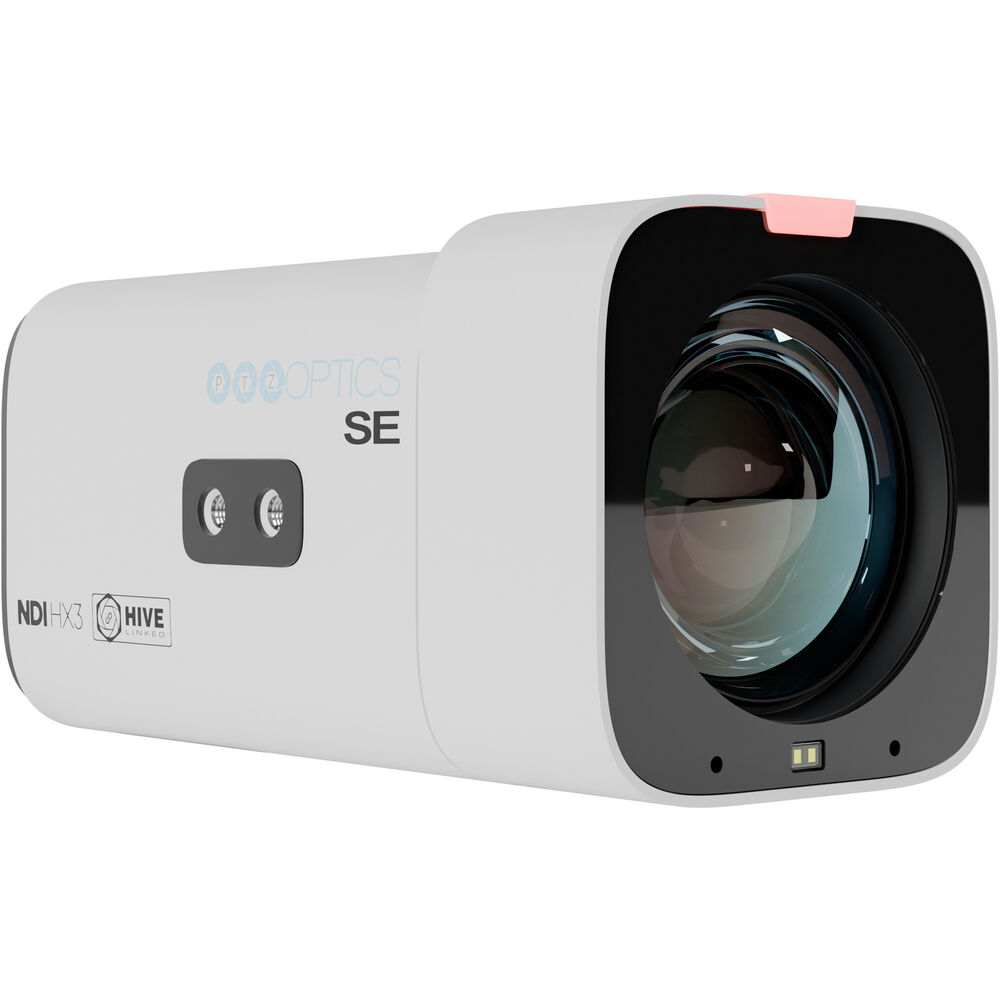

PTZOptics PT20X-STUDIO-SE-WH-G3 Studio SE 20X Fixed Camera Head White
The Studio SE 20X delivers reliable 1080p video, extended optical zoom and flexible connectivity in a compact fixed-camera design. Captures detailed shots from greater distances without requiring a camera operator. Ideal for lecture halls, sanctuaries, auditoriums and larger production spaces.
Up to 1080p video at 60 fps
Native NDI® HX3, plus SDI, HDMI, USB and IP streaming
20X optical zoom for detailed long-distance coverage
Native NDI® HX3, plus SDI, HDMI, USB and IP streaming
20X optical zoom for detailed long-distance coverage
KEY FEATURES
1080p HD: Next generation SONY UHD CMOS sensor for shooting high-quality 1080p video at 60 FPS. Adjustable to numerous other resolutions and frame rates. 12x or 20x
SDI, HDMI, USB, and IP outputs with NDI® HX3
Five-year limited parts and labor warranty with continuous firmware updates
SDI, HDMI, USB, and IP outputs with NDI® HX3
Five-year limited parts and labor warranty with continuous firmware updates
Connect, Point, Produce
The Studio Series features SDI, HDMI, USB, and IP output and comes native with NDI® HX3 for myriad integrations. Connect directly to a live production switcher, stream over a network, record through an SDI interface.
Power, Endurance, and Performance
Designed for 24/7/365 operation, the Studio SE and 4K offer utility, connectivity, and scalability – your video system workhorse for medium and large spaces.
A Multitude of Applications
The Studio Series’ discreet profile makes it the perfect choice for courtrooms, municipal meetings, worship services, sports, and manufacturing and security applications.
Built for Long-Term Value
Ongoing updates and a long warranty protect your investment, adding new capabilities over time instead of forcing costly replacements.
SPECIFICATIONS
Video Specifications
Max Resolution
1920x1080p
Max Frame Rate
60/50fps
Video Sensor
Sony 1/2.8" CMOS
Zoom
12x
Physical Specifications
Power
DC 12V/PoE+
Interfaces

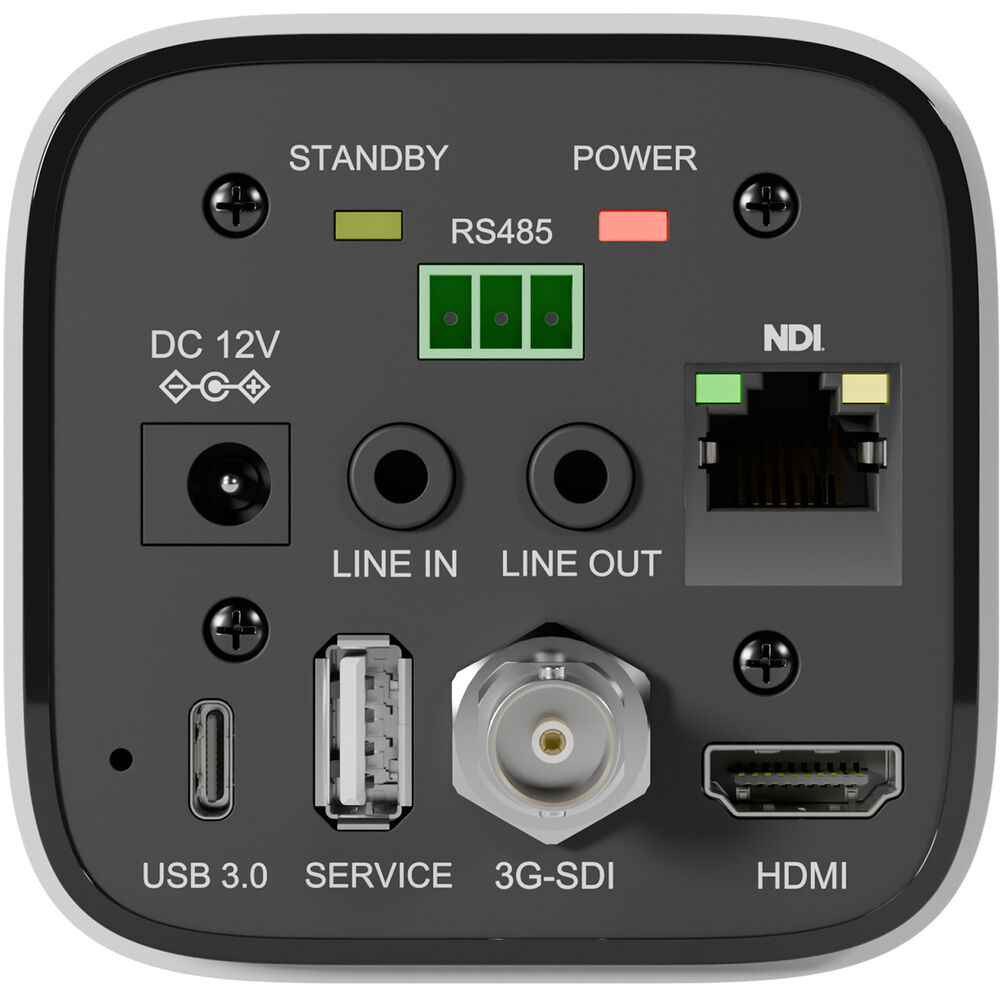

Ethernet, HDMI, USB 2.0, USB-C, 3G-SDI, RS-232, RS-485, 3.5mm Audio Line-in/Line-out
Protocols
TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
Colors
White, Gray
