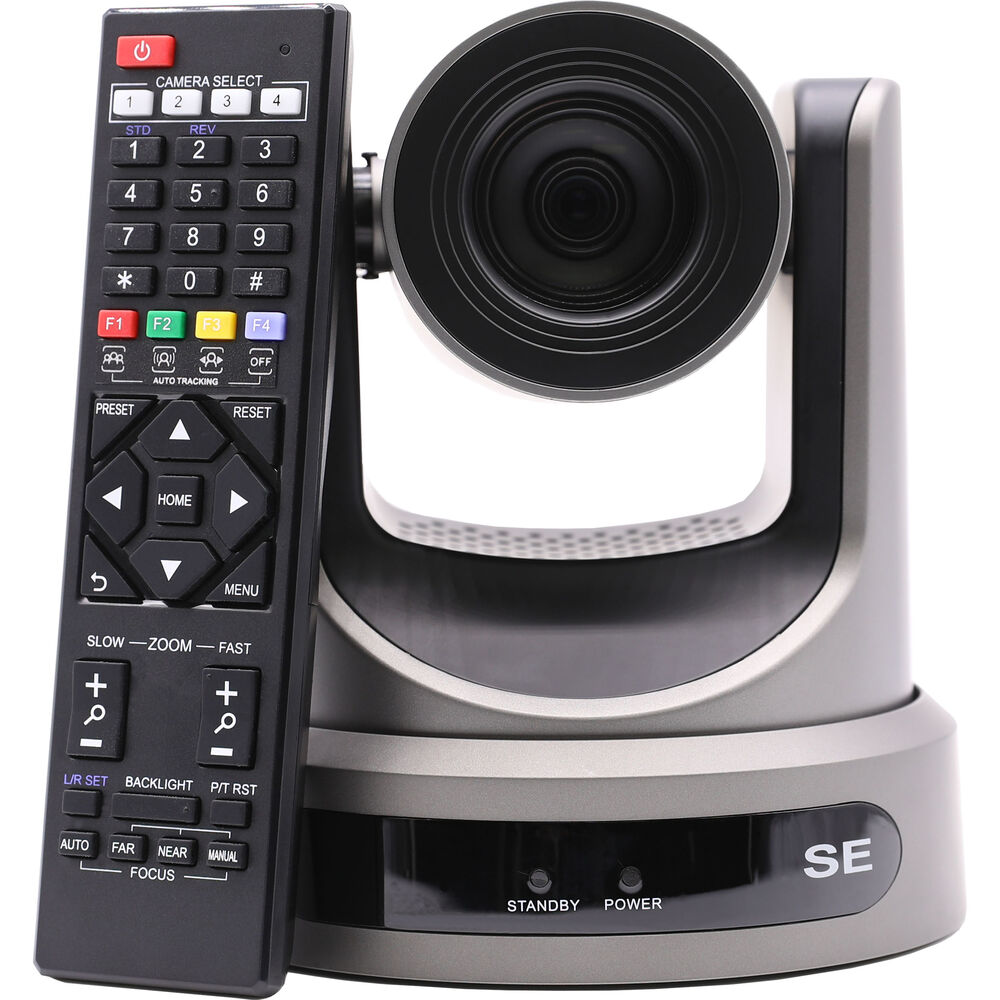

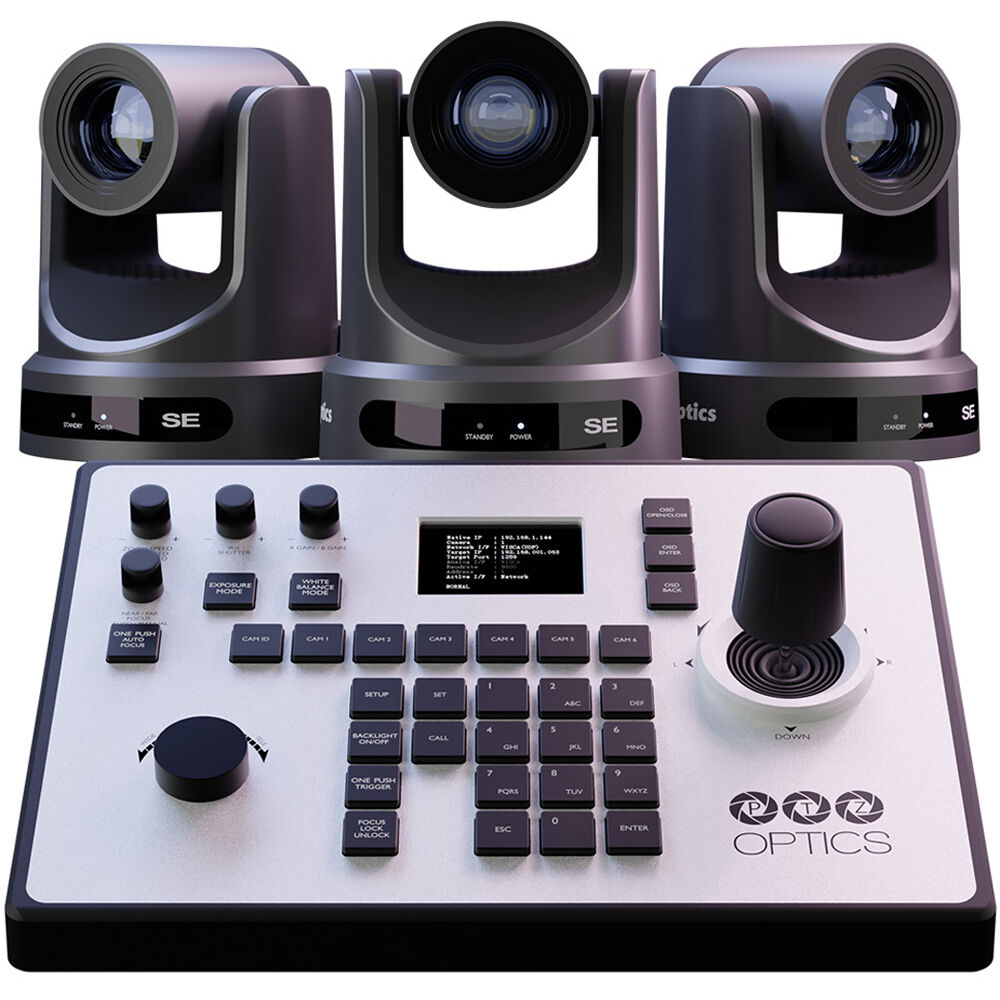

PTZOptics PT20XSE-PRODUCER-JOY4 Producer SE PTZ Camera & Controller Bundle
The Move SE 20X delivers professional 1080p video, extended optical zoom and built-in auto-tracking at an accessible price. Provides a versatile balance of room coverage and long-distance detail, with tracking distances up to 100 feet. Ideal for lecture halls, auditoriums, houses of worship and larger production spaces.
Up to 1080p video at 60 fps
Native NDI® HX3, plus SDI, HDMI, USB and IP streaming
20X optical zoom with auto-tracking up to 100 feet
Native NDI® HX3, plus SDI, HDMI, USB and IP streaming
20X optical zoom with auto-tracking up to 100 feet
The Move SE is built for teams that need consistent, professional results without the cost or complexity of 4K workflows. By combining automated tracking, broad compatibility with production tools, and continuous firmware improvements, Move SE helps organizations produce confident video with fewer resources and less technical overhead.
KEY FEATURES
Strong performance in challenging lighting
PoE support for simplified power and connectivity
Native NDI® with broad system compatibility
Control Your Way
Operate the Move SE using joysticks, web UI, production software, cloud tools, or remote network access – whatever fits your workflow today.
Smaller Teams, Reliable Results
Built-in auto-tracking keeps presenters framed automatically, reducing operator demands and eliminating missed moments.
Easy to Integrate and Install
Multiple outputs, PoE support, and flexible mounting options make it simple to upgrade video quality without changing your infrastructure.
Built for Long-Term Value
Free firmware updates and a five-year warranty protect your investment, adding new capabilities over time instead of forcing replacements.
SPECIFICATIONS
Video Specifications
Max Resolution
HDMI: 1920x1080p-60fps/50fps
Max Frame Rate
60fps / 50fps
Video Sensor
1/2.8 inch, UHD Sony CMOS
Zoom
20x
Physical Specifications
Power
DC 12V/PoE
Interfaces
Ethernet, HDMI, USB 2.0, USB-C, 3G-SDI, RS-232, RS-485, 3.5mm Audio Line-in/Line-out
Protocols
TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
Colors
White, Gray

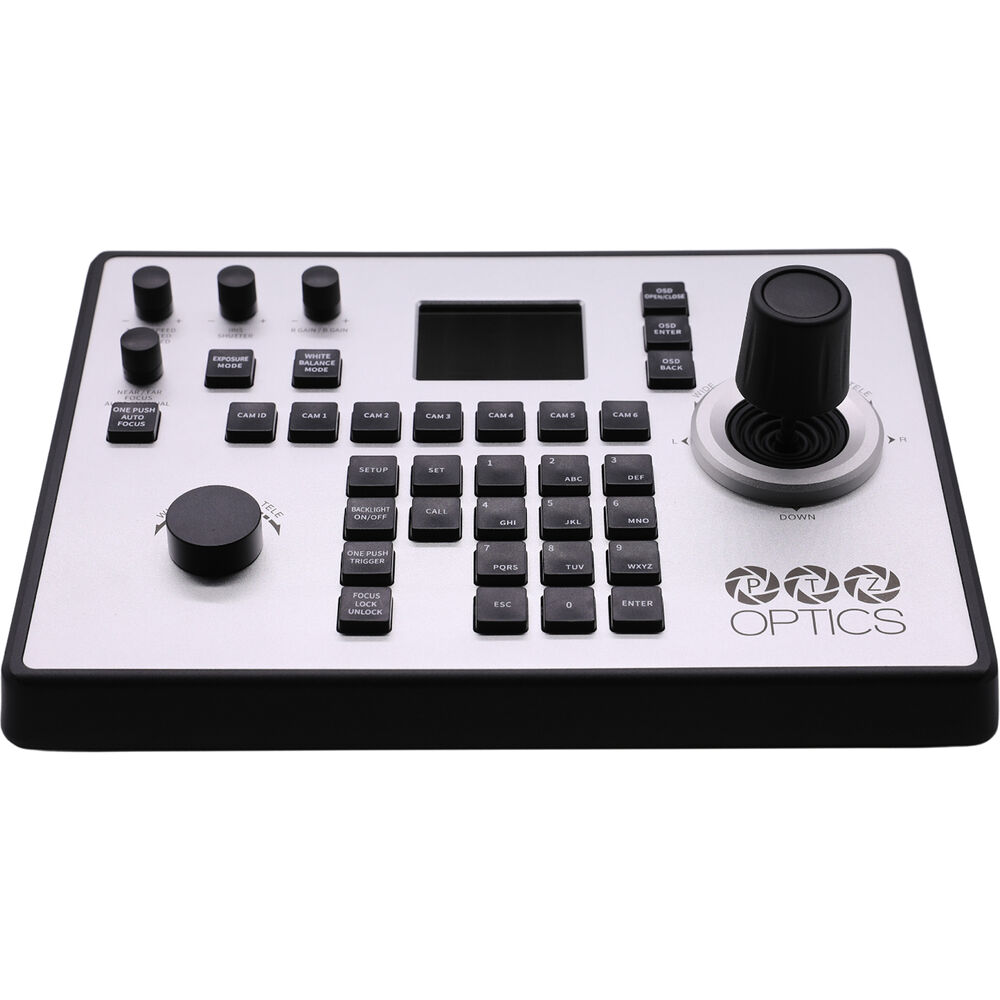

PT Joy G4
A smart choice for any production. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the fourth-generation PT Joy is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.
Fine tune settings like focus control, white balance, and red/blue gain
Customizable buttons and automatic triggers, plus focus lock and unlock
Switch between IP and serial protocols with the press of a button
Durable metal housing and rubberized precision controls
Customizable buttons and automatic triggers, plus focus lock and unlock
Switch between IP and serial protocols with the press of a button
Durable metal housing and rubberized precision controls
The PT Joy is compatible with most serial and IP PTZ cameras, making it a brand-agnostic and legacy-friendly control solution for your production. Plus, with automatic triggers, custom buttons, and three operator modes – Basic, Basic Plus, and Matrix – to accommodate users of varying skill levels, the PT Joy is a great fit for a wide range of video setups.
KEY FEATURES
Import and export settings for specific use cases or production environments for easy management
Basic, Basic PTZ and Matrix Modes for users of all skill levels
Control up to 255 cameras via network, or 7 cameras via serial VISCA
Use large LCD screen to track status, plus easily manage advanced settings via web UI
Basic, Basic PTZ and Matrix Modes for users of all skill levels
Control up to 255 cameras via network, or 7 cameras via serial VISCA
Use large LCD screen to track status, plus easily manage advanced settings via web UI
Enhanced Setup Management
The PT Joy's web UI empowers users to get multiple cameras up and running in as little as five minutes. Plus, for network setup, the PT Joy will dynamically obtain an IP address upon connection to your LAN.
Streamlined, Tactile Control
With an expanded LCD screen and knobs for fine tuning, a single camera operator can easily access cameras and recall preset locations, plus control white balance, red and blue gain, shutter speed and more.
Automatic Triggers
Automatic Triggers are ideal for integrating your PT Joy with your video switcher or other production equipment. Use them to automate your workflow to effortlessly queue up your next camera and scene.
Built for Long-Term Value
Ongoing updates and a two-year warranty protect your investment, adding new capabilities over time instead of forcing costly replacements.
SPECIFICATIONS
Interface Specifications
Max Cameras
253 cameras via network 7 cameras via serial VISCA
Recommended Max Distance
Ethernet: 328 feet | 100 Meters RS-232: 50 feet | 15 Meters RS-422: 50 feet | 15 Meters RS-485: 3,937 feet | 1200 Meters
Baud Rate
1200-19200bps
Warranty
2 Years
Physical Specifications
Power
6W (12VDC) / PoE (802.3af)
Connections
RS-232 Control Connection RS-422 / RS-485 Control Connection 10/100M Ethernet / RJ-45 (PoE) Network Port Supports 802.3af PoE power Network: NIC (TCP and UDP) Serial/Analog: RS-232 Full Duplex, RS-485 Semi Duplex, RS422 Full Duplex
Protocols
PTZOptics, VISCA and VISCA over IP PELCO-D and PELCO-P via Serial Ports, Limited Sony VISCA and VISCA over IP support, Limited ONVIF support, (HTTP) WebSockets
Colors
Silver
