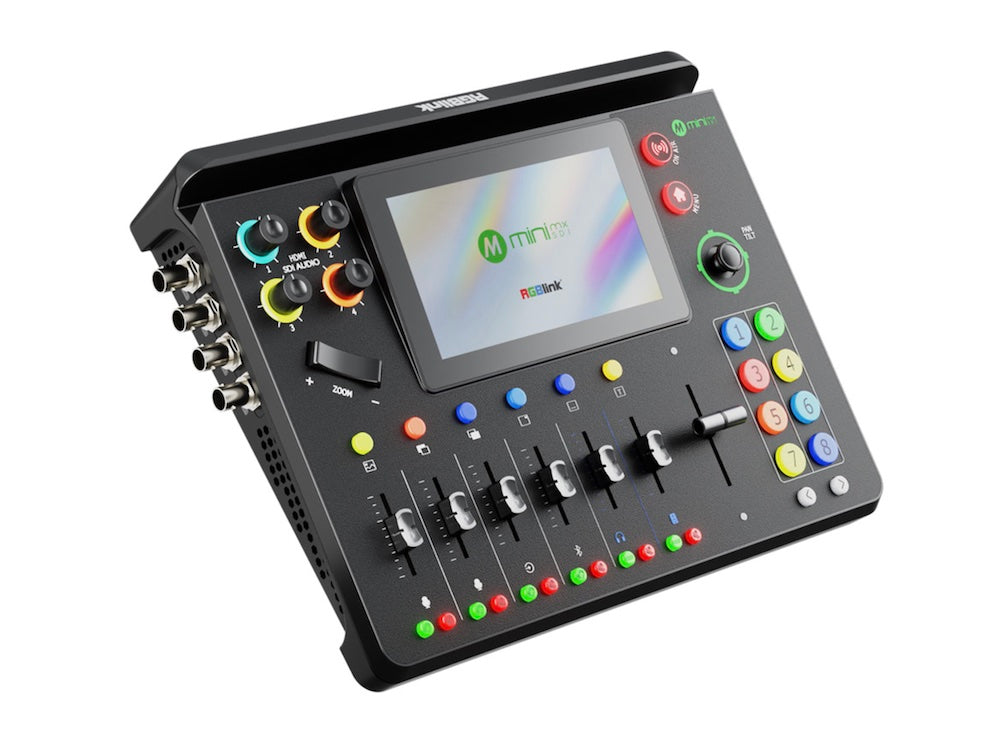

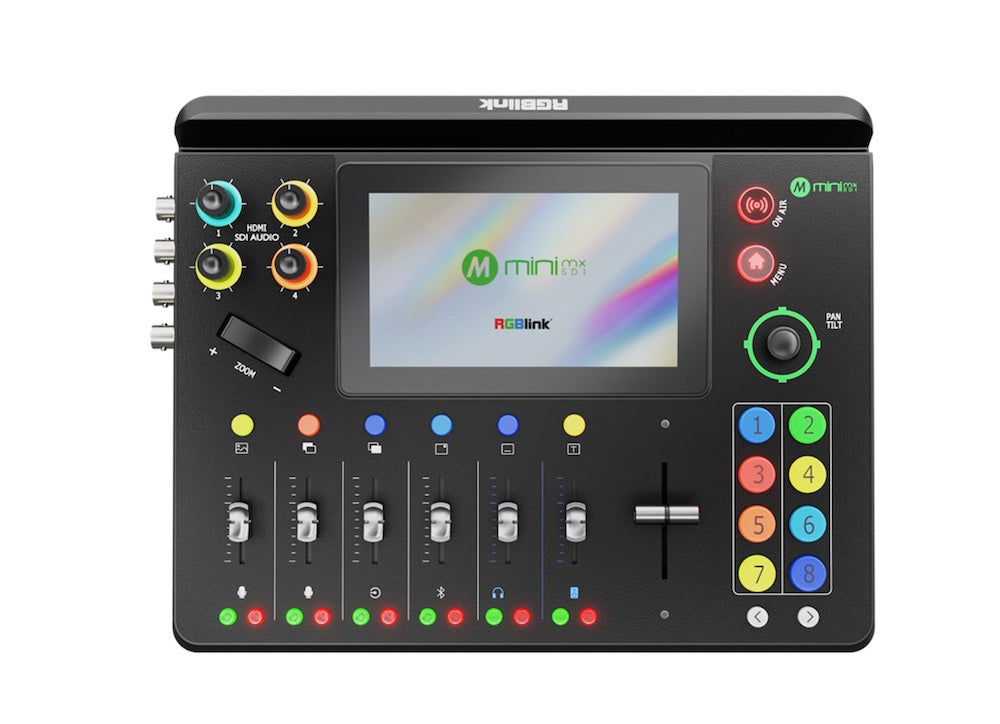

RGBlink mini-mx SDI 10 Channel All-in-One Switcher

RGBLinkSKU: 230-0009-01-0

Need this in a hurry? Check current lead times for RGBLink

Price:
Sale price£1,350.00(incl. VAT)
£1,125.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

RGBlink mini-mx SDI 10 Channel All-in-One Switcher

FEATURES

  • Embedded 5.5-inch TFT and touchscreen

  • 10 input connectors ( 4 x HDMI 2.0, 4 x 3G-SDl, 2K UVC, and 2K NDI)

  • 6-CH customizable video inputs

  • Maximum 8 channels for audio mixing

  • Dynamic text overlay/scoreboard

  • Configurable VFA (video follow audio)

  • 2-CH independent HD HDMI

  • 2K streaming and live via IP and UVC

  • Streaming supports NDI | HX2

  • Streaming and management via RGBlink TAO Cloud

  • Manual real-time control of PTZ cameras, such as zoom in/out, rotation, and focus, via VISCA or NDI

  • Third-party control and integration via free RGBlink Central Control Protocol

mini-mx SDI features four 4K HDMI 2.0 inputs and four 3G SDI inputs, one UVC and one NDI bi-directional input & output. It supports digital embedded audio and video signals from a PC, cameras, and more. Additionally, it has analog audio input options via 2 x Phantom, 1 x Line - in and 1 x MIC, and also supports Bluetooth audio.

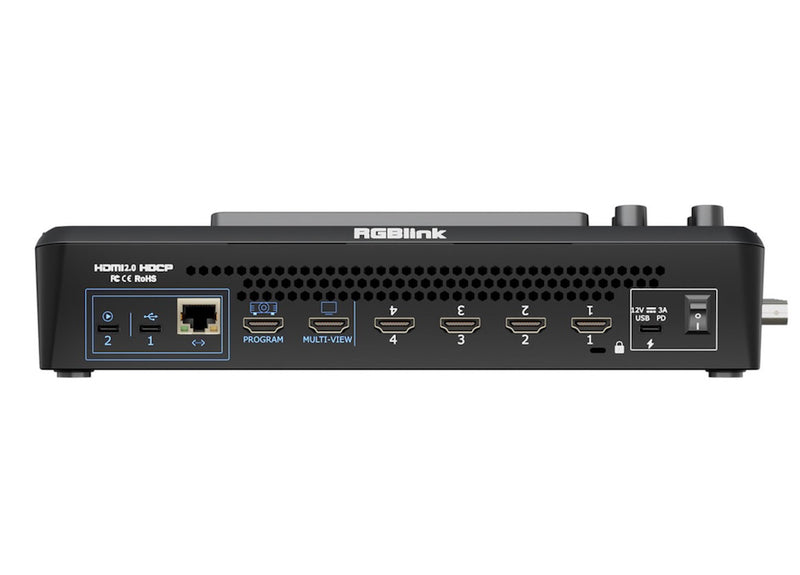

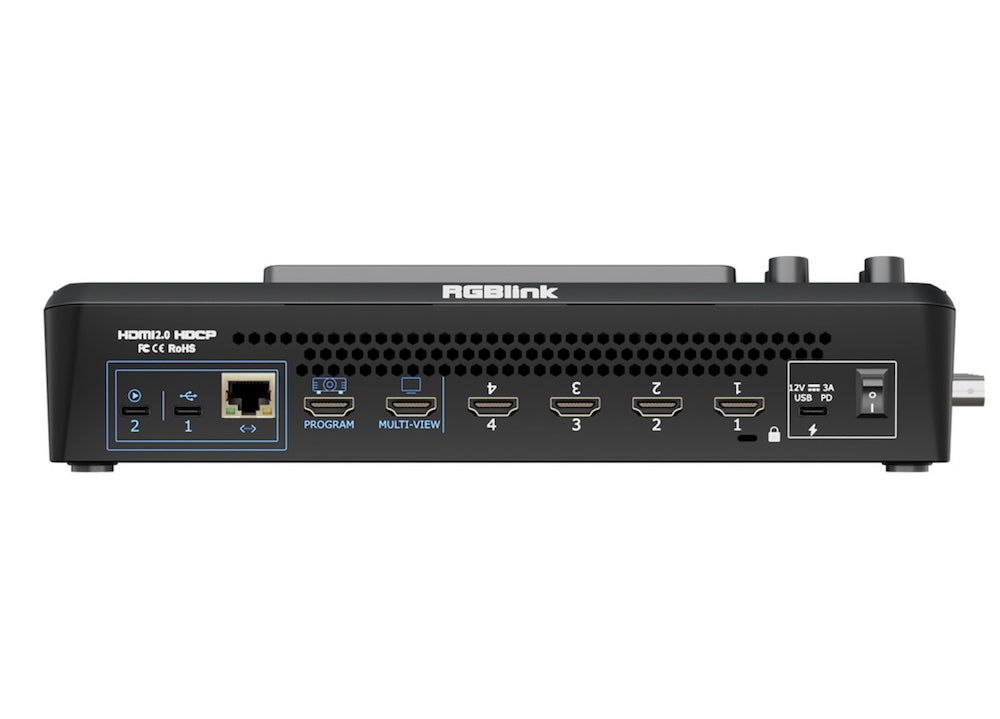

There are two separate HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and MJPEG capture formats, which can be recognized as a webcam for streaming to Facebook, YouTube, ZOOM, etc.

The UVC can be used bidirectionally for USB disk recording, wireless speaker and wireless microphone. This function can be applied to devices such as RGBlink AI mini. The Ethernet port with NDI license enable is bi-direction too, which ensures that the NDI encoder and decoder can work at the same time. mini-mx SDI is built in with 5.5-inch TFT touch panel for menu operation and multiviewer video display.

Compared with mini-mx, mini-mx SDI has 4 more 3G SDI inputs and a ready to license bidirectional NDI, also Noise Reduction, Equalizer, Echo, Reverberation, Voice Fusion for audio inputs. Else it features including dynamic output control, multiviewer, picture in picture, chroma Key, transitions, on board PTZ camera controls and much more.

mini-mx SDI is web APP ready, also integrated with TAO Cloud for remote control and can stream to at least 4 content platforms at the same time.
