Description

RGBLink TAO 1pro-S NDI Encoder and Decoder

FEATURES

  • NDI encoder and decoder
  • 5.5 inch HD touch screen for operation
  • Asynchronous rotation of main screen and HDMI output
  • 2*UVC inputs,1*HDMI 1.3 input,1*SDI input and 1*HDMI 2.0 output
  • HDCP supported
  • Sound column
  • Type-C interface for charging, support PD protocol
  • Compatible with SONY NF970 and Panasonic AG-VBR59MC, standard battery socket (no battery install for standard version)

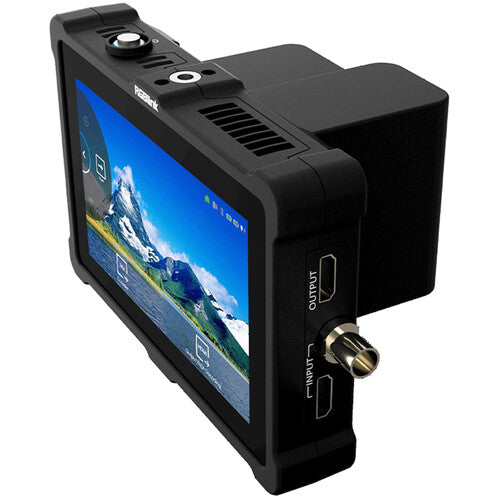

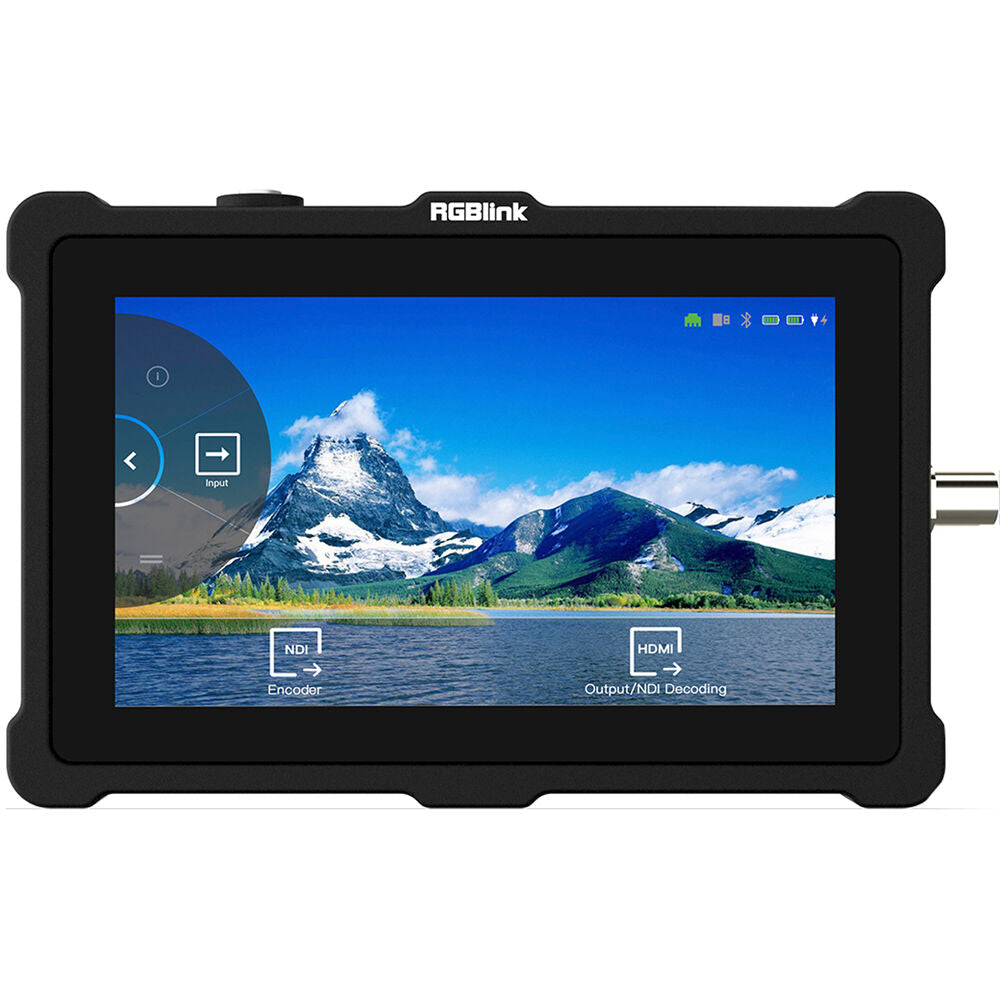

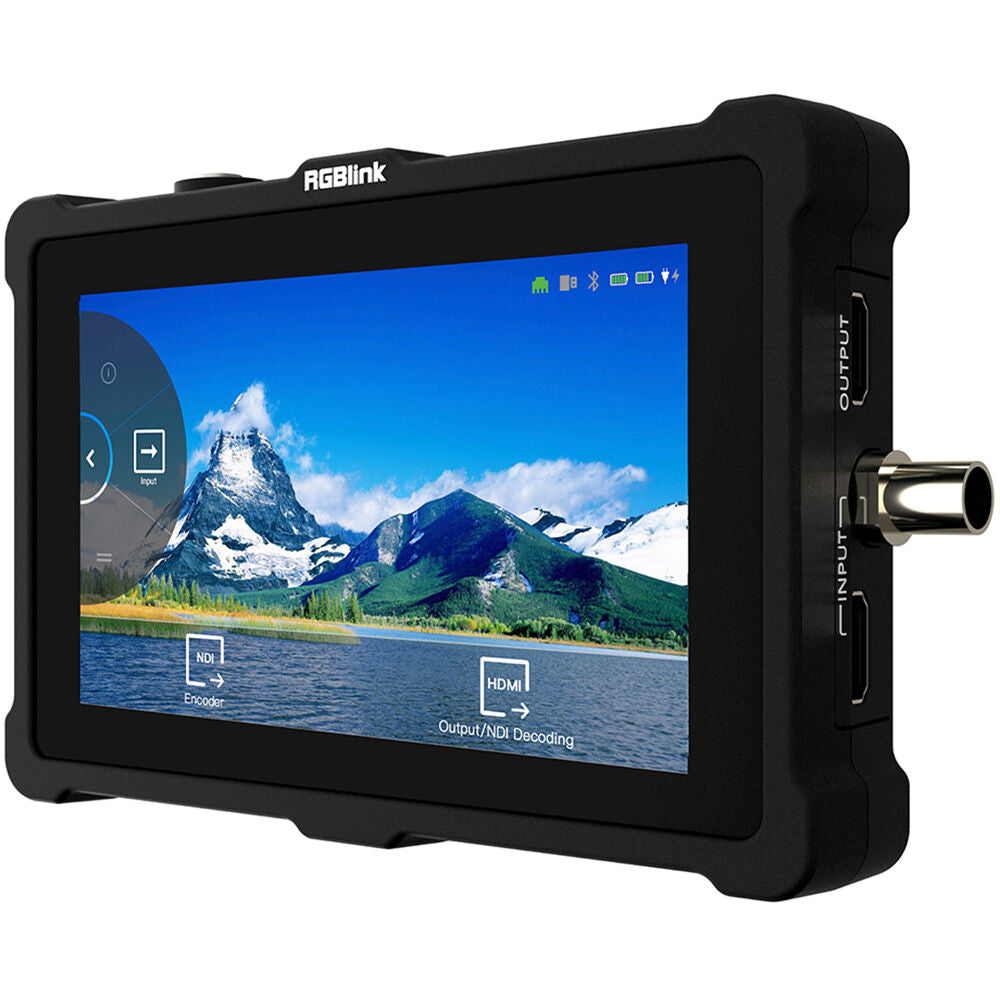

TAO 1pro-S is a NDI encoder/ decoder with a 5.5 inch FHD preview display, which also comes with 1 profession-scale SDI input, 1 HDMI 1.3 input and 2 USB 3.0 inputs.
TAO 1pro-S is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol.
With a touch panel for finger configuration, TAO 1pro-S is with optional 2 chargeable battery extending its capacity for outdoor application.

SPECIFICATIONS

Connectors Input HDMI 1.3 1×HDMI-A
SDI 1xBNC
USB 3.0 2×USB-A
Output HDMI 2.0 1×HDMI-A
Record USB 2.0 1×USB-A
Audio In 1×3.5mm Audio Jack
Out 1×3.5mm Audio Jack
Communication LAN 1×RJ45
Power 1×USB-C
Performance Input Resolutions HDMI
SMPTE 720p@50/60 | 1080p@23/24/60
VESA 1024×768@60 | 1280×720@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 |
1600×1200@60 | 1680×1050@60 | 1920×1080@60
Output Resolutions HDMI
SMPTE 720p@50/60 | 1080p@24/25/50/60 | 2160p@60
VESA 1024×768@60 | 1280×720@50/60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@50/60 | 3840×2160@60
Supported Standard HDMI 1.3(Input) | 2.0(Output)
USB 3.0
Screen Feature Screen Dimension 5.5 ’’TFT
Resolution 1080×1920 pixels
Dot Pitch 0.063(H)×0.021(W)(mm)
Aspect Ratio 16:9
Brightness 450cd/m²
Contrast 1000:1
Backlight LED
View Angle 80°/80°(L/R)80°/80°(U/D)
Power Input Voltage 9V/2A
Max Power 18W
Environment Temperature 0℃~55℃
Humidity 5%~85%
Physical Weight Net 350g(without battery);882g(with battery)
Package 770g
Dimension Net 161mm×106mm×36mm
Package 255mm×145mm×85mm
*1. i signal input and output are not supported;
*2. Reboot is required for signal format modification;
*3. Delay of decoding and encoding is affected by the network.
