Description

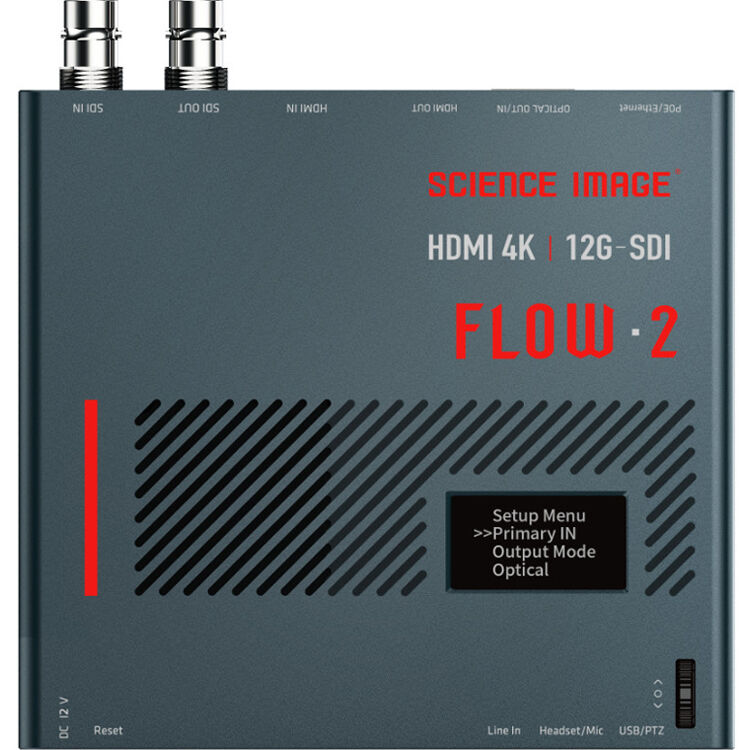

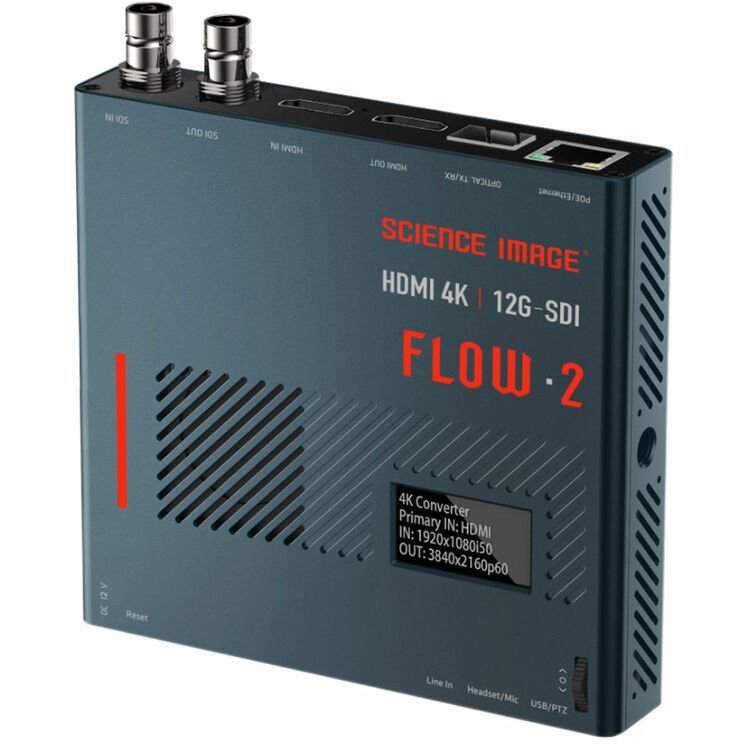

ScieScience Image FLOW 2 UpDownCross Converter with 12G-SDI & HDMI up to 4K 60p - FLOW2
Introducing the NEW FLOW2 by SCIENCE IMAGE is an UpDownCross converter with 12G-SDI & HDMI connectors supporting resolutions up to 3840×2160 at 60p. The device will convert any signal connected by SDI or HDMI to any selected resolution or frame rate, fully adjustable by a scroll wheel or web portal.
With both 12G-SDI & HDMI inputs/outputs, FLOW2 supports lossless bi-directional conversion between the two connector types.
FLOW2 takes any signal SDI or HDMI signal and converts it to any resolution or frame-rate. In addition, the 12G-SDI and HDMI inputs/outputs support lossless bi-directional conversion between the two connector types.
A handy on-device OLED screen displays the current status, including resolution of signal. Device settings are controlled over a network using any web browser. Browser-based GUI displays all settings, as well as the current status.
SPECIFICATIONS
| Connectors | |
| Video Input | 1x 12G-SDI / 1x HDMI 2.0 |
| Video Output | 1x 12G-SDI / 1x HDMI 2.0 |
| Other | 1x Ethernet, 1x SMPTE Optical Fibre In/Out, 1x USB, 1x 12V DC-In, 1x 3.5mm Line-In & 1x 3.5mm Headphone Out |
| Resolution & Frame Rates | |
| 12-SDI | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| HDMI | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Power | |
| Power Consumption | 10W |
| Weight & Dimensions | |
| Weight | 360g |
| Dimensions | 125mm (L) x 115mm (W) x 24mm (D) |
WHAT'S IN THE BOX
- 1x Flow2
- 1x Power Supply Unit (PSU)
