Science Image NDI HD Mini Full NDI Bidirectional Encoder/Decoder

SKU: NDI HD Mini

Price:
Sale price£485.76(incl. VAT)
£404.80

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

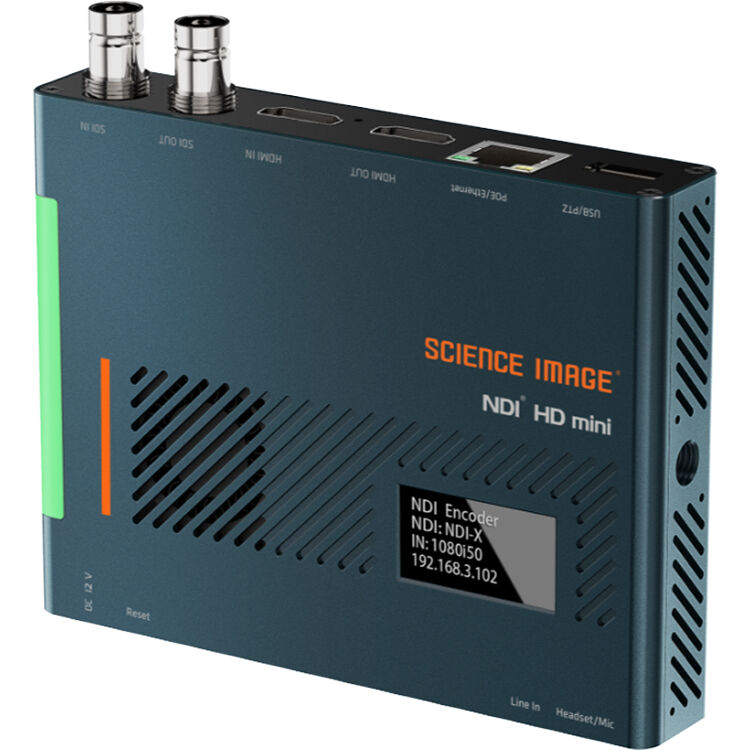

Science-Image NDI HD Mini Full NDI Bidirectional Encoder/Decoder - NDI-HD-Mini

The NDI® HD mini converts up to HD/3G-SDI or HDMI 4K30P video sources to Full NDI output, and can also be set to decode in reverse, that is, convert Full NDI to SDI and HDMI output... So an HD Full NDI Encoder/Decoder. It can also be used to display aTally signal in real-time, support Intercom functions, control camera PTZ functions. There is a full and comprehensive online control and configuration of device parameters and settings.



NDI HD Mini by Science Image is a bi-directional Full NDI encoder & decoder with 3G-SDI in/out up to 1920×1080 60p and HDMI in/out up to 3840×2160 30p. Harnessing the full capabilities of NDI, NDI HD Mini can utilise PTZ remote control, PoE, tally signals, crew comms/intercom & more!

As an encoder, NDI HD Mini takes any 3G-SDI (1920×1080 60p) or HDMI (3840×2160 30p) signal and converts it to Full NDI’. Once converted, the NDI source can be used with software including vMix and many, many more! In decode mode, any NDI signal on the network can be output from NDI HD Mini to both 3G-SDI or HDMI signals – perfect for IMAG projectors or screens.

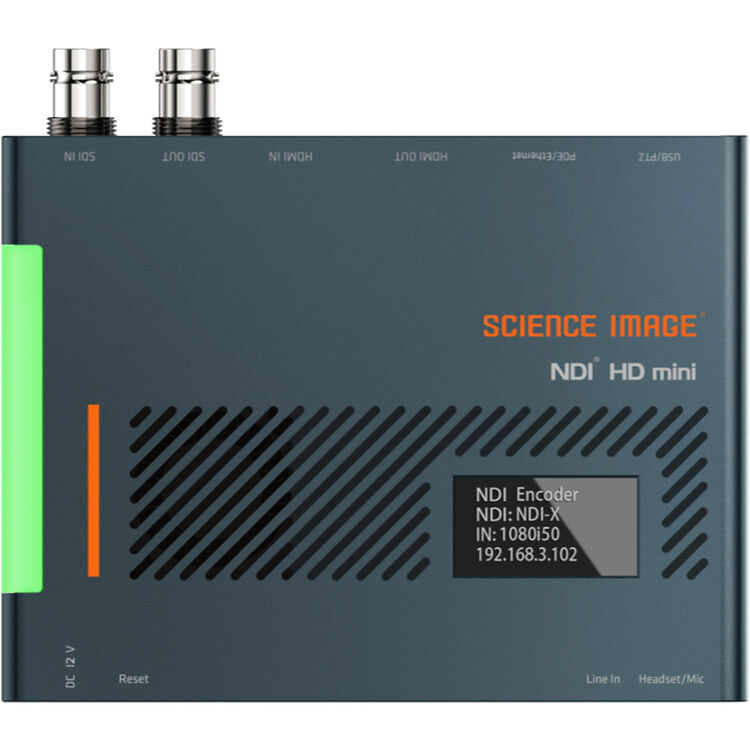

NDI HD Mini has both 3G-SDI and HDMI inputs/outputs which support lossless bi-directional conversion between the two connector types! A handy on-device OLED screen displays the current status, including decode/encode mode and resolution of the signal.

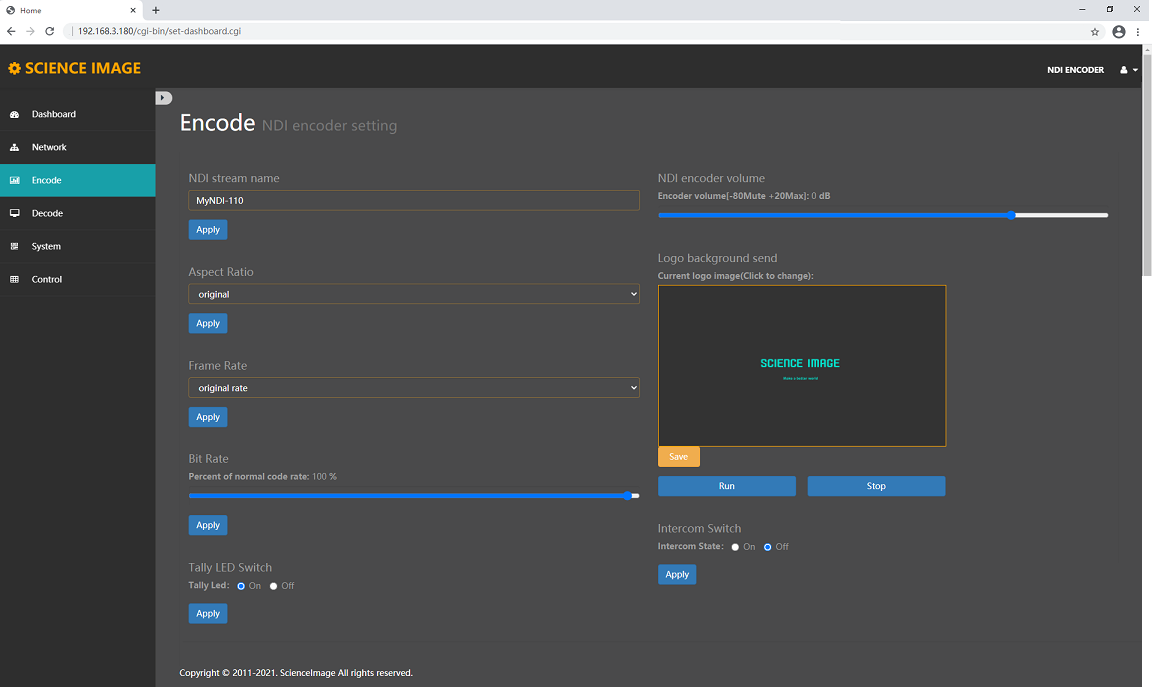

Device settings are controlled over the network using any web browser. Browser-based GUI displays all settings, as well as the current status.

SPECIFICATIONS

Connectors
Video Input 1x 3G-SDI / 1x HDMI
Video Output 1x 3G-SDI / 1x HDMI
Other 1x Ethernet/NDI, 1x USB, 1x 12V DC-In, 1x 3.5mm Line-In & 1x 3.5mm Headphone Out
Resolution & Frame Rates
3G-SDI 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
HDMI 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Power
Power Consumption 10W

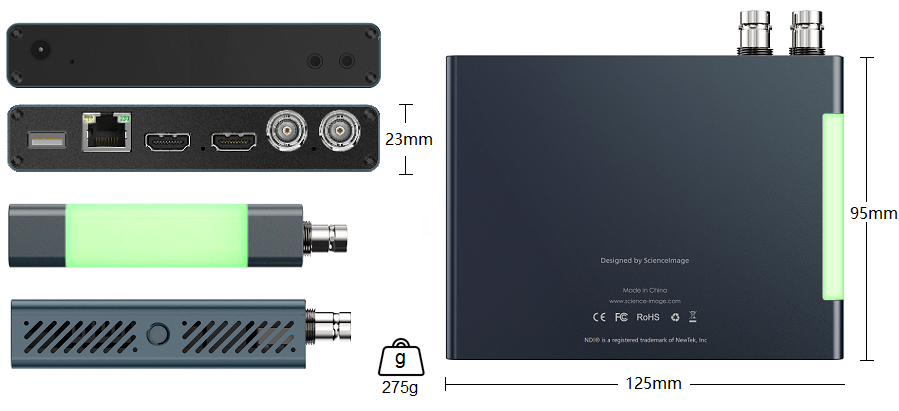

Weight & Dimensions
Weight 275g
Dimensions 125mm (L) x 95mm (W) x 23mm (D)



WHAT'S IN THE BOX

  • 1x NDI HD Mini
  • 1x Power Supply Unit (PSU)
