SHURE BLX24R/SM58 Wireless Rackmount Handheld System BLX4R/SM58 K3E

FEATURES

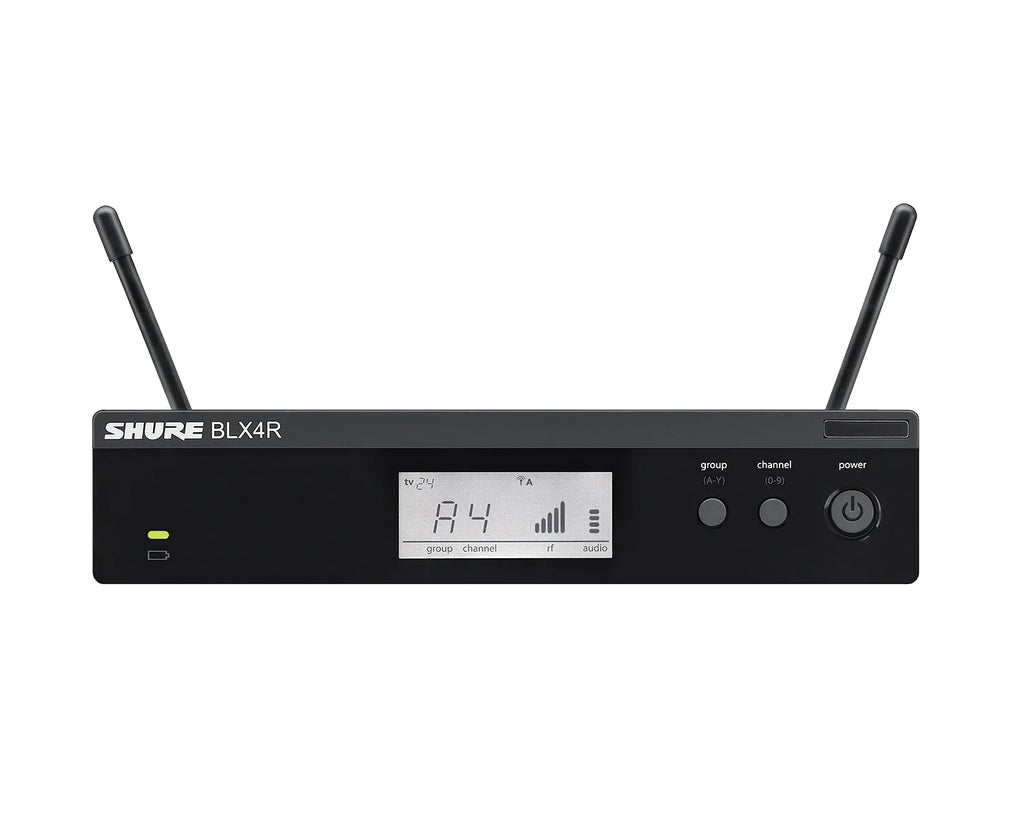

BLX4R Receiver Features

• One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
• Up to 12 compatible systems per frequency band (region-dependent)

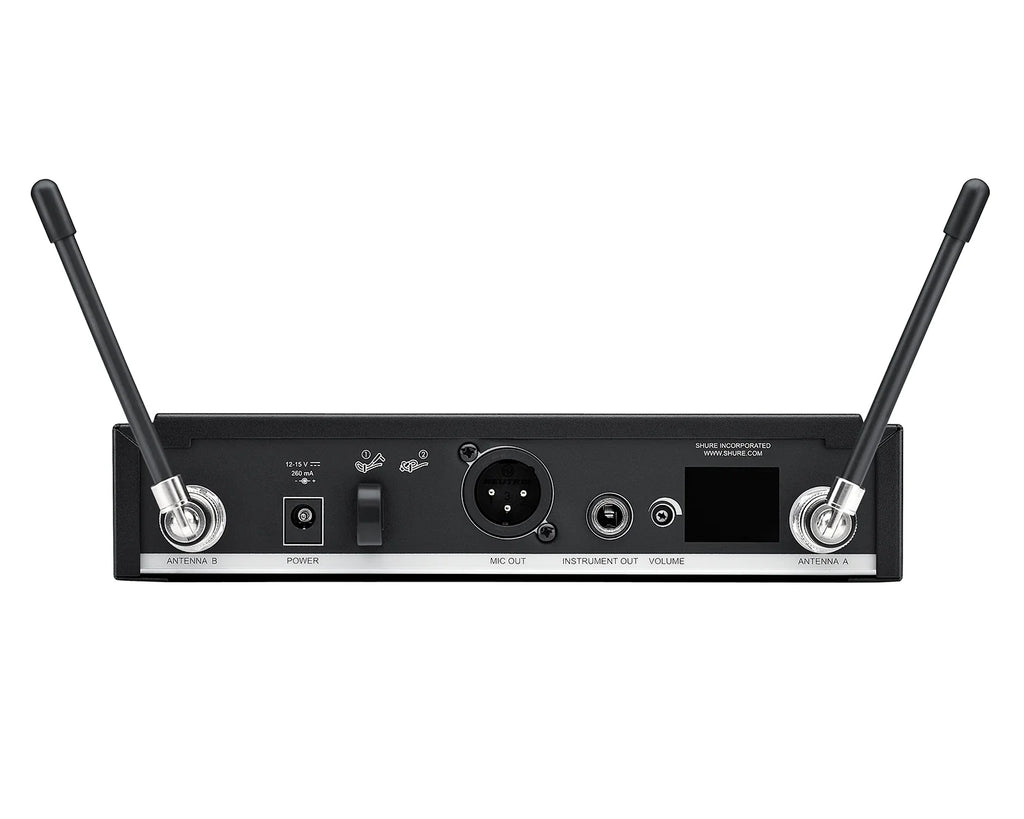

• XLR and ¼” output connectors
• Two-colour audio status indicator LED
• Green: Normal audio levels
• Red: Excessive audio levels (overload/clipping)
• Adjustable output level
• Removable antennas for quick antenna distribution
• LC Display with detailed RF and audio metering

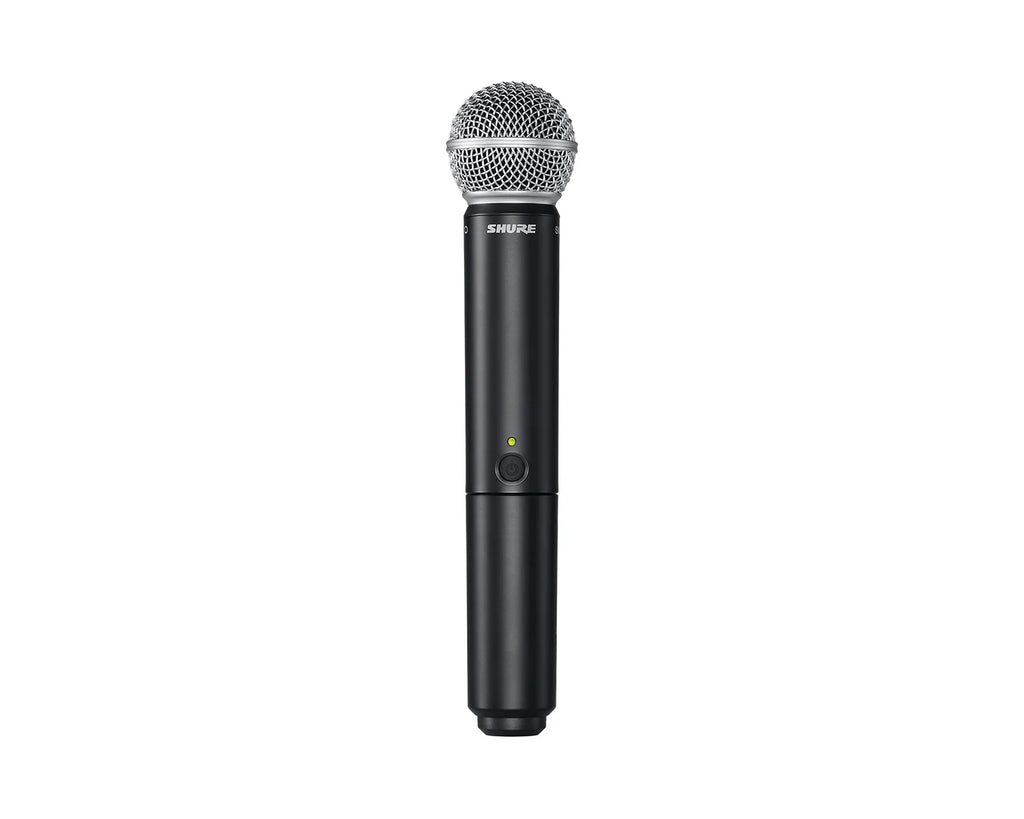

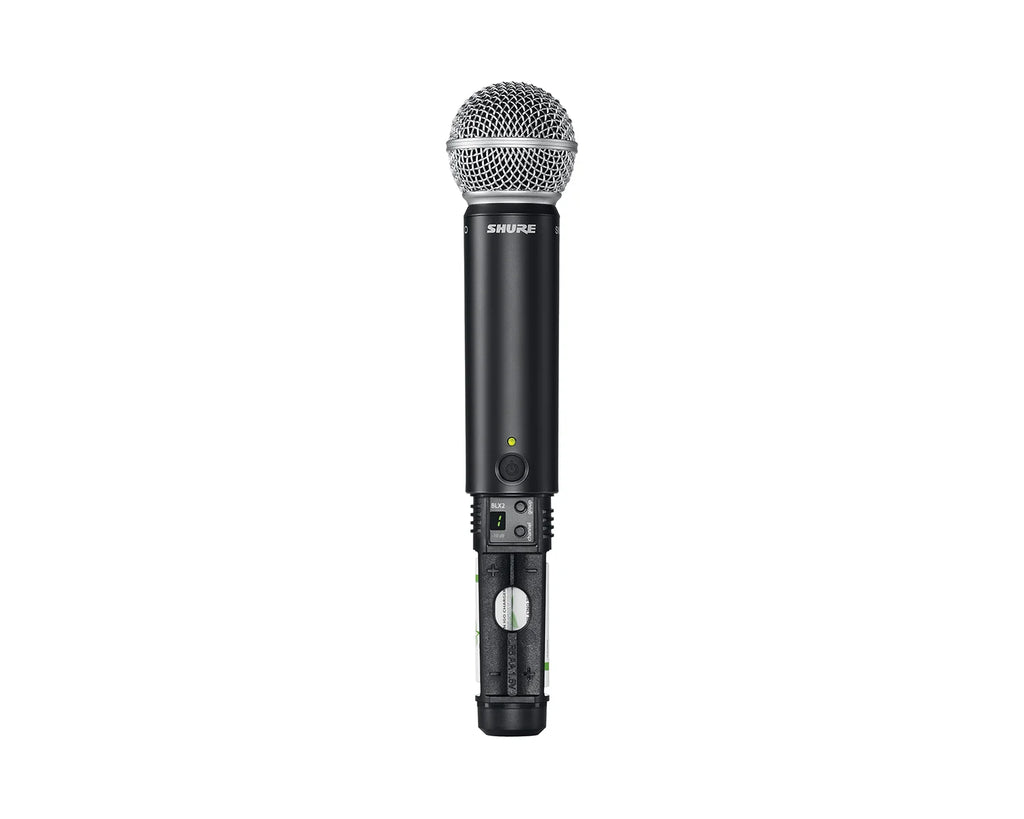

BLX2/SM58 Handheld Features

• Cardioid Dynamic Microphone
• Power and battery status LED
• Adjustable gain control
• Quick and easy frequency matching
• AA batteries (included) provide up to 14 hours of continuous use
• 100 m (300 ft) operating range (line of sight)
• Integrated microphone capsule design
• -10 dB gain attenuation
• Lightweight, rugged construction

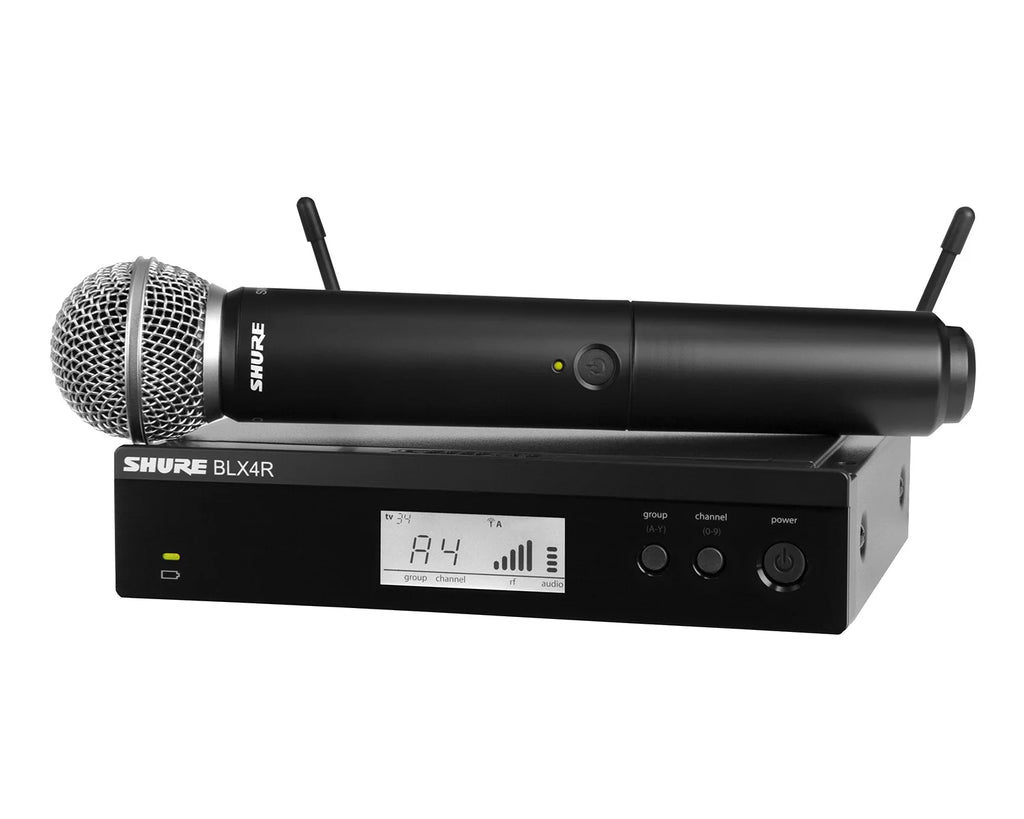

The Shure BLX24R/SM58 Wireless Rack-mount Vocal System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, legendary SM58 handheld transmitter, microphone clip, power supply, 2 AA batteries, rackmount kit, 2 1/4 wave antennas, and user guide.

WHAT'S IN THE BOX

• 1 x BLX4R Half-rack single-channel receiver
• 1 x SM58 Handheld Transmitter
• 1 x 53A8611 RACK MOUNT BRACKET
• 1 x 53A8612 LONG RACK MOUNT BRACKET
• 1 x 53B8443 LINK BRACKET
• 1 x 90AZ8100 HARDWARE KIT
• 1 x WA371 Swivel Adapter
• 1 x 31B1856 Thread Adapter
• 2 x 95A8699 ANTENNA/BNC,1/4 WAVE
• 2 x 95A8994 ADAPTER,BULKHEAD,BNC
• 1 x 95B2313 BAG VINYL, ZIPPERED
• 2 x 95K2035 CABLE,BNC,22 in.
• 1 x Power supply

SPECIFICATIONS

• Working Range: 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
• Audio Frequency Response: 50 to 15,000 Hz Note: Dependent on microphone type
• Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

BLX4R Receiver Specifications

• Output Impedance
  • XLR connector: 200 Ω
  • 6.35 mm (1/4") connector: 50 Ω
• Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
  • XLR connector: –20.5 dBV (into 100 kΩ load)
  • 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50 dB, typical
• Dimensions: 1.65 in. X 7.80 in.X 6.42 in. (42 mm X 198 mm X 163 mm) H x W x D
• Weight without antennas: 2.2 lbs (998 g)
• Housing: Molded ABS, steel
• Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)

BLX2 Handheld Specifications

• Audio Input Level:
  • 0dB: -20 dBV maximum
  • -10dB: -10 dBV maximum
• Gain Adjustment Range: 10 dB
• RF Transmitter Output: 10 mW, typical (varies by region)
• Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
• Weight: 7.7 oz. (218 g) without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)
