Sonifex AVN-PM8D 8 Mic/Line Inputs, 8 Stereo Line Outputs, AES67 Display Portal

Multi-Channel Audio Interfaces Using AES67 AoIP - AVN Portals

These are a range of 3 audio interface portals which mix and route analogue, AES3, microphone & AES67 stream inputs to analogue, AES3 & AES67 outputs:

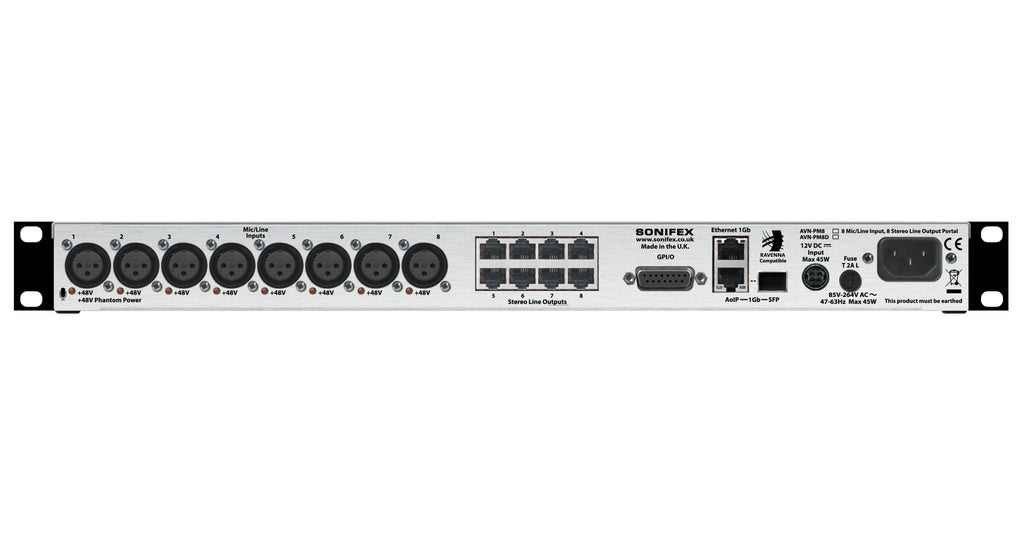

Each of the portals can be supplied in different versions: As standard they have a front panel display to show product information and for editing basic IP functionality and they use XLRs and D-types for rear panel connectivity. There are 2 other options available:

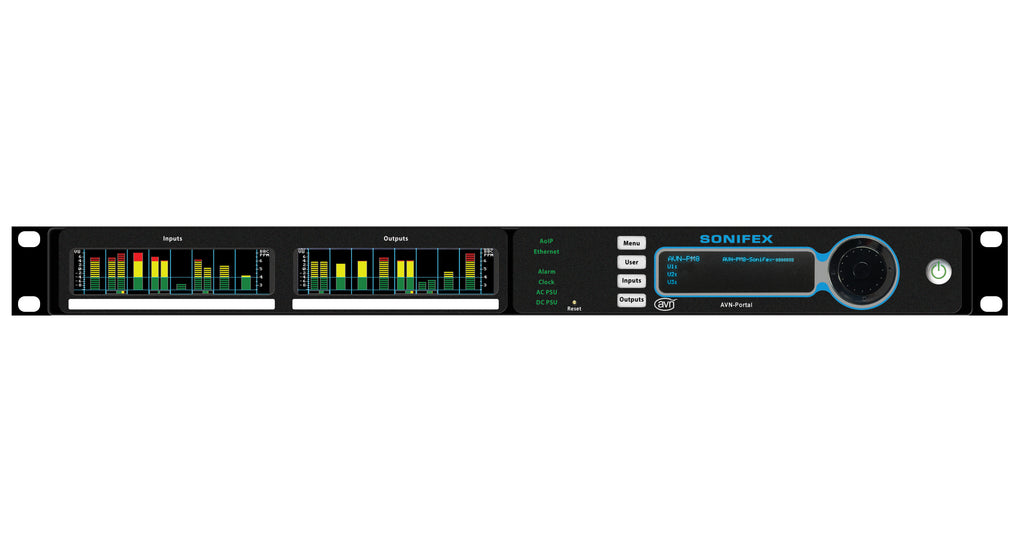

The 'D' version portals have front panel input and output metering on 2 bright TFT displays. Metering can show as one of 9 different metering scales and there is a summary view of all input channels with a detailed view of any selected stereo pair. Phase metering is also displayed per stereo channel.

The 'T' version portals use rear panel terminal block connectors for all physical inputs and outputs.

The portals are able to mix any of their physical inputs and 16 x AES67 AoIP stream inputs to any physical outputs and 16 x AES67 AoIP outputs, providing a very powerful mix matrix for numerous broadcast and AV applications. All units have input and output level trim, gain adjustment at cross-points and output limiters, 10 user assignable GPIO ports, dual AC & DC power supply inputs, dual 1Gb Ethernet & 1Gb SFP ports and configuration via a responsive web-server interface.
