Description

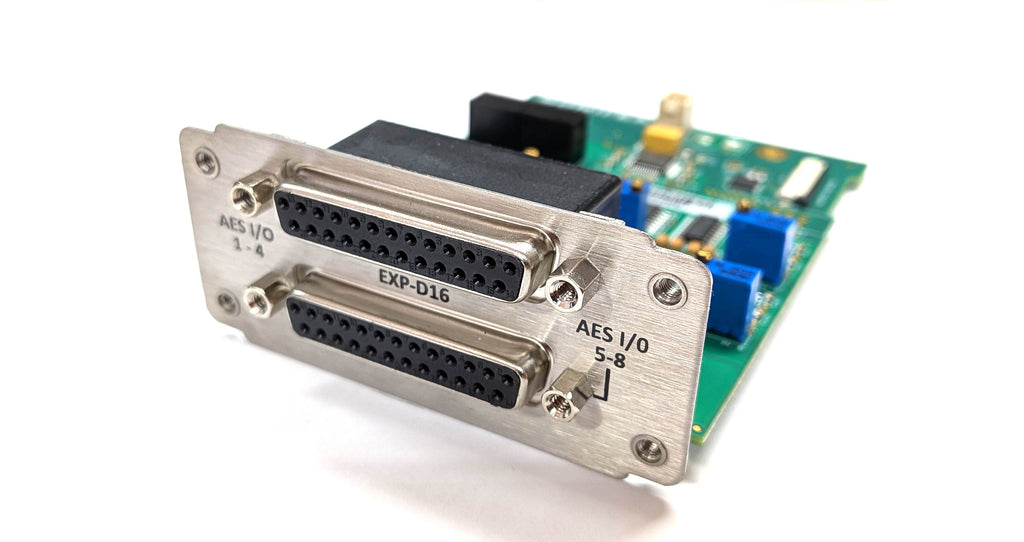

Sonifex EXP-D16 8 AES3 Stereo Digital Input/Output Expansion Card
Adds 8 stereo AES/EBU inputs and outputs (16 channels in/out total) via AES59 25-pin D-type, fully integrated into the routing grid. Available factory-fitted or as a retrofit to the RM-X-64-DNT or the RM-X-64-RAV.
This expansion module provides eight stereo AES/EBU digital audio inputs and eight stereo outputs (16 channels in and 16 channels out) via a 25-pin D-type connector, using the AES59 digital pinout for straightforward integration into professional broadcast and audio systems.
Once installed, all inputs and outputs are available within the unit’s internal routing grid, accessible via the integrated web server. This enables flexible routing and control of digital audio signals, allowing seamless incorporation into existing workflows.
The module can be supplied factory-fitted or retrofitted in the field, with a straightforward disassembly and reassembly process. It connects directly to the main board using the supplied 4-pin power cable and 30-pin FFC audio/control cable, ensuring a reliable installation. This card extends digital connectivity while maintaining clean signal handling and robust performance.
Product Features
-
8 stereo AES/EBU digital audio inputs and 8 stereo outputs (16 in / 16 out total channels).
-
25-pin D-type connector with AES59 digital pinout.
-
Full integration into the internal routing grid via web server.
-
Flexible routing of all input and output channels within the system.
-
Supplied with 4-pin power cable and 30-pin FFC audio/control cable.
-
Can be factory-fitted or retrofitted in the field.
-
Disassembly and reassembly process for installation.
Typical Applications
Digital Input |
|
|---|---|
| Connector | 25 pin D-type socket |
| Format | AES3 |
| Impedance | 110Ω Balanced |
| Supported Encoding | PCM, up to 24 bits |
Digital Stereo Audio Input/Output Pinouts: Top D-type |
|
| Pinout 1 | AES Output 4+ (channels 7/8) |
| Pinout 2 | AES Output 4 GND (channels 7/8) |
| Pinout 3 | AES Output 3- (channels 5/6) |
| Pinout 4 | AES Output 2+ (channels 3/4) |
| Pinout 5 | AES Output 2 GND (channels 3/4) |
| Pinout 6 | AES Output 1- (channels 1/2) |
| Pinout 7 | AES Input 4+ (channels 7/8) |
| Pinout 8 | AES Input 4 GND (channels 7/8) |
| Pinout 9 | AES Input 3- (channels 5/6) |
| Pinout 10 | AES Input 2+ (channels 3/4) |
| Pinout 11 | AES Input 2 GND (channels 3/4) |
| Pinout 12 | AES Input 1- (channels 1/2) |
| Pinout 13 | N/A |
| Pinout 14 | AES Output 4- (channels 7/8) |
| Pinout 15 | AES Output 3+ (channels 5/6) |
| Pinout 16 | AES Output 3 GND (channels 5/6) |
| Pinout 17 | AES Output 2- (channels 3/4) |
| Pinout 18 | AES Output 1+ (channels 1/2) |
| Pinout 19 | AES Output 1 GND (channels 1/2) |
| Pinout 20 | AES Input 4- (channels 7/8) |
| Pinout 21 | AES Input 3+ (channels 5/6) |
| Pinout 22 | AES Input 3 GND (channels 5/6) |
| Pinout 23 | AES Input 2- (channels 3/4) |
| Pinout 24 | AES Input 1+ (channels 1/2) |
| Pinout 25 | AES Input 1 GND (channels 1/2) |
Digital Stereo Audio Input/Output Pinouts: Bottom D-type |
|
| Pinout 1 | AES Output 8+ (channels 15/16) |
| Pinout 2 | AES Output 8 GND (channels 15/16) |
| Pinout 3 | AES Output 7- (channels 5/6) |
| Pinout 4 | AES Output 6+ (channels 11/12) |
| Pinout 5 | AES Output 6 GND (channels 11/12) |
| Pinout 6 | AES Output 5- (channels 9/10) |
| Pinout 7 | AES Input 8+ (channels 15/16) |
| Pinout 8 | AES Input 8 GND (channels 15/16) |
| Pinout 9 | AES Input 7- (channels 13/14) |
| Pinout 10 | AES Input 6+ (channels 11/12) |
| Pinout 11 | AES Input 6 GND (channels 11/12) |
| Pinout 12 | AES Input 5- (channels 9/10) |
| Pinout 13 | N/A |
| Pinout 14 | AES Output 8- (channels 15/16) |
| Pinout 15 | AES Output 7+ (channels 13/14) |
| Pinout 16 | AES Output 7 GND (channels 13/14) |
| Pinout 17 | AES Output 6- (channels 11/12) |
| Pinout 18 | AES Output 5+ (channels 9/10) |
| Pinout 19 | AES Output 5 GND (channels 9/10) |
| Pinout 20 | AES Input 8- (channels 15/16) |
| Pinout 21 | AES Input 7+ (channels 13/14) |
| Pinout 22 | AES Input 7 GND (channels 13/14) |
| Pinout 23 | AES Input 6- (channels 11/12) |
| Pinout 24 | AES Input 5+ (channels 9/10) |
| Pinout 25 | AES Input 5 GND (channels 9/10) |
