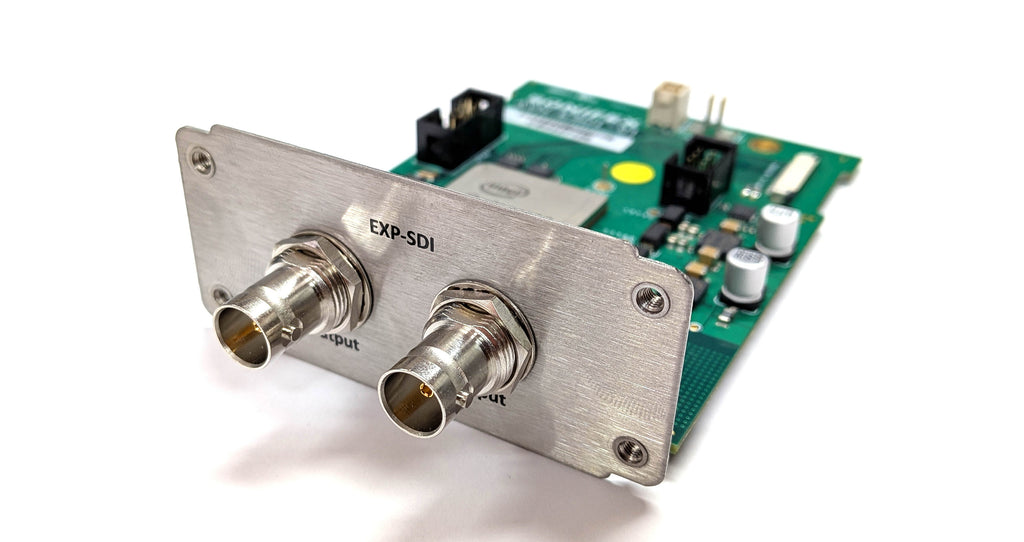

Sonifex EXP-SDI 12G/6G/3G/HD-SDI Expansion Card
Adds SDI de-embedding with 12G/6G/3G/HD/SD support, providing extracted audio into the routing grid and a re-driven SDI output for distribution. Available factory-fitted or as a retrofit to the RM-X-64-DNT or the RM-X-64-RAV.
This SDI de-embedder expansion card provides a single 12G/6G/3G/HD/SD-SDI input and a corresponding re-driven 12G/6G/3G/HD/SD-SDI output via BNC connectors, supporting a wide range of broadcast video formats for flexible system integration.
The module extracts embedded audio from the incoming SDI signal, making all de-embedded audio channels available within the unit’s internal routing grid via the integrated web server. This allows selected audio channels to be easily assigned and routed within the wider system workflow.
The SDI output provides a re-clocked, re-driven copy of the input signal, enabling reliable distribution of SDI to additional devices within the installation. This card is strictly a de-embedder and does not provide any embedding functionality.
The expansion card connects directly to the main board using the supplied 4-pin power cable and 30-pin FFC control cable, with full installation instructions included. Designed for seamless integration, it offers a simple and efficient way to expand SDI audio extraction capability within the system.
Product Features
-
1 x 12G/6G/3G/HD/SD-SDI input (BNC).
-
1 x Re-driven 12G/6G/3G/HD/SD-SDI output (BNC).
-
SDI de-embedding of embedded audio channels.
-
Supports multiple SDI formats up to 12G.
-
De-embedded audio available in internal routing grid via web server.
-
Re-clocked 12G-SDI output for reliable signal distribution.
-
No embedding functionality (de-embed only operation).
-
Supplied with 4-pin power cable and 30-pin FFC audio/control cable.
-
Can be factory-fitted or retrofitted in the field.
-
Disassembly and reassembly process for installation.
Typical Applications
SDI Input |
|
|---|---|
| Output Impedance | 75Ω Unbalanced |
| Return Loss | Compliant with SMPTE ST 2082-1 |
| SDI Supported Standards | 270Mbps SMPTE-259M-C (SD) |
| 1.485 or 1.4835Gbps SMPTE-292M (HD) | |
| 2.97 or 2.967Gbps SMPTE-424M (3G) | |
| 5.94 or 5.934Gbps SMPTE-2081 (6G) | |
| 11.88 or 11.868Gbps SMPTE-2082 (12G) | |
| Supported Video Formats | 525/59.94 (SMPTE-125M) |
| 625/50 (ITU-R BT.656) | |
| Supported Video Formats | 720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M) |
| 1035i/59.94, 60 (SMPTE-260M) | |
| 1080i/50, 59.94, 60 (SMPTE-274M) | |
| 1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M) | |
| 1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) | |
| 1080i/50 (SMPTE-295M) | |
| 1080p/50 (SMPTE-295M) | |
| 2160P/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-2036) | |
| Embedded Audio | 48kHz, synchronous |
| SMPTE-272M-ABC | |
| SMPTE-299M | |
| SMPTE-299-2 | |
SDI Output |
|
| Output Impedance | 75Ω Unbalanced |
| Alignment Jitter | <0.2UI |
| Output Level | 800mV ±10% |
| Return Loss | Compliant with SMPTE ST 2082-1 |
| SDI Supported Standards | Output follows input |
| Supported Video Formats | Output follows input |
| Embedded Audio | Output follows input – no embed function |
