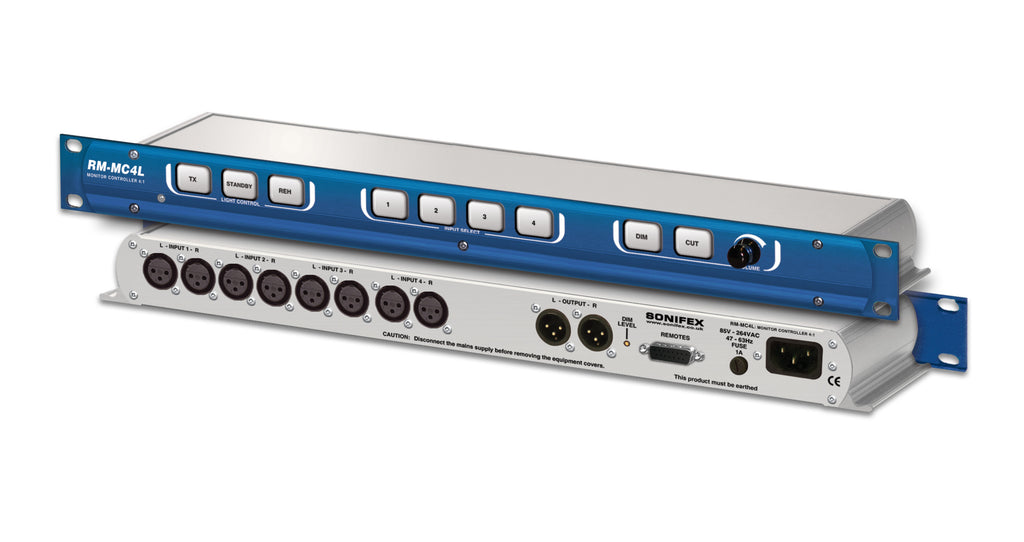

Sonifex RM-MC4L Monitor Controller 4 Stereo Inputs, 1 Stereo Output With Light Control
The RM-MC4L has four stereo balanced analogue inputs with a single stereo balanced output, all using XLR connectors.
The RM-MC4L has four stereo balanced analogue inputs with a single stereo balanced output, all using XLR connectors. Four illuminated front panel buttons allow you to simply select the source required at the output.
The RM-MC4L has the same master volume control, CUT, DIM and light control functions and adjustments as the RM-MC1L unit.
Product Features
-
4x Stereo balanced analogue inputs (XLR).
-
1x Stereo balanced analogue output (XLR).
-
4x source selector buttons.
-
0dB to -86dB master volume control.
-
Separate remoteable DIM & CUT buttons.
-
Tally outputs for REH (Rehearse), Standby, and TX light control.
-
2 minute Standby countdown timer feature.
-
DIM level control (rear panel pre-set pot).
Typical Applications
Inputs |
|
|---|---|
| Input Impedance: | >20kΩ |
| Maximum Input Level: | +25dBu |
| Output Impedance: | <50 Ω |
| Maximum Output Level: | +25dBu |
| Attenuation Range: | >86dB |
| DIM Attenuation Range: | Adjustable -3dB to -23dB via rear panel potentiometer |
| Common Mode Rejection: | >66dB typical |
| Distortion: | <0.04% ref +8dBu |
| Crosstalk: | <-80dB @ 1kHz input, ref 0dBu |

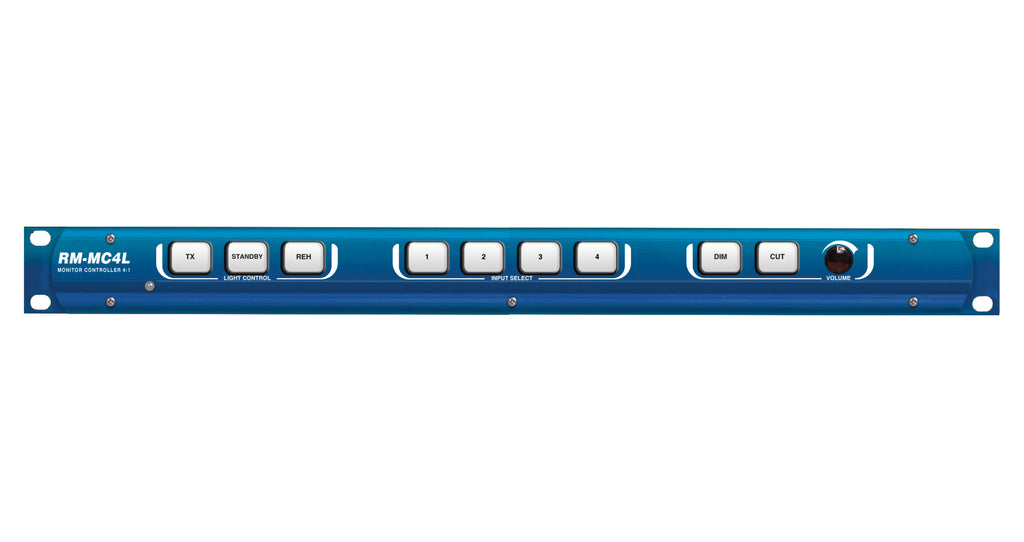

Front Panel Operation Controls |
|
| Light Control (All units): | Transmit (TX), Standby & Rehearse (REH) illuminated buttons |
| Channel Select: | 1, 2, 3 & 4 illuminated buttons |
| Audio Controls: | Dim & Cut illuminated buttons |
| Volume Control: | Rotary potentiometer for output attenuation on front panel |

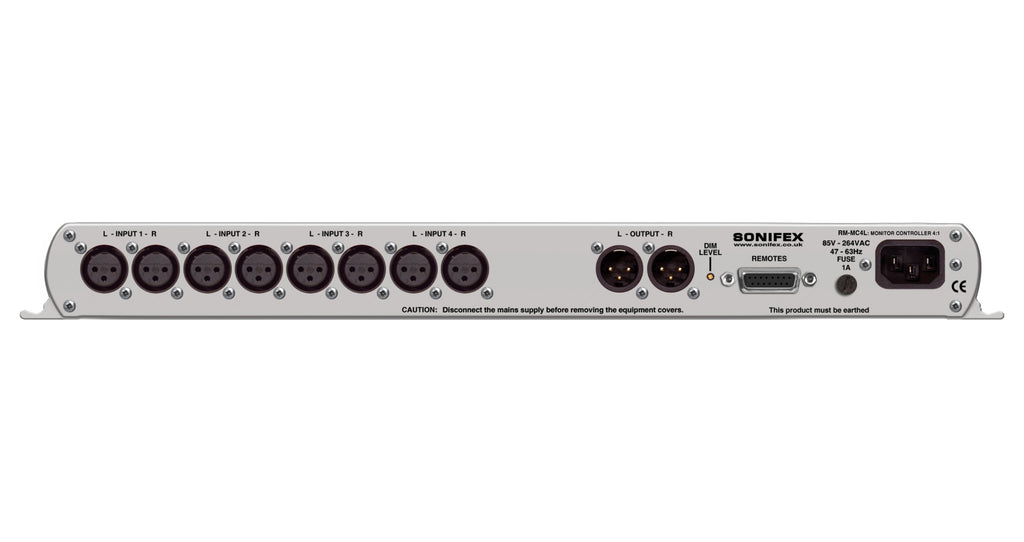

Rear Panel Connections |
|
| Audio Inputs: | 8 x XLR 3-pin female (balanced) |
| Audio Outputs: | 2 x XLR 3-pin male (balanced) |
| Remote I/O Port: | 15 way D-type socket |
| Mains Input: | Filtered 3-pin IEC male, continuously rated 85-264VAC, 47-63Hz, fused |
| Fuse Rating: | Anti-surge fuse 1A, 20 x 5mm |
Equipment Type |
|
| RM-MC4L | Monitor controller, 4 stereo inputs, 1 stereo output with light control |
Physical Specification |
|
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.3cm (H) |
| Dimensions (Raw): | 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) |
| Dimensions (Boxed): | 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight : | Nett: 1.3kg Gross: 1.9kg |
| Weight : | Nett: 2.9lbs Gross: 4.2lbs |
