Description

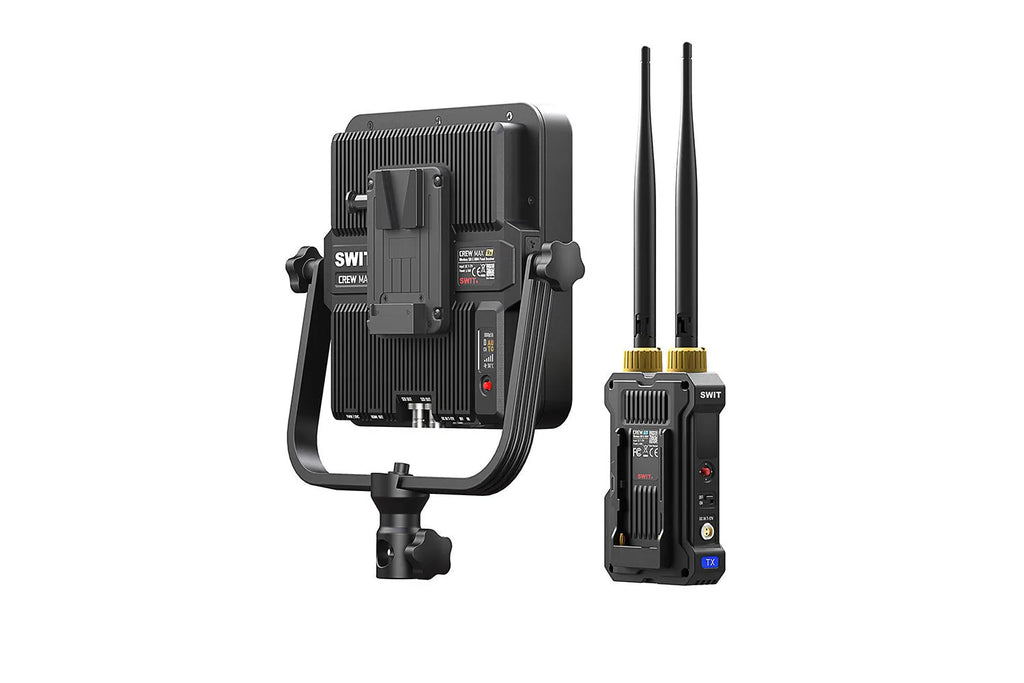

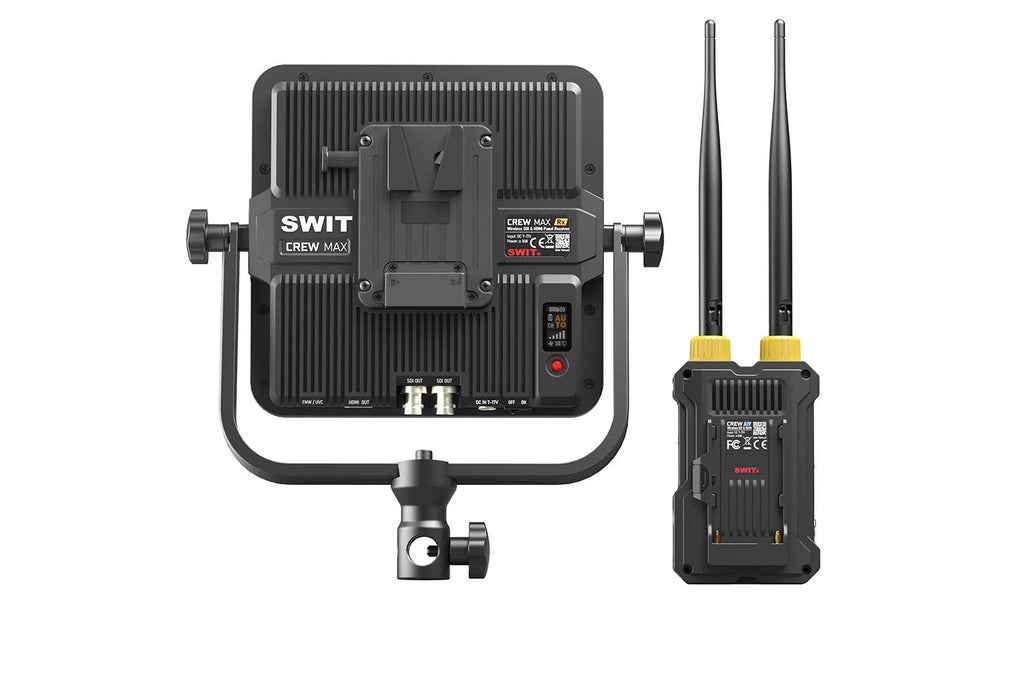

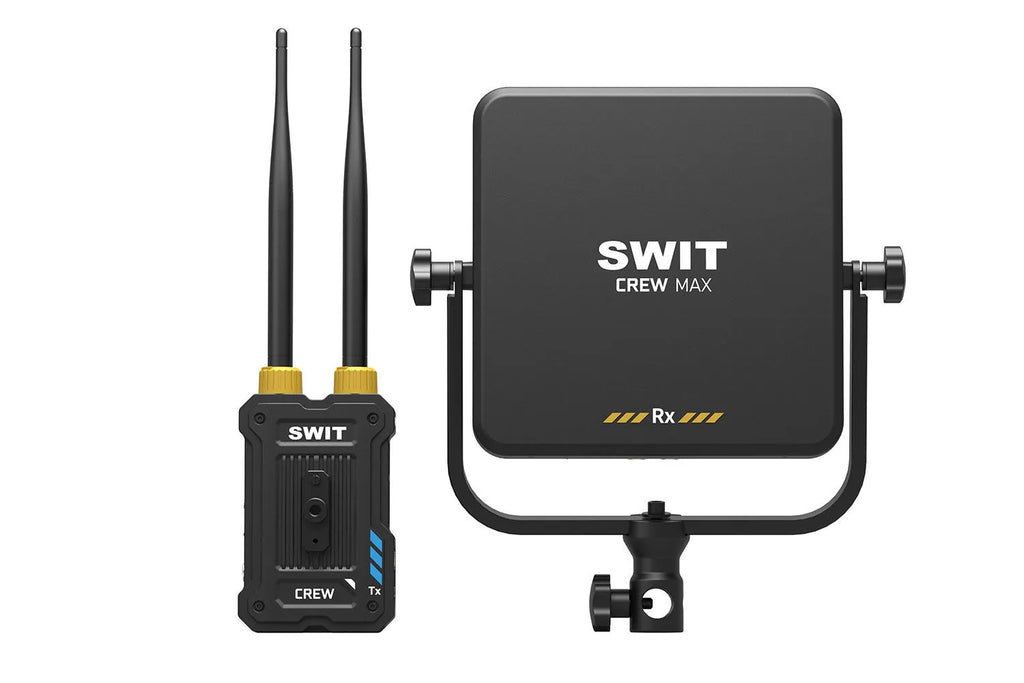

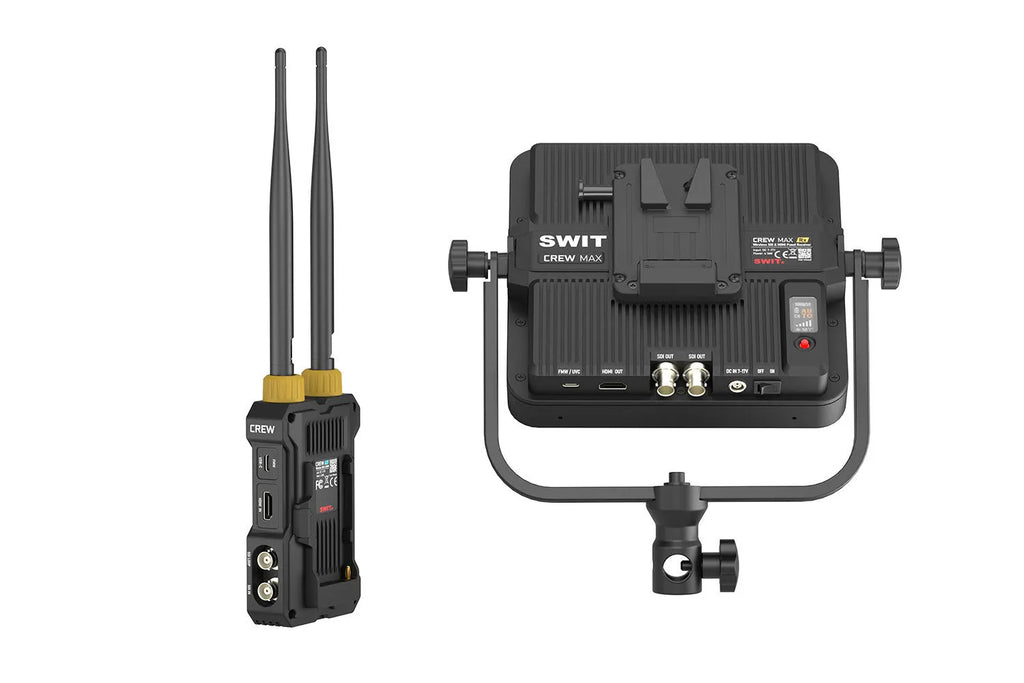

SWIT CREW MAX 3km/10000ft Pro Wireless Video Transmission/Receiver Kit
FEATURES
- KUWI 2.0 Pro wireless tech, NOT WIFI
- Proprietary anti-interference RF
- 5.1-5.9GHz License-Free DFS Comply
- Auto scan and select optimal channel
- High gain panal antenna with Rx built-in
- 3km / 10000ft (Line-of-Sight) distance
- 3GSDI & HDMI® HD video transmission
- USB-C Video Capture out for PC/Mac
- H.265 up to 26.8Mbps visual lossless
- Consistent 32ms ultra low latenty
- Uncompromised 1T to 4R Multicast
- MetaData & TC trigger transmission
- High bright OLED display & configuration
- AES-256 dual encryption protection
- NP-F Plate Tx and V-mount Rx
- 2-pin LEMO / USB-C Power Supply
The new generation CREW wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.
KUWI 2.0 Professional Chip, Stable As Always
The New Generation KUWI2.0 professional chip for wireless video, 5.1-5.9GHz License-Free, inherits the stability advantages of SWIT wireless products, ensures the stable transmission in the most complex environment.
Professional Video Production Applications
The CREW series Wireless System is engineered for exceptional stability and reliability, the solution for professional video productions like sports broadcast productions, cinematic filmset shooting and high end event productions. CREW ensures seamless, real-time transmission with minimal latency and zero signal dropouts, providing production teams with the confidence and flexibility needed for flawless on-set and on-location workflows.
Reliable 3km Long Distance, Stronger Wall-cross
CREW MAX provides with a particular panel receiver with high gain directional antenna inside, enabling transmission range of up to 3km (10,000 ft) in line of sight, for large-scale video productions. Even in environments with heavy obstructions, CREW MAX can ensure stronger wall-cross performance.
32ms Consistent Low Latency
The ultra-low latency has exceeded the limits of human visual perception, achieving visually lossless performance, suitable for the professional wireless follow focus, the most demanding application in terms of latency.
The latency is consistent, never changed regardless of the environment interference. In multi-camera productions, using CREW would ensure the strict synchronization among the multiple wireless channels.
Uncompromised 1T to 4R Multi-Cast
The CREW supports 1 Transmitter to up to 4 Receivers Stable Multi-Cast Transmission, with no compromise on Distance, Latency or Video quality for film crew application. All the CREW family Tx and Rx are fully cross-compatible for multicast.
Tx: 3G-SDI & HDMI
The Transmitter supports
3G-SDI in×1, loop out×1, HDMI in×1 HD video inputs, Compatible with a wide range of ENG and CINE cameras.
Panel Rx: 3G-SDI, HDMI and UVC out
The Panel Receiver provides:
3G-SDI out×2, HDMI out×1 and USB-C Video Capture out×1
* Whether Tx input SDI or HDMI, all Rx interfaces can output simultaneously.
USB-C Video Capture
For PC/Mac Livestreaming
The CREW MAX wireless receiver provides USB-C port video capture output, and can be connect to a computer for ivestreaming productions, 1080P50/60 High Quality Video Capture, Driver-free for both PC and Mac.
Visually Lossless High Video Quality
The CREW series wireless transmission adopts H.265 High Quality Encoding, bit rate up to 26.8 Mbps, visually lossless compared to cable video.
Display and Configuration
High Bright Color OLED Screen
Both the Tx and Panel Rx Wireless is equipped with a high bright 450nits OLED screen that remains clearly visible even in direct sunlight. It displays essential transmission status information such as video format, frequency channel, signal strength, etc. A user-friendly joystick allows for easy configuration of all functions, including Tx/Rx pairing, channel switching, fan on/off control, firmware upgrades, and more.
WHAT'S IN THE BOX
- CREW Tx + CREW MAX Rx
- Tags white×2 & Yellow×2
- D-tap to 2-pin LEMO cable ×2
- USB-C to C cable ×2
- USB-A to C OTG
- Carrying Case
SPECIFICATIONS
Input / Output
Transmitter |
SDI input×1, loop output ×1 |
|
HDMI® input×1 |
Receiver |
SDI output×2 |
|
HDMI® output ×1 |
|
USB-C Video capture output ×1 |
Video Formats
SDI / HDMI® |
1080p60, 1080p59.94, 1080p50 |
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; |
|
1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30 |
|
1080i60, 1080i59.94, 1080i50; |
|
720p60, 720p59.94, 720p50 |
|
Compression |
H.265 up to 26.8M bit-rate |
Embedded Audio |
2-ch |
Metadata |
Yes |
Timecode & Trigger |
Yes |
Wireless
Frequency |
5.17GHz-5.69GHz and 5.75GHz-5.83GHz |
RF Modules |
OFDM 16QAM, 64QAM, QPSK, BPSK |
RF Power |
23dbm |
Distance |
3km / 10000ft (Line of sight) |
Latency |
32ms |
Multicast |
1 Tx up to 4 Rx |
Encryption |
AES-256 |
Power
Battery Plate |
Tx: NP-F type, Rx: V-mount |
DC Input |
Tx & Rx: 2-pin LEMO 7-17V |
USB-C Input |
Tx: 9V/2A; Rx: 5V/2A |
Power Consumption |
Tx: 16W, Rx: 6W |
General
Environmental |
-10°C to 40°C |
Dimension |
Tx: 130×80×36.7mm Rx: 190×190×50mm |
Weight |
Net: Tx:333g, Rx: 1511g |
