Description

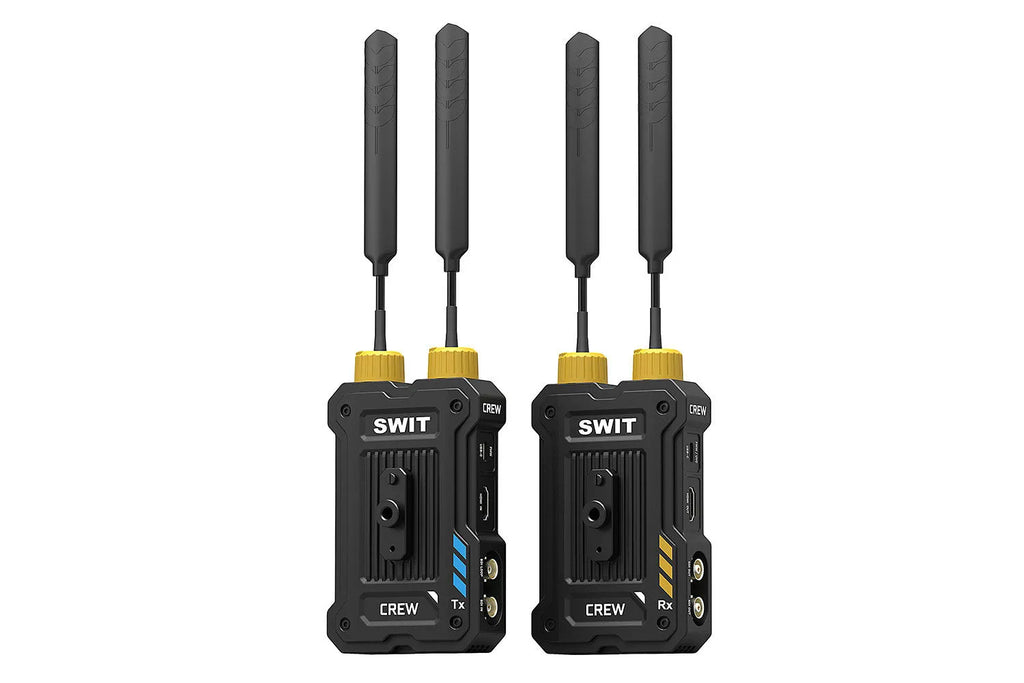

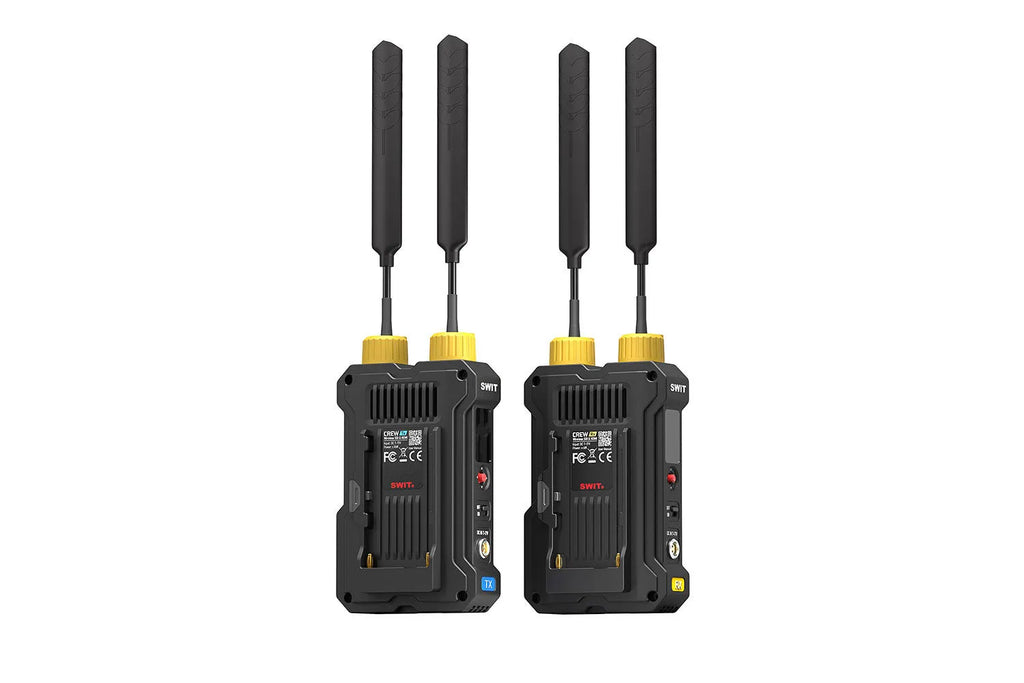

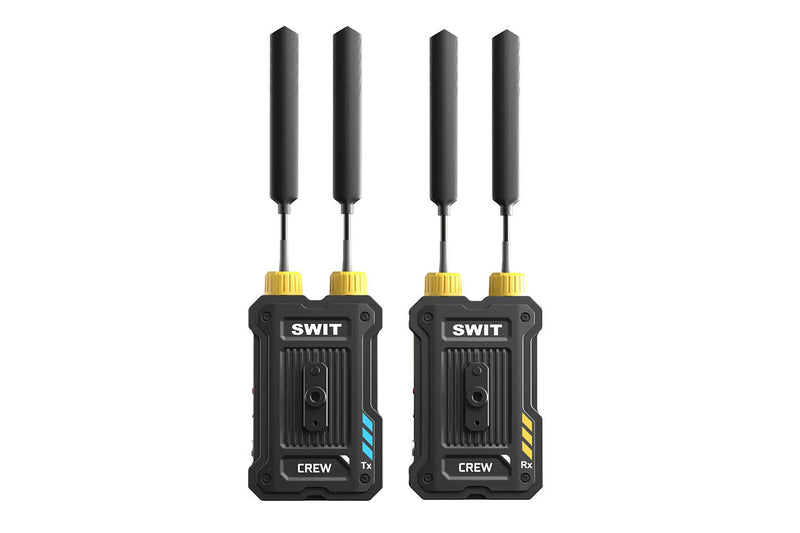

SWIT CREW SDI/HDMI 4000ft NP-F Plate Transmission/Receiver Kit


The new generation CREW wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.

KUWI 2.0 Professional Chip, Stable As Always
The New Generation KUWI2.0 professional chip for wireless video, 5.1-5.9GHz License-Free, inherits the stability advantages of SWIT wireless products, ensures the stable transmission in the most complex environment.

Professional Video Production Applications
The CREW series Wireless System is engineered for exceptional stability and reliability, the solution for professional video productions like sports broadcast productions, cinematic filmset shooting and high end event productions. CREW ensures seamless, real-time transmission with minimal latency and zero signal dropouts, providing production teams with the confidence and flexibility needed for flawless on-set and on-location workflows.

Reliable 1.2km Long Distance Transmission
CREW features advanced video codec and optimized intelligent RF power, enabling transmission range of up to 1.2 km (4000 ft) in line of sight, to significantly expand the monitoring coverage, provide greater flexibility and freedom for live video production.

32ms Consistent Low Latency
The ultra-low latency has exceeded the limits of human visual perception, achieving visually lossless performance, suitable for the professional wireless follow focus, the most demanding application in terms of latency.
The latency is consistent, never changed regardless of the environment interference. In multi-camera productions, using CREW would ensure the strict synchronization among the multiple wireless channels.

Uncompromised 1T to 4R Multi-Cast
The CREW supports 1 Transmitter to up to 4 Receivers Stable Multi-Cast Transmission, with no compromise on Distance, Latency or Video quality for film crew application. All the CREW family Tx and Rx are fully cross-compatible for multicast.

USB-C Video Capture
For PC/Mac Livestreaming

The CREW wireless receiver provides USB-C port video capture output, and can be connect to a computer for ivestreaming productions, 1080P50/60 High Quality Video Capture, Driver-free for both PC and Mac.

USB-C Video Capture
Monitor by Smart Devices

Connect CREW Receiver to a smart phone or tablet via USB-C port, to watch the camera video wirelessly instead of a pro video monitor.
* Compatible with all 3rd party “USB camera” APP.

Display and Configuration
High Bright Color OLED Screen

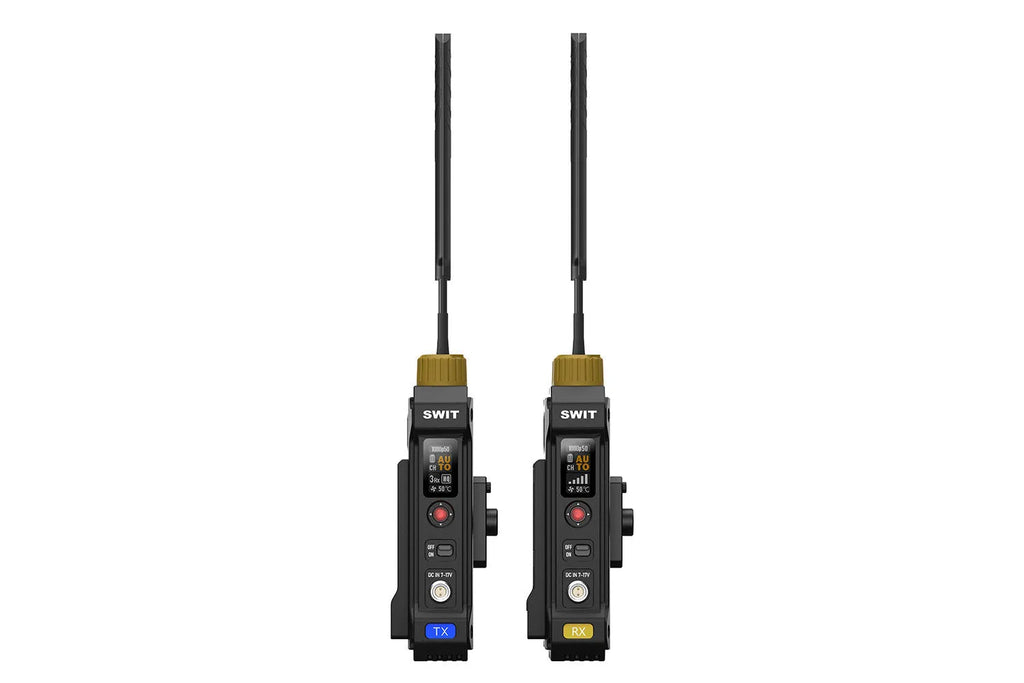

Both the Tx and Panel Rx Wireless is equipped with a high bright 450nits OLED screen that remains clearly visible even in direct sunlight. It displays essential transmission status information such as video format, frequency channel, signal strength, etc. A user-friendly joystick allows for easy configuration of all functions, including Tx/Rx pairing, channel switching, fan on/off control, firmware upgrades, and more.

WHAT'S IN THE BOX

  • CREW Tx + Rx

  • Backup High Gain Antennas ×4

  • Tags white×4 & Yellow×4

  • D-tap to 2-pin LEMO cable ×2

  • USB-C to C cable ×2

  • USB-A to C OTG

  • Carrying Case

SPECIFICATIONS

Input / Output

Transmitter

SDI input×1, loop output ×1



HDMI® input×1

Receiver

SDI output×2



HDMI® output ×1



USB-C Video capture output ×1

Video Formats

SDI / HDMI®

1080p60, 1080p59.94, 1080p50

1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;

1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30

1080i60, 1080i59.94, 1080i50;

720p60, 720p59.94, 720p50

Compression

H.265 up to 26.8M bit-rate

Embedded Audio

2-ch

Metadata

Yes

Timecode & Trigger

Yes

Wireless

Frequency

5.17GHz-5.69GHz and 5.75GHz-5.83GHz

RF Modules

OFDM 16QAM, 64QAM, QPSK, BPSK

RF Power

23dbm

Distance

1.2km / 4000ft  (Line of sight)

Latency

32ms

Multicast

1 Tx up to 4 Rx

Encryption

AES-256

Power

Battery Plate

Tx & Rx: NP-F type

DC Input

Tx & Rx: 2-pin LEMO 7-17V

USB-C Input

Tx: 9V/2A; Rx: 5V/2A

Power Consumption

Tx: 16W, Rx: 6W

General

Environmental

-10°C to 40°C

Dimension

Tx & Rx: 130×80×36.7mm

Weight

Net: Tx:333g, Rx: 334g
