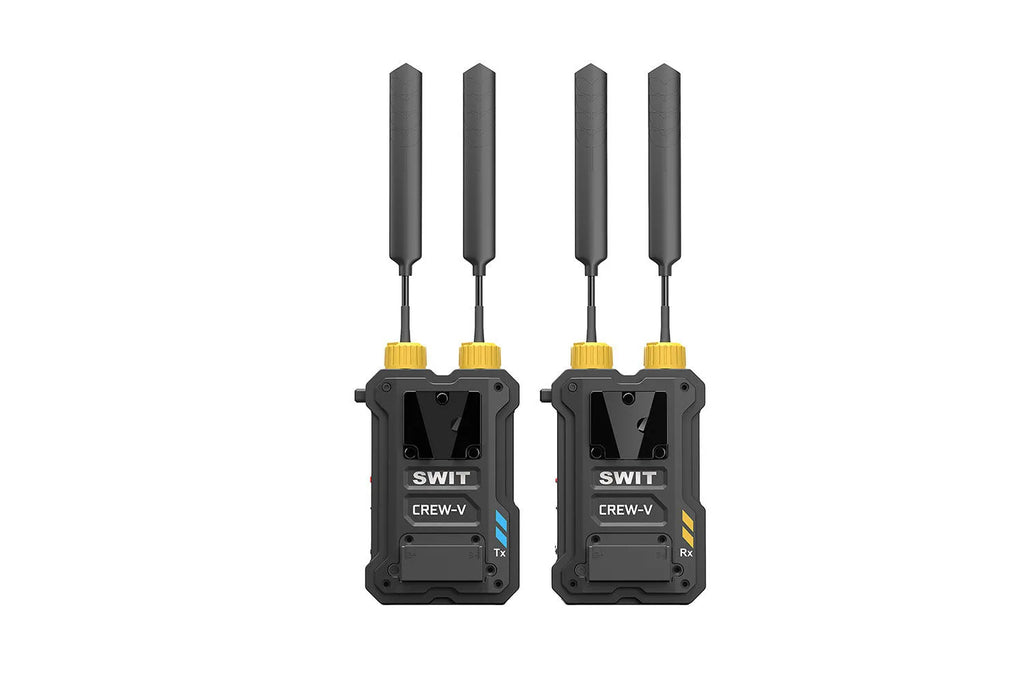

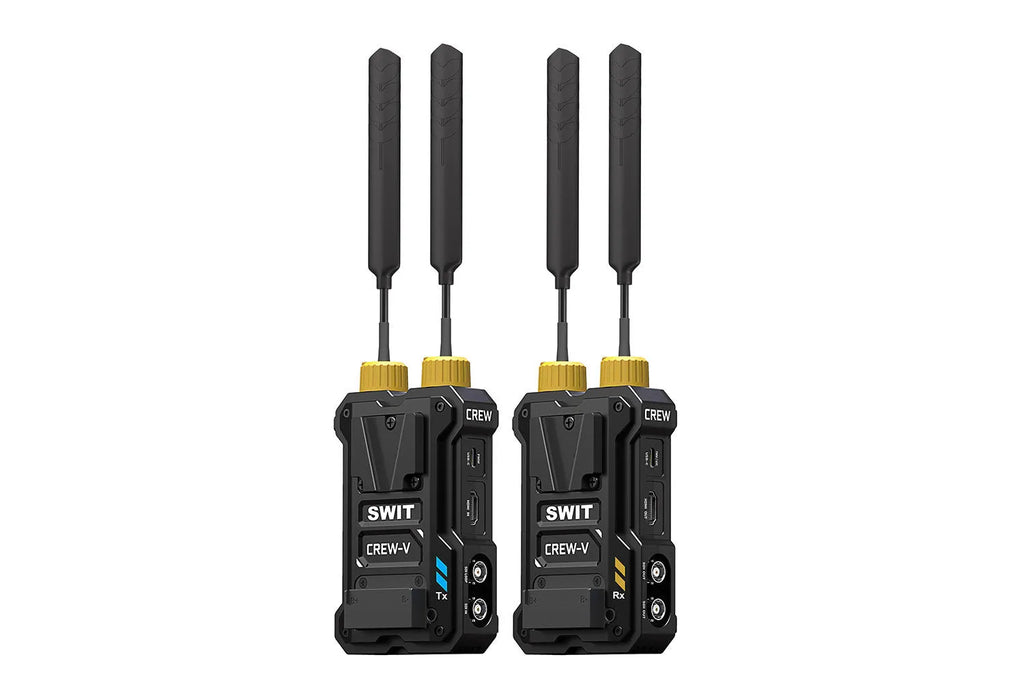

SWIT CREW-V 1.2km/4000ft Pro Wireless Video Transmission/Receiver Kit

SwitSKU: CREW-V

Price:
Sale price£2,580.00(incl. VAT)
£2,150.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

SWIT CREW-V 1.2km/4000ft Pro Wireless Video Transmission/Receiver Kit

FEATURES

  • KUWI 2.0 Pro wireless tech, NOT WIFI
  • Proprietary anti-interference RF
  • 5.1-5.9GHz License-Free DFS Comply
  • Auto scan and select optimal channel
  • 3GSDI & HDMI® HD video transmission
  • 1.2km / 4000ft (Line-of-Sight) distance
  • USB-C Video Capture out for PC/Mac
  • H.265 up to 26.8Mbps visual lossless
  • Consistent 32ms ultra low latenty
  • Uncompromised 1T to 4R Multicast
  • MetaData & TC trigger transmission
  • High bright OLED display & configuration
  • AES-256 dual encryption protection
  • Dual Sided V-mount power and install
  • 2-pin LEMO / USB-C Power Supply


The V-mount version of the new generation CREW family wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.

Dual Sided V-mount Install
SMBus Data Pins Pass-through

The CREW-V is the dual sided V-mount version of CREW family, can be mounted on the camera V-mount plate, using a V-mount battery to power both the CREW-V and the camera, compact and convenient. The battery SMBus data pins are pass through, so that the camera can still read battery digital power information.

KUWI 2.0 Professional Chip, Stable As Always
The New Generation KUWI2.0 professional chip for wireless video, 5.1-5.9GHz License-Free, inherits the stability advantages of SWIT wireless products, ensures the stable transmission in the most complex environment.

Professional Video Production Applications
The CREW series Wireless System is engineered for exceptional stability and reliability, the solution for professional video productions like sports broadcast productions, cinematic filmset shooting and high end event productions. CREW ensures seamless, real-time transmission with minimal latency and zero signal dropouts, providing production teams with the confidence and flexibility needed for flawless on-set and on-location workflows.

Reliable 1.2km Long Distance Transmission
CREW features advanced video codec and optimized intelligent RF power, enabling transmission range of up to 1.2 km (4000 ft) in line of sight, to significantly expand the monitoring coverage, provide greater flexibility and freedom for live video production.

32ms Consistent Low Latency
The ultra-low latency has exceeded the limits of human visual perception, achieving visually lossless performance, suitable for the professional wireless follow focus, the most demanding application in terms of latency.
The latency is consistent, never changed regardless of the environment interference. In multi-camera productions, using CREW would ensure the strict synchronization among the multiple wireless channels.

Uncompromised 1T to 4R Multi-Cast
The CREW supports 1 Transmitter to up to 4 Receivers Stable Multi-Cast Transmission, with no compromise on Distance, Latency or Video quality for film crew application. All the CREW family Tx and Rx are fully cross-compatible for multicast.

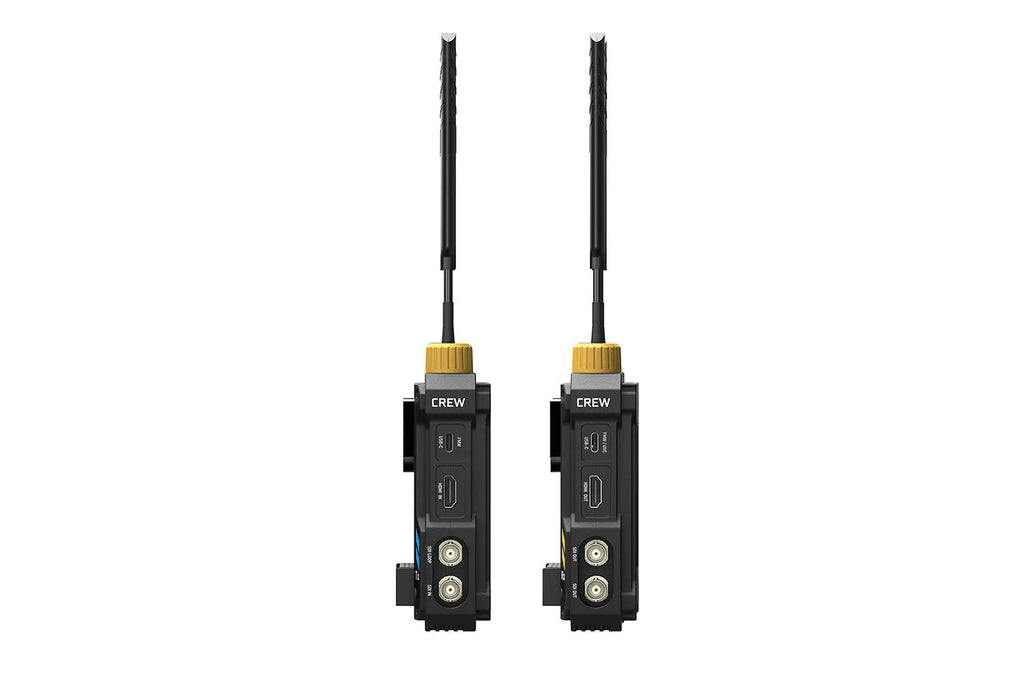

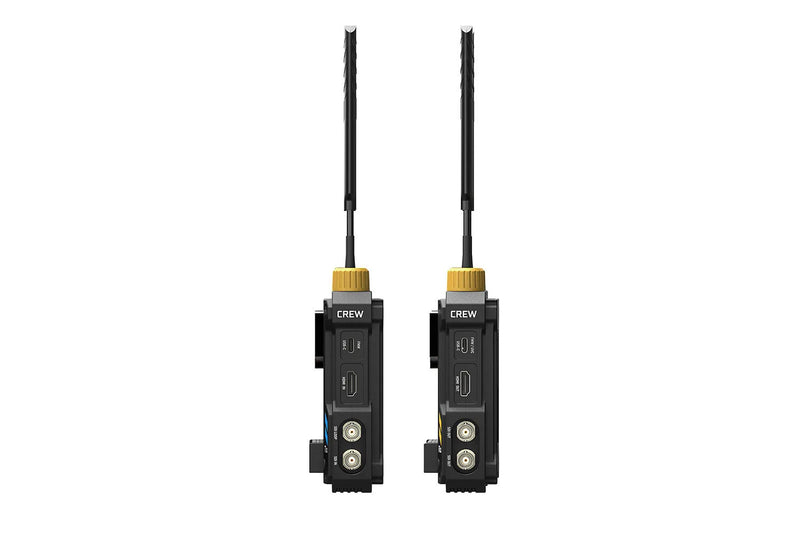

3G-SDI / HDMI / UVC
The Transmitter:
3G-SDI in×1, loop out×1, HDMI in×1
The Receiver:
3G-SDI out×2, HDMI out×1
USB-C Video Capture out×1
* Whether Tx input SDI or HDMI, all Rx interfaces can output simultaneously.

USB-C Video Capture
For PC/Mac Livestreaming

The CREW wireless receiver provides USB-C port video capture output, and can be connect to a computer for ivestreaming productions, 1080P50/60 High Quality Video Capture, Driver-free for both PC and Mac.

USB-C Video Capture
Monitor by Smart Devices

Connect CREW Receiver to a smart phone or tablet via USB-C port, to watch the camera video wirelessly instead of a pro video monitor.
* Compatible with all 3rd party “USB camera” APP.

Visually Lossless High Video Quality
The CREW series wireless transmission adopts H.265 High Quality Encoding, bit rate up to 26.8 Mbps, visually lossless compared to cable video.

WHAT'S IN THE BOX

  • CREW-V Tx + Rx
  • Backup High Gain Antennas ×4
  • Tags white×4 & Yellow×4
  • D-tap to 2-pin LEMO cable ×2
  • USB-C to C cable ×2
  • USB-A to C OTG
  • Carrying Case

SPECIFICATIONS

Input / Output

Transmitter

SDI input×1, loop output ×1



HDMI® input×1

Receiver

SDI output×2



HDMI® output ×1



USB-C Video capture output ×1

Video Formats

SDI / HDMI®

1080p60, 1080p59.94, 1080p50

1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;

1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30

1080i60, 1080i59.94, 1080i50;

720p60, 720p59.94, 720p50

Compression

H.265 up to 26.8M bit-rate

Embedded Audio

2-ch

Metadata

Yes

Timecode & Trigger

Yes

Wireless

Frequency

5.17GHz-5.69GHz and 5.75GHz-5.83GHz

RF Modules

OFDM 16QAM, 64QAM, QPSK, BPSK

RF Power

23dbm

Distance

1.2km / 4000ft  (Line of sight)

Latency

32ms

Multicast

1 Tx up to 4 Rx

Encryption

AES-256

Power

Battery Plate

Tx & Rx: Dual sided V-mount

DC Input

Tx & Rx: 2-pin LEMO 7-17V

USB-C Input

Tx: 9V/2A; Rx: 5V/2A

Power Consumption

Tx: 16W, Rx: 6W

General

Environmental

-10°C to 40°C

Dimension

Tx & Rx: 130×85.9×44.8mm

Weight

Net: Tx:399g, Rx: 397g
