Description

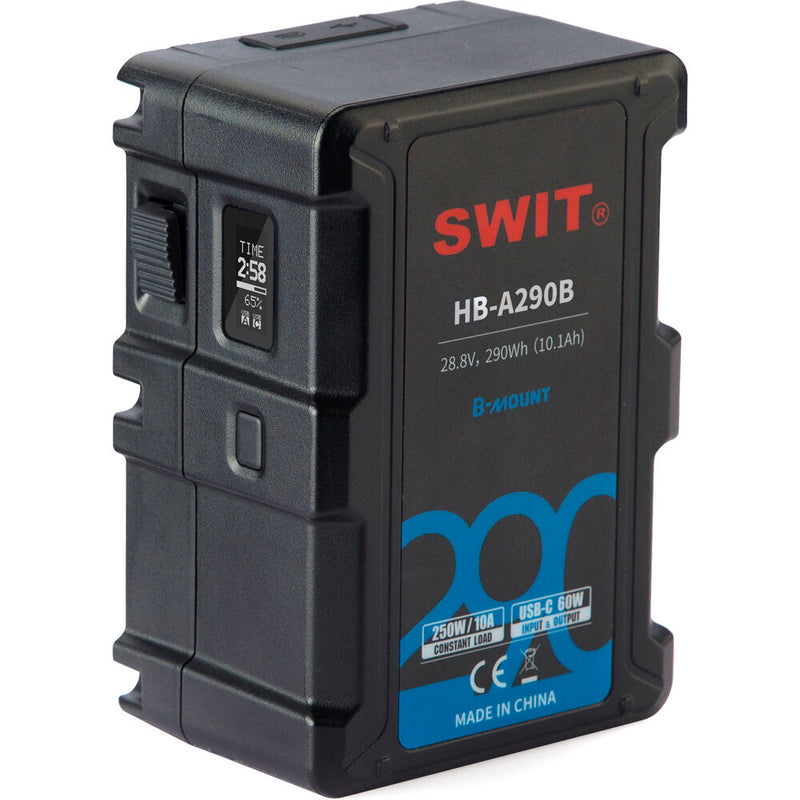

SWIT HB-A290B 290Wh 28.8V B-mount Battery Pack
290Wh Battery with 28V B-Mount, 16V D-tap and USB-C/USB-A
FEATURES
28.8V ARRI Standard B-mount
› 290Wh/10.05Ah high capacity
› 250W, 10A constant high load
› 100W/3A fast charging
› D-tap 16V reg. output ×2
› USB-C 60W input and output
› USB-A 5V/2A output
› OLED power info display
› Built-in LED torch
› Strong 1.2m drop off proof
› Multiple circuit protections

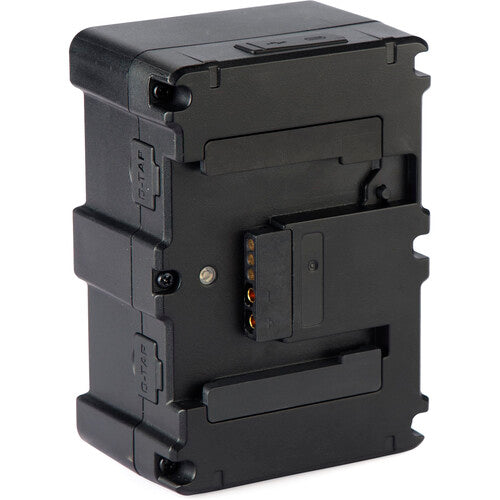

ARRI Standard B-mount Battery
The B-mount battery interface is a new industry standard endorsed by ARRI and the wider industry with high voltage support and reliable lock system especially for filmmaker.
28.8V for ALEXA35/265
The 28.8V (21.6-33.6V) high voltage matches with ALEXA35/265, Blackmagic URSA Cine cameras and lights, and high power cine equipments, reduce current effectively, reliable and longer life time.
290Wh Large Capacity
HB-A290B battery has 290Wh / 10.05Ah large capacity, and at least 250W / 10A constant high load for cine cameras and devices.

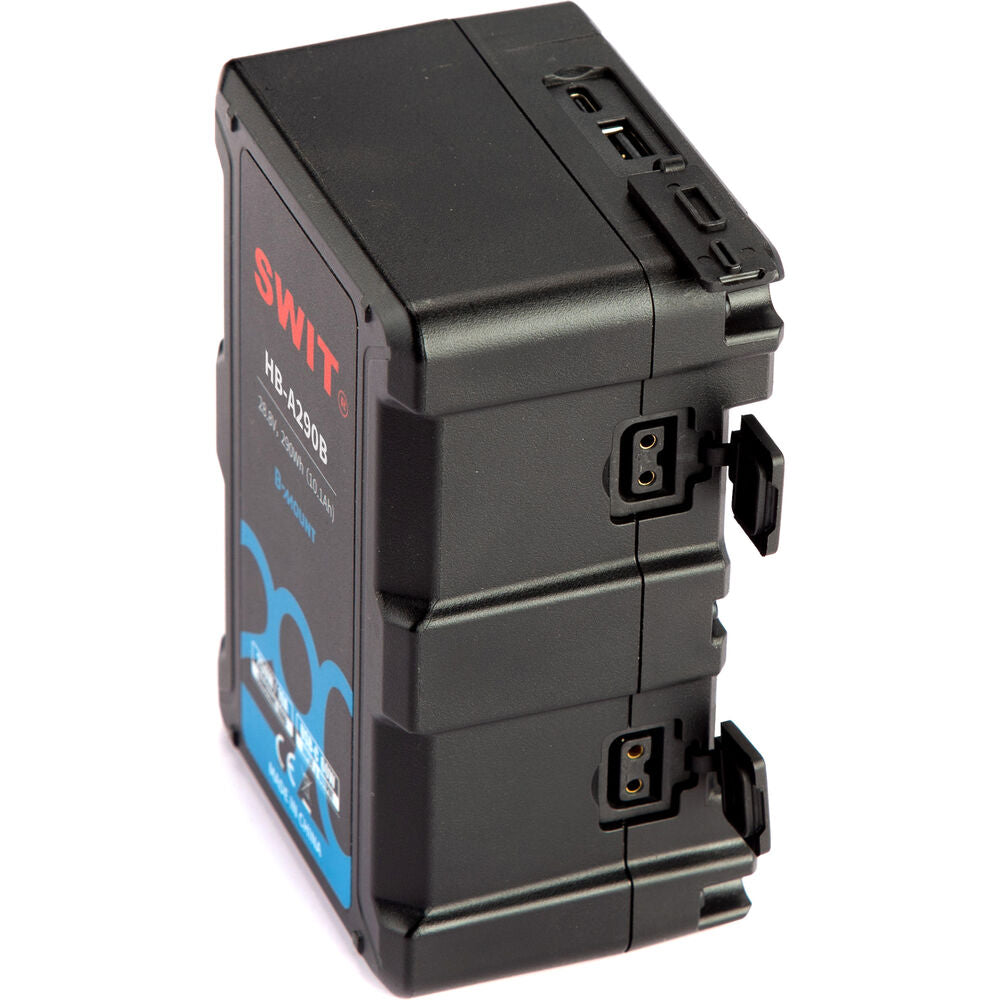

D-tap, USB-A and USB-C
HB-A290B still provides with
2x D-tap of regulated 16V, 60W/3.8A load;
1x USB-A 5V/2A;
1x USB-C 60W input and 60W output
USB-C 60W Power Output
You can power laptop via USB-C by HB-A290B battery on the filmset. Supports 5V 3A, 9V 3A, 12V 3A, 15V 3A and Max 20V 3A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
USB-C 60W Charging Input
HB-A290B battery can be charged by USB-C charger, supports PD 15V 3A and 20V 3A, which means you can fully charge the 290Wh battery within 5.5 hours.
OLED Power Info Display
HB-A290B battery provides an OLED screen to display battery status and power information, includes power percentage, remaining running time, USB-A / USB-C status, and protection warning code if any abnormal detected.
100W Super Fast Charging
You can charge 4x HB-A290B simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 3 hours 50 minutes to fully charge 4x HB-A290B batteries.
LED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.
SPECIFICATIONS
|
Voltage |
28.8V (21.6-33.6V) |
|---|---|
| Capacity | 290Wh/10.05Ah |
|
Constant load |
250W / 10A |
|
Max charging current |
100W / 3A fast charging |
|
Mount Type |
B-mount |
|
D-tap ×2 |
16V regulated, 60W 3.8A load |
| USB-C | 60W out 5V/9V/12V/15V/20V(Max) 3A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP 60W in 15V/20V(Max) 3A |
|
USB-A |
10W, 5V/2A |
|
Charging Temperature |
0-40°C |
