SWIT KA-A30B B-mount Hotswap Plate for SXT/LF/65

SwitSKU: KA-A30B

Price:
Sale price£795.00(incl. VAT)
£662.50

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

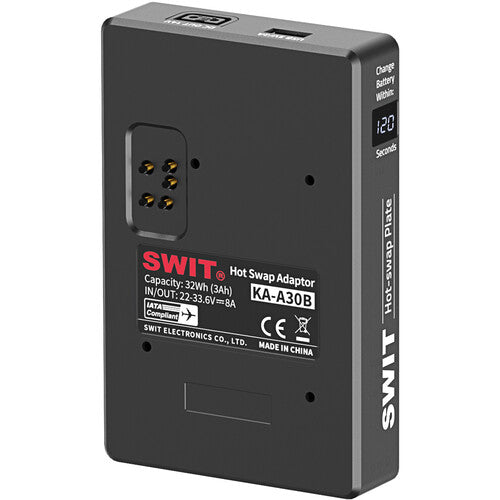

SWIT KA-A30B B-mount Hotswap Plate for SXT/LF/65

High load with multi-sockets Hot-Swap Plate, for 28V B-Mount battery to ARRI ALEXA SXT/LF/65

FEATURES

Dedicated for Alexa SXT/LF/65 install

›  B-mount battery attach

›  28V, 32Wh 3Ah battery cells inside

›  200W constant high load

›  At least 2 minutes run time

›  120 seconds countdown display

›  2x D-tap regulated 14V output

›  1x 2-pin LEMO regulated 14V output

›  USB 5V/2A x1 power output

›  22-33.6V 8-pin input for power station hotswap

›  Aluminum CNC unibody housing

›  Multiple circuit protections

B-mount Hot-swap Plate

KA-A30B is a B-mount hot-swap plate for ARRI Alexa SXT / LF / 65 install. You don’ t need to switch off the camera when changing battery.

28.8V Power for ALEXA

Working with 28.8V B-mount battery, the KA-A30B power ALEXA SXT/LF/65 cameras at 28.8V (22-33.6V) by the rear contact pins, and when remove B-mount battery, the KA-A30B output reg. 28V to camera for hotswapping.

2mins at 200W load

KA-A30B has 32Wh/3Ah battery cells inside, 200W constant high load, even after 1000 cycle times, the plate can still ensure 2 minutes hot swap time for changing battery.

120s Countdown Display

KA-A30B provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120 seconds. You just need to put on a new battery before it count down to 0.
The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120 after a period of time.

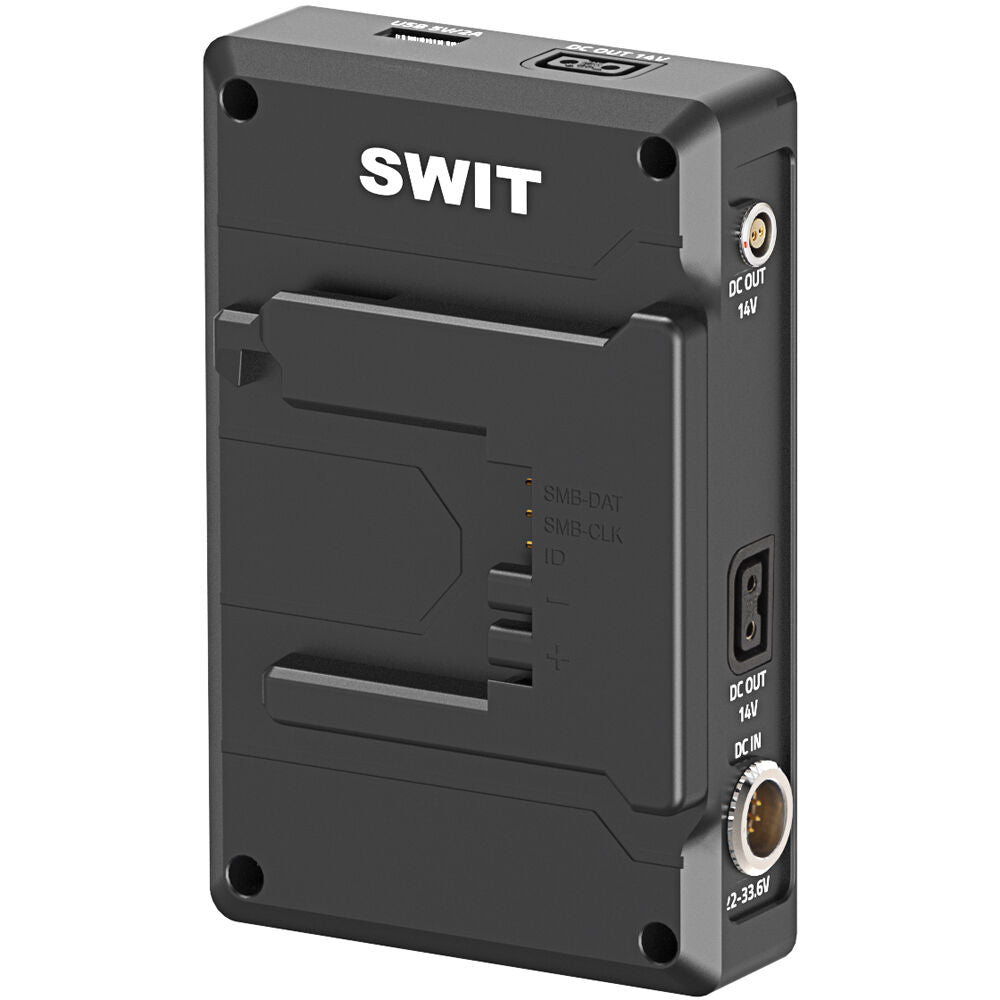

Power Interfaces

KA-A30B provides:
2x D-tap 14V Reg. output
1x 2-pin LEMO 14V Reg. output
1x USB-A 5V/2A output
1x 8-pin 22-33.6V input (For power station hotswap)

SPECIFICATIONS

Inner battery voltage
  • 28V
Inner battery capacity
  • 32Wh/3Ah
Power load
  • 200W constant high load
5 pins DC connector
  • Attach battery: 22-33.6V to camera
  • Remove battery: 28V / 200W to camera
D-tap output x2
  • 14V Regulated, 70W
2-pin LEMO output
  • 14V Regulated, 70W
USB-A output
  • 5V, 10W/2A
8-pin LEMO input
  • 22-33.6V
Dimensions
  • 93×143×37.4mm
Net weight
  • 638g
