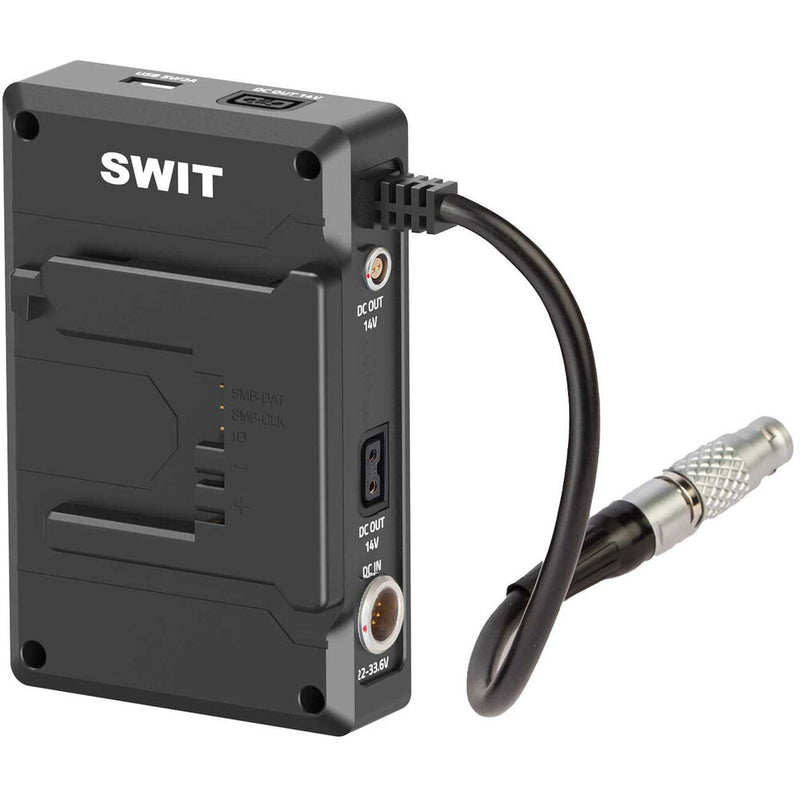

SWIT KA-R30B B-mount Hotswap Plate for MINI / MINI LF

SwitSKU: KA-R30B

Price:
Sale price£842.40(incl. VAT)
£702.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

SWIT KA-R30B B-mount Hotswap Plate for MINI / MINI LF

High load with multi-sockets Hot-Swap Adaptor, for 28V B-Mount battery to ARRI ALEXA Mini or Mini LF

FEATURES

Dedicated for Alexa MINI / MINI LF install

›  B-mount battery attach

›  8-pin LEMO output to camera

›  28V, 32Wh 3Ah battery cells inside

›  200W constant high load

›  At least 2 minutes run time

›  120 seconds countdown display

›  2x D-tap regulated 14V output

›  1x 2-pin LEMO regulated 14V output

›  USB 5V/2A x1 power output

›  22-33.6V 8-pin input for power station hotswap

›  Aluminum CNC unibody housing

›  Multiple circuit protections

B-mount Hot-swap Plate

KA-R30B is a B-mount hot-swap plate for ARRI Alexa MINI / MINI LF install, power cameras at 28.8V (22-33.6V) by 8-pin DC-IN. When remove the B-mount battery, 8-pin DC output Reg. 28V for hotswapping. You don’ t need to switch off the camera when changing battery.

ALEXA MINI/MINI LF install

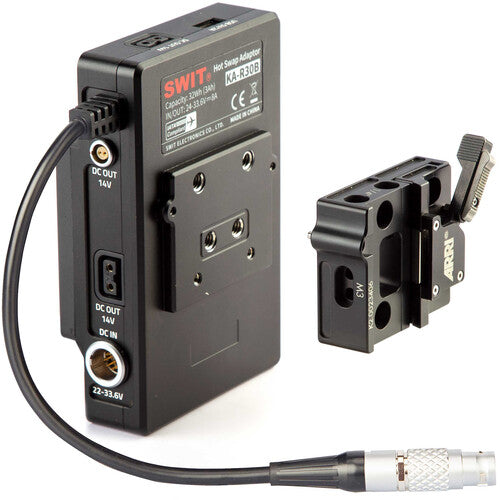

KA-R30B matches with ARRI original MINI / MINI LF support system by connection with RAB-1 Clamp 2 (K2.0023406).

* KA-R30B doesn’ t include the K2.0023406 clamp.

2mins at 200W load

KA-R30B has 32Wh/3Ah battery cells inside, 200W constant high load, even after 1000 cycle times, the plate can still ensure 2 minutes hot swap time for changing battery.

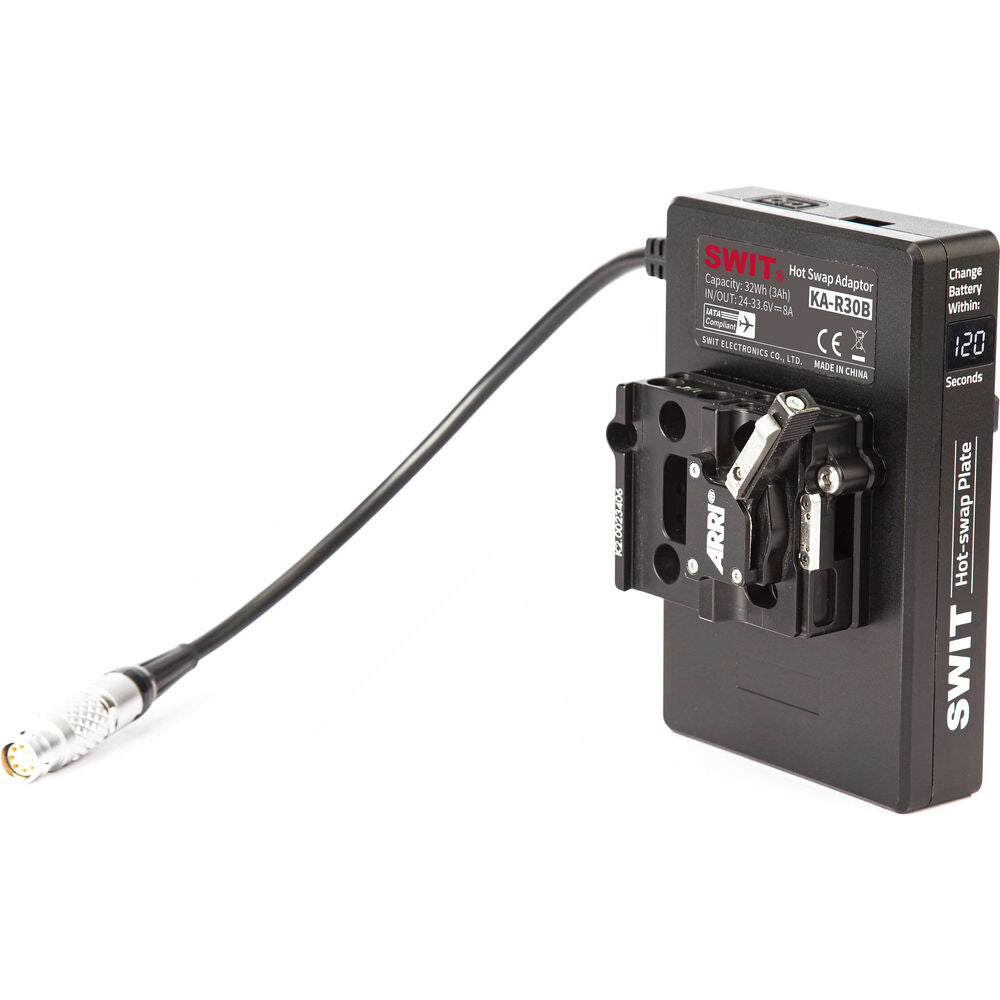

120s Countdown Display

KA-R30B provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120 seconds. You just need to put on a new battery before it count down to 0.
The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120 after a period of time.

Power Interfaces

KA-R30B provides:
1x 8-pin 28V to ALEXA MINI/MINILF
2x D-tap 14V Reg. output
1x 2-pin LEMO 14V Reg. output
1x USB-A 5V/2A output
1x 8-pin 22-33.6V input (For power station hotswap)

SPECIFICATIONS

Inner battery voltage
  • 28V regulated
Inner battery capacity
  • 32Wh/3Ah
Power load
  • 200W constant high load
8-pin LEMO output
  • Attach battery: 22-33.6V to camera
  • Remove battery: 28V / 200W to camera
D-tap output x2
  • 14V regulated, 70W
2-pin LEMO output
  • 14V regulated, 70W
USB-A output
  • 5V, 10W/2A
8-pin LEMO input
  • 22-33.6V
Dimensions
  • 93×143×43.5mm
Net weight
  • 730.5g
