Description

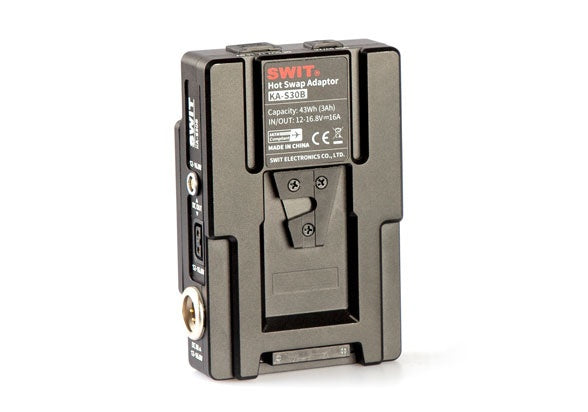

SWIT KA-S30B 14.4V B-mount to V-mount Hotswap Plate
High load with multi-sockets Hot-Swap Plate, for 14V B-Mount battery to V-mount devices, only support BIVO Bi-Voltage batteries
FEATURES
14.4V B-mount input
› 14.4V V-mount output
› Fit SWIT BIVO series B-mount batteries
› 43Wh, 200W constant load cells inside
› At least 2 minutes run time
› Countdown seconds display
› D-tapx2, 2-pin LEMO, USB output
› 8-pin LEMO input for power station hotswap
› Aluminum CNC unibody housing
› Multiple circuit protections

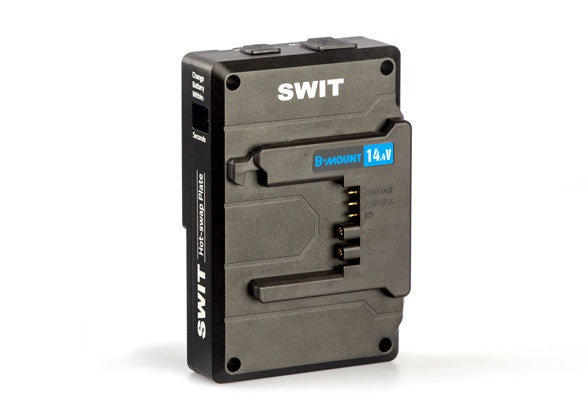

B to V-mount Hot-swap Plate
KA-S30B is a B-mount to V-mount conversion plate, allows you to use B-mount batteries of 14.4V voltage to power standard V-mount cameras and video gears. The KA-S30B has battery cells inside, and when you changing battery, the plate will take over the power supply until a new battery is mounted on. So you don’ t need to switch off the cameras with this hot-swap plate.
14.4V Voltage to Cameras
Use Bi-voltage B-mount Batteries Only
KA-S30B takes 14.4V (12-16.8V) input from B-mount batteries, and V-mount side outputs 14.4V (12-16.8V) to cameras.
You can use SWIT BIVO series Bi-voltage B-mount batteries and 3rd party B-mount batteries with 14.4V voltage.
43Wh Battery Cells inside
Keep Camera On When Changing BatteryKeep Camera On When Changing Battery
KA-S30B CNC alluminum strong housing, 4 battery cells inside, 14.4V nominal voltage, 43Wh capacity, 200W constant high load.
The full capacity plate will ensure at least 2 minutes at 200W load even after 1000 cycle times.
120 Seconds Countdown Display
The hotswap plate provides an LCD screen to display countdown seconds when changing battery.
When battery is removed, the screen will countdown from 120s. You just need to put on a new battery before it count down to 0.
The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120s after a period of time.
SPECIFICATIONS
