Description

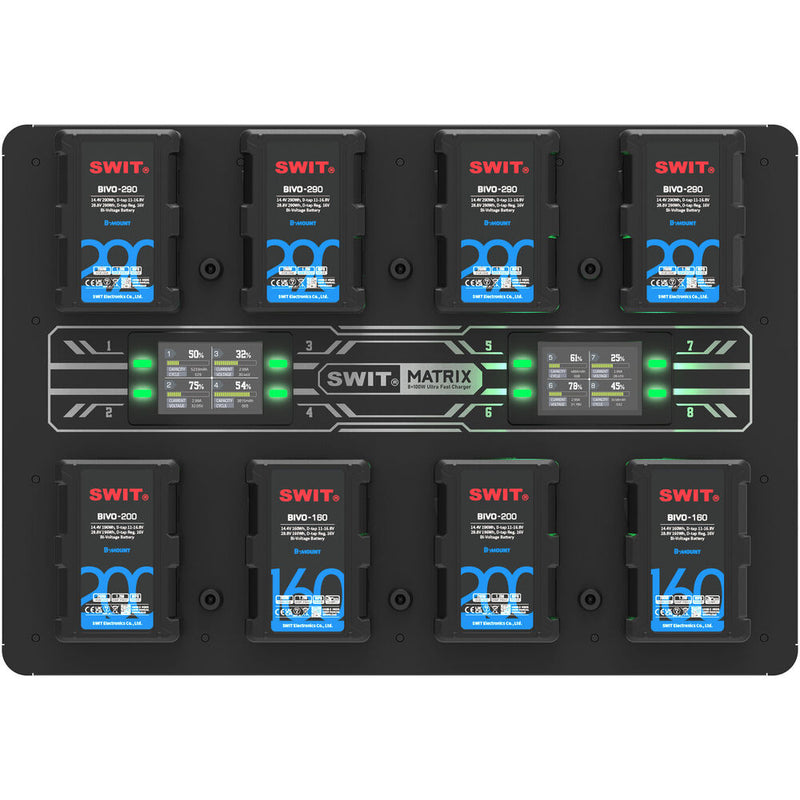

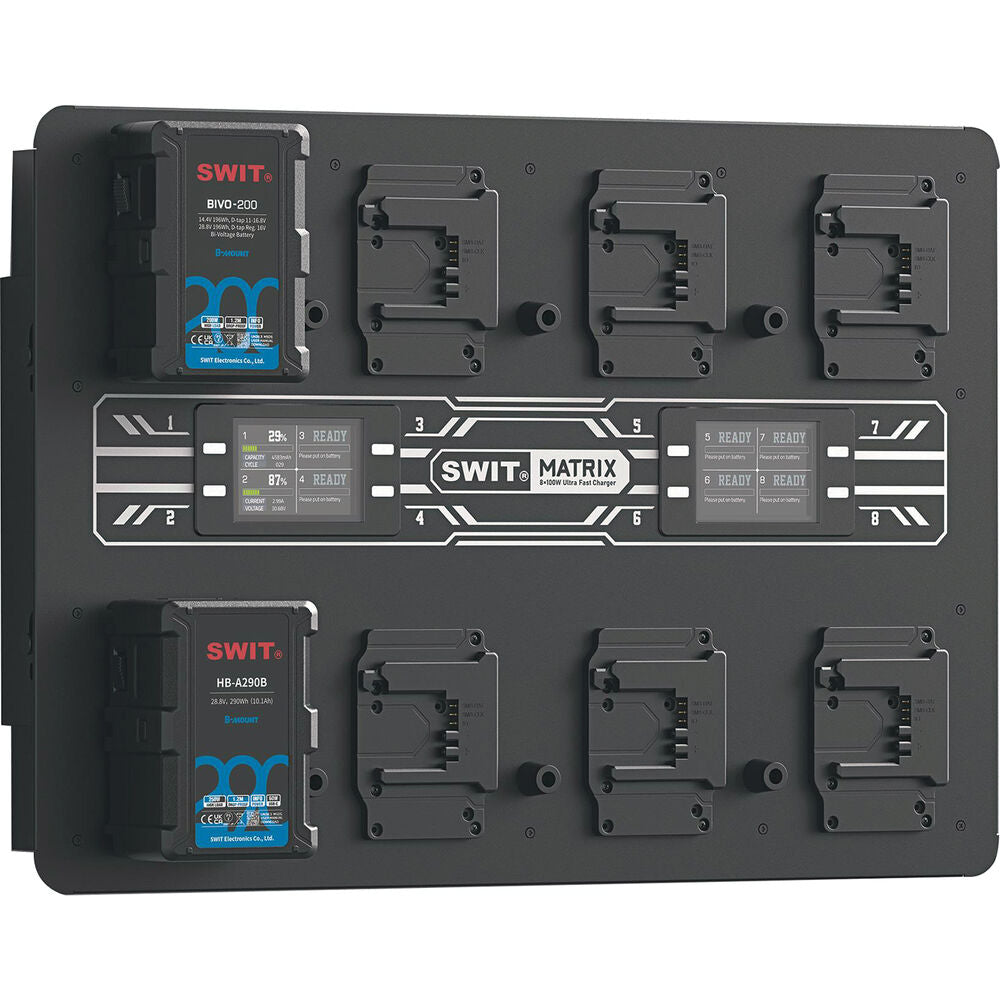

SWIT MATRIX-B8 8×100W Ultra fast B-mount Wall Charger
8-CHANNEL x max 6A Top Fast Simultaneous 14V/28V Wall Charger, B-mount(PC-W461B)
FEATURES
8-ch simultaneous B-mount fast charging
› DC33.6V, 3A, 100W for ≥160Wh batteries
› DC33.6V, 1.3A, 44W for <160Wh batteries
› 2× 3.5-inch color LCD info display
› Battery cycle times display
› Large LED charging indicators
› Wall mounting or 19-inch rack install
8x100W Ultra Fast Wall Charger
MATRIX-B8 is an 8-ch simultaneous B-mount wall charger with 33.6V 100W ultra fast charging speed each channel, charging SWIT HB-A290B, BIVO series, and compatible with other B-mount batteries that support 33.6V charging voltage like CoreSWX.
Charging Time Chart

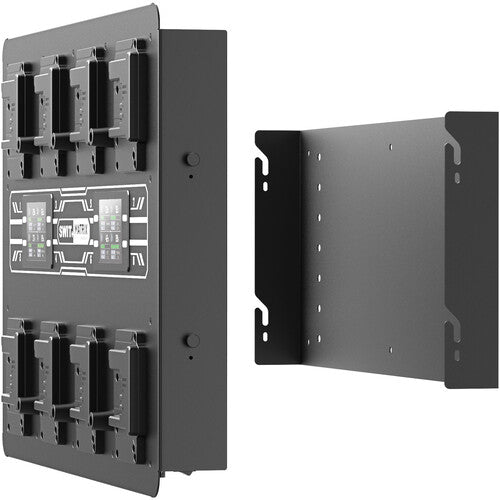

Flexible Wall Mounting Plate
MATRIX-B8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage rack or DIT cart.
SPECIFICATIONS
| Performance | Max. 900 W |
|---|---|
| Entry | AC 100 - 240 V, 50/60 Hz |
| Dimensions | 628,4 x 435,4 x 68,7 mm |
| Weight | 13 kg |
