Description

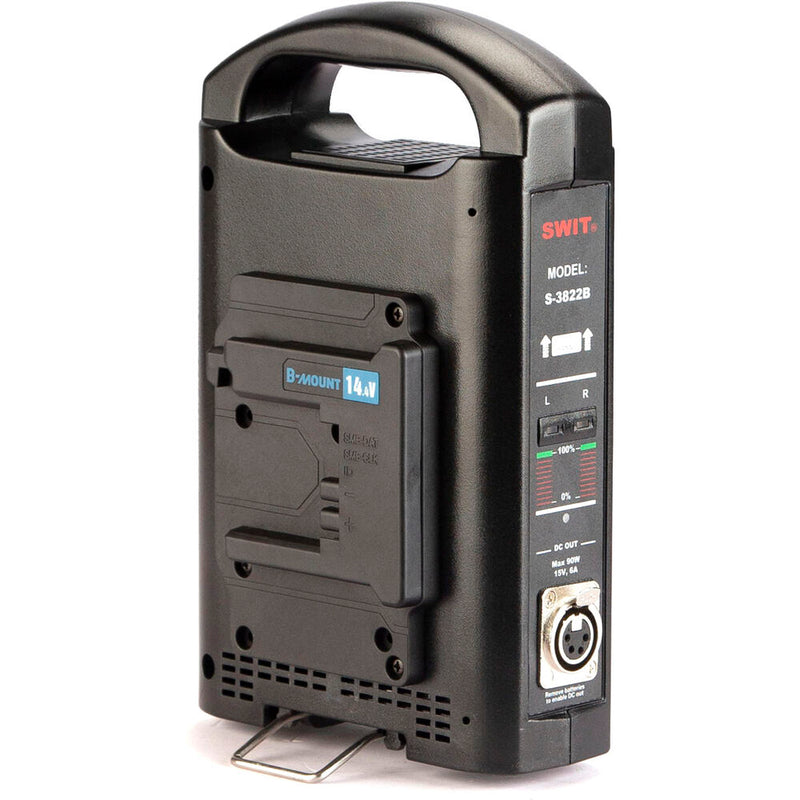

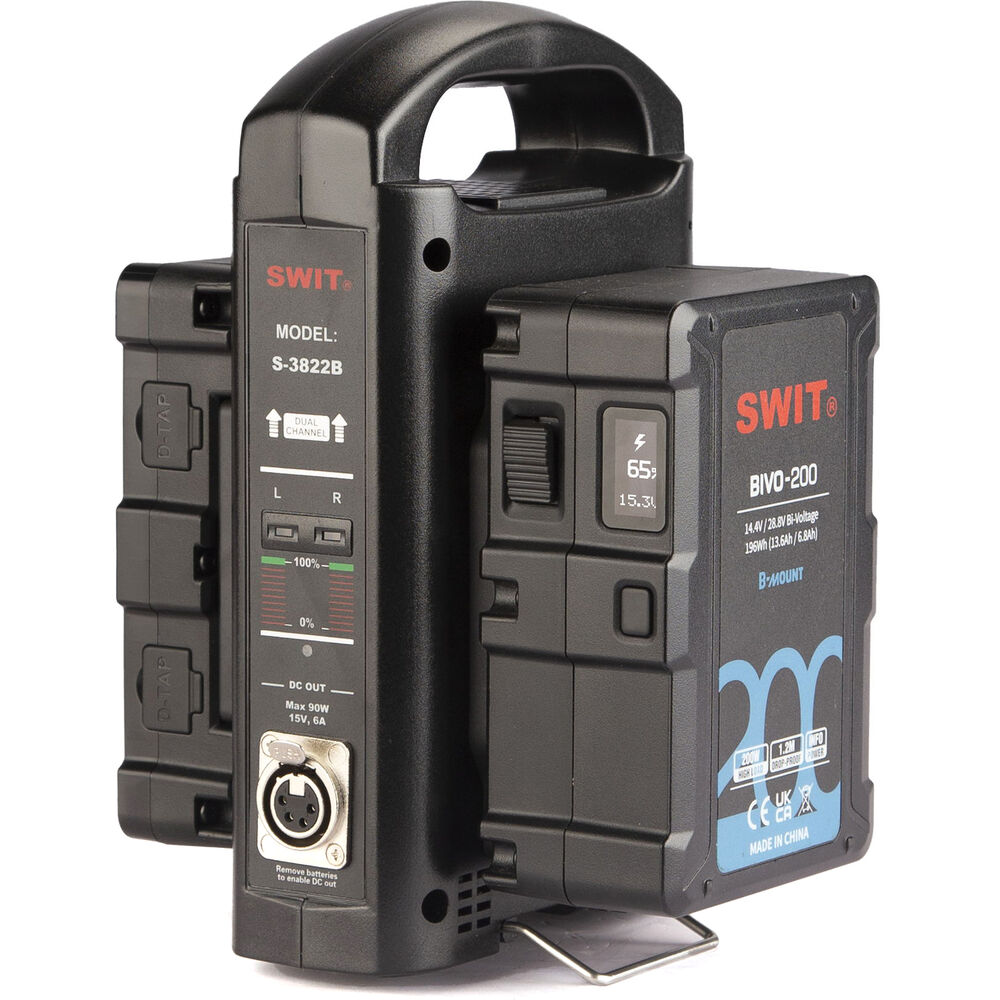

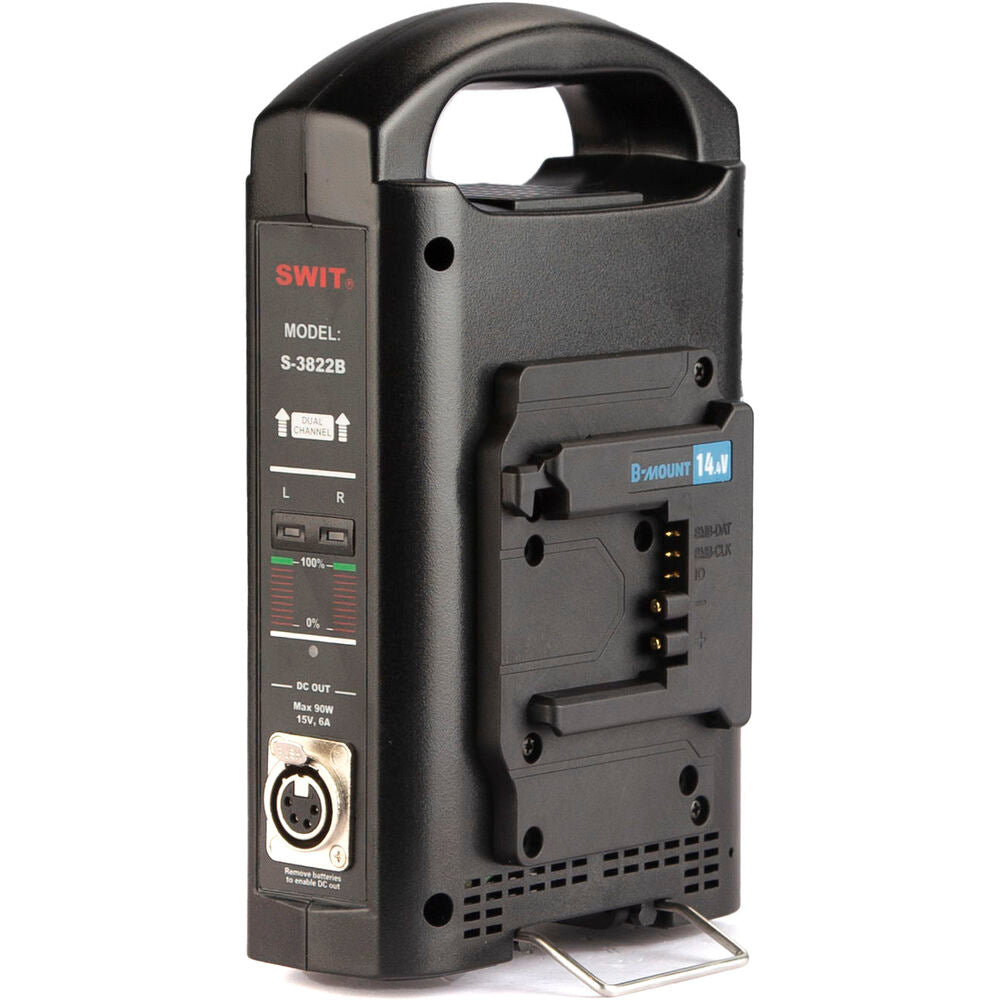

SWIT S-3822B 2-ch B-mount Fast Charger (BIVO only)
2-CHANNEL 3A 14.4V Fast Simultaneous Charger for BIVO batteries, adaptor 6A out, B-mount
FEATURES
2-ch simultaneous charging
› DC 16.8V 3A 50W per channel
› Charge B-mount batteries with 14.4V mode
› Charge SWIT BIVO B-mount batteries
› Charge Bebob and Core B-mount batteries
› Support AC to 4-pin XLR output
› Light weight and portable
2-ch simultaneous B-mount Charger
S-3822B is a portable 2-ch simultaneous charger for B-mount batteries. The charging output is DC 16.8V, 3A, 50W each channel.
14.4V Charging Mode
The S-3822B charges B-mount batteries at DC16.8V, compatible with the B-mount batteries that support 14.4V nominal voltage mode, like SWIT BIVO series, Bebob and CoreSWX Bi-voltage series.
LED Charging Indicators
S-3822B has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Red: the battery is under charging status
Green: the battery is fully charged
Red flash: Charging error, please check the battery
AC-DC Adapting Output
S-3822B has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 4-pin XLR female to male cable (optional purchase), you can use the charger as AC-DC adaptor of DC 15V, 6A, 90W output.
SPECIFICATIONS
| Input | 100～240VA, 50/60Hz |
| Power consumption | Max 136W |
| Charging output | DC 16.8V, 3A×2-ch |
| Adapting output | DC 15V, 6A |
| Working temperature | 0°C～+40°C |
| Working humidity | 10%～90% |
| Dimensions | 228mm×140mm×120mm(22.8cm × 14cm ×12cm) |
| Net weight | Net 1.0kg(2.2lb); With package 1.45kg(3.2lb) |
