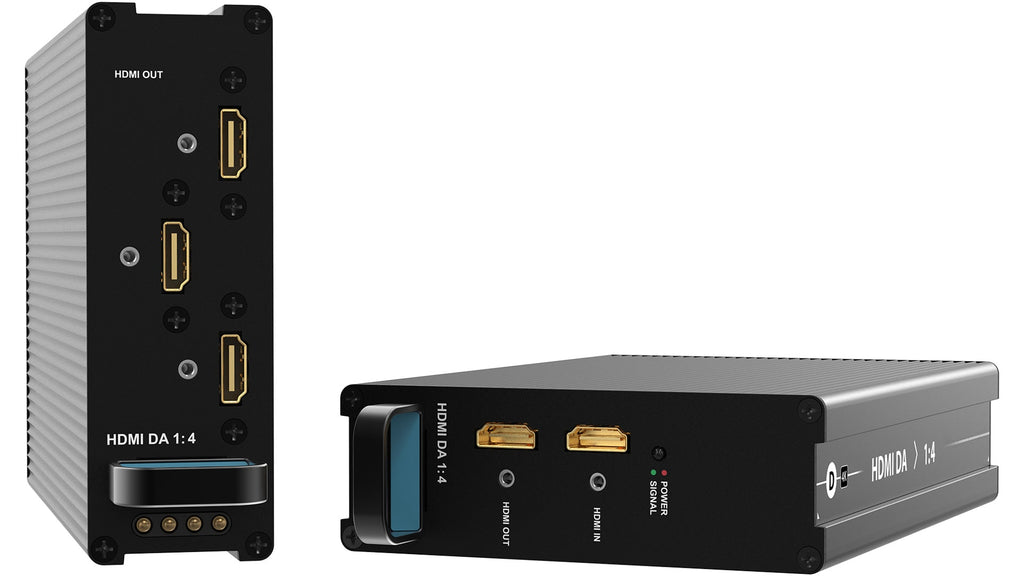

THEATRIXX Reversible 4K 1:4 HDMI2.0 Video Distribution Amplifier

FEATURES

• Reversible module for 8-bay 2U converter rack (sold separately)
• 4K Distribution Amplifier
• Video Input: 1 x HDMI 2.0 type A with locking system
• Video Output: 4 x HDMI 2.0 type A with locking system (Individual downscaling per port)
• Supports 4K formats
• Embedded Audio: DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM

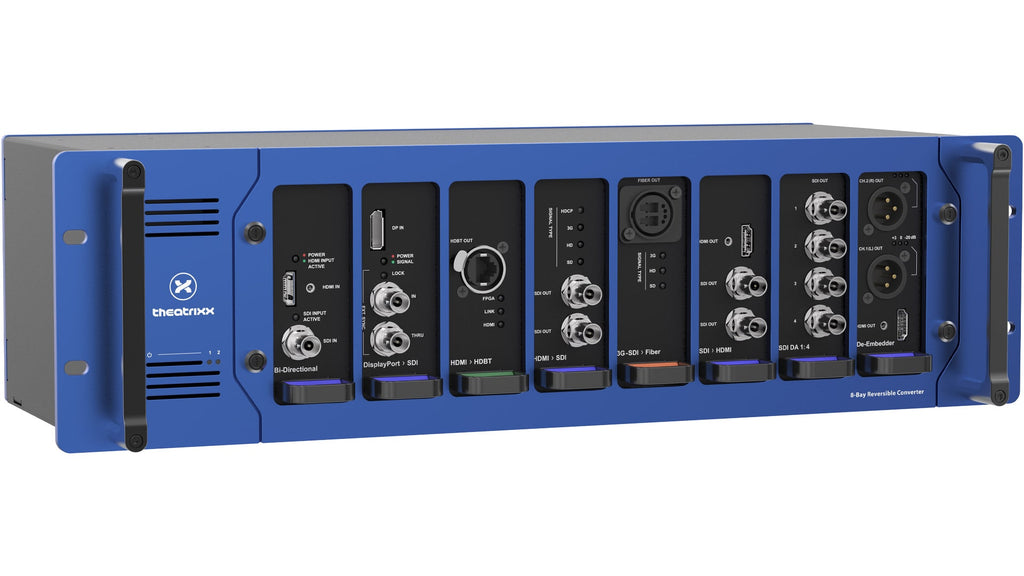

The HDMI Distribution Amplifier 1:4 Reversible Module fits in the 8-Bay Reversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

SPECIFICATIONS

Connections

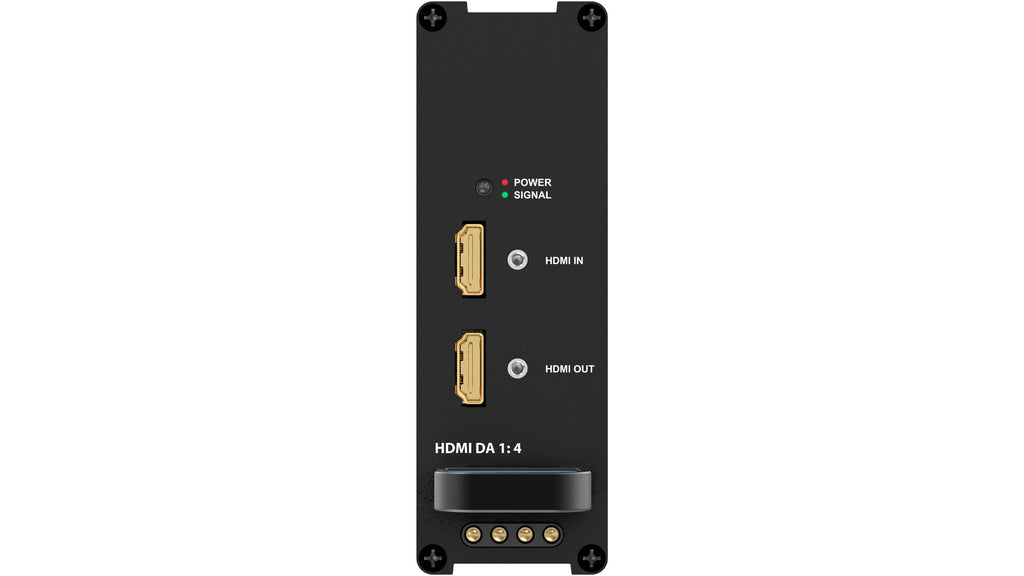

• Video Input: 1 x HDMI 2.0 type A with locking system

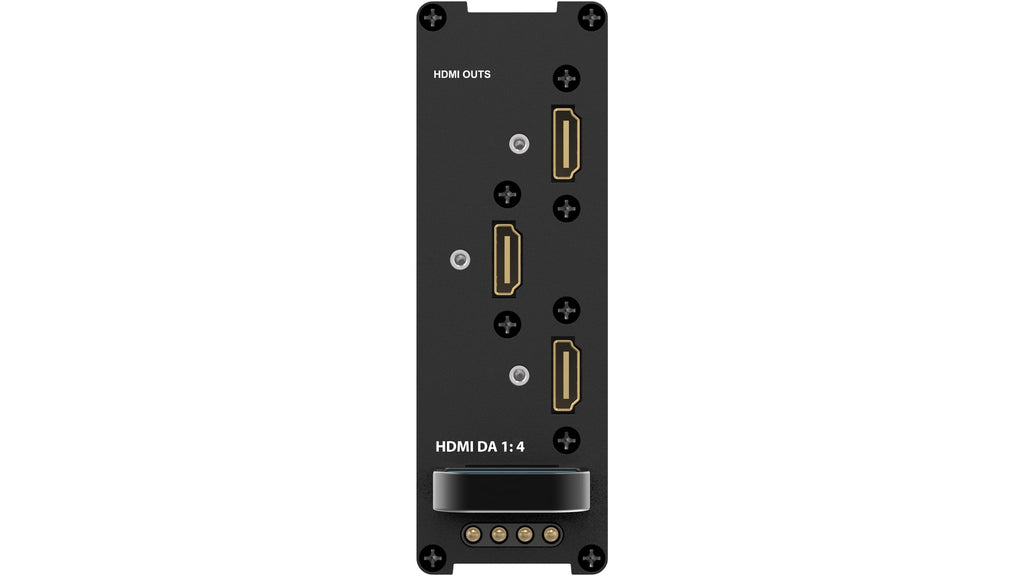

• Video Output: 4 x HDMI 2.0 type A with locking system (Individual downscaling per port)

Supported Signals

• Video Format Support:
  • HDR 4K/2K @ 60fps (4:2:0 10bits)
  • 4K/2K @ 60fps (4:4:4 8bits)
• HDCP Compliance: HDCP 2.2/1.4
• Video Bandwidth: Single-link 600MHz (18Gbps)
• Embedded Audio: DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM

Environmental Specifications

• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C

Power Requirements

• Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
• Power Consumption: 20W
• Voltage Range: 12VDC

Physical Specifications

• Height: 121.5mm (4.78in)
• Depth: 225mm (8.85in)
• Width: 41mm (1.61in)
• Weight: 710g (1.56lbs)
