Theatrixx Reversible 4K Video Converter 12G-SDI to HDMI2.0

FEATURES

• Reversible module for 8-bay 2U converter rack (sold separately)
• Converts 12G-SDI to HDMI
• Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
• Video Output: 1 x HDMI 2.0 type A with locking system, 2 x 12G/6G/3G/HD/SD SDI BNC
• Supports 4K formats
• SDI Video Sampling: 4:2:2 and 4:4:4

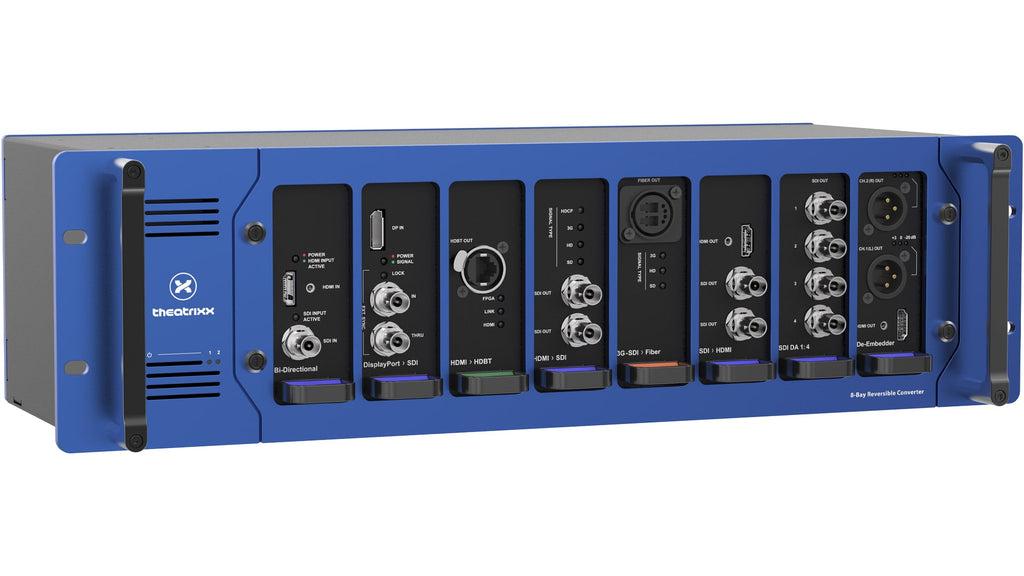

The 12G-SDI to HDMI Reversible Module fits in the 8-Bay Reversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

SPECIFICATIONS

Connections

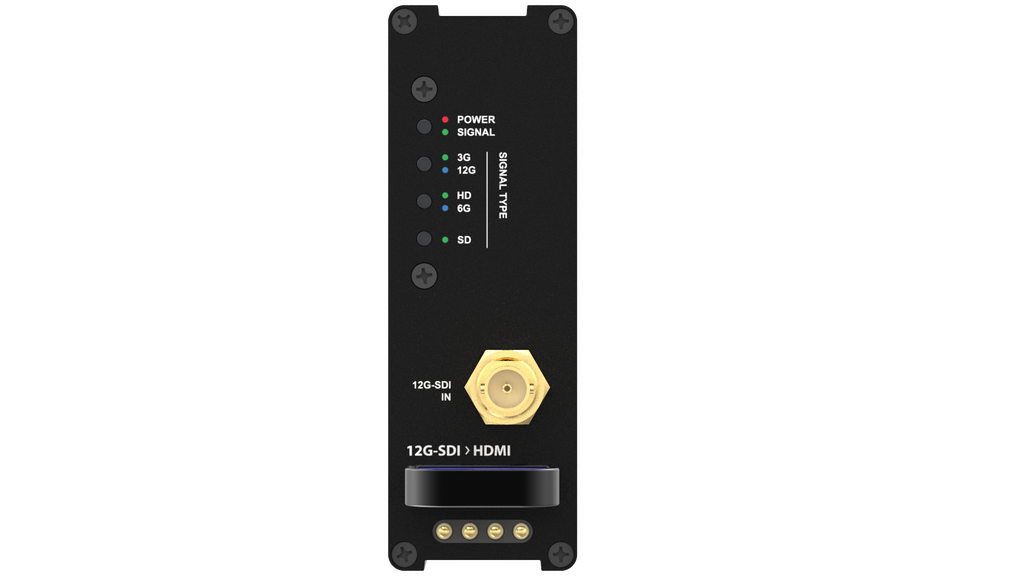

• Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC

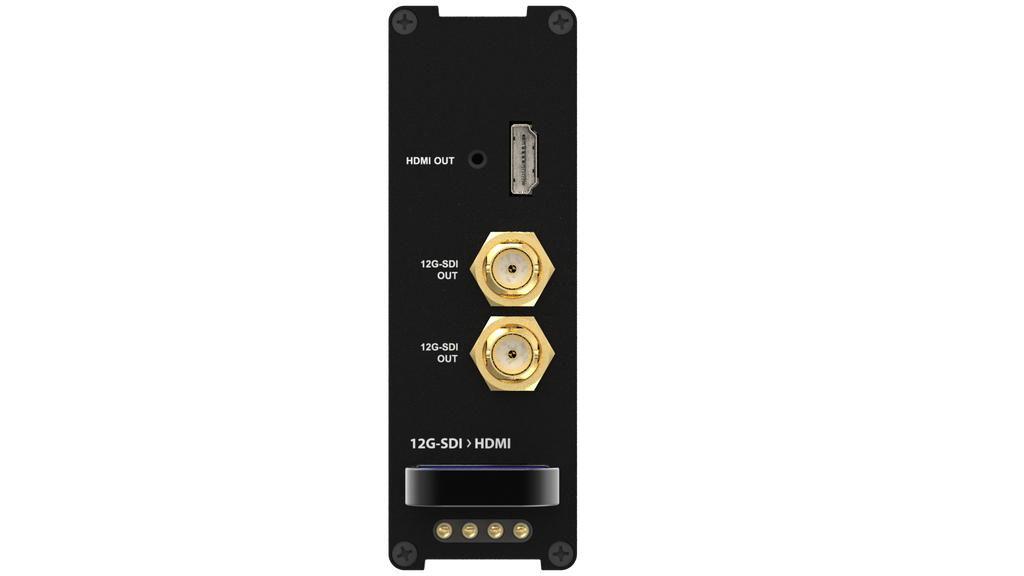

• Video Output:
  • 1 x HDMI 2.0 type A with locking system
  • 2 x 12G/6G/3G/HD/SD SDI BNC

Supported Signals

• 12G Format Support: 4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
• 6G Format Support: 4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
• 3G Format Support: 1080p50, 1080p59.94, 1080p60
• HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
• SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects incoming signal format
• SMPTE Standards: 425M Level A & B, 424M Level A, 292M, 259M

Physical Specifications

• Height: 121.5mm (4.78in)
• Depth: 225mm (8.85in)
• Width: 41mm (1.61in)
• Weight: 710g (1.56lbs)

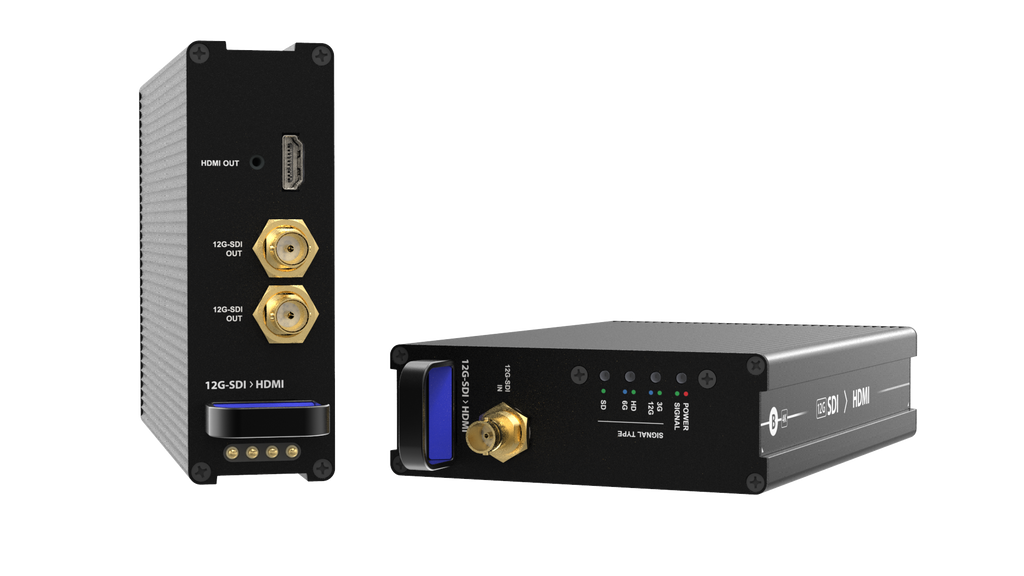

• Alternate Form Factor: Also available as a standalone converter

Environmental Specifications

• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C

Power Requirements

• Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
• Power Consumption: 20W
• Voltage Range: 12VDC
