TRANTEC S5.5L RACK6 S5.5 CH38-41 (x6) Racked Excluding Rem Ant Kit

FEATURES

• Up to 24 simultaneous channels of true diversity operation
• USB based computer monitoring
• Simple programming of transmitters via Infra-red
• Credit card size beltpack transmitters
• Single AA transmitter battery life of over 10 hours
• Professional metal enclosures on both transmitters and receivers
• 19" professional flight case with built-in antennae distribution and power supply as standard

Each receiver operates 1 channel, this full rack can run up to 6 channels

These unique, compact, turnkey packages follow on from the great success of the S4.16 Racked\'n\'Ready. Benefitting from all the advantages of the Trantec S5 range, you can run up to 24 simultaneous channels on frequency: 606-622MHz (Ch 38) at a price you will find hard to match.

Ideal for your hire stock, and appeal to schools, amateur dramatics, churches, and audio-visual applications.

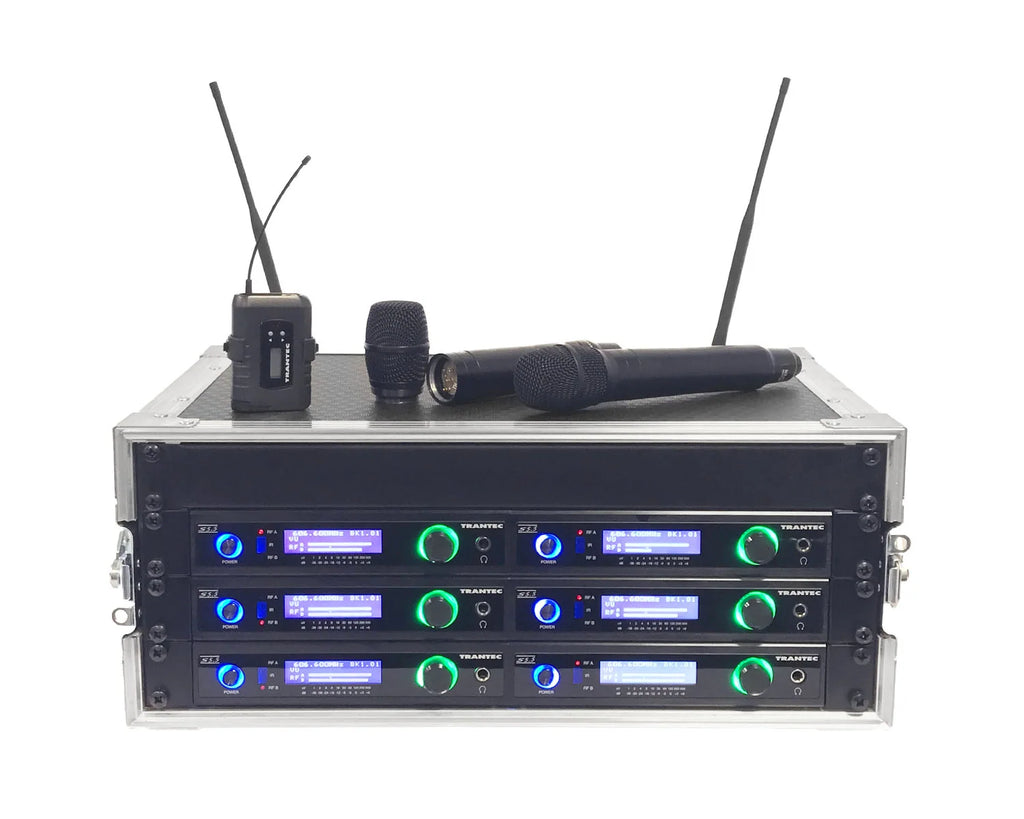

WHAT'S IN THE BOX

• 6 x 5.5 receivers
• 6 x 5.5 transmitters in any combination of handheld or beltpack (includes X2)
• Antenna distribution unit
• Power supply
• Rack mounting kits
• 2 x antennae
• 19" professional flight case

SPECIFICATIONS

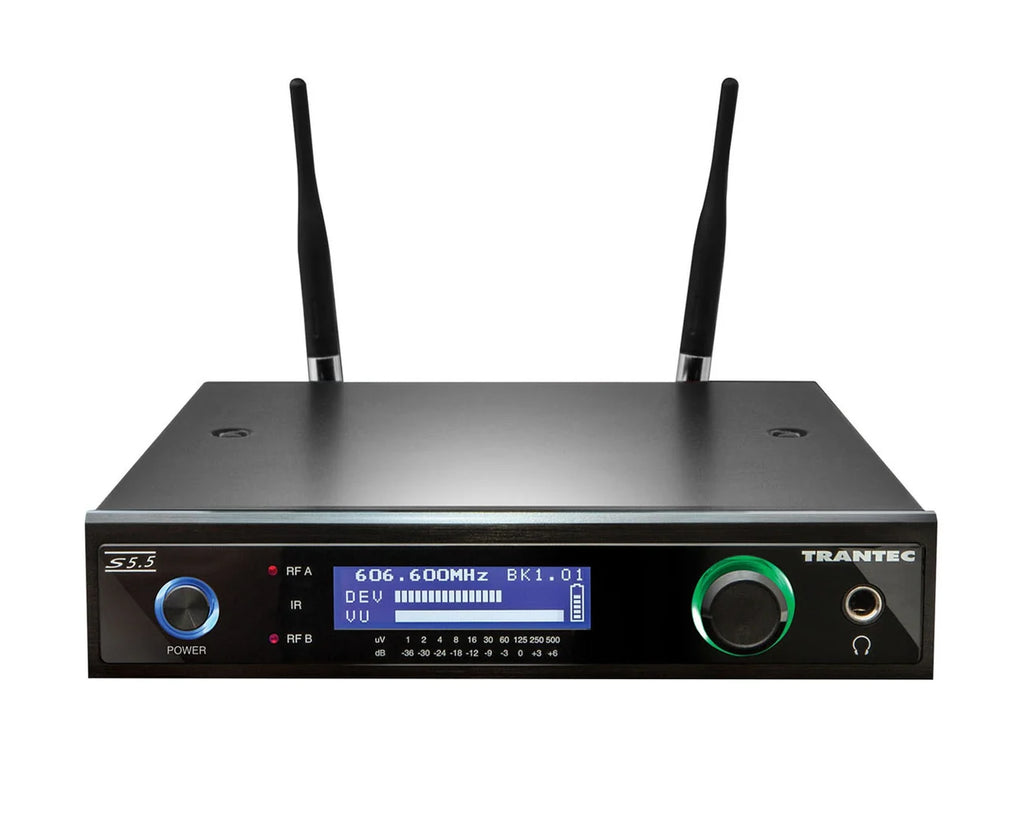

S5.5 Receiver - General

• Power Consumption: 300 mA (13 V DC)
• Diversity System: Space diversity (true diversity)
• Audio Output: Line: -22 dB*/ Mic: 62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack
• Antenna Phantom Power: 9 V DC, 30 mA (max) (Available to turn off phantom power)
• Receiving Sensitivity: 0 dB μV or less (12 dB SINAD)
• Squelch Sensitivity: 6 - 36 dB μV variable
• Squelch System: Using together of noise SQ, carrier SQ and tone SQ
• Indicator: LCD, Power lamp, Mute lamp, ANT A/B lamp
• S/N Ratio: 110 dB or more (A-weight)
• Harmonic Distortion: 1% or less (typical)
• Frequency Response: 50 Hz - 20 kHz, ±3 dB
• Function: Audio Low-cut, High-boost and phase reverse, Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity
• Frequency Bands: 606-638, 692-722, 722-752, 740-752, 794-830, 830-865 MHz
• 1400 channel capability: (24 Channels simultaneously)

Physical & Dimensions

• Height: 46mm
• Width: 210mm
• Depth: 210mm
• Weight: 1.3kg

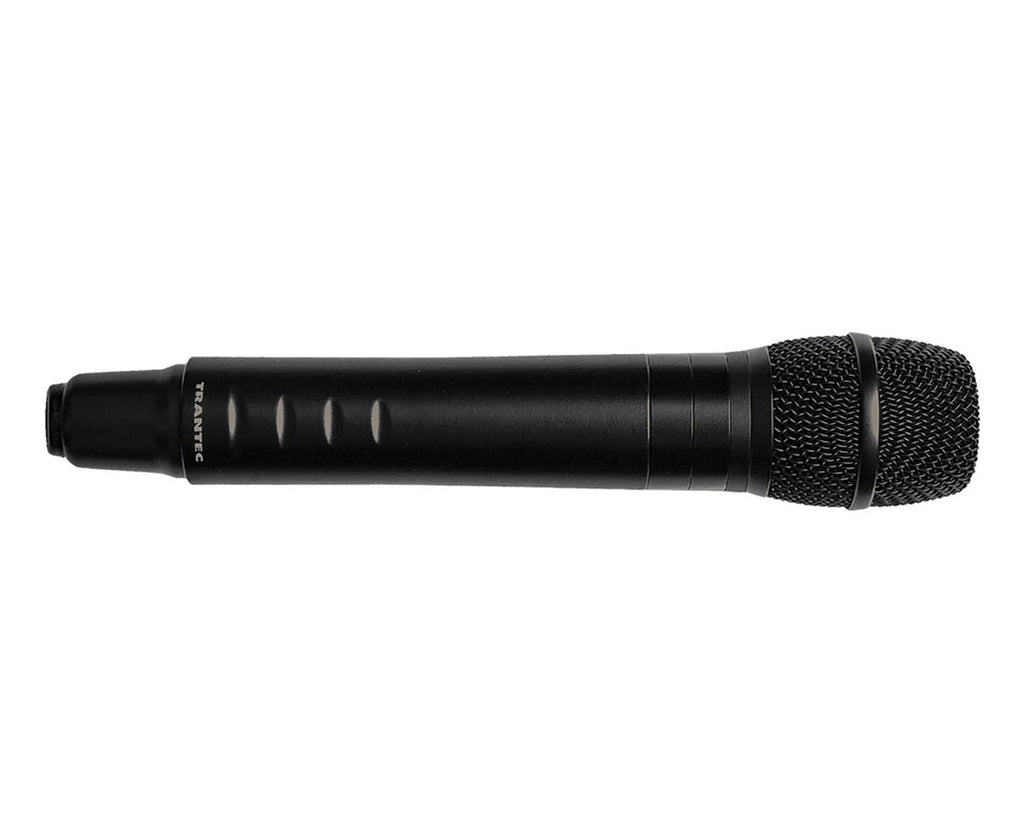

S5.5 Handheld - General

• RF Carrier Power: Max. 30 mW
• Maximum Input Level: 146 dB SPL (microphone sensitivity: Gain "0")
• Audio Frequency Response: 60 Hz - 20 kHz
• Dynamic Range: 110 dB or more (with S5.5-RX)
• Battery: LR6 (Single AA)
• Battery Life: 10 hours (Alkaline)
• Indicator: LCD display, Power lamp
• Function: Mute switch, Infra-Red link port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-2; 12dB)

S5.5 Handheld - Physical & Dimensions

• Dimensions: Ø50 x 247.9 mm (Ø1.97" x 9.76")
• Weight: 380g (0.84lb) (with battery)

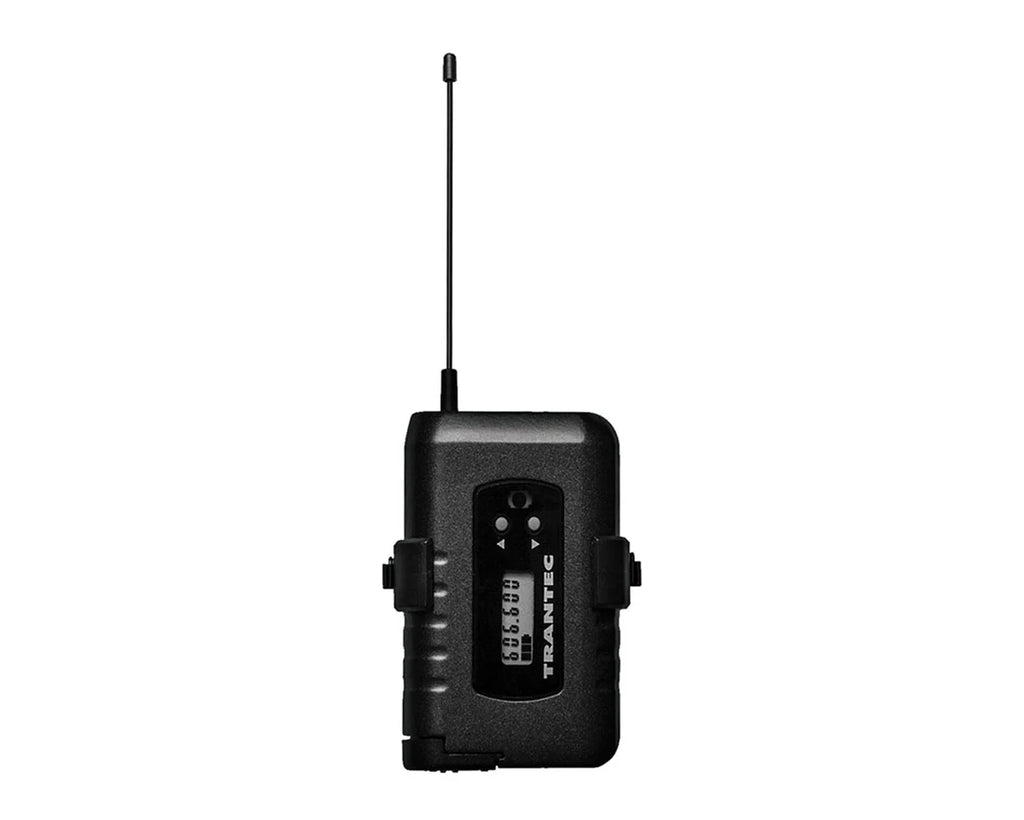

S5.5 Beltpack - General

• RF Carrier Power: 30 mW or less
• Modulation System: PLL synthesizer
• Maximum Input Level: 120 dB SPL (microphone sensitivity: Gain "0")
• Audio Input Connector: TA-4 (Mini-XLR 4 pins)
• Battery: LR6 (Single AA)
• Battery Life: 10 hours (Alkaline)
• Indicator: LCD display, Power lamp
• Function: Infra-red Link Port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-9; 20dB)

S5.5 Beltpack - Physical & Dimensions

• Height: 80mm
• Width: 55mm
• Depth: 22mm
• Weight: 140g
