Description
Turtle AV 100m USB 3.2 5Gbps Extender Kit over CAT
100m USB 3.2 5Gbps Extender Kit over CAT. Includes Host & Device Extenders.
FEATURES
- Includes Host and Device Extenders
- Supports up to Cat 6/6a/7
- HDBaseT-USB3 RJ45 Ethernet Ports
- USB-C and USB-A 3.2 Gen 1 Ports
- RS-232 and FSYNC Support
- 5 Gb/s Data Transfer Speed
- Plug and Play
- TAA Compliant

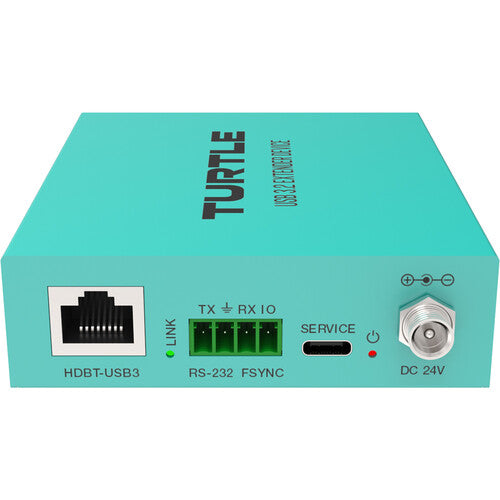

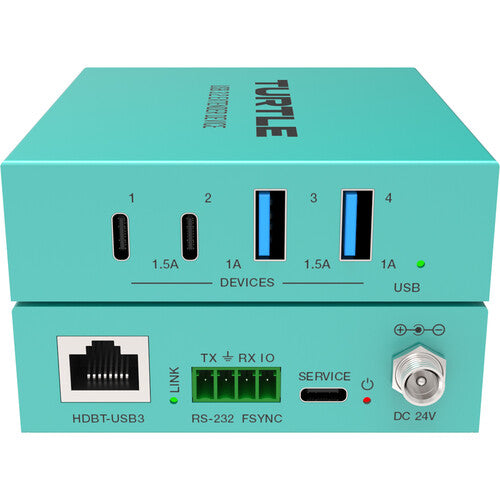

Each extender incorporates an HDBaseT-USB3 connection through a standard RJ45 port. The HDBaseT connection supports USB 3.2 Gen 1 data transfer speeds of up to 5 Gb/s and the transfer of power, which means you only need to hook up the included power supply to one of the extenders. Connect to a host device through a single USB-C 3.2 Gen 1 port, then connect up to seven peripheral devices through the remaining three USB-C and four USB-A 3.2 Gen 1 ports. The remaining USB-C connector port on each extender is a service port dedicated to firmware updates. Both extenders are equipped with RS-232 3-pin and FSYNC 1-pin options on a 3.5mm phoenix connector to reliably control AV, network, healthcare, or other peripheral equipment.
This kit is TAA compliant, ensuring it can confidently be used in confidential or high-profile situations, such as federal contracts. The plug-and-play design means there is no need to install any drivers or software.
SPECIFICATIONS
| TECHNICAL SPECIFICATIONS | |
| USB Protocol | USB 3.2 Gen 1 |
| Transmission Rate | Up to 5Gbps |
| Transmission Distance | 100m/328ft via CAT6a (F/FTP) cable, 1.5m/4.9ft via USB cable |
| ESD PROTECTION | |
| Standard | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| CONNECTIONS | |
| TRANSMITTER | |

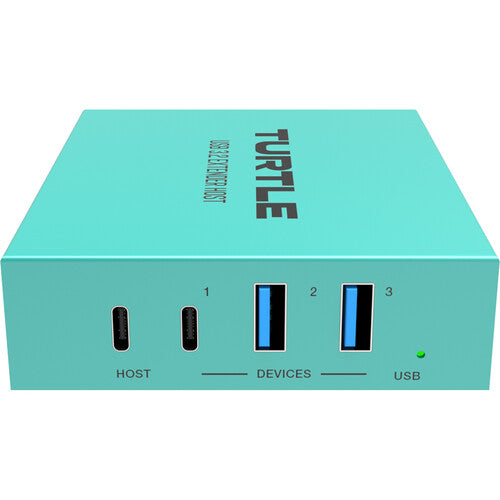

| Input | 1× HOST [USB Type C, 24-pin female] |
| Output | 1× USB-C DEVICE [USB Type C, 24-pin female], 2× USB-A DEVICE [USB Type A, 9-pin female], 1× HDBT-USB3 [RJ45 connector, 24V PoC] |
| Control | 1× RS-232 [3pin-3.5mm phoenix connector], 1× FSYNC [1pin-3.5mm phoenix connector], 1× SERVICE [USB Type C, firmware update port] |
| RECEIVER | |
| Input | 1× HDBT-USB3 [RJ45 connector, 24V PoC] |

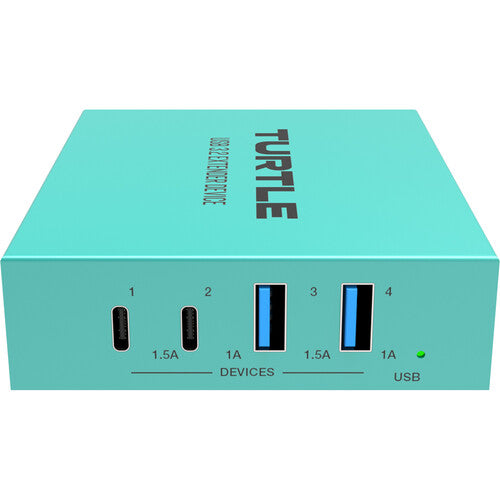

| Output | 2× USB-A DEVICE [USB Type A, 9-pin female], 2× USB-C DEVICE [USB Type C, 24-pin female] |
| Control | 1× RS-232 [3pin-3.5mm phoenix connector], 1× FSYNC [1pin-3.5mm phoenix connector], 1× SERVICE [USB Type C, firmware update port] |
| MECHANICAL SPECIFICATIONS | |
| Housing | Metal enclosure |
| Colour | Turtle Aqua |
| Dimensions | TX / RX: 100mm [W] × 85mm [D] × 25.5mm [H] |
| Weight | TX: 265g; RX: 275g |
| POWER SUPPLY | |
| Input | AC 100~240V, 50/60Hz |
| Output | DC 24V/3.75A |
| Power Consumption | TX: 23W (Max), RX: 35W (Max), TX+RX: 68W (Max, including line loss) |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% RH (non-condensing) |
| Storage Humidity | 10%~90% RH (non-condensing) |
