Description

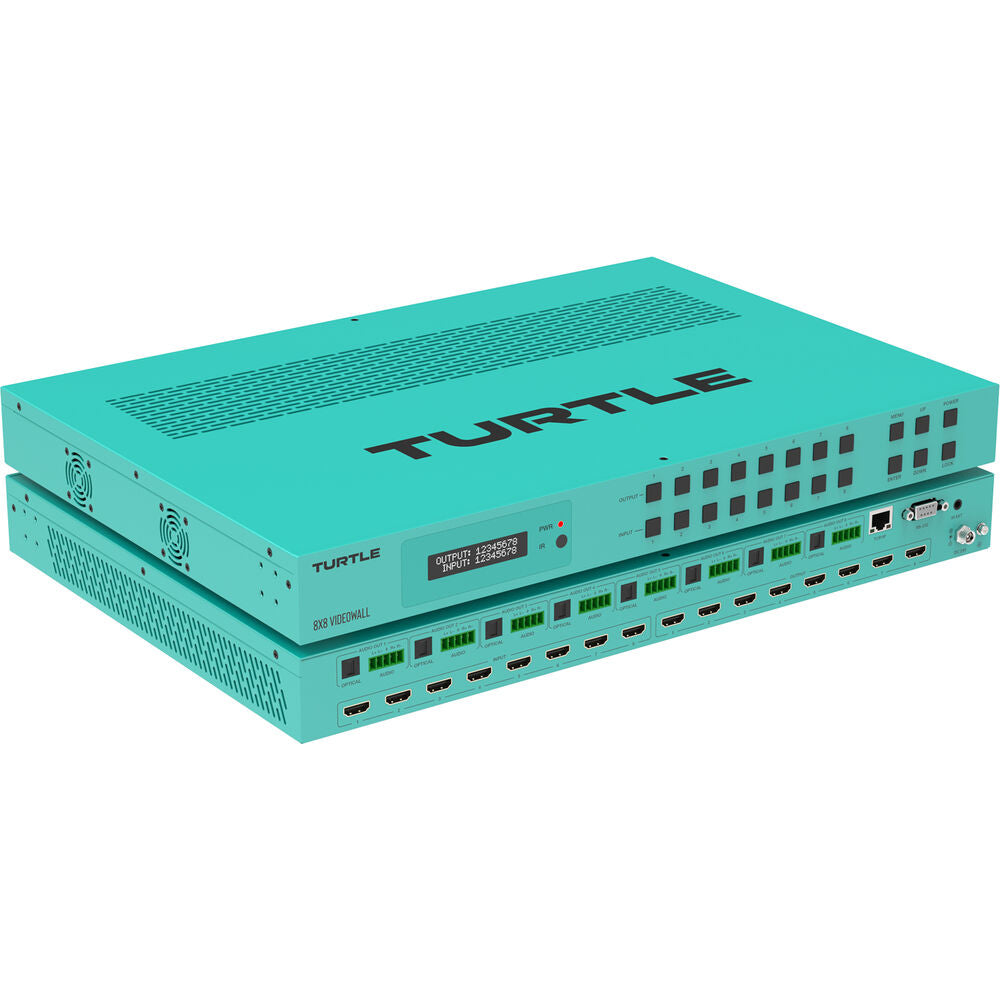

Turtle AV 4K60 4:4:4 8x8 Video Wall, Matrix, and Multi-Viewer with preset layouts
4K60 4:4:4 4x4 Video Wall, Matrix, and Multi-Viewer with preset layouts. 4x HDMI 2.0 inputs, seamless switching, multi-channel audio and CEC control.
FEATURES
- 8 x HDMI 2.0 Inputs
- Seamless Switching & Multichannel Audio
- CEC Control, API Support
- Resolutions up to 4K60, 4:4:4, 18 Gb/s
- 8/10/12-Bit Color Depth Supported
- HDCP 2.2, Advanced EDID Management
- Easy Setup via WebGUI
- Audio Embedding & De-Embedding
- TAA Compliant
All-in-One Performance
Switch effortlessly between Video Wall, 8x8 Matrix, or Multiview configurations, all in a single, powerful device tailored to your needs.
Powerful Video Wall
Build impressive video walls with dynamic grids, or create unique layouts like panoramas and combined zones for mixed displays. With support for a variety of modes, this system provides the flexibility you need for command centers, public spaces, live events, and more, all in stunning 4K60 resolution.
8x8 Matrix Functionality
Route any input to any output or create multiple simultaneous configurations with robust 8x8 matrix functionality.
Audio Embedding & De-Embedding
Seamlessly embed or de-embed audio via the optical or Phoenix connectors for total flexibility in any A/V setup.
Seamless Switching
Enjoy instant, lag-free switching between inputs, ensuring smooth transitions without frame loss.
Scaling Flexibility
Individually scale each source with precision, supporting resolutions up to 4K60 with 4:4:4 color, each output having individual downscaling control.

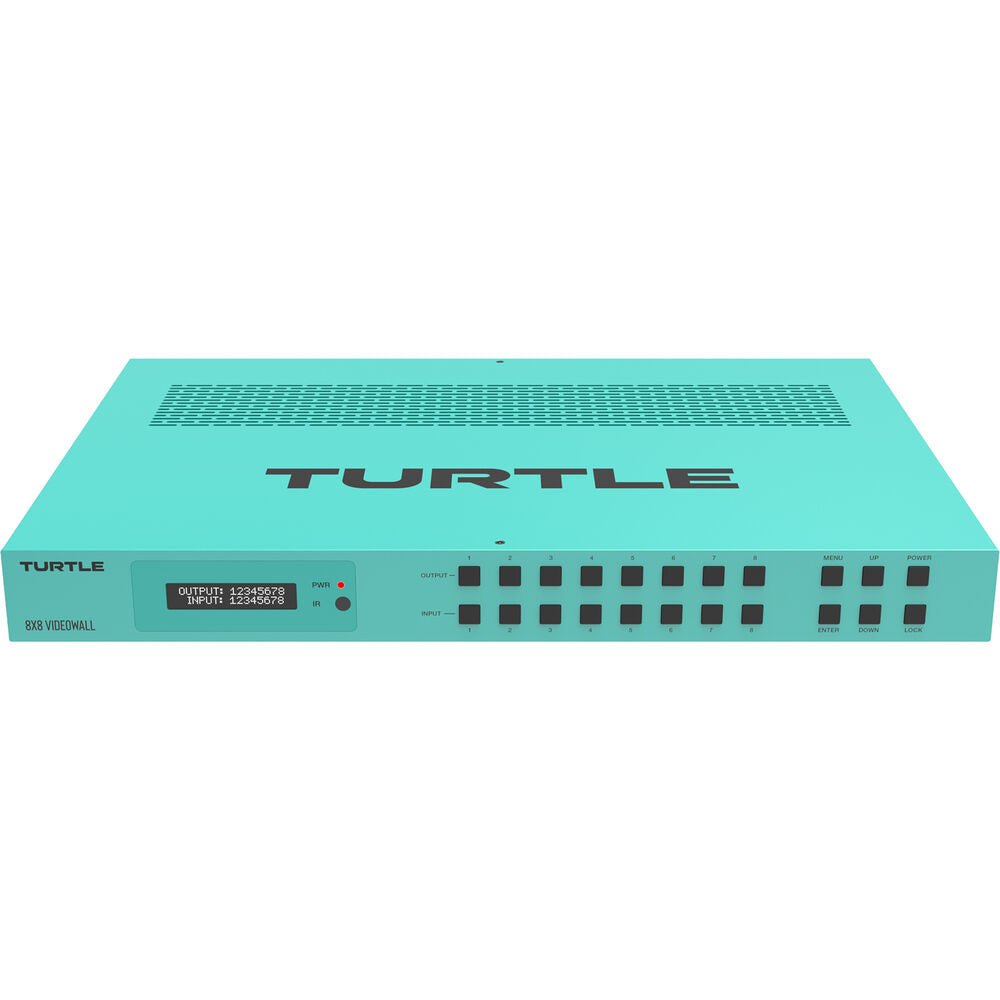

Easy Setup via WebGUI or Front Buttons
Set up and manage configurations effortlessly using the intuitive WebGUI, or go fully hands-on with the front panel controls.
API Support
Integrate easily with third-party systems via robust API support for advanced control and automation.
HDCP 2.2 Compatibility & Advanced EDID Management
Fully compliant with HDCP 2.2, ensuring compatibility with the latest 4K content and devices. Manage EDID with ease using 12 factory-defined settings, two user-defined modes, and four copy modes. Select the desired EDID mode or copy an EDID to an input port via the front panel, RS-232 control, or WebGUI for seamless integration and optimal compatibility.
All-Metal Chassis Construction
Housed in an all-metal chassis for maximum ruggedness, the aqua-blue device is sleek and elegant enough to mount in full view with all your other production gear.
TAA Compliant
The TAA-compliant device meets U.S. government standards for procurement. This ensures that it can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
SPECIFICATIONS
| TECHNICAL | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Colour Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| Colour Depth | 8/10/12bit |
| AUDIO FORMATS | |
| HDMI IN/OUT: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| AUDIO Extracted: | Optical Outputs: LPCM 2.0CH/Dolby/DTS 5.1CH Balanced Analog Audio Outputs: LPCM 2CH |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| CONNECTION | |

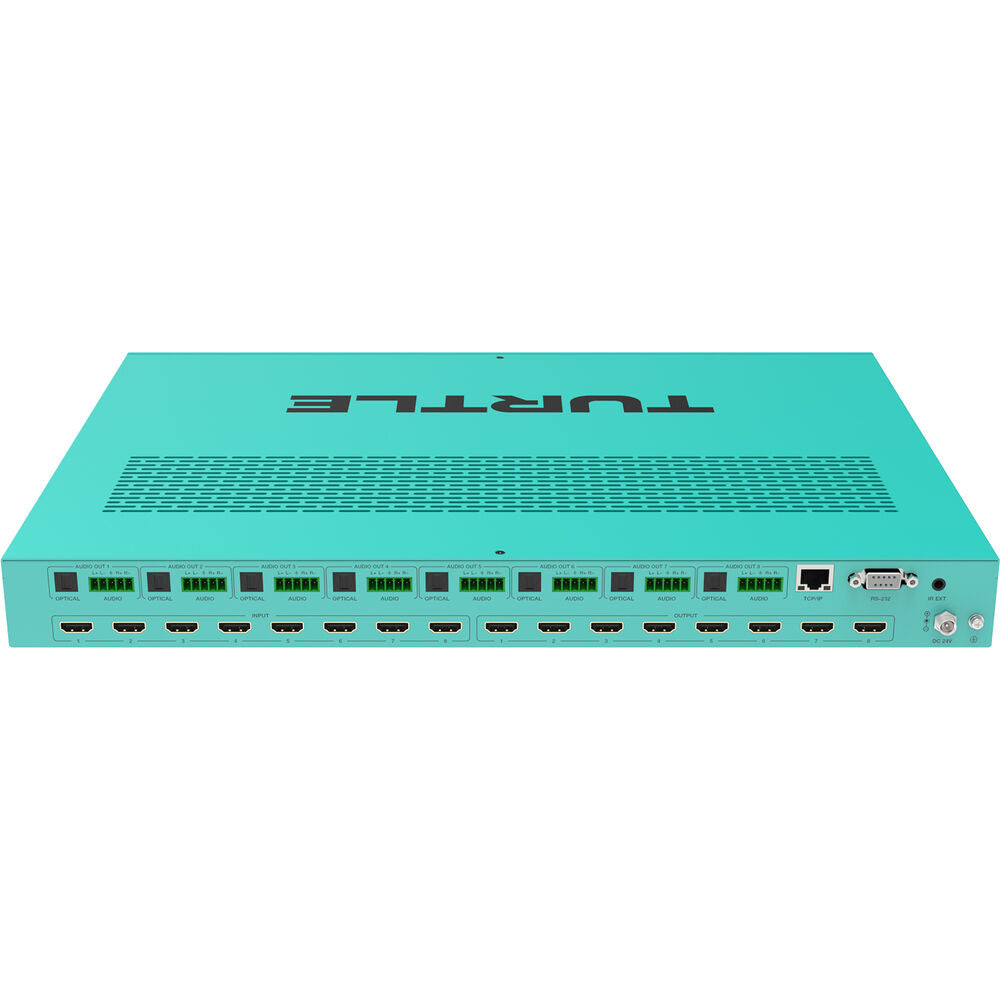

| Input ports | 8 × HDMI INPUT [Type A, 19-pin female] |
| Output ports | 8 × HDMI OUTPUT [Type A, 19-pin female] 8 × OPTICAL AUDIO OUT [S/PDIF] 8 × L/R AUDIO OUT [3.5mm, 5pin Phoenix Connector] |
| Control ports | 1 × TCP/IP [RJ45] 1 × RS-232 [D-Sub 9] 1 × IR EXT [3.5mm, Stereo Mini-jack] |
| MECHANICAL | |
| Housing | Metal Enclosure |
| Colour | Turtle Aqua |
| Dimensions | 440mm [W] × 300mm [D] × 44.5mm [H] |
| Weight | 3.95kg |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 70W (Max) |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no-condensing) |
| Video Resolution | 4K60 HDMI Cable Length (HDMI IN / OUT) 5m/16ft 4K30 HDMI Cable Length (HDMI IN / OUT) 10m/32ft 1080P60 HDMI Cable Length (HDMI IN / OUT) 15m/50ft |
