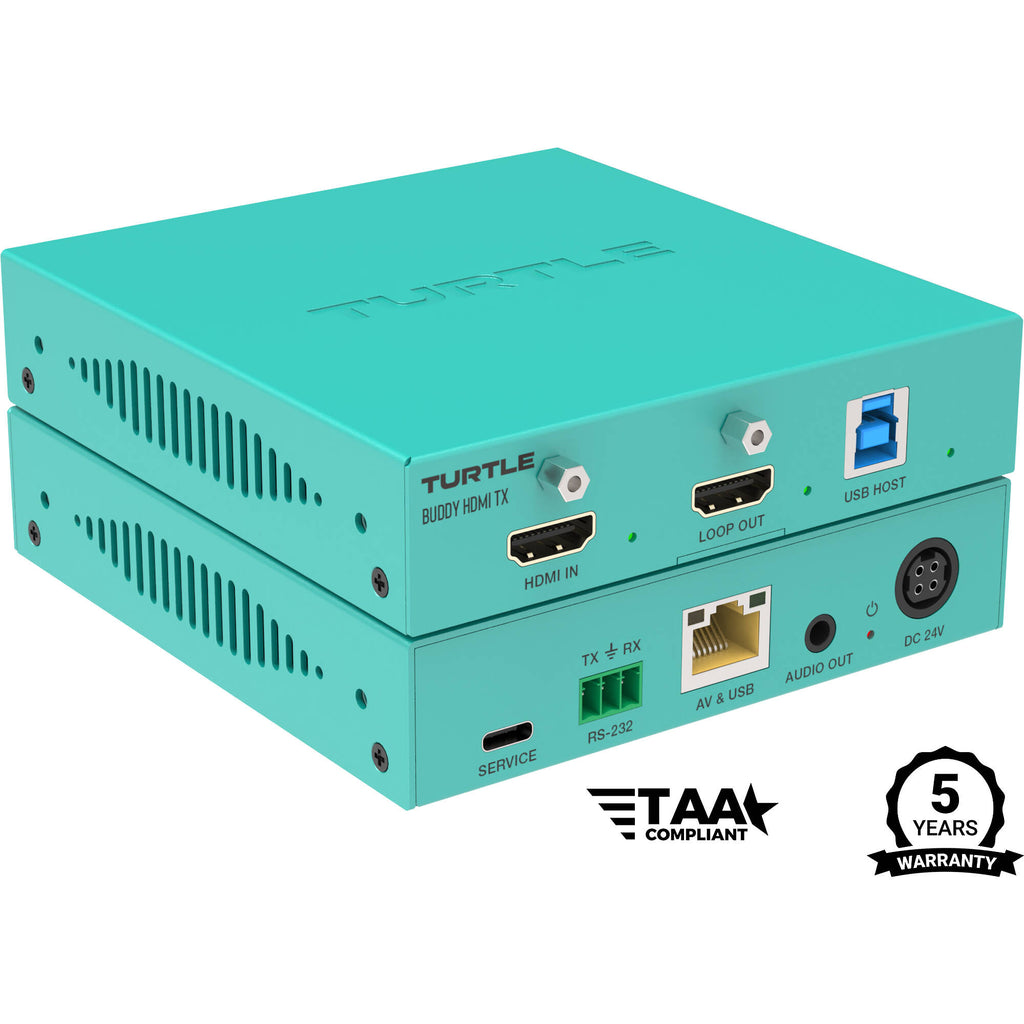

Turtle AV Boardroom Buddy HDMI TX
4K60 4:4:4. USB 3.2 Gen 1 with 2.5Gbps Data over one CAT Cable
FEATURES
- Transmit 4K60 Video up to 130' Away
- Uncompressed Video over Cat 6 Cable
- HDMI Input with HDMI Loop Output
- USB-B Host Port
- Works with Power over Cable (PoC)
- 3.5mm Audio Output for Monitoring
- EDID Management, RS-232 Support
- Works with USB or HDMI Receivers
- TAA Compliant
Boardroom Buddies The holy grail of USB Extenders. Uncompressed 4K60 4:4:4 and USB 3.2 Gen 1 2.5Gbps over a single CAT6a cable with 100W charging for USB TX with no additional PSU required.
SPECIFICATIONS

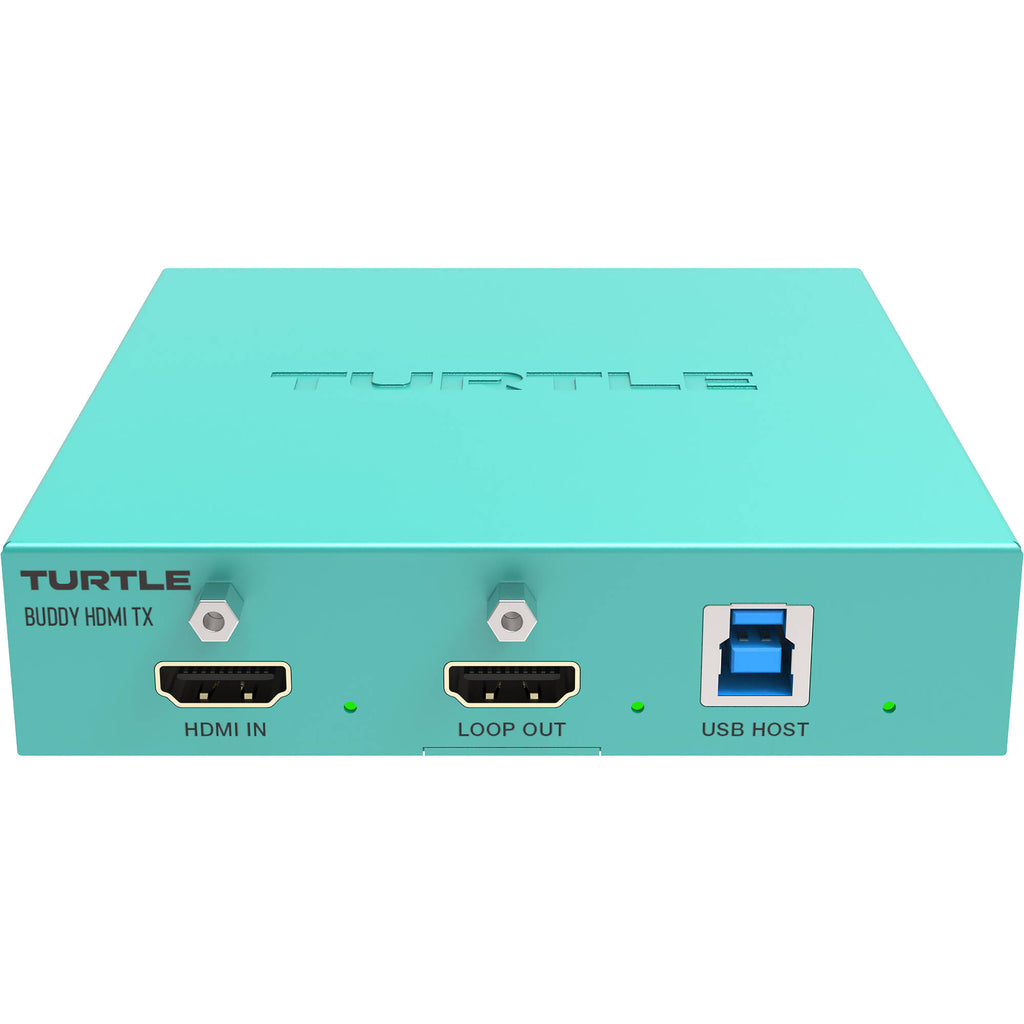

| Transmission I/O |
1x HDMI Female (2.0b) Input
1x USB-B Female (2.0) Input
1x HDMI Female (2.0b) Loop-Out
1x RJ45 Female Output
1x USB-C Female (3.1/3.2 Gen 1) Output
1x 1/8" / 3.5 mm TRS Female (Analog Audio) Output
1x USB-C Female (Firmware) Input
1x Block 3-Pin Female (RS-232) Input/Output
|
| Embedded Audio |
HDMI
RJ45
|
| Power I/O |
1x DIN 4-Pin (24 VDC at 2 A) Input
|
Standards
| HDR Support |
Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
|
| Reclocking |
No
|
| HDCP Support |
Yes: Version 2.3
|
| EDID Support |
Yes (Unspecified Control Method)
|
Transmission
| Max Transmission Distance |
UHD 4K at 60 Hz:
131.2' / 40 m (via Cat 6a)
|
| Video Format |
RJ45/USB (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC):
5120 x 2160p: 50/60 fps
5120 x 1440p: 50/60 fps
4096 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i: 50/59.94/60 fps
1280 x 720p: 50/59.94/60 fps
1600 x 1200p: 60 fps
1440 x 1050p: 60 fps
1440 x 900p: 60 fps
1360 x 768p: 60 fps
1280 x 1024p: 60 fps
1024 x 768p: 60 fps
800 x 600p: 60 fps
640 x 480p: 60 fps
|
| Supported Audio System |
DTS/DTS 96/24/DTS Express/DTS-HD High Resolution/DTS-HD Master Audio/Dolby Atmos/Dolby Digital/Dolby Digital EX/Dolby Digital Plus/Dolby TrueHD
|
| Supported Sample Rates |
Up to 192 kHz (LPCM)
|
| Supported Cable Types |
Cat 6a
|
| Video Bandwidth |
18 Gb/s
|
Power
| PoE Support |
Yes: PoE Proprietary
|
General
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
|
| Dimensions |
4.6 x 4.4 x 1" / 118 x 111 x 25.5 mm
|
| Weight |
13.5 oz / 383 g
|
