Turtle AV Boardroom Buddy USB-C TX - TAV-BBUSBC-TX
Turtle AV Boardroom Buddy USB-C TX - TAV-BBUSBC-TX
Turtle AV Boardroom Buddy USB-C TX - TAV-BBUSBC-TX
Roll over image to zoom in Click on image to zoom
Turtle AV Boardroom Buddy USB-C TX - TAV-BBUSBC-TX
Turtle AV Boardroom Buddy USB-C TX - TAV-BBUSBC-TX
Turtle AV Boardroom Buddy USB-C TX - TAV-BBUSBC-TX

Turtle AV Boardroom Buddy USB-C TX - TAV-BBUSBC-TX

Turtle AVSKU: TAV-BBUSBC-TX

Need this in a hurry? Check current lead times for Turtle AV

Price:
£516.00(incl. VAT)
£430.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

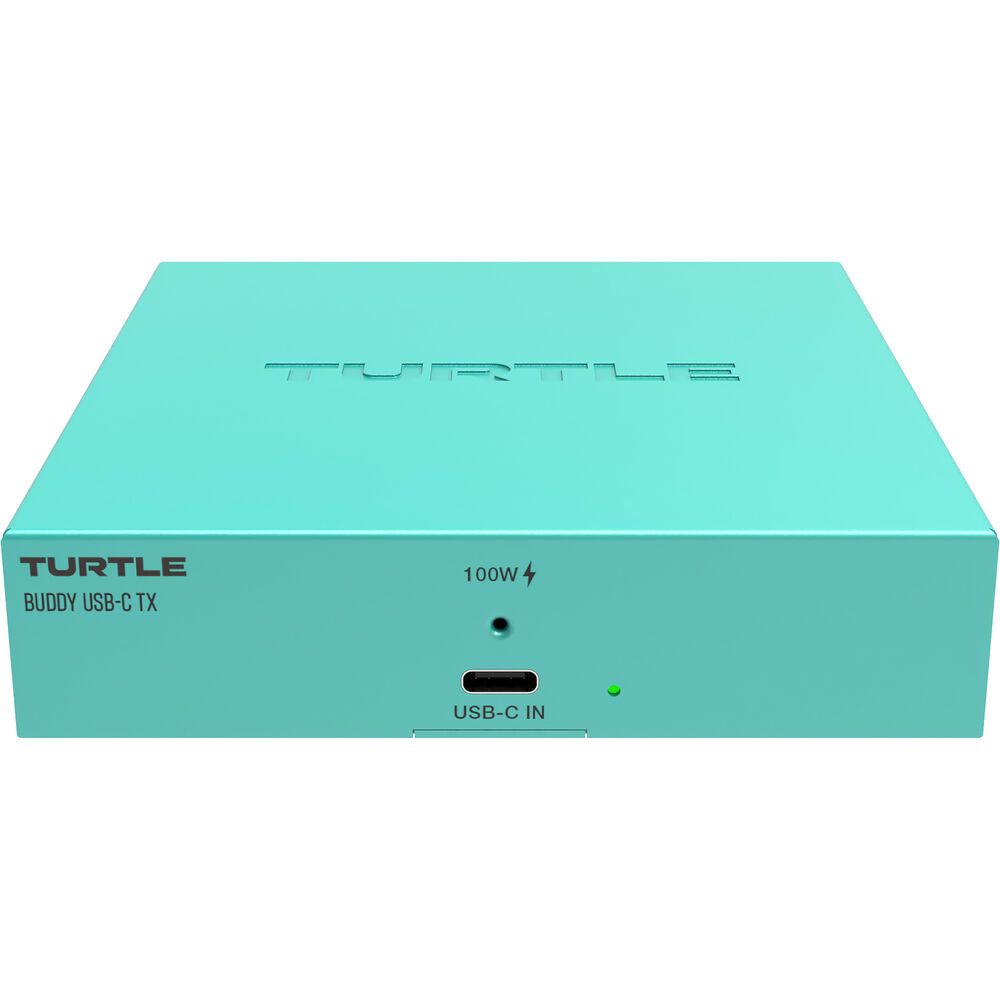

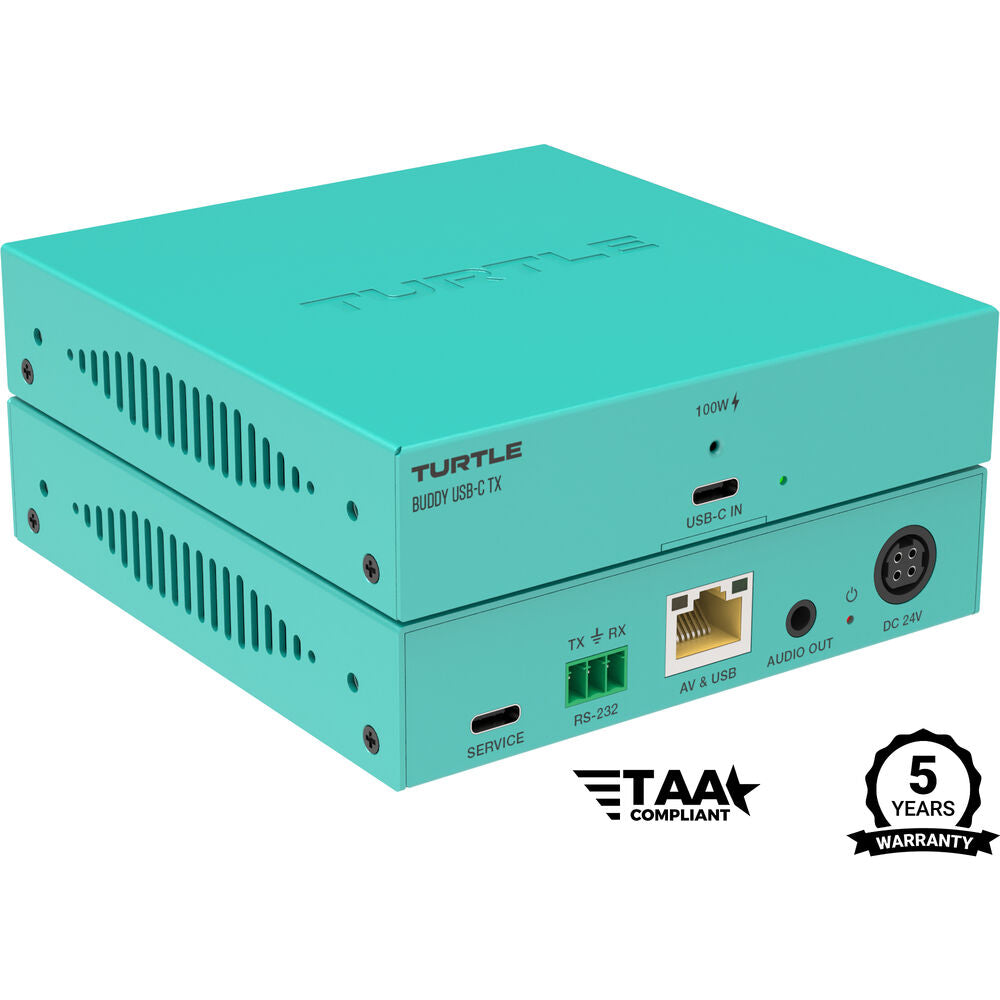

Turtle AV Boardroom Buddy USB-C TX

4K60 4:4:4. USB 3.2 Gen 1 with 2.5Gbps Data, over one CAT Cable. Includes 100W device charging.

FEATURES

  • 40 metres / 130 feet
  • EDID Management
  • One single CAT cable
  • PoC. Power over Cable
  • Locking PSU connector
  • Locking USB-C connectors on TX and RX
  • RS232
  • TAA Compliant
  • 5-year warranty

Boardroom Buddies The holy grail of USB Extenders. Uncompressed 4K60 4:4:4 and USB 3.2 Gen 1 2.5Gbps over a single CAT6a cable with 100W charging for USB TX with no additional PSU required.

SPECIFICATIONS

Interfaces

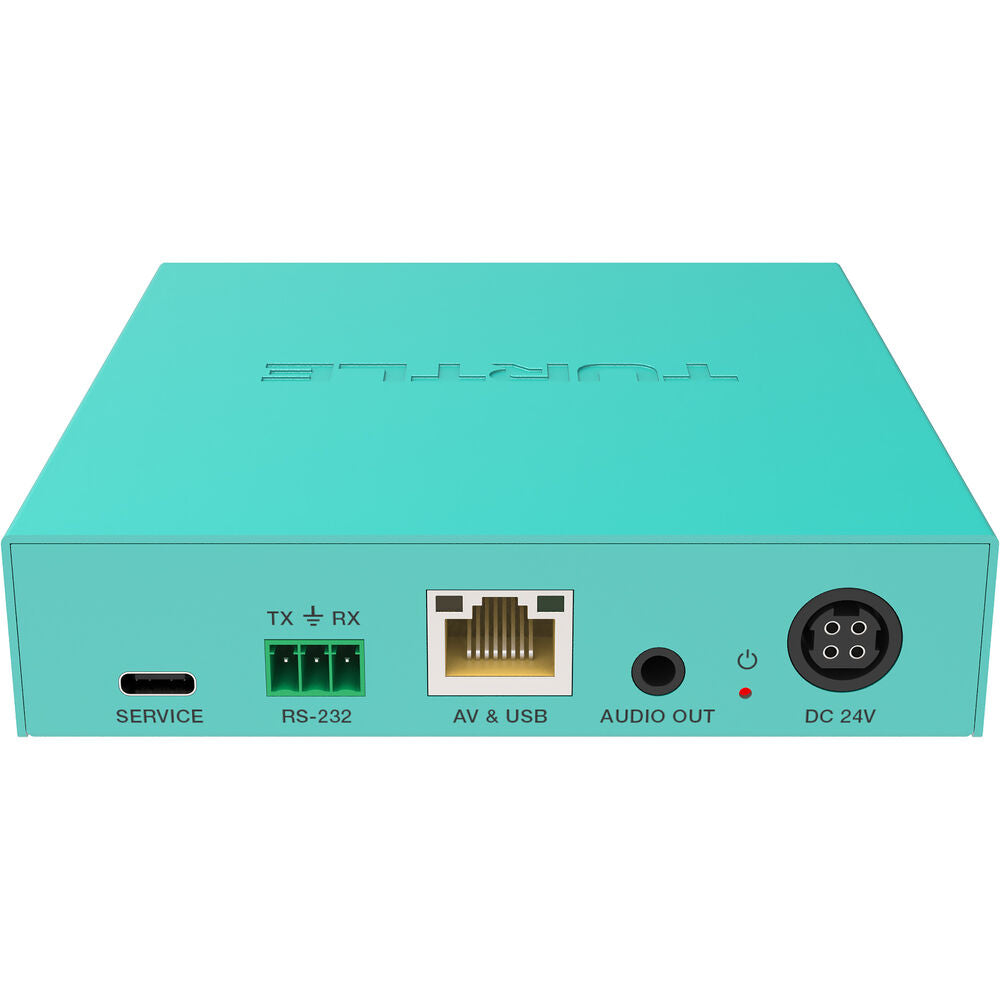

Transmission I/O
1x USB-C Female (3.1/3.2 Gen 1) Input
1x RJ45 Female Output
1x USB-C Female Output
1x 1/8" / 3.5 mm TRS Female (Analog Audio) Output
1x USB-C Female (Firmware) Input
1x Block 3-Pin Female (RS-232) Input/Output
Embedded Audio
USB-C
RJ45
Power I/O
1x DIN 4-Pin (24 VDC) Input
Standards
HDR Support
Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
Reclocking
No
HDCP Support
Yes: Version 2.3
EDID Support
Yes (Unspecified Control Method)
Transmission
Max Transmission Distance
UHD 4K at 60 Hz:
131.2' / 40 m (via Cat 6a)
Video Format
RJ45/USB (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC):
4096 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i: 50/59.94/60 fps
1280 x 720p: 50/59.94/60 fps
1600 x 1200p: 60 fps
1440 x 1050p: 60 fps
1440 x 900p: 60 fps
1360 x 768p: 60 fps
1280 x 1024p: 60 fps
1024 x 768p: 60 fps
800 x 600p: 60 fps
640 x 480p: 60 fps
Supported Audio System
DTS/DTS 96/24/DTS Express/DTS-HD High Resolution/DTS-HD Master Audio/Dolby Atmos/Dolby Digital/Dolby Digital EX/Dolby Digital Plus/Dolby TrueHD
Supported Sample Rates
Up to 192 kHz (LPCM)
Supported Cable Types
Cat 6a
Video Bandwidth
18 Gb/s
Power
PoE Support
Yes: PoE Proprietary
General
Certifications
CE, FCC, UL
Operating Conditions
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
Dimensions
4.6 x 4.4 x 1" / 118 x 111 x 25.5 mm
Weight
12.7 oz / 359 g
