Description

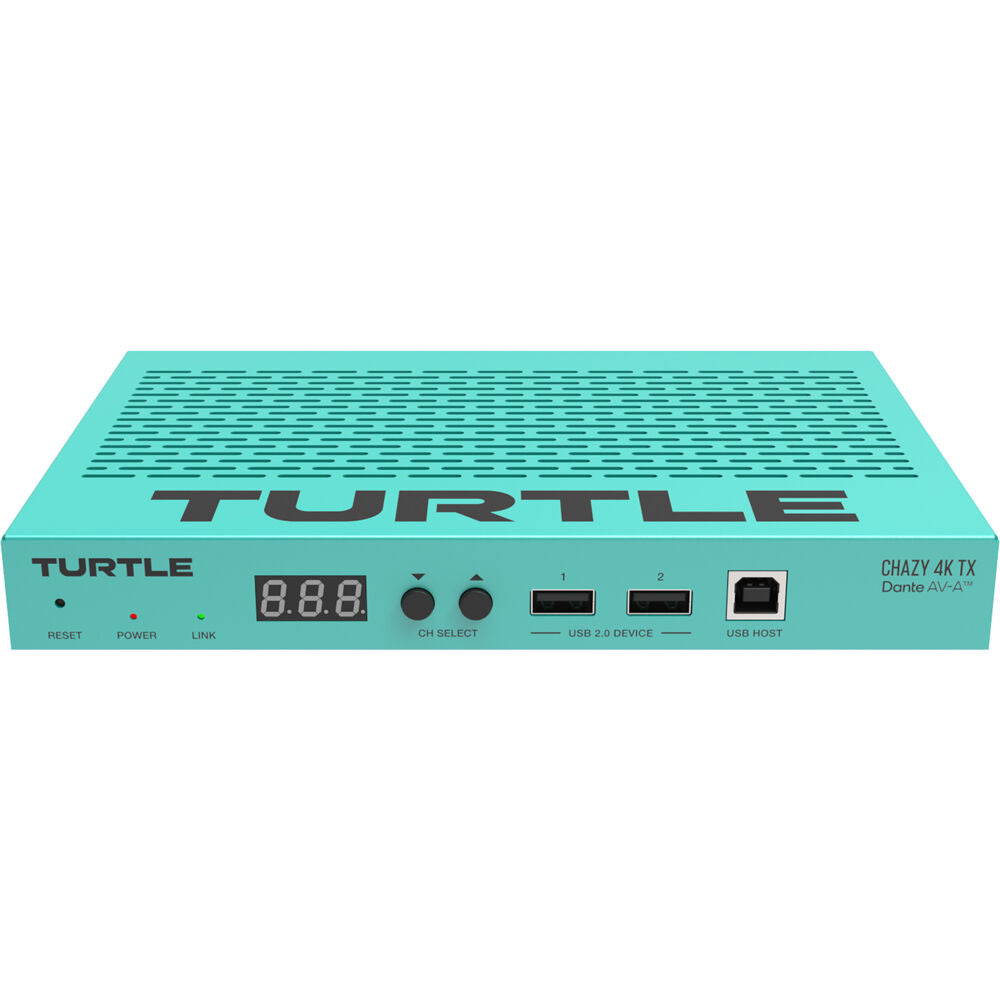

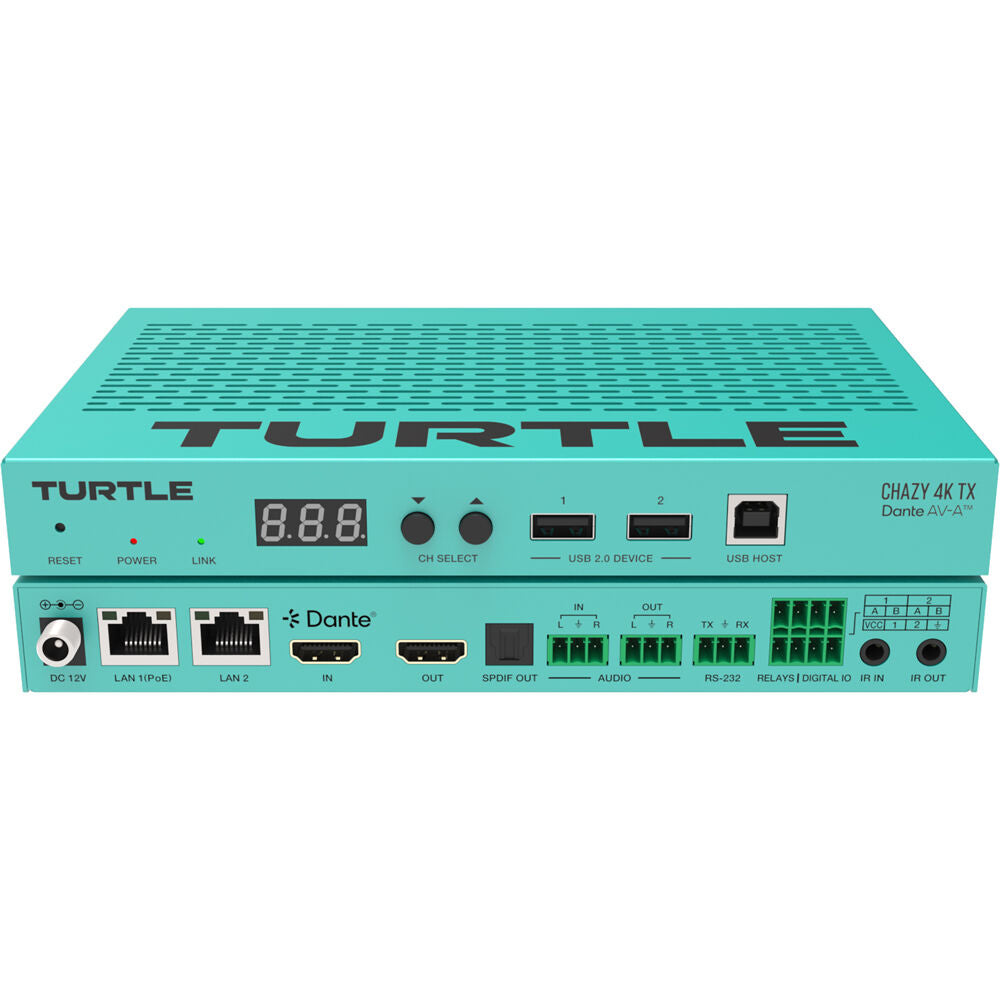

Turtle AV CHAZY 4K TX
CHAZY 4K TX. HDMI 2.0 4K60 4:4:4 HDR AV over IP Low Latency Transmitter (+ Dante AV-A logo)
FEATURES
- Supports up to UHD 4K60 Video
- HDMI I/O, SPDIF Output
- Includes Dante AV-A License
- Supports 7.1 Dolby Atomos
- Dual Network Ports, PoE
- TAA Compliant
MORE FEATURES
- KVM support
- USB-B host port, USB-A device ports
- 1 Gb/s Network bandwidth, 480 Mb/s USB bandwidth
- Video wall configurations up to 9 x 9
- Hardware scaling
- EDID management
- HCDP 2.2 compliance
- Multicast support
- TAA compliant
SPECIFICATIONS
| TECHNICAL SPECIFICATIONS | |
| HDMI | 2.0b compliant |
| HDCP | 2.2 compliant |
| Video Bandwidth | 18Gbps |
| Compression Codec | JPEG 2000 or Dante AV-A™ |
| Network Bandwidth | 1Gbps |
| USB Bandwidth | 480Mbps |
| Color Depth | Input: 8/10/12-bit; Output: 8-bit |
| Colour Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX, DSD, DTS High Res, DTS-HD Master |
| IR Level | Default 12V, Optional 5V |
| IR Frequency | Wideband 20K – 60KHz |
| ESD PROTECTION | |
| Standard | IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge) |

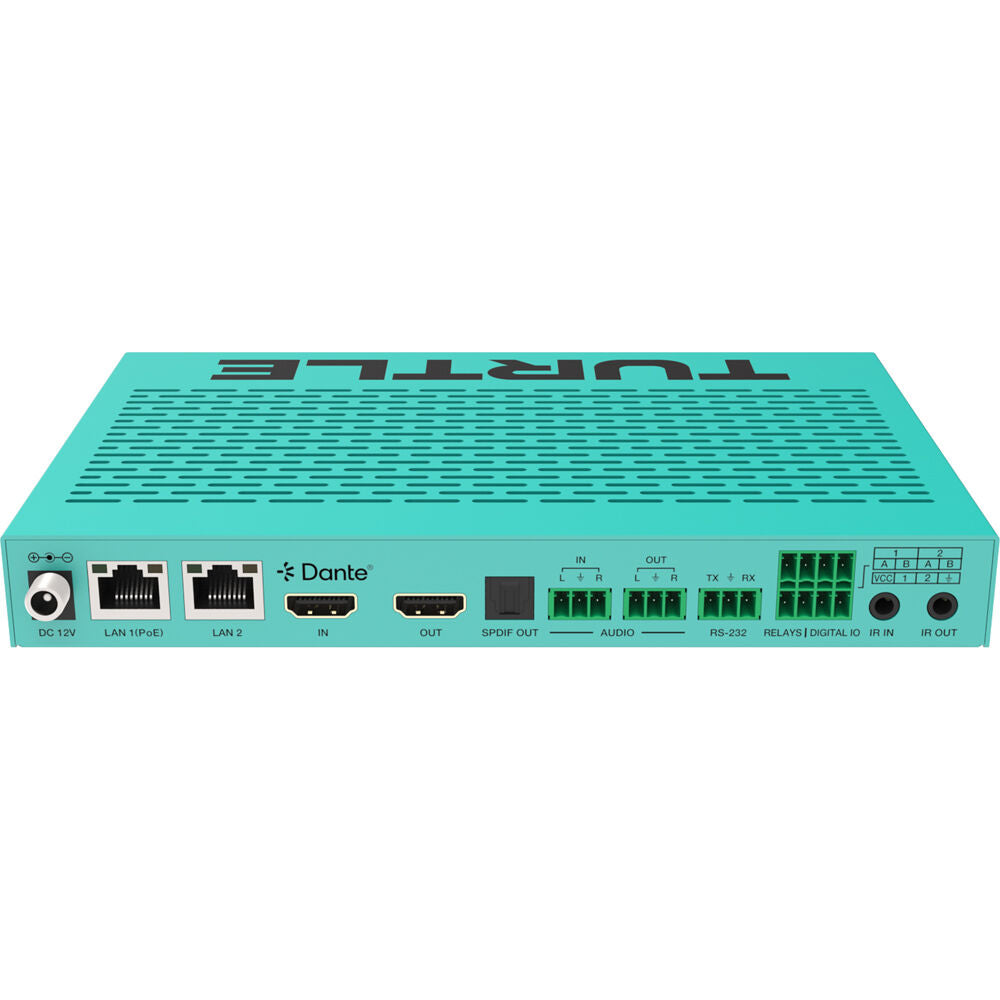

| CONNECTIONS | |
| Input | 1x HDMI (Type A, 19-pin female), 1x L/R Audio (3-pin 3.81mm Phoenix connector) |
| Output | 1x HDMI (Type A, 19-pin female), 1x L/R Audio (3-pin 3.81mm Phoenix connector), 1x SPDIF OUT (Optical) |
| Control | 1x LAN (PoE IEEE 802.3af) RJ45 jack, 1x LAN RJ45 jack, 1x RS-232 (3-pin 3.81mm Phoenix connector), 1x USB 2.0 HOST (Type B, 4-pin female), 2x USB 2.0 DEVICE (Type A, 4-pin female), 2x RELAYS (3-pin 3.81mm Phoenix connector), 1x IR IN (3.5mm audio jack), 1x IR Out (3.5mm audio jack) |
| MECHANICAL SPECIFICATIONS | |
| Housing | Metal enclosure |
| Colour | Turtle Aqua |
| Dimensions | 204mm [W] x 136mm [D] x 25.5mm [H] |
| Weight | 631g |
| POWER SUPPLY | |
| Input | AC100-240V 50/60Hz |
| Output | DC 12V/2.5A |
| PoE | IEEE 802.3af |
| Power Consumption | 8.52W |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | 32 – 104° F / -20 – 60° C |
| Relative Humidity | 20% – 90% RH (no condensing) |
