Description

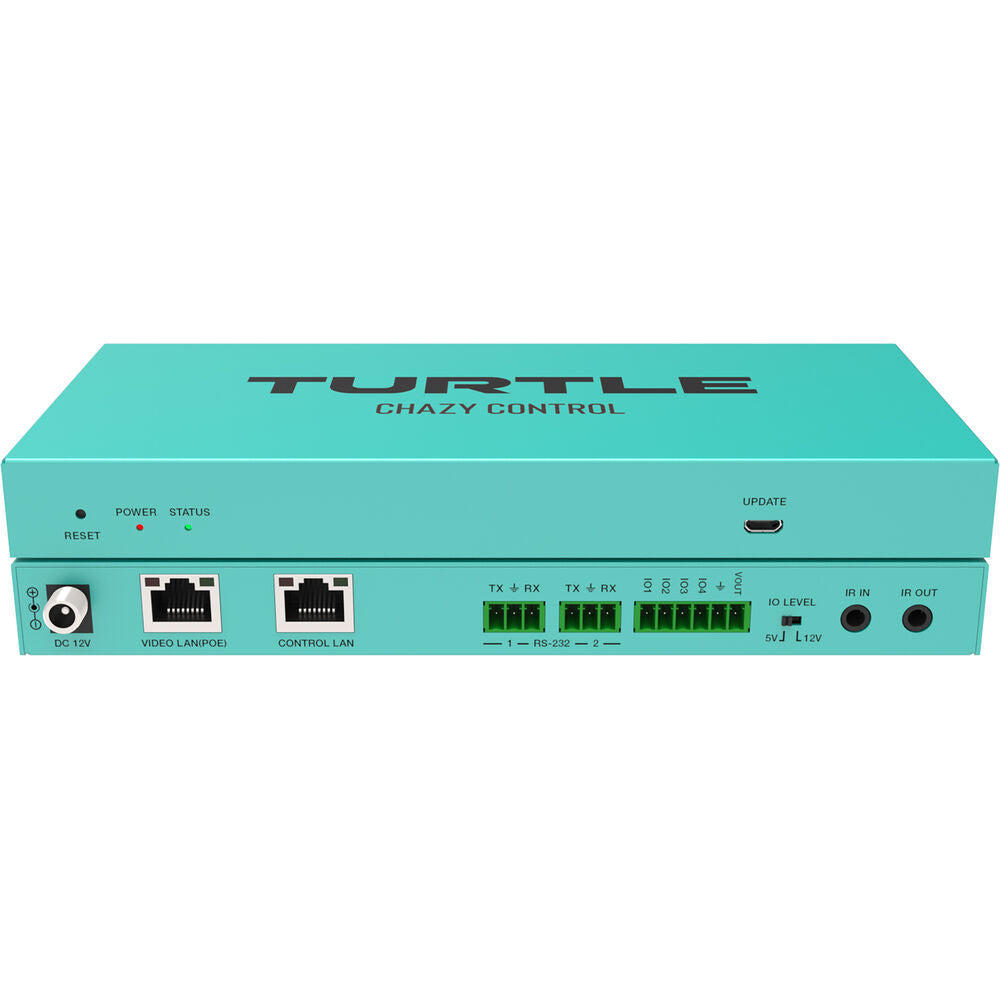

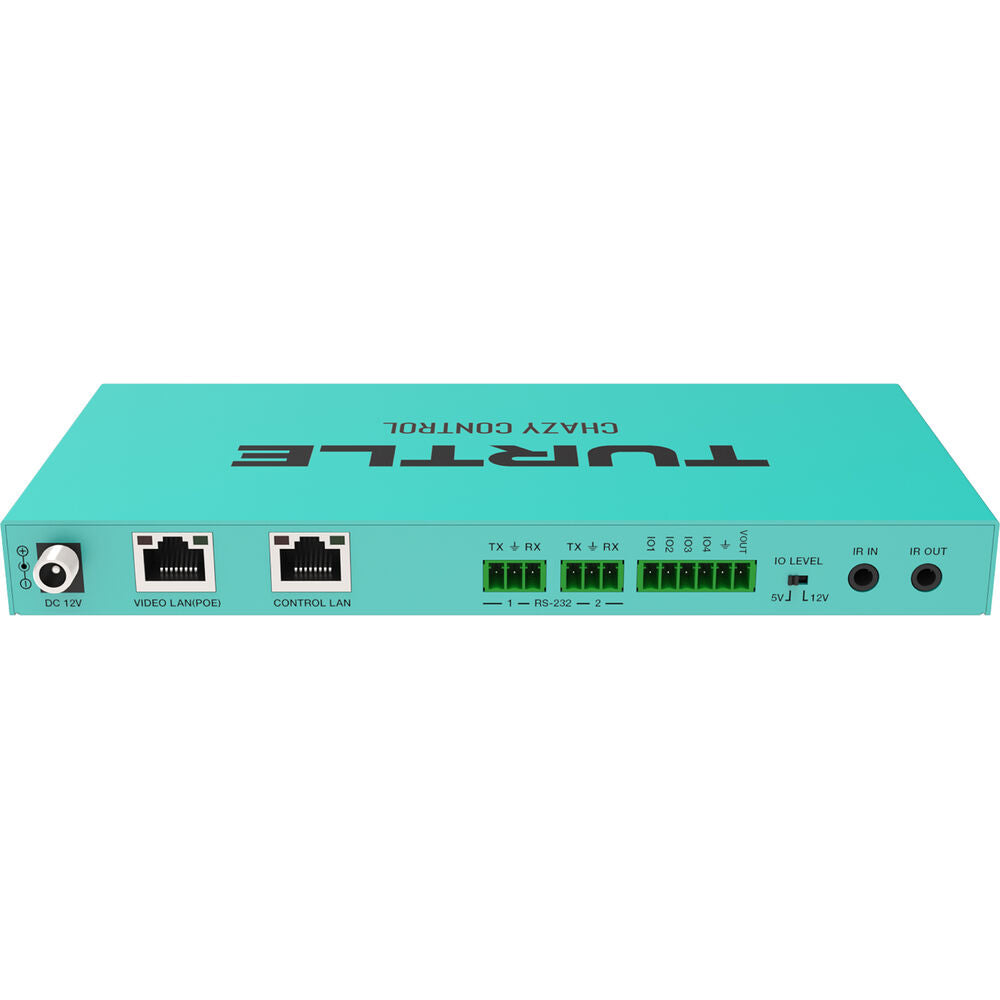

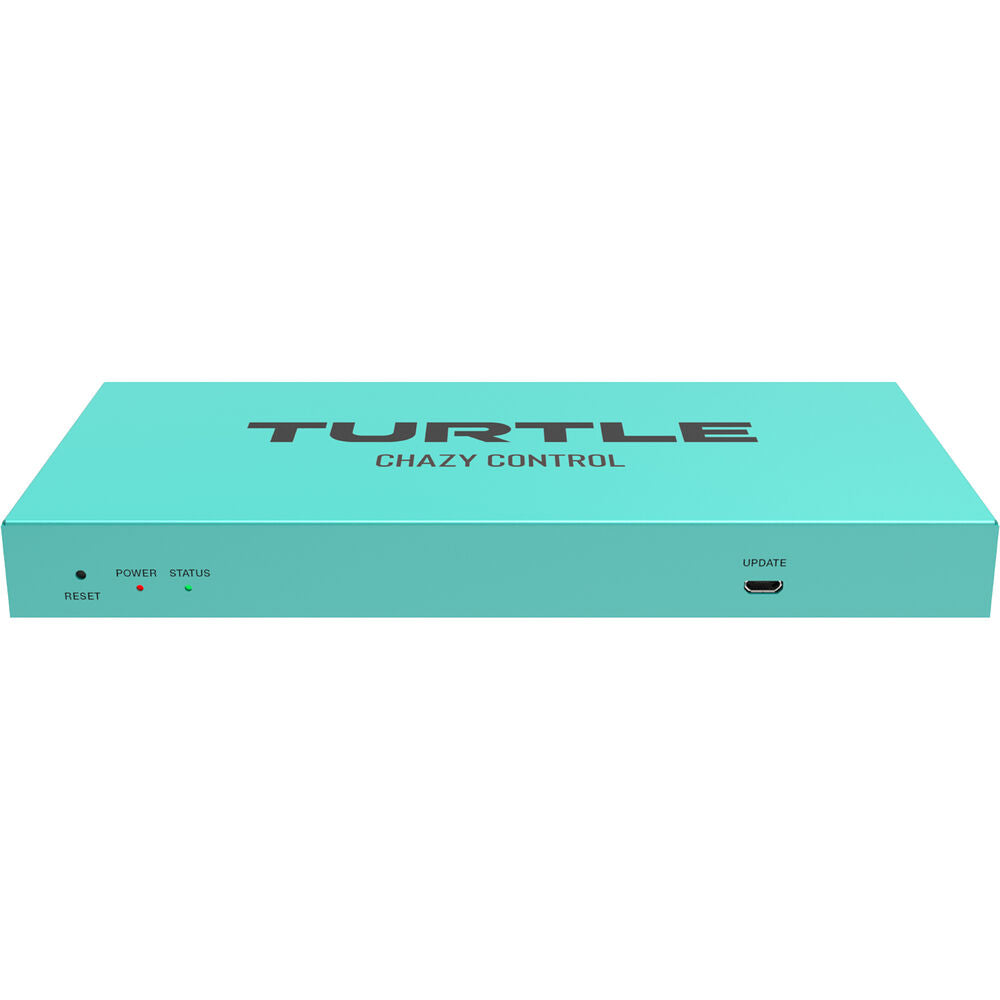

Turtle AV CHAZY CONTROL
CHAZY CONTROL. Central Management Box for CHAZY 4K AV over IP series (+Dante AV-A logo)
FEATURES
- Seamless Routing & Management over IP
- Built-In Dante AV-A Controller
- Dual 1G Network Ports
- Advanced Video Wall Management
- Powers via 12 VDC & PoE
- AES-256 Video Encryption
- TAA Compliant
Control Overview
Embedding Dante Controller directly into the hardware for seamless routing and management over IP, the CHAZY features an intuitive WebGUI, true multicast support, and advanced features like video wall configurations up to 9x9, KVM, and API integration for systems like Q-SYS and Crestron. With dual network ports to keep AV and control separate, the device also has robust security features including HTTPS and SSH as well as AES-256 encryption. AV professionals can manage and route video and audio streams directly from any web browser on a laptop, desktop, tablet, or smartphone. No additional software installations are required, and the device has no internal fans, offering silent and vibration-free operation.
API Support & Automated Dante Routing
Whatever your control platform of choice may be among options like Q-SYS, Crestron, and Control4, the CHAZY's API allows you to program automated switching and routing for your Dante network.
Drag & Drop Interface
Routing signals has never been easier. Built directly into the WebGUI is an intuitive drag and drop interface, you can quickly and easily route one to one or one to many.
Security
HTTPS and SSH offers login peace of mind, with AES-256 encryption making the video and audio streams totally secure.
TAA Compliant
The CHAZY is TAA compliant, meeting U.S. government standards for procurement. This ensures that it can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
SPECIFICATIONS
| TECHNICAL | |
| Network Bandwidth | 1 Gbps/100Mbps |
| Control Ports | 2x 1G LAN [RJ45 connector] [VIDEO LAN support POE] 1x IR IN [3.5mm audio jack, 12V level] 1x IR OUT [3.5mm audio jack] 1x DIGITAL I/O [6-pin 3.81mm phoenix connector] 2x RS-232 [3-pin 3.81mm phoenix connector] 1x UPDATE [Micro USB, 5-pin female] |
| ESD Protection | IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| MECHANICAL | |
| Housing | Metal enclosure |
| Color | Turtle Aqua |
| Dimensions | 204mm [W] x 98.5mm [D] x 21.5mm [H] |
| Weight | 508g |
| Power Supply | Input: AC100-240V 50/60Hz Output: DC 12V/2.5A PoE IEEE 802.3af |
| Power Consumption | 2W |
| Operating Temperature | 32 – 104° F / -20 – 60° C |
| Relative Humidity | 20% – 90% RH (no condensing) |
