Description

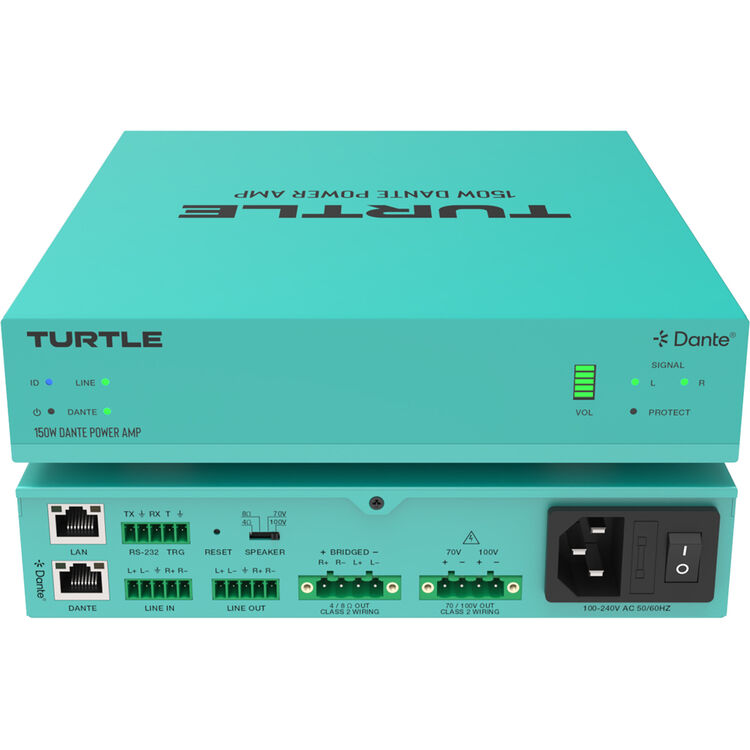

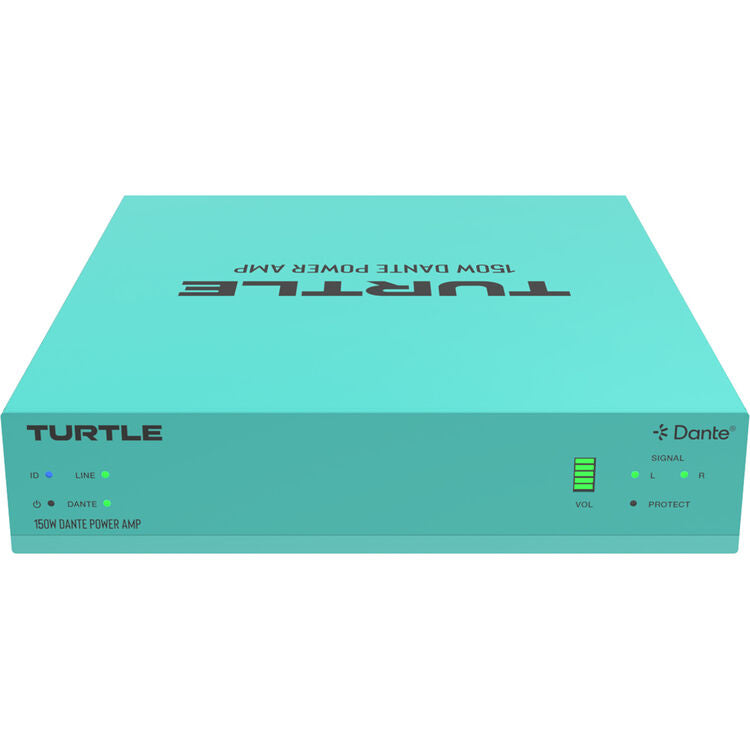

Turtle AV Dante Network Power Amplifier
Dante Network Power Amplifier. 150W Class D Amplifier, with 2x Dante inputs, 2x Line inputs, 2x Dante outputs, 2x Line outputs, 2x 75W APM outputs. Built-in Audio DSP.
FEATURES
- 2-Channel Class-D Amplifier
- Stereo Analog Line Inputs and Outputs
- 4-/8-Ohm Speaker Outputs
- LAN Port and Dante Port
- 70/100V Speaker Outputs
- Built-In DSP & Flexible Control Options
- WEB GUI Control for Easy Management
- Rugged All-Metal Chassis
Dante and Analog Connectivity
Seamlessly integrate digital and analog audio with Dante 2CH digital I/O and balanced or unbalanced line-level analog I/O. Perfect for modern, flexible AV systems.
Built-In DSP and Advanced Audio Processing
Enjoy precise audio control with a built-in DSP featuring independent input gain, output EQ, and volume control. Achieve pristine sound quality with 48 kHz sampling and 24-bit A/D and D/A converters.
Dual Network Ports
Keep the Network and IT Administrators happy with dual network ports allowing separation of Dante and control traffic.
Easy Control, 100% Dante Software Compatible
- Take command with Dante Controller. Our adapters are fully controllable through this intuitive platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.
- Control your amplifier via RS-232, LAN, or the Web GUI for easy integration into any system. Auto-standby and trigger input (5-12V) add convenience and efficiency.
DSP Control via WebGUI
The built-in DSP WebGUI makes managing your amplifier super easy and delivers even more value to this little powerhouse. With the WebGUI, every feature is at your command.
Configure Audio Precisely
- Adjust input and output settings, manage EQ profiles, and control audio delay for Speaker, Line, and Dante outputs.
Save and Recall Presets
- Create up to 5 customizable presets for quick scene changes, perfect for dynamic setups.
Monitor and Manage Network Settings
- Switch between DHCP and Static IP modes, configure Telnet ports, and use the domain name for quick access.
Advanced System Utilities
- Modify passwords, reboot the system, update firmware, and export/import settings with ease.
Streamlined Setup
- Control everything from input sources to auto-standby times, all through an easy-to-use interface.
Hi-Z and Lo-Z Versatility
Switch effortlessly between Lo-Z (4/8 ohms) and Hi-Z (70/100V) modes. Deliver up to two 75W in stereo or 150W in bridged constant voltage mode for ultimate adaptability.
Compact Design for Any Installation
Designed with a half-rack or one-rack form factor, this amplifier saves space while delivering powerful performance. Ideal for boardrooms, classrooms, and professional AV setups.
Built Tough with All Metal Chassis
Turtle Dante Power Amps are housed in an all-metal chassis for making them tougher than a turtle shell.
Fully TAA Compliant
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
SPECIFICATIONS
| TECHNICAL SPECIFICATIONS | |
| Input | 1x Dante Network audio input, 1x LINE balanced stereo 0dBu/10kΩ input |
| Output | 1x Dante Network audio output, 1x Stereo or constant voltage 70V/100V speaker output, 1x LINE balanced stereo output |
| Input Sensitivity | Full power @ 0.775V (0dBu) |
| Output Power | DC power supply: 2x 75W @ 4Ω/8Ω; 1x 150W @ 8Ω; 1x 150W @ 70V/100V |
| Maximum Voltage Gain | 27 - 30dB SE / 39 - 42dB BTL |
| Amplifier Type | Class D |
| AUDIO SPECIFICATIONS | |
| Frequency Response | 20Hz - 20kHz @ ±3dB |
| Signal to Noise Ratio | 87dB, 20Hz - 10kHz |
| THD+N | THD+N (1kHz @ 1W) 0.04% |
| CONTROL | |
| Control Options | RS-232, Web GUI |
| AUDIO FORMATS | |
| LINE IN | Analog audio, Balanced 2CH, Max input level 2VRMS |
| LINE OUT | Analog audio, Balanced 2CH, Max output level 2VRMS |
| DANTE | Digital audio 2x2 in/out, PCM 2CH, 44.1K-96KHz, 16/24Bit |
| AMP OUT | Analog audio, Balanced 2CH, Max output level 24.5VRMS |
| 70V/100V AMP OUT | Analog audio, Unbalanced 1CH, Max output level 70V/100VRMS |
| ESD PROTECTION | |
| Standard | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| CONNECTIONS | |
| Input | 1x LINE IN [5pin-3.81mm Phoenix Connector], 1x DANTE [RJ45 connector] |
| Output | 1x LINE OUT [5pin-3.81mm Phoenix Connector], 1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm], 1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm] |
| Control | 1x RS-232/TRG [5pin-3.81mm Phoenix Connector] [TRG: 5-12V trigger input to turn on/off the amplifier], 1x LAN [RJ45 connector] |
| MECHANICAL SPECIFICATIONS | |
| Housing | Front panel: Aluminium; Rear case: Metal enclosure |
| Colour | Turtle Aqua |
| Dimensions | 240mm [W] × 210mm [D] × 44mm [H] |
| Weight | 1.88Kg |
| POWER SUPPLY | |
| DC Input | AC100 - 240V, 50/60Hz |
| Power Consumption | 75W |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20% ~ 90% RH (non-condensing) |
