Description

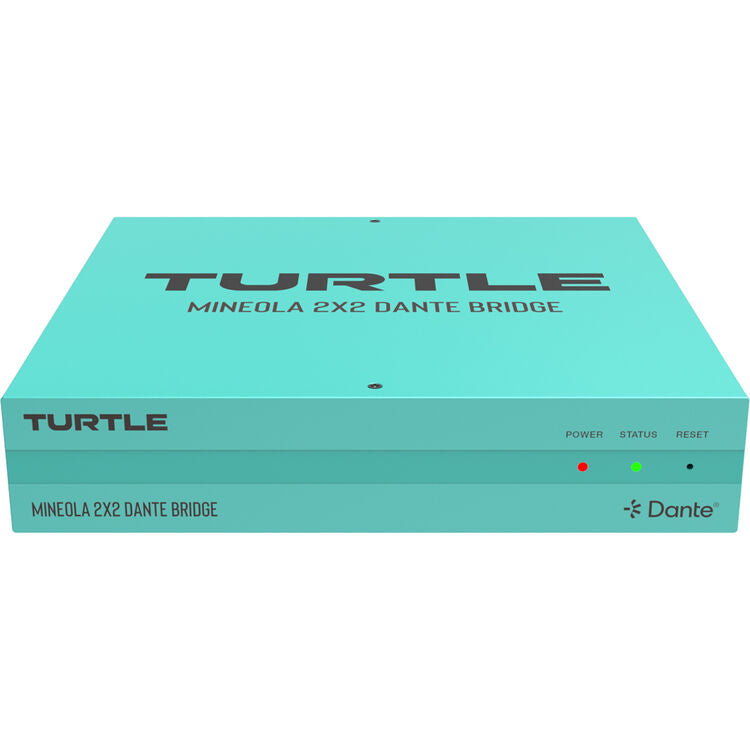

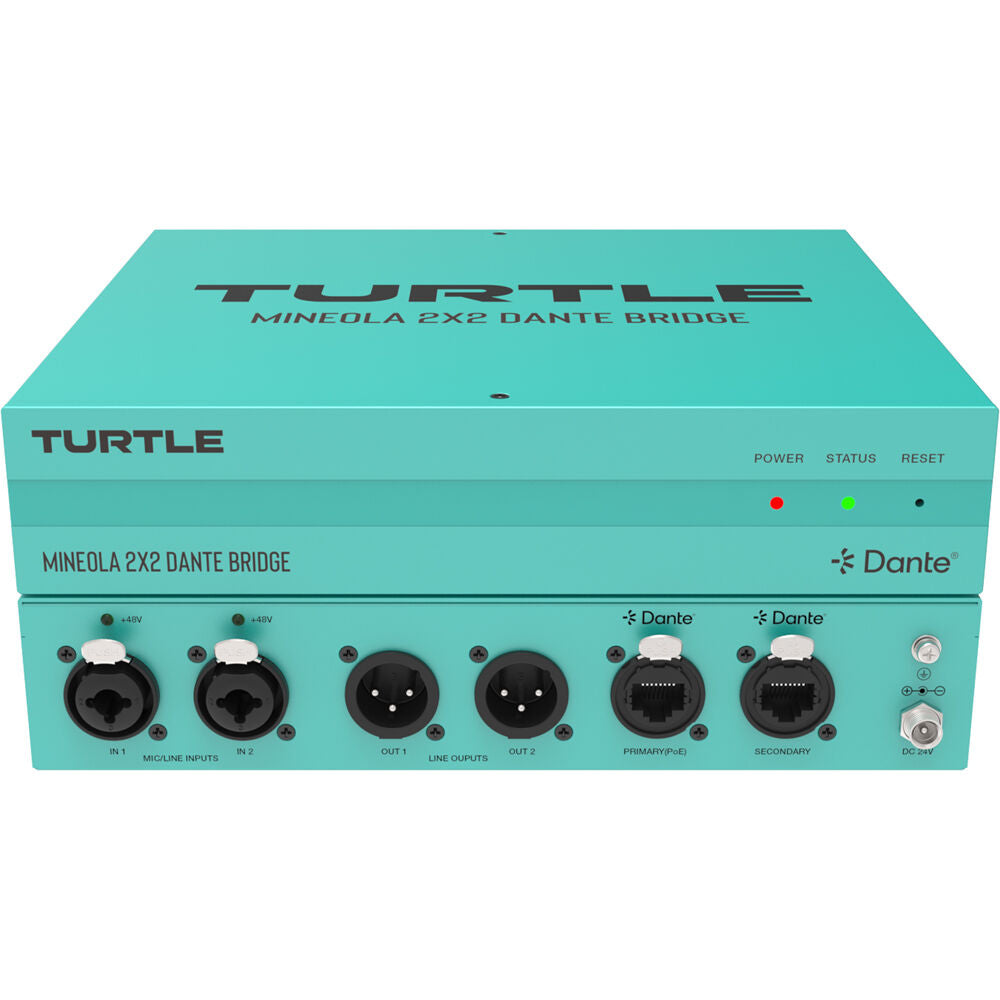

Turtle AV Mineola 2x2 Dante Audio Bridge
Mineola 2x2 Dante Audio Bridge. 2x XLR inputs with 48V Phantom Power, and 2x XLR outputs with locking etherCON network connector.
FEATURES
- Connect Between Dante and Analog XLR
- 2 XLR-1/4" Combo Input Jacks
- 2 XLR 3-Pin Output Jacks
- Primary & Secondary etherCON Dante Ports
- 48V Phantom Power for Microphones
- Powered via PoE and Power Adapter
- Toggle Between AES67 and Dante Output
- Forward or Rear Rackmountable Design
- Rugged All-Metal Chassis
- Includes Rackmount Kit
Powerful Audio Bridge for Dante Systems
The Mineola 2x2 seamlessly connects the digital Dante and analog XLR worlds with 2 inputs and 2 outputs, all housed in a compact rack- or table-mounted form factor for maximum efficiency. PoE powered and equipped with 48V phantom power on all XLR inputs, it's perfect for handling high-density audio connections in professional environments.
Built Tough for Professionals
The Mineola audio bridges are housed in an all-metal chassis for maximum ruggedness. Painted in a distinct Turtle Aqua finish, this adapter looks great and is easily identified by users for its status as a pro audio bridge in your setup.
Audio for Live Production
Mineola is 100% compatible with all Dante software products, including Dante Controller, Dante Virtual Soundcard (DVS), Dante Domain Manager, Dante Connect, and Dante Director. When combined with Dante Virtual Soundcard (DVS), Mineola connects easily to software-based live production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS Studio, Telestream Wirecast, and all Dante compatible audio systems, to provide audio inputs for live event production. You can switch between AES67 and Dante operation via the Dante Controller.
Rack Em or Stack Em
The 2x2, 4x4, and 8x8 Mineola can be used as throw down boxes or racked in a 19" equipment rack. This makes Mineola perfect for a variety of uses including onstage as a mic box, as microphone inputs on a lectern, rackmounted for permanent installations, or rackmounted for use in portable fly kits for live productions. Whatever your application, Mineola has you covered, and all models include rackmount kits.
Fully TAA Compliant
This audio bridge is fully TAA compliant, ensuring US government standards for procurement are met, and thus allowing this adapter to be confidently used for federal contracts.
SPECIFICATIONS
| TECHNICAL | |
| Input | 2 channels balanced/unbalanced analog audio with 48V Phantom power |
| Output | 2 channels Dante® digital audio |
| Control | Dante® Controller, WebUI |
| Network Bandwidth | 100M |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| CONNECTIONS | |
| INPUT | 2x LINE IN/MIC IN [XRL/TRS combo] |
| OUTPUT | 2x LINE OUT/MIC OUT [XRL] |
| NETWORK | 1x Dante Primary [RJ45 LAN, PoE] 1x Dante Secondary [RJ45, LAN] |
| MECHANICAL | |
| Housing | Metal enclosure |
| Colour | Turtle Aqua |
| Dimensions | Half 1U 19″ rack mout |
| Power Supply | PoE: PoE IEEE802.3af Class 0 12V DC |
| Operating Temperature | 32 – 104° F / -20 – 60° C |
| Relative Humidity | 20% – 90% RH (no condensing) |
