Description

Turtle AV USB-C 4K60 4:4:4 video and USB 2.0 Extender Kit over CAT. Includes Host & Device Extenders

FEATURES

  • 4K60 (4:4:4 8bit) video and USB 2.0 signals up to 130 feet / 40 metres
  • 4K30 (4:4:4 8bit) video and USB 2.0 signals up to 230 feet / 70 metres
  • High Dynamic Range pass through
  • 100W USB-C PD port for charging
  • Power over Cable (PoC) for simplified installs
  • API control for advanced system integration
  • Plug-and-play compatibility with universal device support
  • Subframe latency over a single CAT cable
  • Audio pass through

USB and 4K60 video. From here to over there.

The Turtle AV USB Extender Kit pushes the boundaries of connectivity, delivering high-speed USB and uncompressed 4K60 video in a single, compact solution.

Your video meetings will feel seamless, thanks to near-zero latency between the USB extender's RX and TX. Plus, with PD power passthrough to the USB-C video connection, there's no need to worry about an external power brick.

SPECIFICATIONS

Interfaces
Transmission I/O

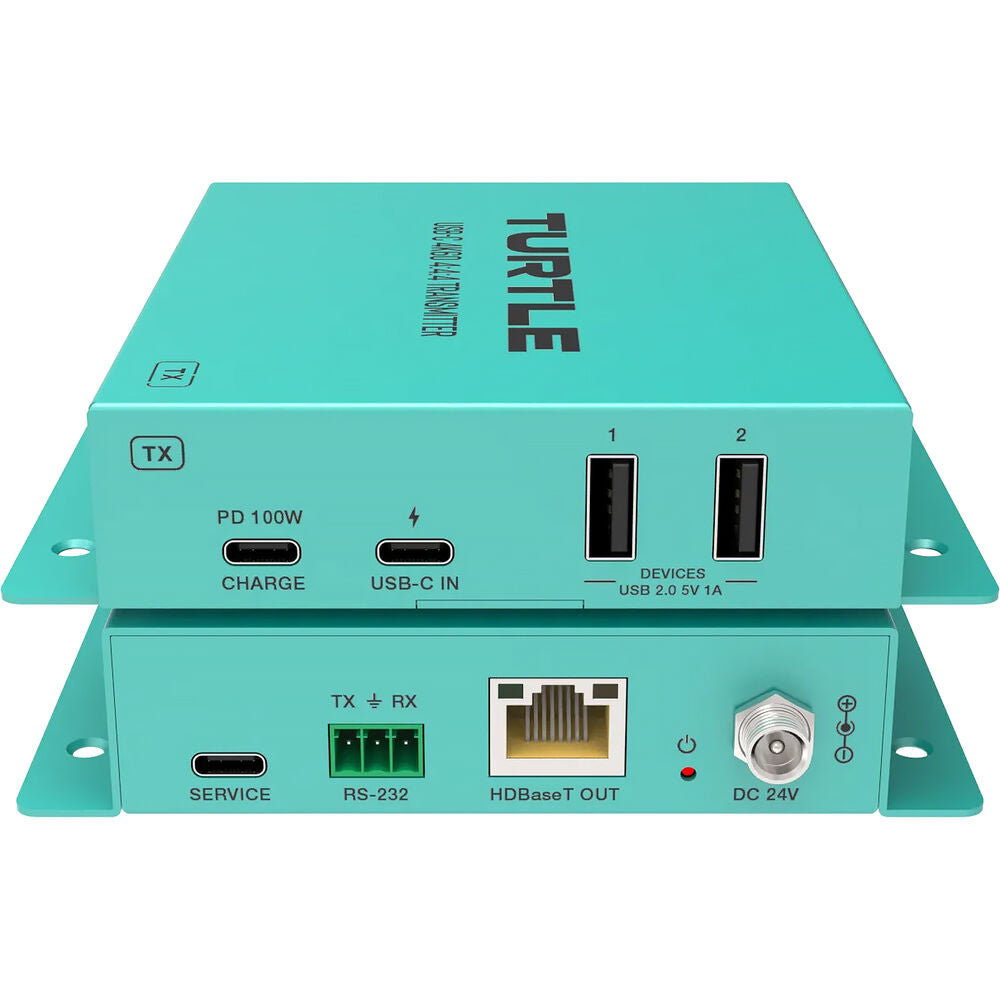

Transmitter:
1x USB-C Input
1x RJ45 (HDBaseT) Output

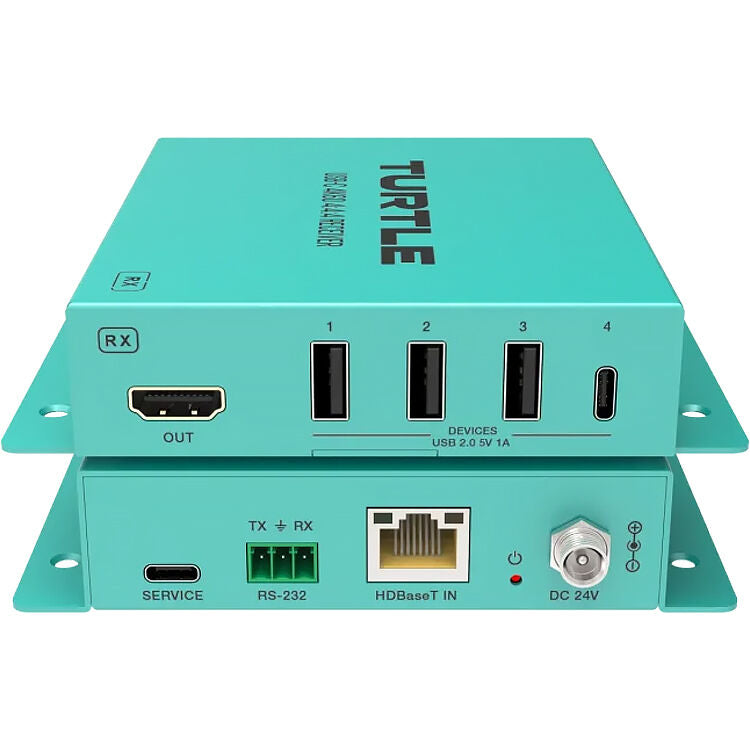

Receiver:
1x HDMI (2.0b) Output
1x RJ45 (HDBaseT) Input
Embedded Audio
USB-C
HDMI
Power I/O
Transmitter:
1x Barrel (24 VDC at 2.7 A) Input
Receiver:
1x Barrel (24 VDC at 2.7 A) Input
Standards
HDR Support
Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
HDCP Support
Yes: Version 2.3
Transmission
Max Transmission Distance
DCI 4K at 60 Hz:
131.2' / 40 m
DCI 4K at 30 Hz:
229.7' / 70 m (via Cat 6a/7)
Video Format
HDMI (8-Bit 4:4:4):
4096 x 2160: 60 fps
Supported Audio System
DTS-HD High Resolution/DTS-HD Master Audio/DTS:X/Dolby Atmos/Dolby TrueHD
Supported Cable Types
Cat 6 or higher
Power
PoE Support
Yes: PoE Proprietary
Power Consumption
Transmitter:
51.36 W
Receiver:
51.36 W
General
Certifications
CE, FCC, UL
Operating Conditions
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
Dimensions
Receiver:
4.7 x 4.4 x 1" / 120 x 113 x 25.5 mm
Weight
Transmitter:
12.5 oz / 353 g
Receiver:
12.4 oz / 352 g
