Description

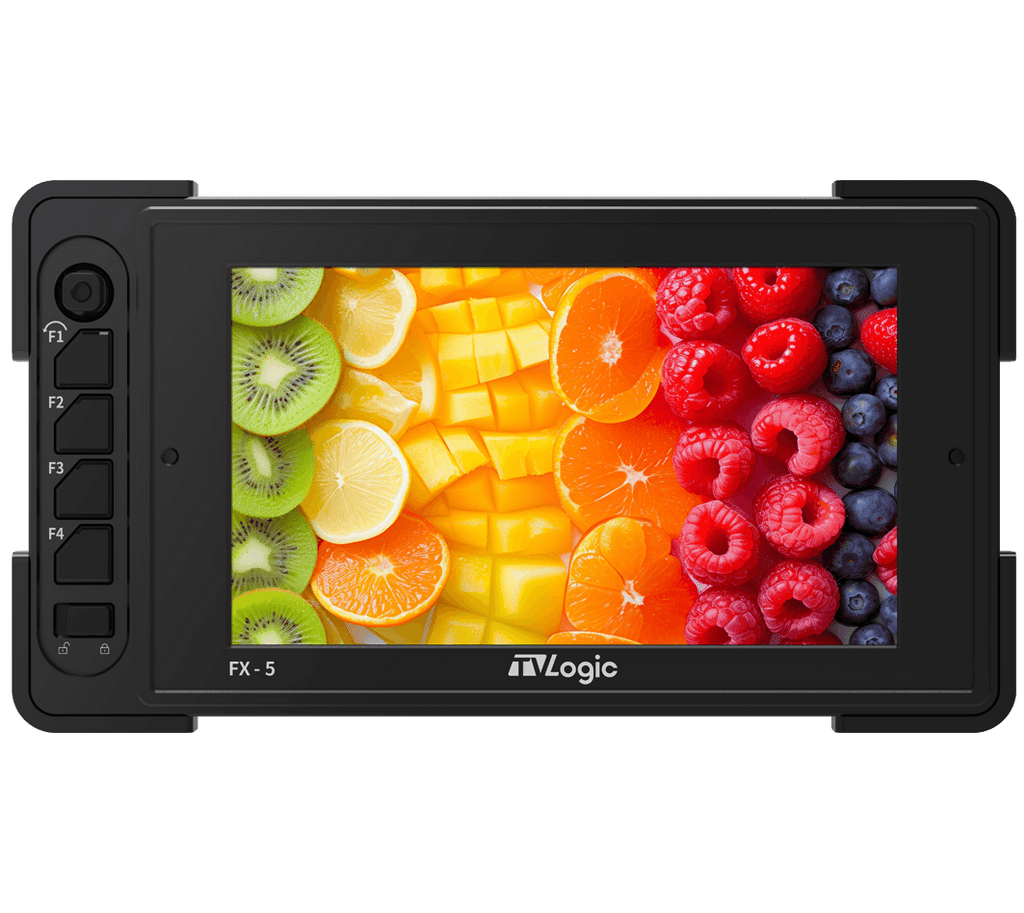

TVLogic FX-5 5-inch Field Monitor
FEATURES
2000nit Ultra-Bright Display
Stay confident even under direct sunlight with a powerful 2000nit high-brightness panel designed for outdoor production environments.

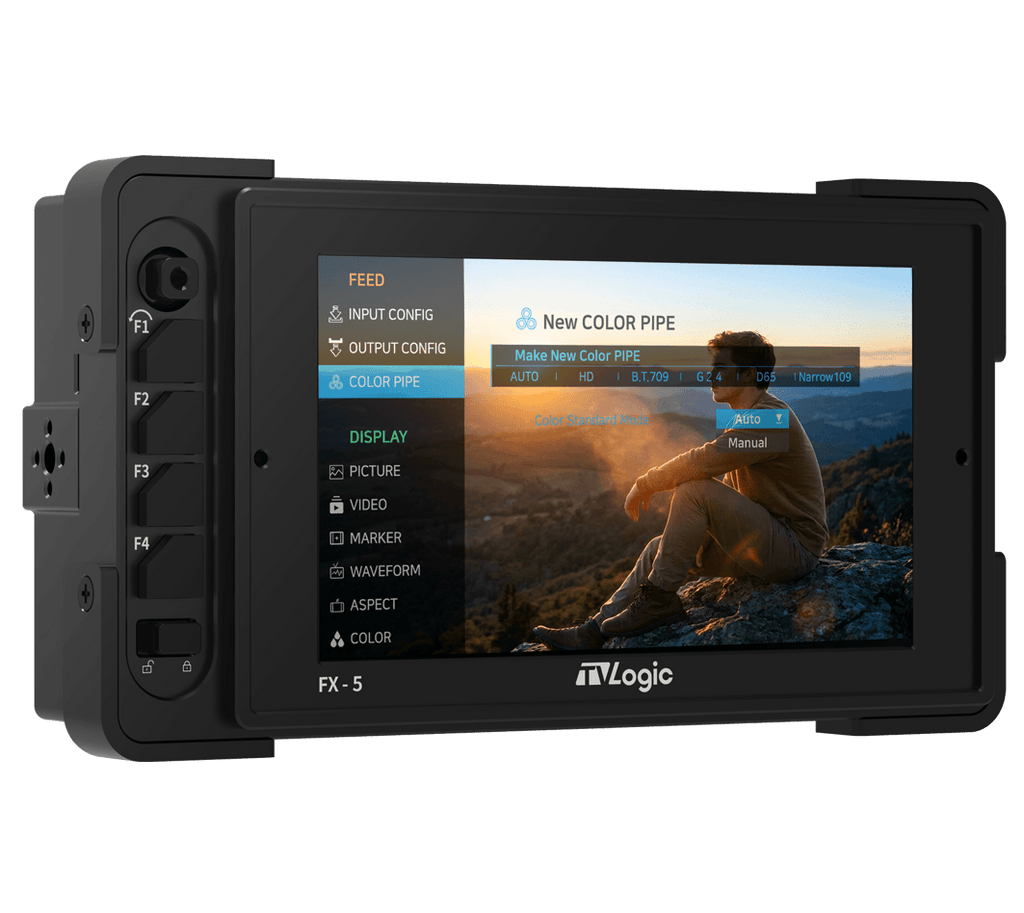

Complete Touch Screen Control
Fast and intuitive full touch-screen interface for quick access to monitoring tools and settings.
LEMO 2-Pin Power Input & Passthru Output
Reliable DC power connectivity with convenient passthru output for streamlined on-set power management.
USB-C PD Power Input
Supports USB-C Power Delivery for flexible and convenient mobile power operation.
12G-SDI Workflow Support
Supports 12G/6G/3G/HD-SDI input and output for professional UHD workflows with reliable high-bandwidth signal handling.
HDMI-to-SDI Conversion Output
Convert HDMI signals directly to SDI output for flexible integration into professional broadcast and cinema systems.
Professional HDR Monitoring
Supports HDR EOTF including PQ and HLG for accurate HDR production monitoring.
Image Capture & Overlay
Capture reference images and overlay them for shot matching and continuity checking.
Picture-by-Picture (PBP)
Monitor multiple video sources simultaneously for efficient multi-camera and comparison workflows.
Portrait & Landscape Monitoring Modes
Optimized vertical and horizontal viewing modes for YouTube, TikTok, and social media content production.
Custom 3D LUT Support
Import and apply custom 3D LUTs for accurate on-set color preview and creative monitoring workflows.
4 Function & Preset Buttons
Quick access to frequently used tools and user presets for faster workflow operation.
Custom Anamorphic Desqueeze
Supports customizable anamorphic desqueeze ratios for accurate image monitoring with anamorphic lenses.
Advanced Monitoring Tools
Built-in professional tools including:
• Waveform
• VectorScope
• Audio Level Meter
• False Color
• Focus Assist
• Marker
• Timecode Display
• H-Flip & V-Flip
• Scan
5.5" High Brightness On-Camera Monitor
Designed for professional cinematographers, camera operators, and content creators, the FX-5 delivers outstanding visibility, professional monitoring tools, and intuitive touch-based operation in a compact lightweight body.
With ultra-bright 2,000nit luminance, 12G-SDI connectivity, and advanced monitoring features, the FX-5 is built to perform reliably in demanding production environments - from outdoor shoots to fast-paced live production workflows.
SPECIFICATIONS
| Screen Size | 5.5" |
| Resolution | 1920 × 1080 (16:9) |
| Pixel Pitch | 0.063(H) × 0.063(V) mm |
| Colour Depth | 16.7 Million Colors |
| Viewing Angle | 170°(H) / 170°(V) |
| Brightness | 2000 cd/m² |
| Contrast Ratio | 1200:1 |
| Display Area | 120.96(H) × 68.04(V) mm |
| VIDEO INPUT & OUTPUT | |

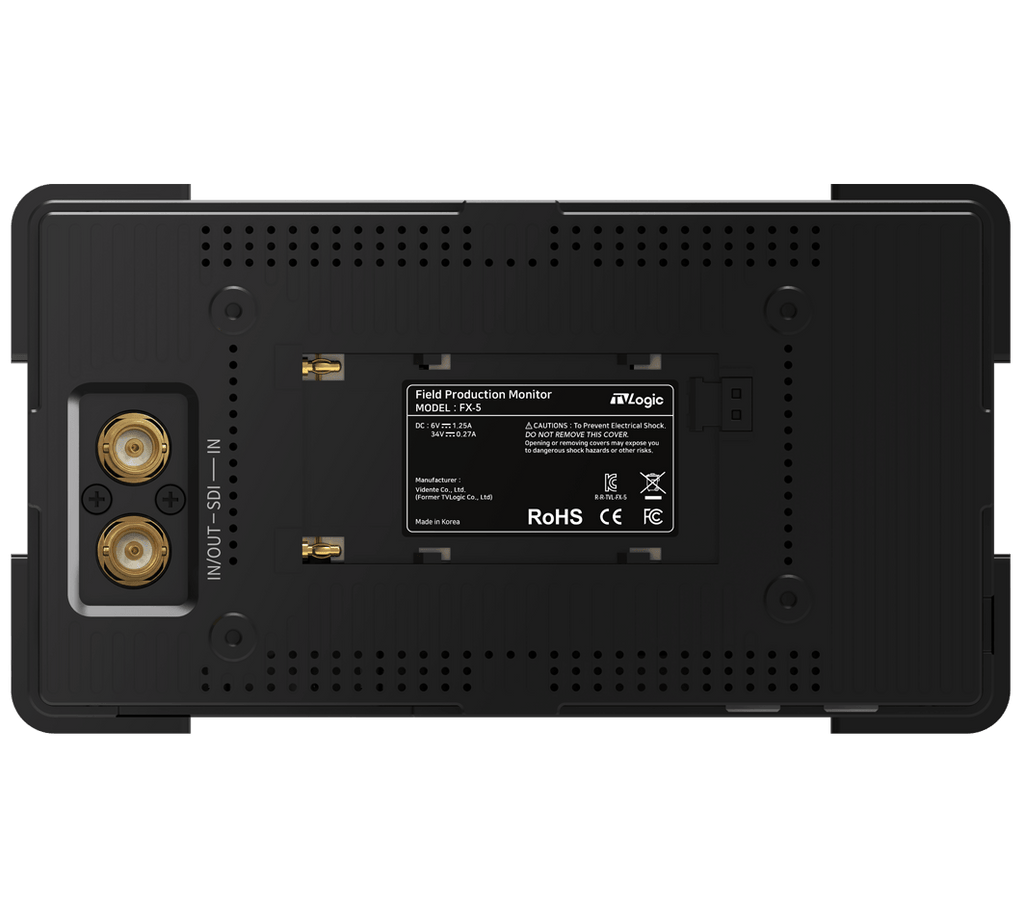

| SDI Connections | 2 × BNC 1 × 12G/6G/3G/HD-SDI Input 1 × 12G/6G/3G/HD-SDI Input & Output Selectable Output supports LUT Applied Output HDMI to SDI Conversion Output |
| HDMI Connections | 2 × HDMI 1 × UHD 4K (4096 × 2160 / 60p) Input 1 × HDMI Output |
| INPUT SIGNAL RATES | |
| 12G-SDI | 12 Gb/s |
| 6G-SDI | 6 Gb/s |
| 3G-SDI | 2.970 Gb/s |
| HD-SDI | 1.485 Gb/s |
| HDMI Formats |
480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 2160p |
| SDI INPUT SIGNAL FORMATS | |
| SMPTE ST 2082 | 3840 × 2160 (60/50/30/25/24p) |
| SMPTE ST 2081 | 3840 × 2160 (30/25/24p) |
| SMPTE ST 2036-1 | 3840 × 2160 (23.98/24/25/29.97/30/50/59.94/60p) |
| SMPTE ST-425M-A/B | |
| 1080p | 60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF |
| 1080i | 60/59.94/50 |
| SMPTE ST-274M | |
| 1080i | 60/59.94/50 |
| 1080p | 30/29.97/25/24/24sF/23.98/23.98sF |
| SMPTE-296M | 720p (60/59.94/50) |
| SMPTE-260M | 1035i (60/59.94) |
| SMPTE-125M | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| SMPTE ST 2048-2 | 2048 × 1080 (23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p) |
| AUDIO | |
| Audio Input | SDI Embedded Audio (Group, Channel Selectable) |
| Audio Output | External Output Port (3.5 mm headphone jack) |
| POWER | |
| LEMO Power Input | 1 × LEMO 2-pin DC 12 V |
| USB-C PD Input | Minimum 45 W |
| LEMO Power Output | 1 × LEMO 2-pin DC Pass-through Output |
| FIRMWARE / UPDATE | |
| USB Port | 1 × USB-C Firmware Upgrade |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| PHYSICAL | |
| Main Body Dimensions | 183.5 × 101.0 × 46.5 mm 7.22 × 3.97 × 1.83 in |
| Shipping Box Dimensions | TBD |
| Weight | 0.66 kg / 1.45 lbs |
| ACCESSORIES | |
| Standard Included | D-Tap-C Cable |
| Optional Accessories |
AC-DC Adapter Sun Hood DV Battery Bracket Carrying Case |
