Description

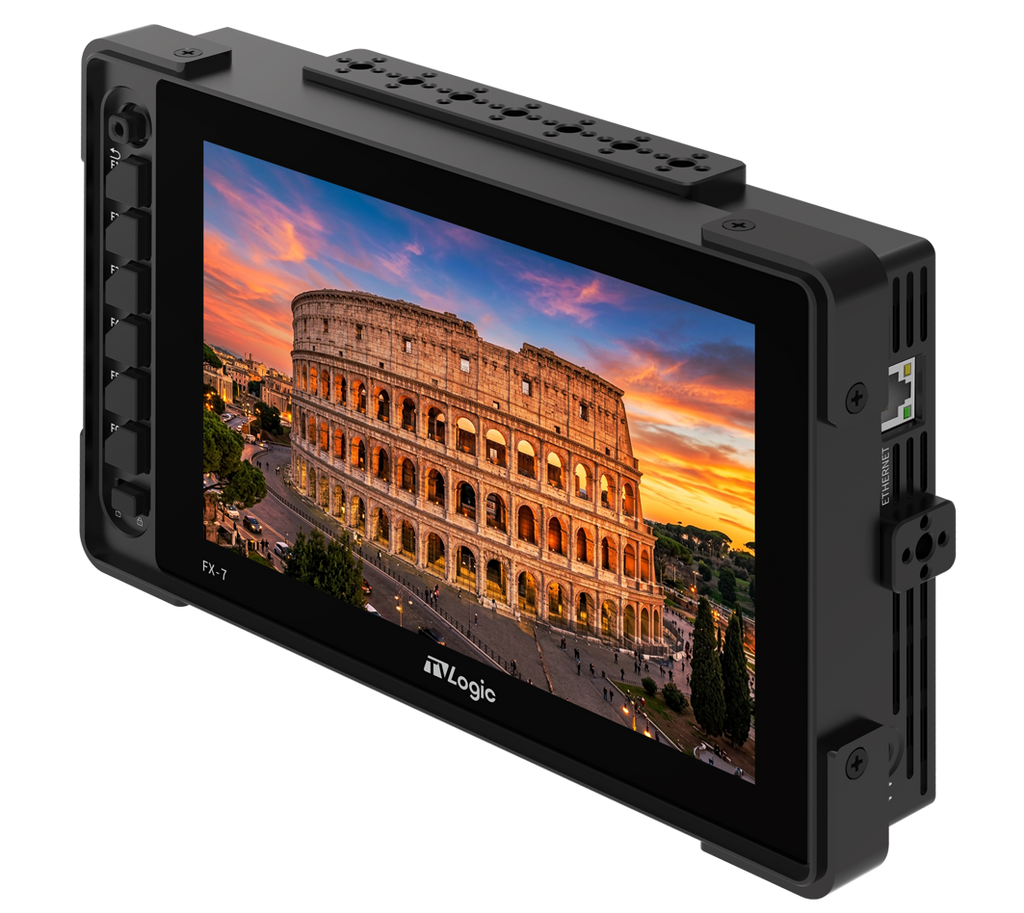

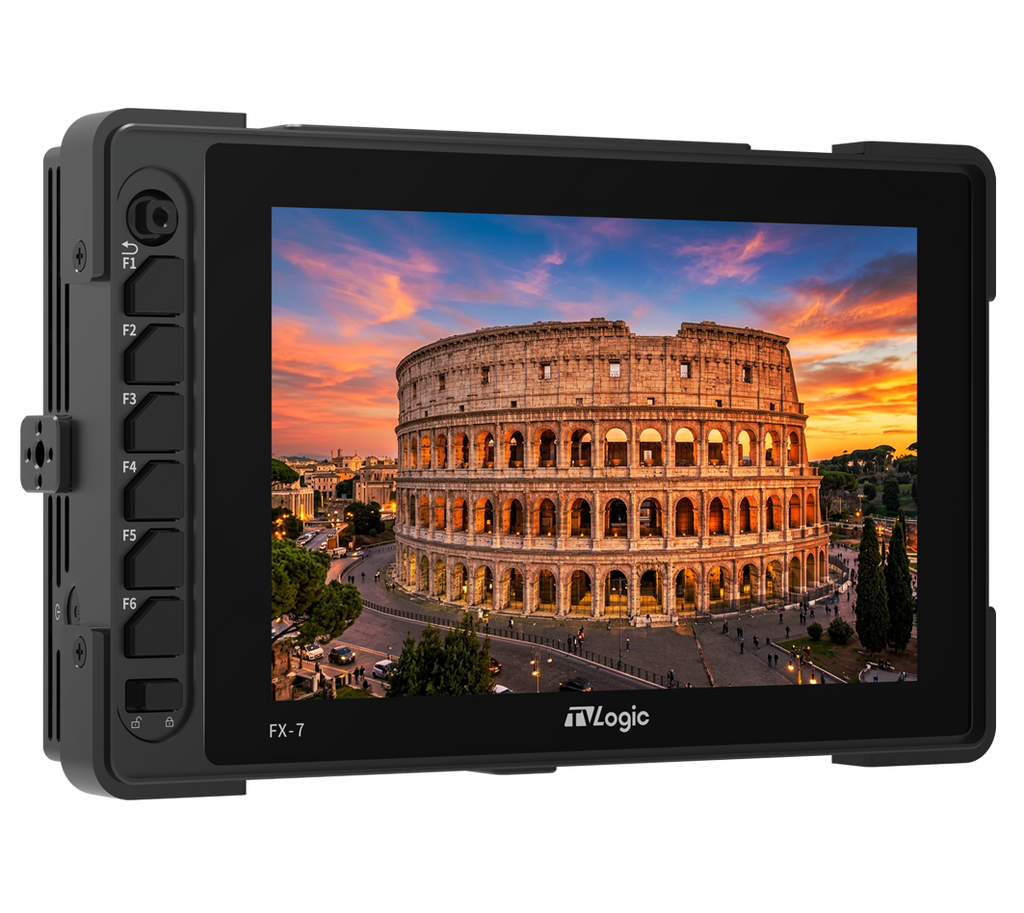

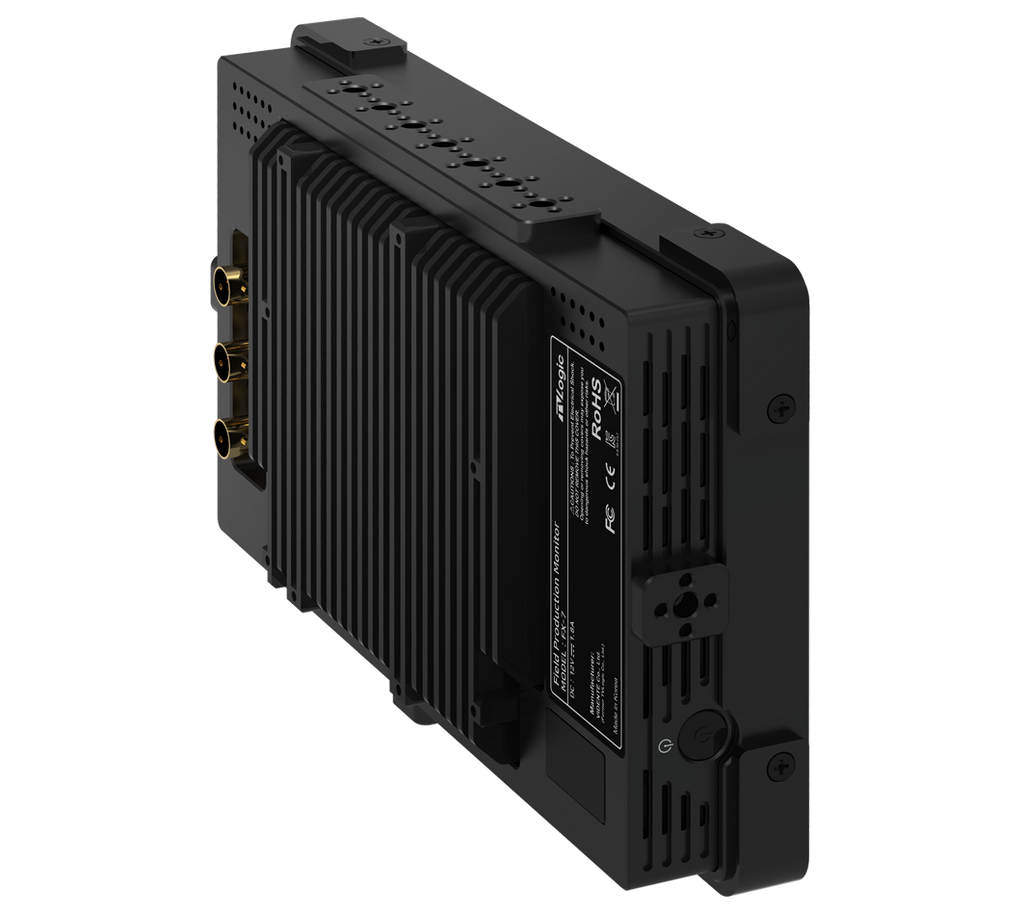

TVLogic FX-7 7-inch High Brightness Field Monitor
FEATURES
2000nit Ultra-Bright Display
Stay confident even under direct sunlight with a powerful 2000nit high-brightness panel designed for outdoor production environments.
Complete Touch Screen Control
Fast and intuitive full touch-screen interface for quick access to monitoring tools and settings.
LEMO 2-Pin Power Input & Passthru Output
Reliable DC power connectivity with convenient passthru output for streamlined on-set power management.
USB-C PD Power Input
Supports USB-C Power Delivery for flexible and convenient mobile power operation.
12G-SDI Workflow Support
Supports 12G/6G/3G/HD-SDI input and output for professional UHD workflows with reliable high-bandwidth signal handling.
HDMI-to-SDI Conversion Output
Convert HDMI signals directly to SDI output for flexible integration into professional broadcast and cinema systems.
Professional HDR Monitoring
Supports HDR EOTF including PQ and HLG for accurate HDR production monitoring.
Image Capture & Overlay
Capture reference images and overlay them for shot matching and continuity checking.
Picture-by-Picture (PBP)
Monitor multiple video sources simultaneously for efficient multi-camera and comparison workflows.
Portrait & Landscape Monitoring Modes
Optimized vertical and horizontal viewing modes for YouTube, TikTok, and social media content production.
Custom 3D LUT Support
Import and apply custom 3D LUTs for accurate on-set color preview and creative monitoring workflows.

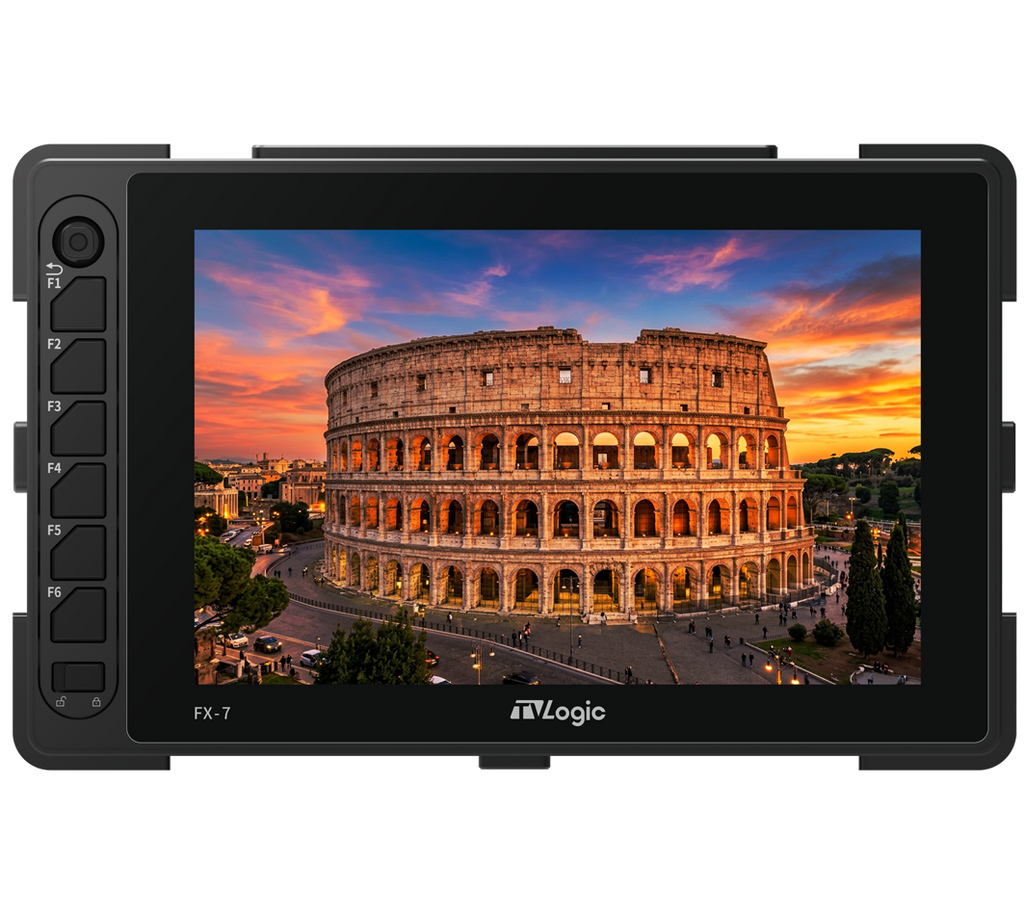

6 Function & Preset Buttons
Quick access to frequently used tools and user presets for faster workflow operation.
Custom Anamorphic Desqueeze
Supports customizable anamorphic desqueeze ratios for accurate image monitoring with anamorphic lenses.
Advanced Monitoring Tools
Built-in professional tools including:
- • Waveform
- • VectorScope
- • Audio Level Meter
- • False Color
- • Focus Assist
- • Marker
- • Timecode Display
- • H-Flip & V-Flip
- • Scan
7" High Brightness Field Monitor
The FX-7 is a professional 7" high-brightness field monitor designed for filmmakers, broadcast crews, and content creators who demand uncompromising visibility and workflow flexibility in any production environment.
Featuring a stunning 2000nit display, 12G-SDI connectivity, complete touch-screen operation, and advanced monitoring tools, the FX-7 delivers the performance professionals need from studio to outdoor location shooting.
SPECIFICATIONS
| Screen Size | 7" |
| Resolution | 1920 × 1200 (16:10) |
| Pixel Pitch | 0.07875(H) × 0.07875(V) mm |
| Color Depth | 1.073 Billion Colors |
| Viewing Angle | 160°(H) / 160°(V) |
| Brightness | 2000 cd/m² |
| Contrast Ratio | 1200:1 |
| Display Area | 151.2(H) × 94.5(V) mm |
| VIDEO INPUT | |

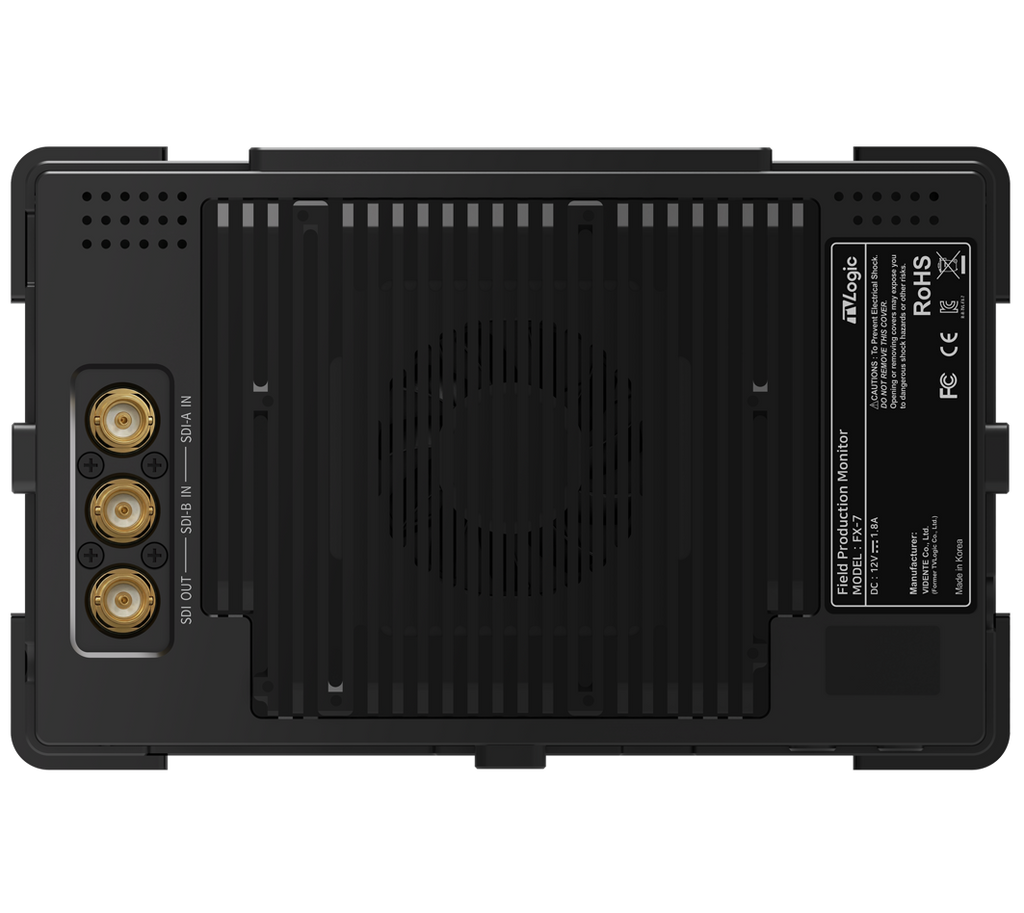

| SDI Input | 2 × BNC 12G / 6G / 3G / HD-SDI Input |
| HDMI Input | 1 × HDMI Up to UHD 4K (4096 × 2160 / 60p) Input |
| VIDEO OUTPUT | |
| SDI Output | 1 × BNC 12G / 6G / 3G / HD-SDI A/B Selectable Output LUT Applied Output HDMI to SDI Conversion Output |
| HDMI Output | 1 × HDMI |
| INPUT SIGNAL RATES | |
| 12G-SDI | 12 Gb/s |
| 6G-SDI | 6 Gb/s |
| 3G-SDI | 2.970 Gb/s |
| HD-SDI | 1.485 Gb/s |
| HDMI Formats |
480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 2160p |
| SDI INPUT SIGNAL FORMATS | |
| SMPTE ST 2082 | 3840 × 2160 (60/50/30/25/24p) |
| SMPTE ST 2081 | 3840 × 2160 (30/25/24p) |
| SMPTE ST 2036-1 | 3840 × 2160 (23.98/24/25/29.97/30/50/59.94/60p) |
| SMPTE ST-425M-A/B | |
| 1080p | 60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF |
| 1080i | 60/59.94/50 |
| SMPTE ST-274M | |
| 1080i | 60/59.94/50 |
| 1080p | 30/29.97/25/24/24sF/23.98/23.98sF |
| SMPTE-296M | 720p (60/59.94/50) |
| SMPTE-260M | 1035i (60/59.94) |
| SMPTE-125M | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| SMPTE ST 2048-2 | 2048 × 1080 (23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p) |
| AUDIO | |
| Audio Input | SDI Embedded Audio (Group, Channel Selectable) |
| Audio Output | External Output Port (3.5 mm headphone jack) |
| POWER | |
| LEMO Power Input | 1 × LEMO 2-pin DC 12 V |
| USB-C PD Input | Minimum 45 W |
| LEMO Power Output | 1 × LEMO 2-pin DC Pass-through Output |
| FIRMWARE / UPDATE | |
| USB Port | 1 × USB-C Firmware Upgrade |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| PHYSICAL | |
| Main Body Dimensions | 210 × 131 × 44.2 mm 8.26 × 5.15 × 1.74 in |
| Shipping Box Dimensions | TBD |
| Weight | 0.82 kg / 1.80 lbs |
| ACCESSORIES | |
| Standard Included | D-Tap-C Cable |
| Optional Accessories |
V-Mount Battery Bracket Anton-Bauer (Gold Mount) Battery Bracket Carrying Case AC-DC Adapter Sun Hood |
