Description

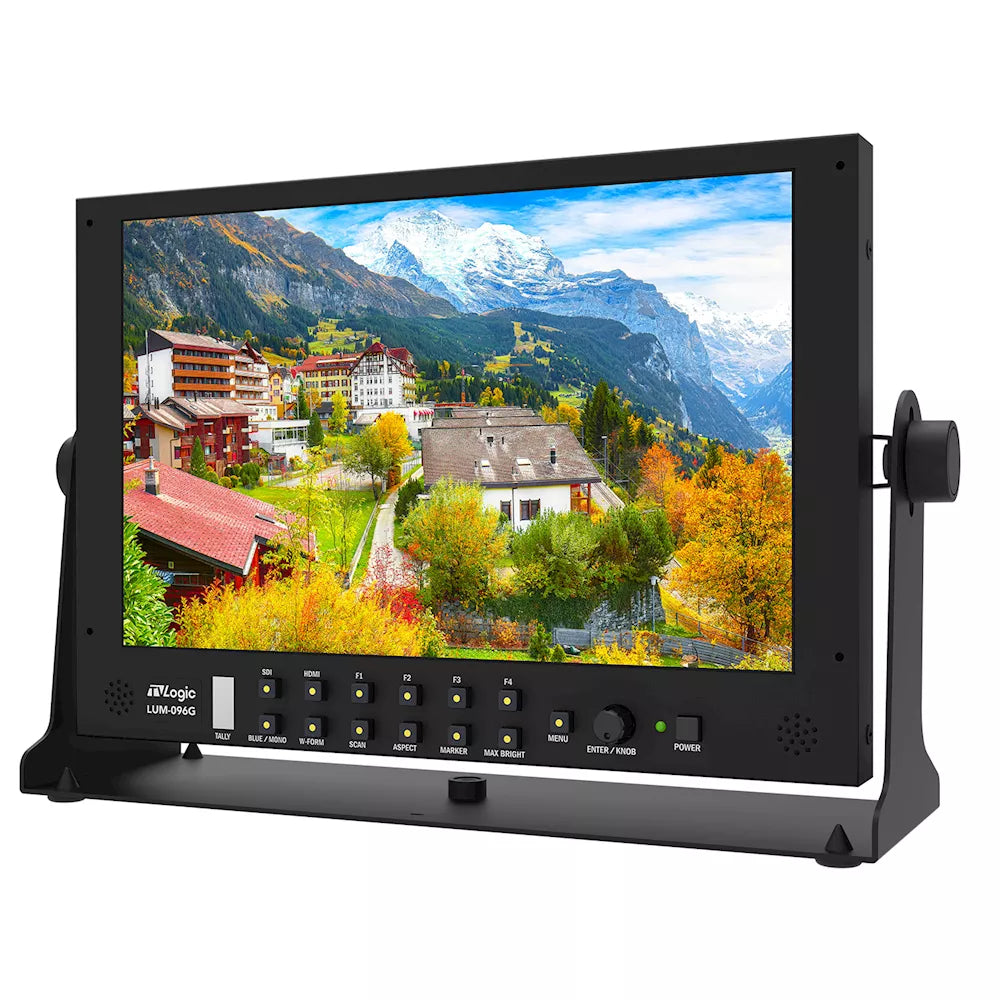

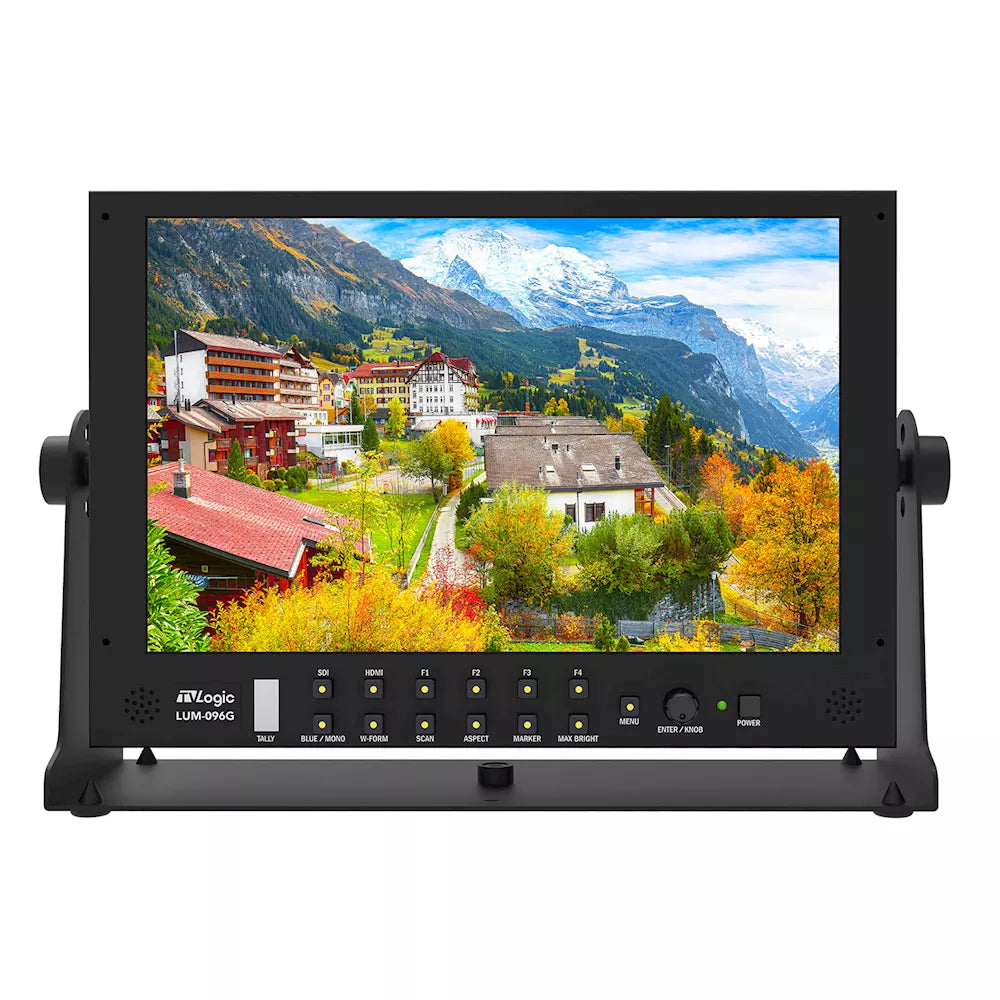

TVLogic LUM-096G 10-inch 12G Ready Multi-Purpose Monitor

The LUM-096G supports 12G/6G/3G-SDI input with a native 1920 x 1080 LCD

**Items marked in stock are usually held with the EU Distributor in their EU Warehouse**

FEATURES

  • 10", Full HD Resolution (1920x1200)
  • Max Luminance 1000nits
  • DCI-P3 Coverage 95%
  • 12G-SDI Single Link 4K/UHD
  • 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
  • HDR (PQ, HLG, S-Log3)
  • Custom 3D LUT Import by USB Flash Drive
  • Various Built-in Camera LUTs
  • Waveform / Vectorscope
  • 16ch Audio Level Meter
  • Focus Assist
  • Marker
  • Timecode Display
  • Dynamic UMD
  • Blue/Mono Only
  • H Flip & V Flip (Auto & Manual)
  • Various Aspect
  • Luma(Y') Zone Check

The LUM-096G supports 12G/6G/3G-SDI input with a native 1920 x 1080 LCD. This monitor can be the most versatile monitoring and field production applications with 4K/UHD cameras.

SPECIFICATIONS

LCD PANEL
Size 10.1”
Resolution 1920 x 1200 (16:10)
Pixel Pitch 0.1128(H) x 0.1128(V) mm
Color Depth 16.7M Colors (8 bit)
Viewing Angle 170°(H) / 170°(V)
Brightness 1000 cd/m2 / 1000 nits
Contrast Ratio 1000 : 1
Display Area 216.58 (H) x 135.36 (V) mm
INPUT
Input 1 x 12G-SDI A Input
1 x 3G-SDI B Input
1 x JG-SDI CInput (for Quad Input)
1 x JG-SDI Dlnput (for Quad Input)
1 x HDMI 2.0 Input
OUTPUT
Output 1 x llG·SDIOutput (shared withInput)
1 x JG-SDIOutput (shared with Input)
