Description

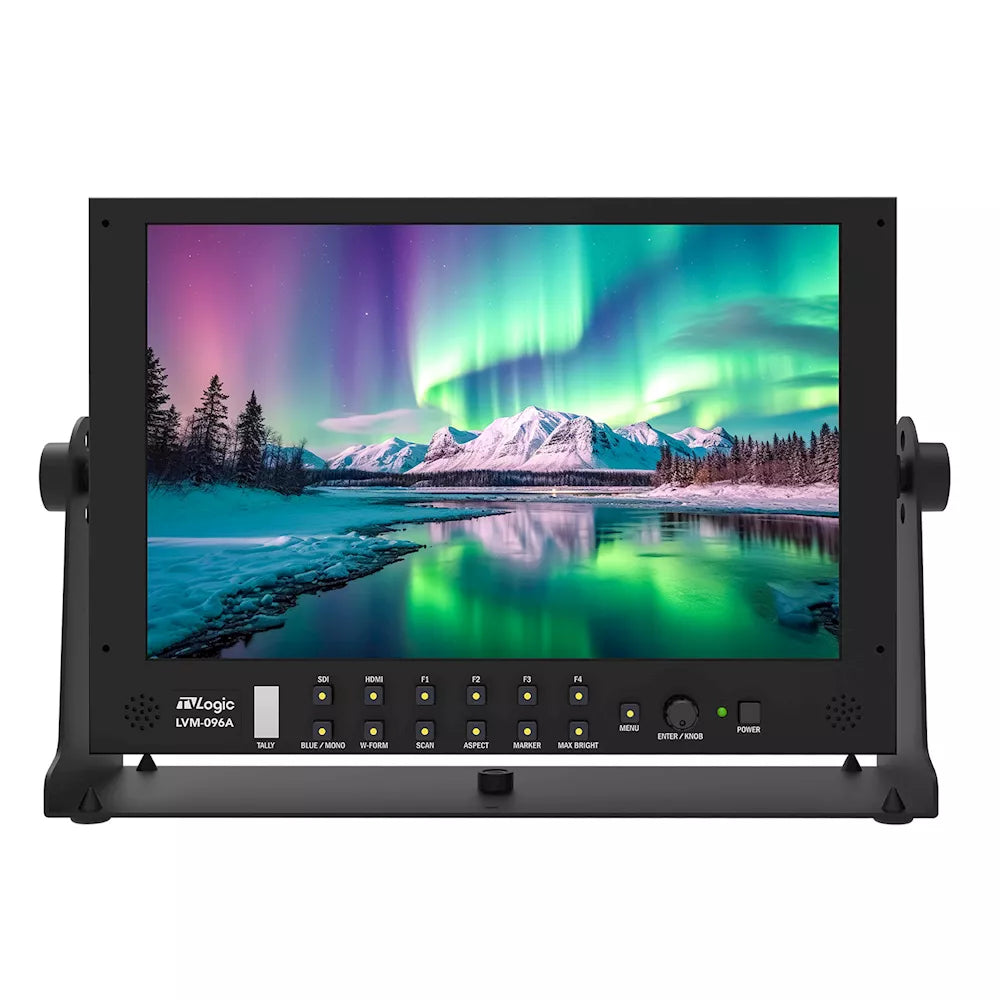

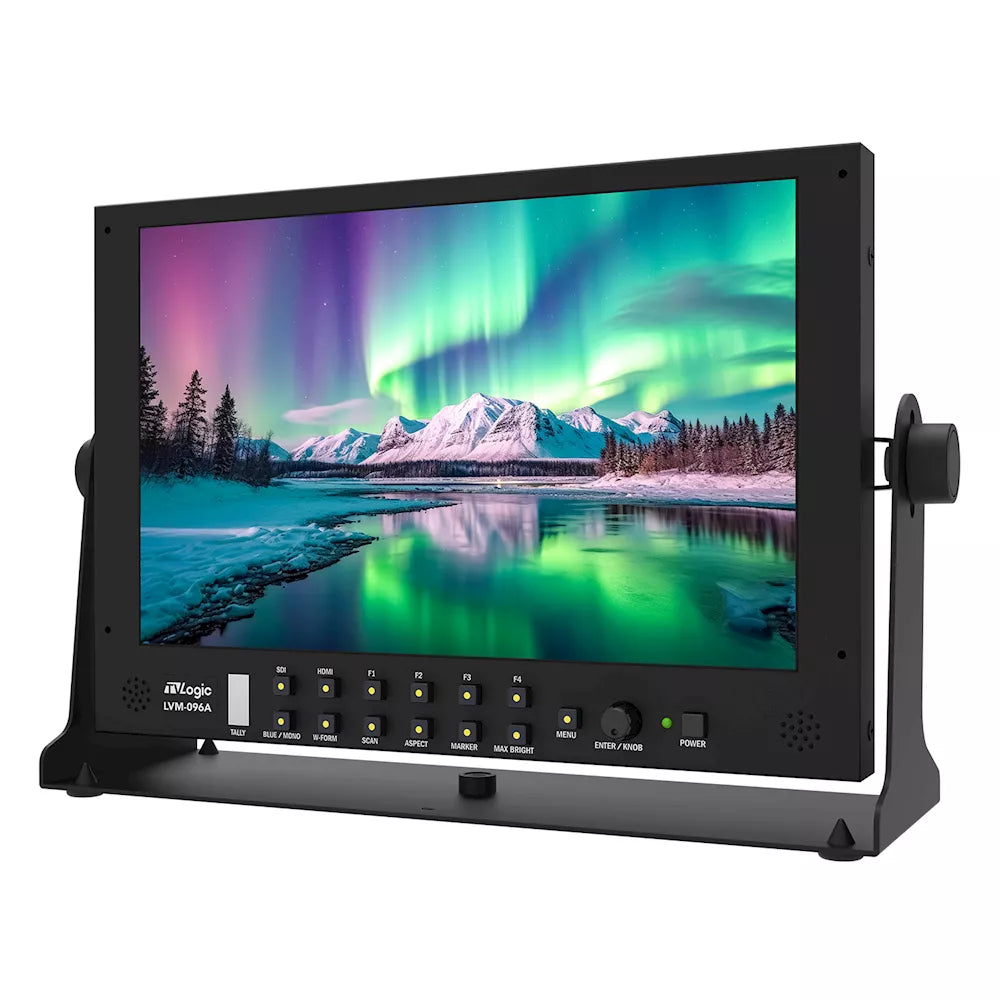

TVLogic LVM-096A 10-inch FHD Multi-Purpose Monitor
The LVM-096A has 10.1" Full HD 1920x1080 panel corresponding wide range of image sources (3G HD/SD-SDI, HDMI).
**Items marked in stock are usually held with the EU Distributor in their EU Warehouse**
FEATURES
- 10", Full HD Resolution (1920x1200)
- Waveform / Vectorscope
- 16ch Audio Level Meter
- Focus Assist
- Marker
- Timecode Display
- Dynamic UMD
- Blue/Mono Only
- HNDelay
- Luma(Y') Zone Check
- Range Error
- SCAN / Pixel-to-Pixel
- Zoom
- User Aspect
- Closed Caption (CC-608, CC-708)
- Various Scan Modes
- Tally
The LVM-096A has 10.1" Full HD 1920x1080 panel corresponding wide range of image sources (3G HD/SD-SDI, HDMI). For maximum efficiency and economic feasibility, LVM-096A is constructed from aluminum for an extra-light weight and a built-in V-Mount. Upgraded with new FHD panel with accurate color reproduction capability, LVM-096A gives clear picture with powerful features.
SPECIFICATIONS
| LCD PANEL | |
| Size | 10.1” |
| Resolution | 1920 x 1200 (16:10) |
| Pixel Pitch | 0.1128(H) x 0.1128(V) mm |
| Color Depth | 16.7M Colors (8 bit) |
| Viewing Angle | 170°(H) / 170°(V) |
| Brightness | 1000 cd/m2 / 1000 nits |
| Contrast Ratio | 1000 : 1 |
| Display Area | 216.58 (H) x 135.36 (V) mm |
| INPUT | |

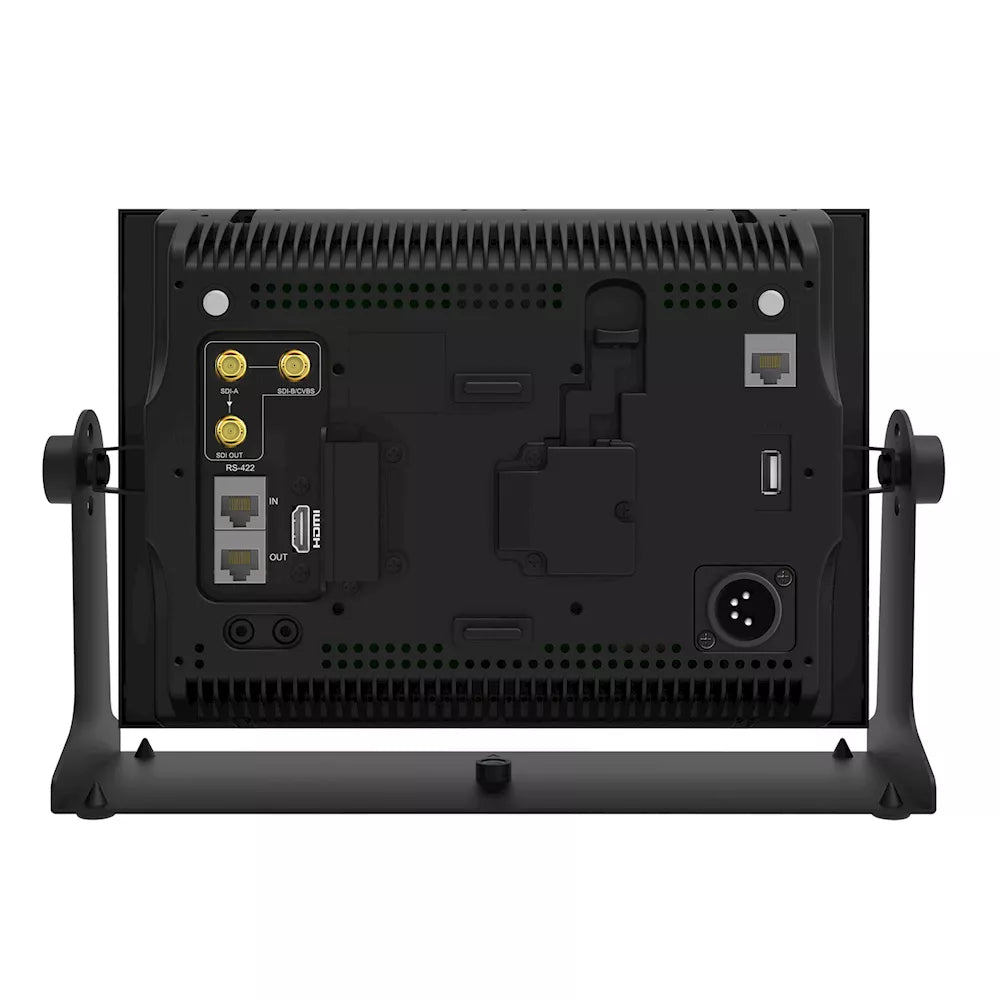

| Input | 1 x 3G-SDI A Input 1 x 3G-SDI B Input 1 x HDMI input 1 x CVBS input (shared with SDI-B) |
| OUTPUT | |
| Output | 1 x 3G-SDI Out |
