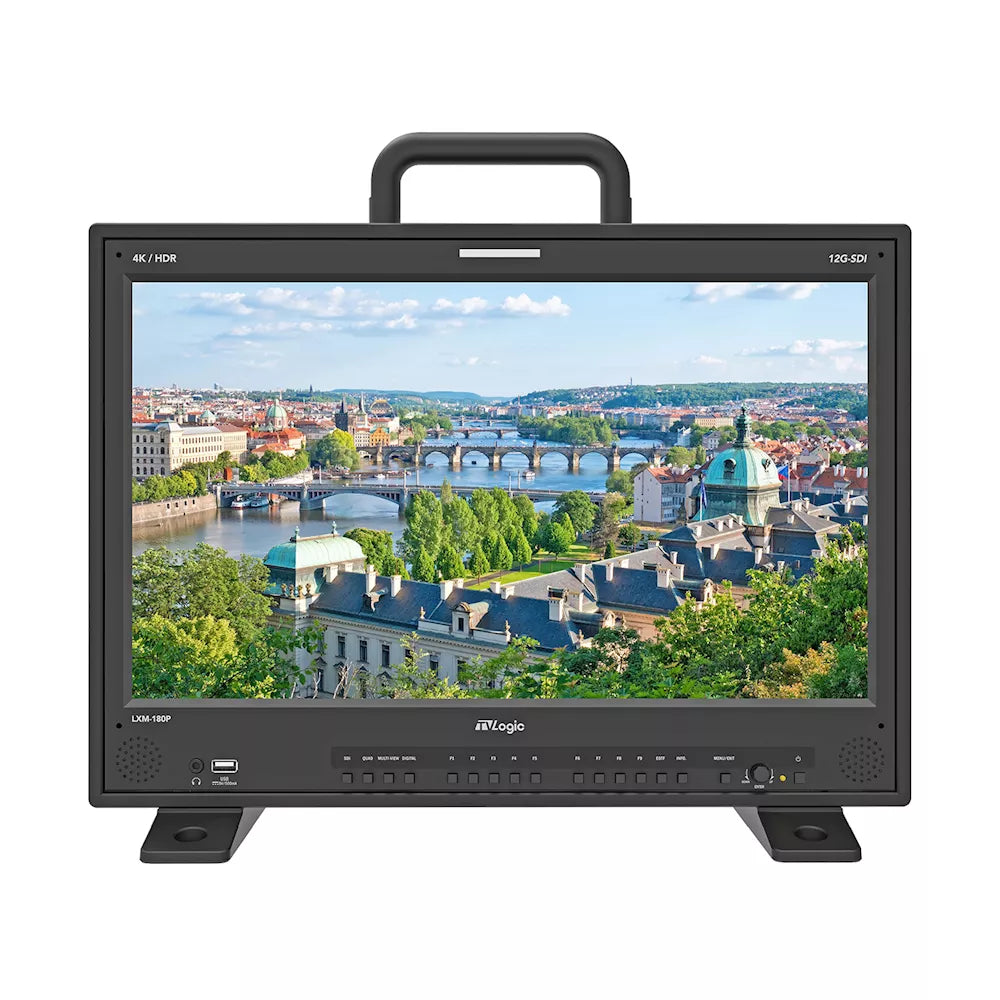

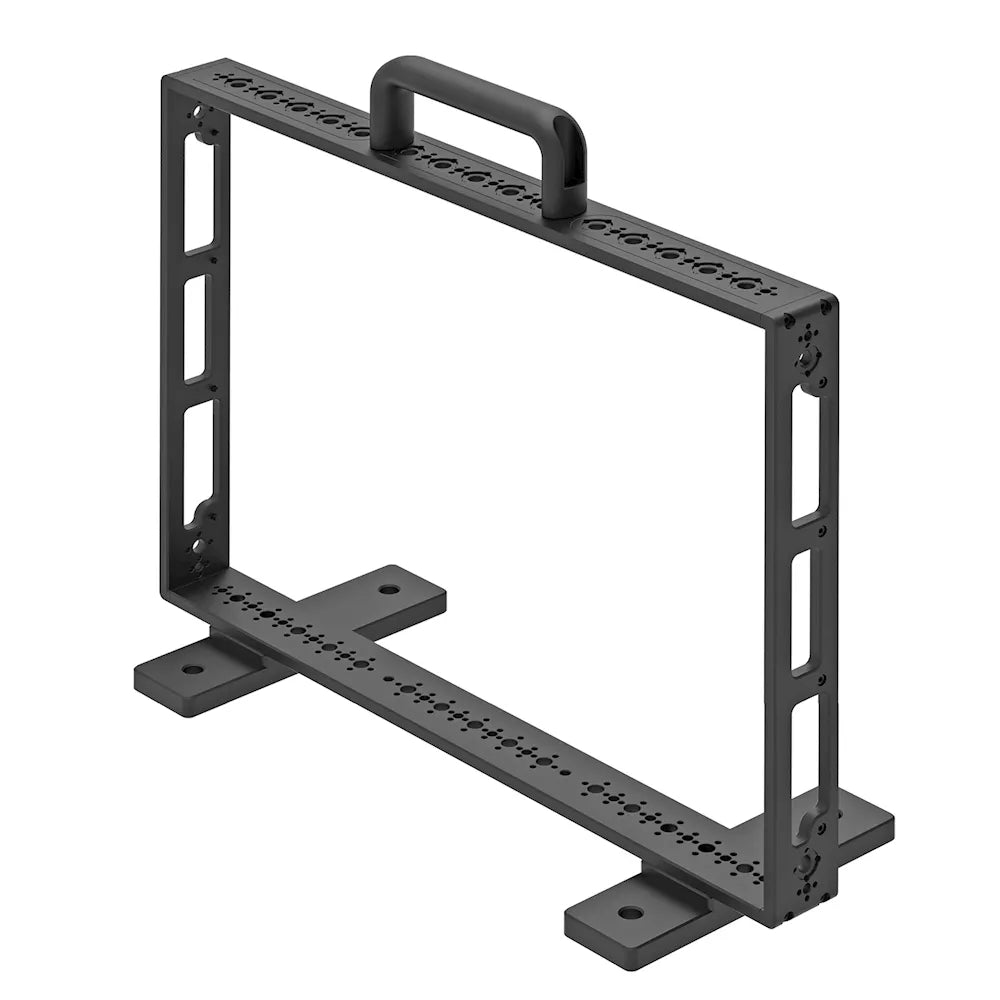

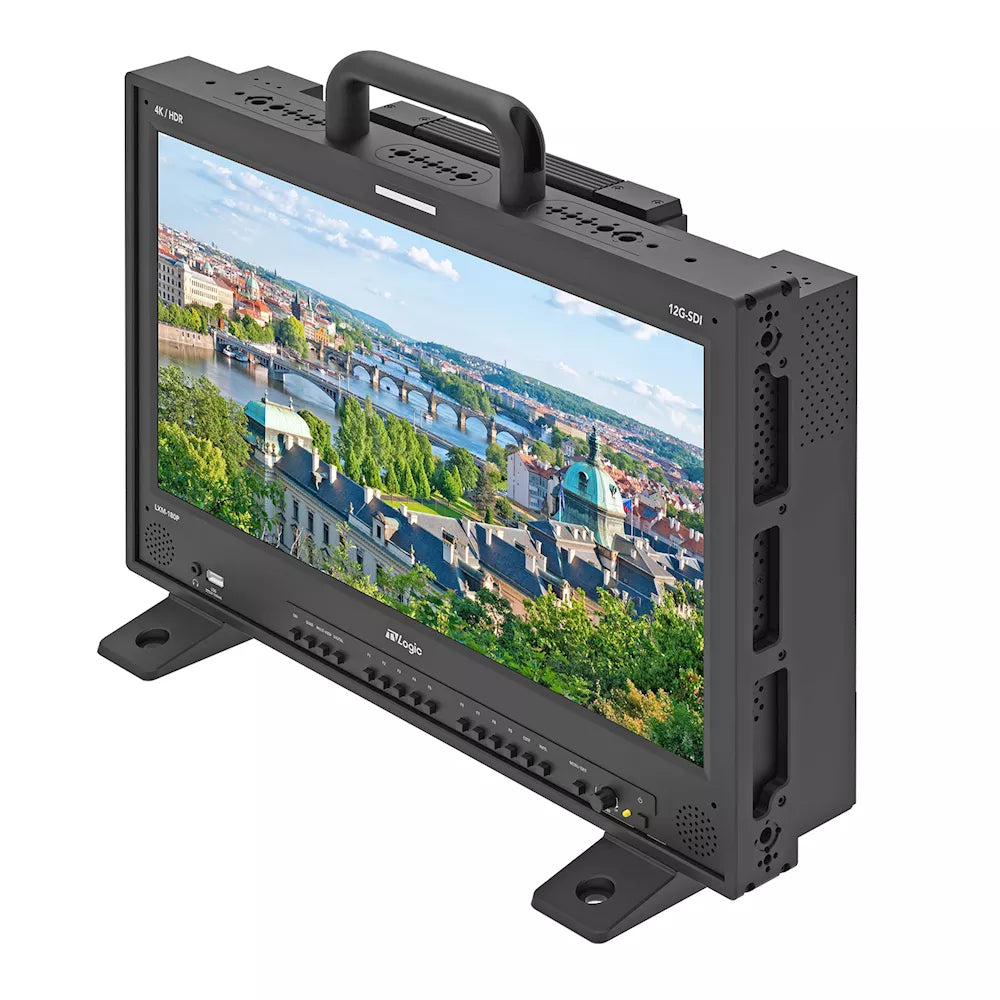

TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
Roll over image to zoom in Click on image to zoom
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage

TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage

TVLogicSKU: TVL-LXM-180P-FM

Need this in a hurry? Check current lead times for TVLogic

Price:
£6,930.00(incl. VAT)
£5,775.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

TVLogic LXM-180P-FM 18.4-inch 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage

The LXM series monitors are TVLogic's latest generation of 4K/UHD broadcast monitors incorporating innovative hardware and software solutions.

**Items marked in stock are usually held with the EU Distributor in their EU Warehouse**

FEATURES

  • HDR EOTF (PQ, HLG)
  • HDR vs SDR Comparison Display
  • Custom 3D LUT Import by USB Flash Drive
  • Quad-View, Picture-by-Picture Display
  • Various Conversion Output
  • Quad Link 12G Input to Single Link 12G or 3G Output
  • Auto Detection of SDI Payload ID
  • Waveform (YCbCr, RGB) / Vector Scope / Histogram
  • Audio Level Meter / Phase Meter / Loudness(LKFS) Meter
  • Image Capture & Overlay
  • Closed Caption (CC-608, CC-708, OP47)
  • Timecode Display
  • Marker
  • Focus Assist
  • Blue/Mono Only
  • H Flip, V Flip
  • Scan / User Aspect
  • Dynamic UMD / Tally

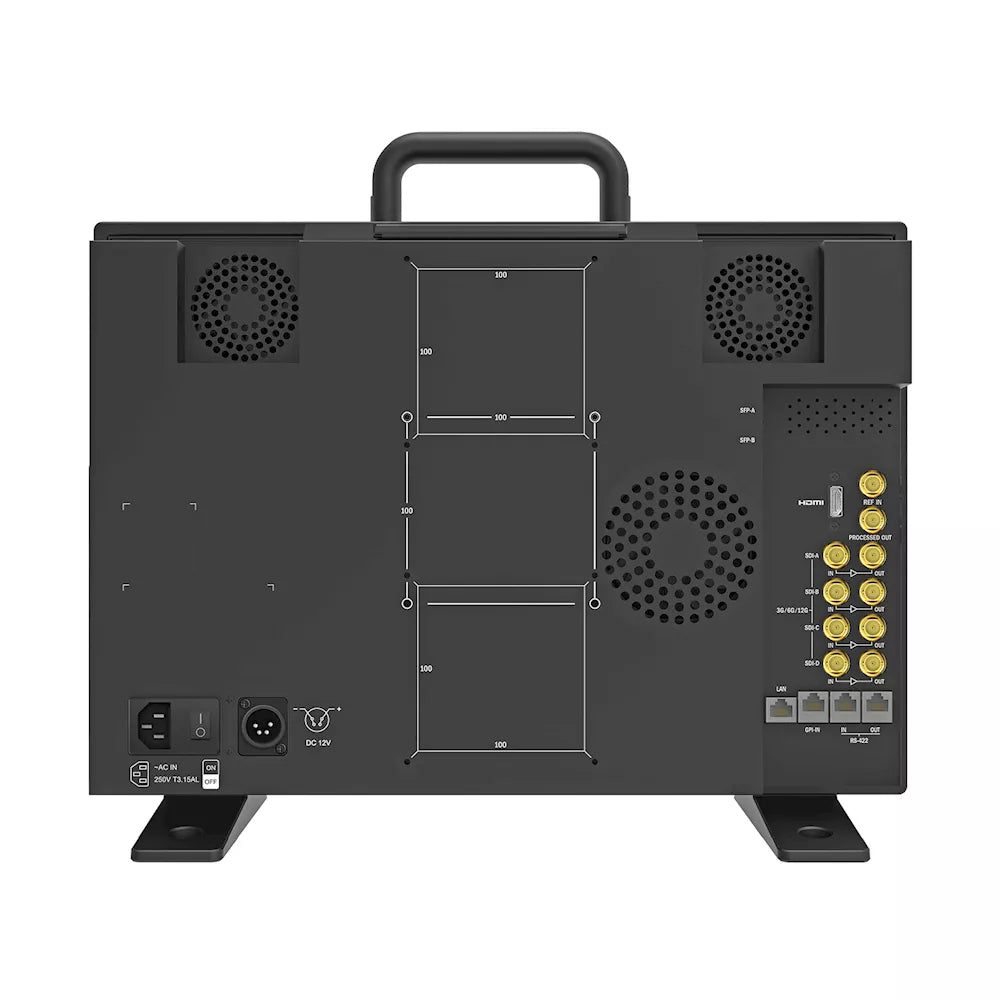

The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.
These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.
(LXM-180P, LXM-240P, LXM-320P : 1000nits . LXM-180U: 16.7M colors, 1920 x 1080)

SPECIFICATIONS

LCD Panel

Size: 18.4”

Resolution: 3840 x 2160 (16:9)

Pixel Pitch: 0.035(H) x 0.106(V) mm

Color Depth: 1.07B Colors (10 bit)

Viewing Angle: 170°(H) / 170°(V)

Brightness: 1000 cd/m2 / 1000 nits

Contrast Ratio: 1000 : 1

Display Area: 408.96 (H) x 230.04 (V) mm

Input

4 x BNC: 12G/6G/HD/SD-SDI/ A/B/C/D Channel Input

1 x HDMI: HDMI 2.0 Input

2 x SFP: SFP A/B Channel Input

1 x BNC: Reference Input

 Output

4 x BNC: 12G/6G/HD/SD-SDI/ A/B/C/D Channel Output

1 x BNC: Processed Output
