Description

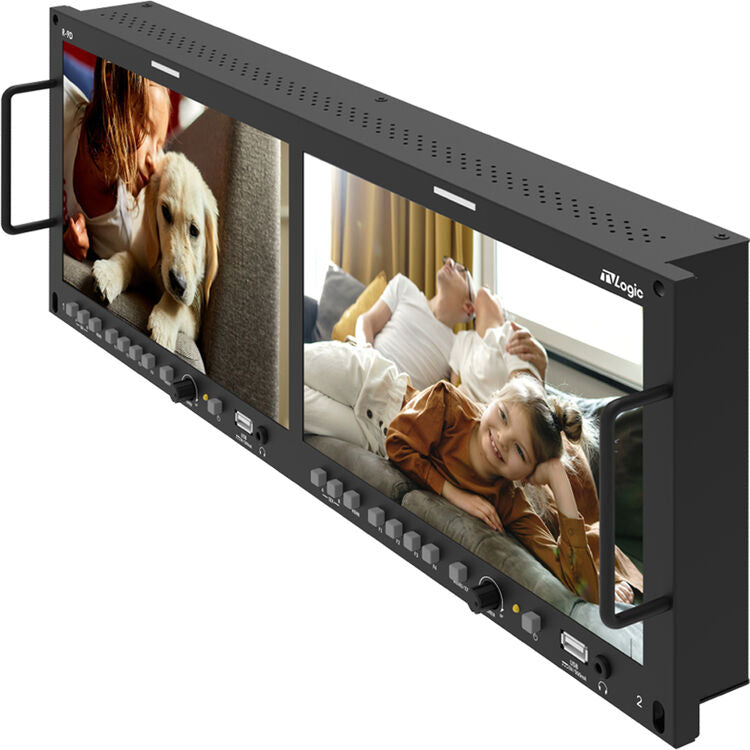

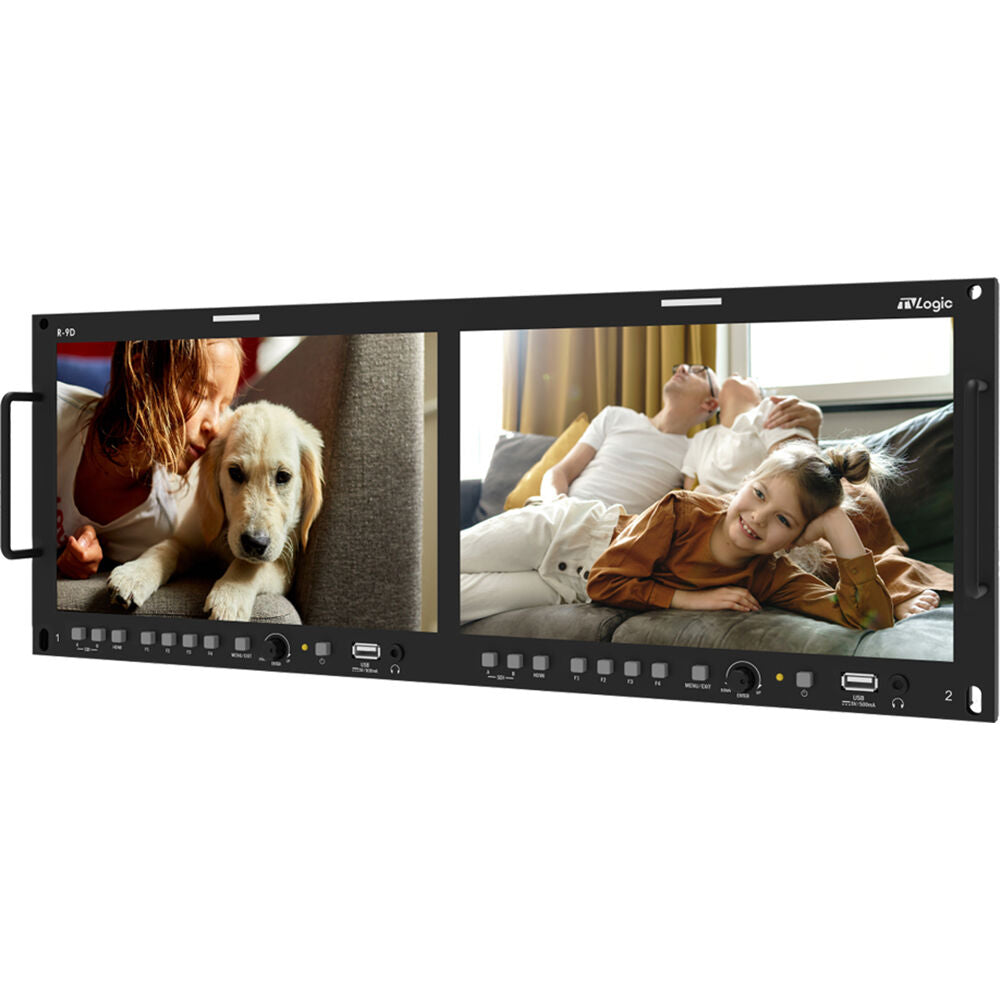

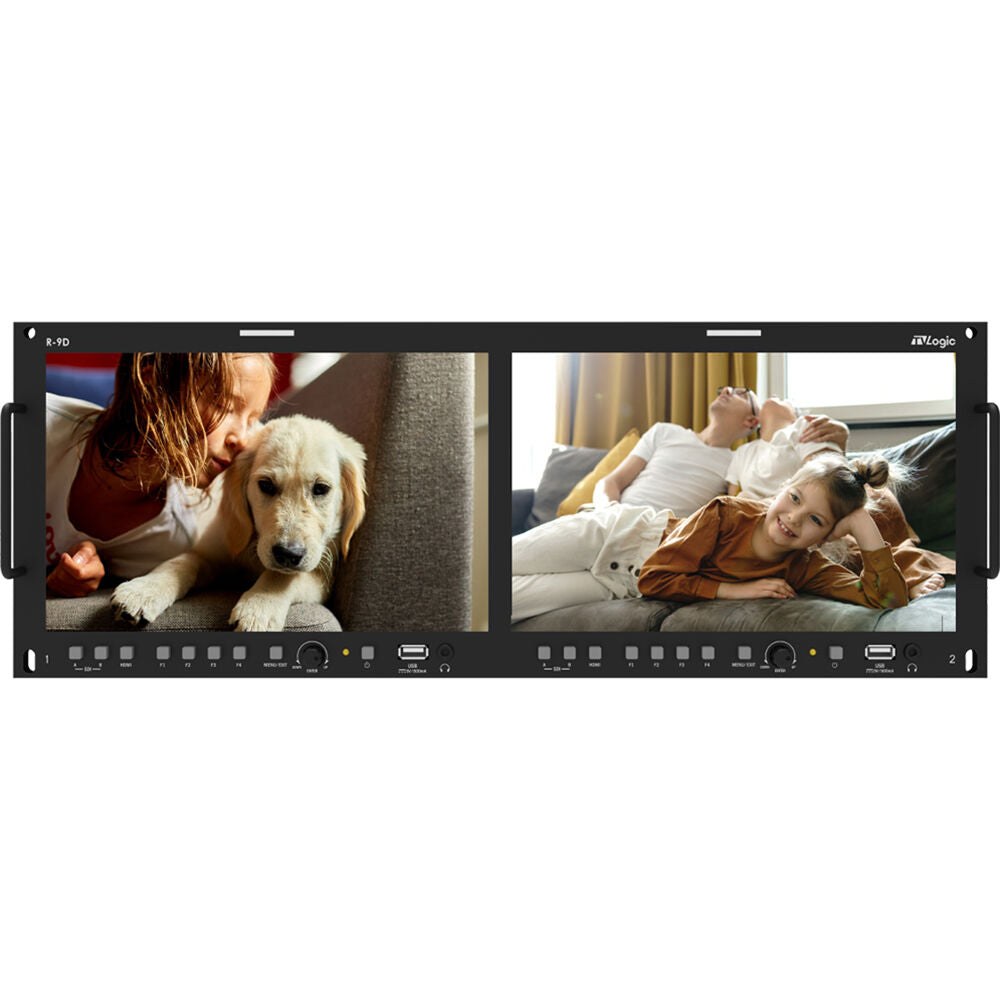

TVLogic R-9D Dual 10.1-inch 12G Ready 4RU Rack-Mount Monitor

Having 2 x 10.1" LCDs, which has the same high performance display as LVM-0956A with full HD resolution and wide viewing angle capability. It supports 12G-SDI and HDMI.

**Items marked in stock are usually held with the EU Distributor in their EU Warehouse**

FEATURES

  • Two 10.1" 1920 x 1200 LCD Monitors
  • 12G- & 3G-SDI Inputs/Outputs, HDMI Input
  • Up to UHD 4K60 Signal Input
  • 170° Viewing Angle
  • 800 cd/m² Brightness, 1000:1 Contrast
  • Speaker & 3.5mm Headphone Outputs
  • RS-422 & Ethernet Control

SPECIFICATIONS

Panel Type
LCD
Display Size
10.1" / 25.7 cm
Native Resolution
1920 x 1200
Aspect Ratio
16:10
Viewing Angle
Horizontal: 170°
Vertical: 170°
Touchscreen
No
Maximum Brightness
800 nits / cd/m2
Contrast Ratio
1000:1
Color Support
16.7 Million Colors (8-Bit)
HDR Support
Yes
Image Controls
Check Field, Focus Assist, Overscan, Pixel Zoom, Vectorscope, Waveform

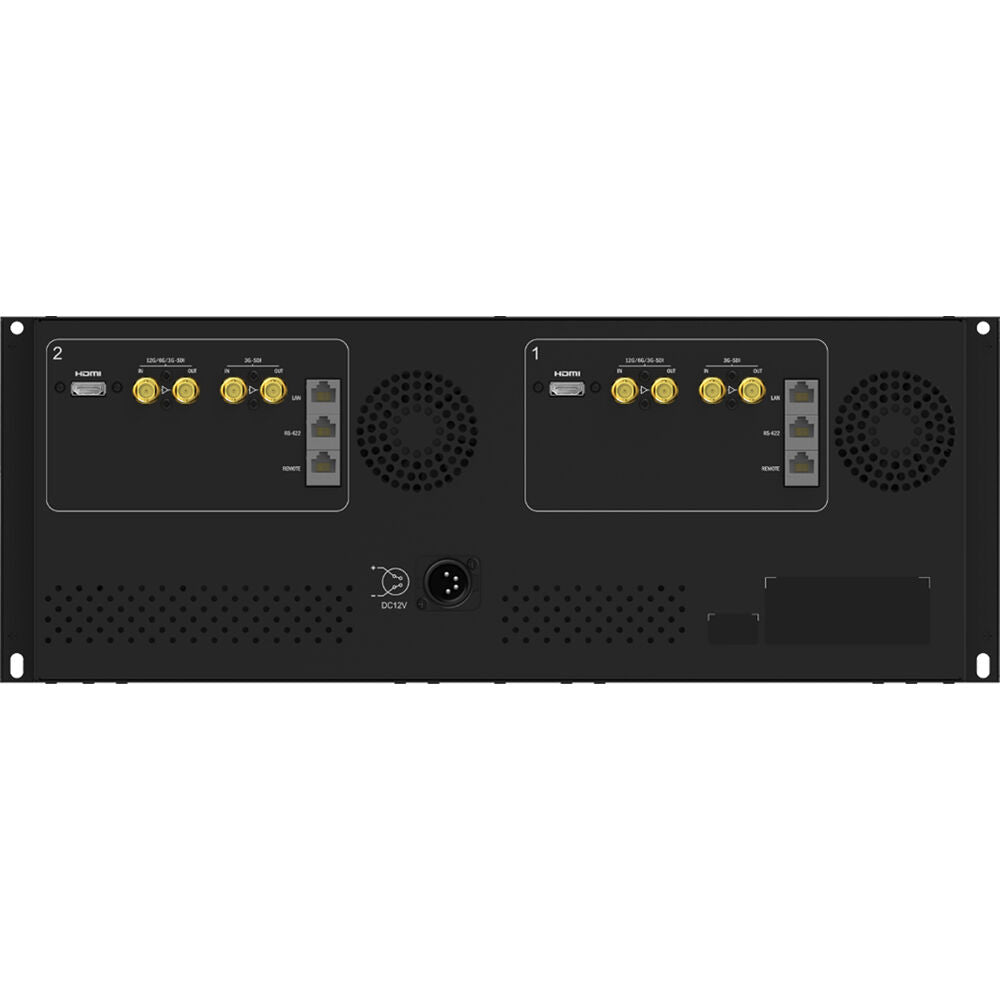

Inputs/Outputs
Video I/O
1x BNC (12G-SDI) Input
1x BNC (3G-SDI) Input
1x HDMI Input
1x BNC (12G-SDI) Loop Output
1x BNC (3G-SDI) Loop Output
Embedded Audio
HDMI/SDI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x XLR 4-Pin (12 VDC / 3.4 A) Input
Other I/O
1x RJ45 (LAN) Input/Output
1x RJ45 (RS-422) Input
1x RJ45 (RS-422) Output
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
SDI
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
576p: 50
480i: 59.94
480p: 59.94
Power
Input Power
12 VDC at 3.4 A
Battery
No
Power Consumption
38 W
Mounting
Rack Form Factor
4 U
General
Environmental Resistance
No
Operating Conditions
32 to 104°F / 0 to 40°C
Storage Conditions
-4 to 140°F / -20 to 60°C
Dimensions
18.9 x 6.9 x 2.4" / 481 x 175.8 x 60.5 mm (Excluding Bracket)
18.9 x 6.9 x 3.5" / 481 x 175.8 x 88 mm (Including Bracket)
Weight
6.50 lb / 2.95 kg
