TVLogic SVM-130P 13.9-inch 12G-SDI High Brightness Field Monitor

TVLogicSKU: TVL-SVM-130P

Need this in a hurry? Check current lead times for TVLogic

Price:
Sale price£4,548.00(incl. VAT)
£3,790.00

(ex VAT)

Tax included

Stock:
In Stock (EU Warehouse) Lead Time 4 to 5 Days
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

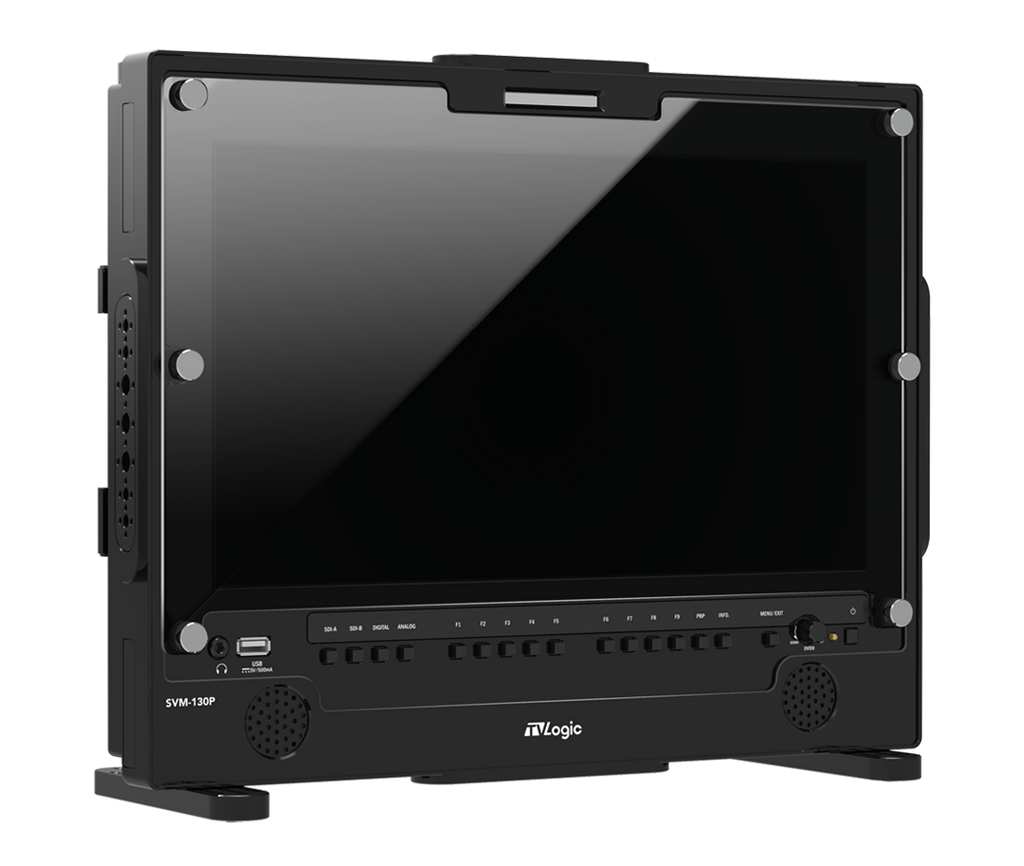

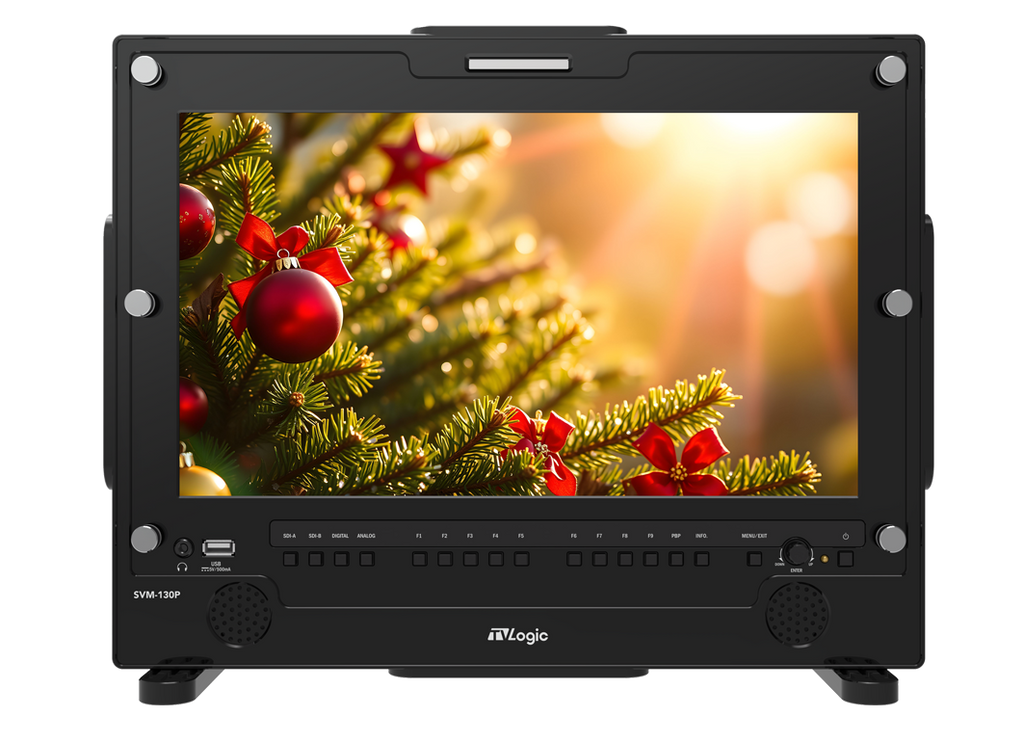

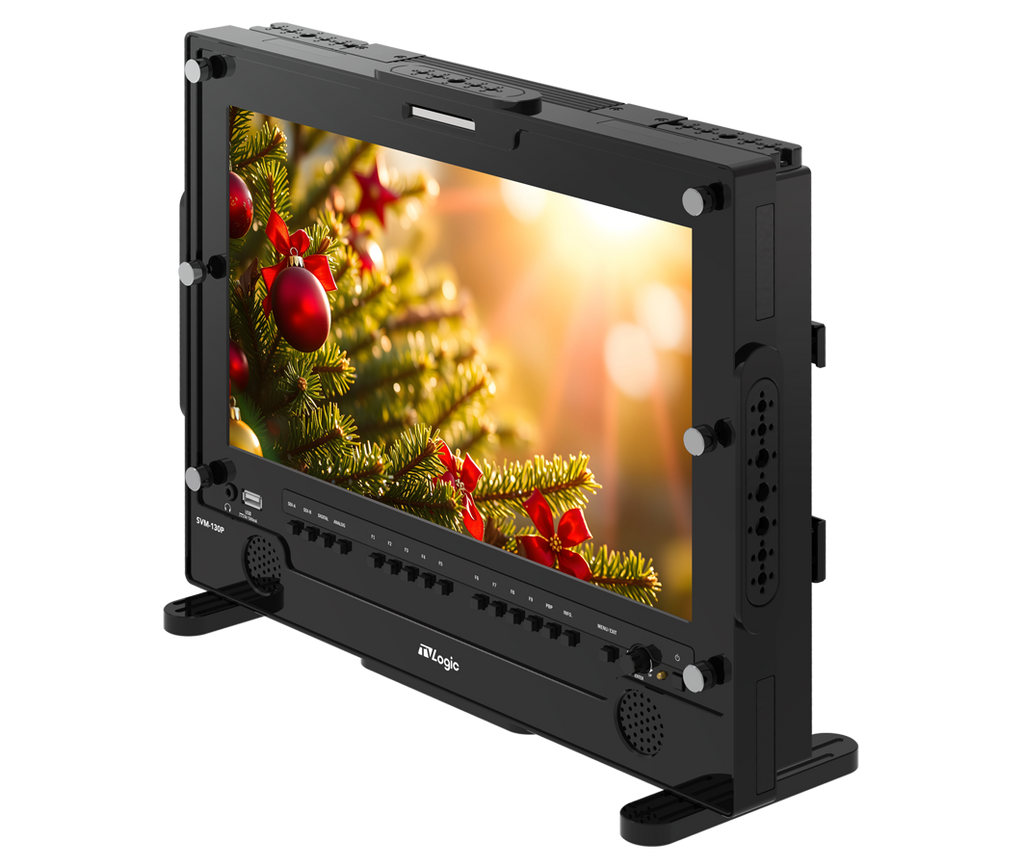

TVLogic SVM-130P 13.9-inch 12G-SDI High Brightness Field Monitor

Powerful, Versatile, Field-Ready
Experience brilliant 1500nits high brightness, rugged yet lightweight design, and a complete toolset for professional monitoring.

**Items marked in stock are usually held with the EU Distributor in their EU Warehouse**

FEATURES

  • 1500nits High Brightness Display
  • 2 x 12G-SDI Input and Loopout
  • 12G-SDI Input to 3G-SDI Downscale Output
  • Processed Monitor Output
  • Cheese Plates, C-stand Mountable

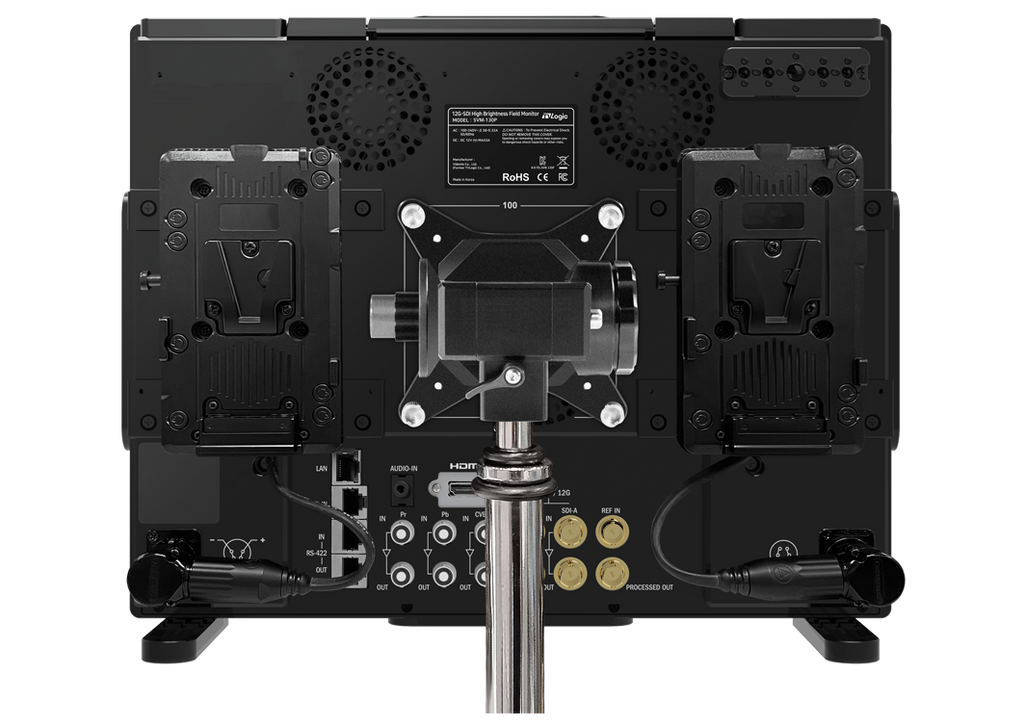

  • Dual Battery Brackets (V-Mount, G-Mount)
  • Picture-by-Picture Display
  • HDR (PQ, HLG, S-LOG3)
  • Custom 3D LUT Import by USB Flash Drive
  • Auto Detection of SDI Payload ID
  • Image Capture & Overlay
  • Waveform (YCbCr, RGB) / Vector Scope / Histogram
  • Audio Level Meter / Audio Phase Meter
  • Fast Mode
  • Focus Assist / Marker
  • Blue/Mono Only / Timecode Display
  • Remote Control & FW Update via Ethernet
  • H Flip, V Flip

The SVM-130P delivers outstanding visibility in any environment with 1500nits high brightness, slim & rugged build, and broadcast-level monitoring features including 12G-SDI in/out, waveform & vectorscope, picture-by-picture, and custom 3D LUTs.

Powerful, Versatile, Field-Ready

Experience brilliant 1500nits high brightness, rugged yet lightweight design, and a complete toolset for professional monitoring.

The new SVM-130P delivers outstanding visibility in any environment with 1500nits high brightness, slim & rugged build, and broadcast-level monitoring features including 12G-SDI in/out, waveform & vectorscope, picture-by-picture, and custom 3D LUTs.

Dimensions

Main Body: 376.8 x 302.5 x 130 (mm) / 14.83 x 11.90 x 5.11 (inch)

Weight: 5.34kg / 11.77lbs

SPECIFICATIONS

LCD PANEL
Size 13.9”
Resolution 1920 x 1080 (16:9)
Pixel Pitch 0.1605(H) x 0.1605(H) mm
Color Depth 16.7M Colors
Viewing Angle 178°(H) / 178°(V)
Luminance of white 1500cd/m²
Contrast Ratio 1200 : 1
Display Area 308.16(H) x 173.34(V) mm
INPUT
2 × BNC 12G/6G/3G/HD/SD-SDI A/B Input
3 × BNC YPbPr, CVBS Input
1 × HDMI HDMI 1.4 Input
1 × BNC  Reference Input
OUTPUT
2 × BNC 12G/6G/3G/HD/SD-SDI A/B Channel Output
3 × BNC YPbPr, CVBS Output
1 × BNC Processed Output
SDI INPUT SIGNAL FORMATS
SMPTE ST 2082 3840×2160 (60/50/30/25/24p)
SMPTE ST 2081 3840×2160 (30/25/24p)
SMPTE ST 2036-1:2009 3840×2160 (23.98p/24p/25p/29.97p/30p/50p/59.94p/60p)
SMPTE-425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98p/30sf/29.97sf/25sf/24sf/23.98sf)
SMPTE-274M 1080i (60/59.94/50)
SMPTE-274M 1080p (30/29.97/25/24/24sf/23.98sf/23.98F)
SMPTE-296M 720p (60/59.94/50)
SMPTE-260M 1035i (60/59.94)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
SMPTE ST 2048-2:2011 2048×1080 (23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)
REMOTE CONTROL & UPDATE
1 × LAN RJ-45 Input (Ethernet), Firmware Update & Remote Control
1 × REMOTE RJ-45 Input, GPI Control
2 × RS-422 RJ-45 Input & Output, Monitor Control by TVLogic Protocol or TSL Protocol
1 × USB USB A type, Firmware Update
GENERAL
Audio In Analog Stereo (Phone Jack)
Audio Out Internal Stereo Speakers, Analog Stereo (Phone Jack)
Power DC 12V/24V
Power Consumption TBD
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Dimensions : Main Body 372.8 × 296.0 × 54.0 mm / 14.68 × 11.65 × 2.13 inch
Dimensions : With Stand 372.8 × 302.5 × 100.0 mm / 14.68 × 11.91 × 3.94 inch
Dimensions : Shipping Box 550 × 460 × 300 mm / 21.65 × 18.11 × 11.81 inch
Weight (with stand) 5.34kg / 11.77lbs
Basic Accessories Stand, Handle, V-Mount, Cheese Plate, Screen Protection Film
Optional Accessories G-Mount, Acrylic Protector, Carrying Case, Sun Hood
The specifications above may be changed without notice.
