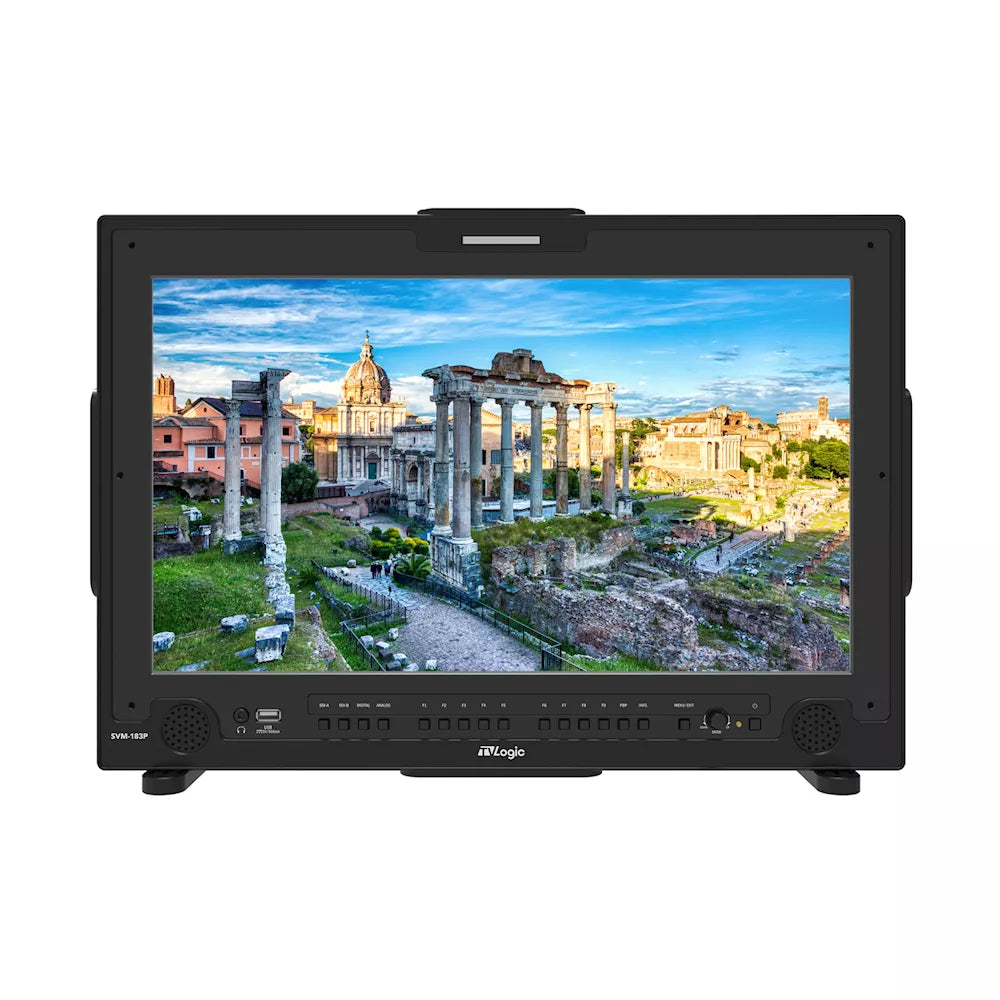

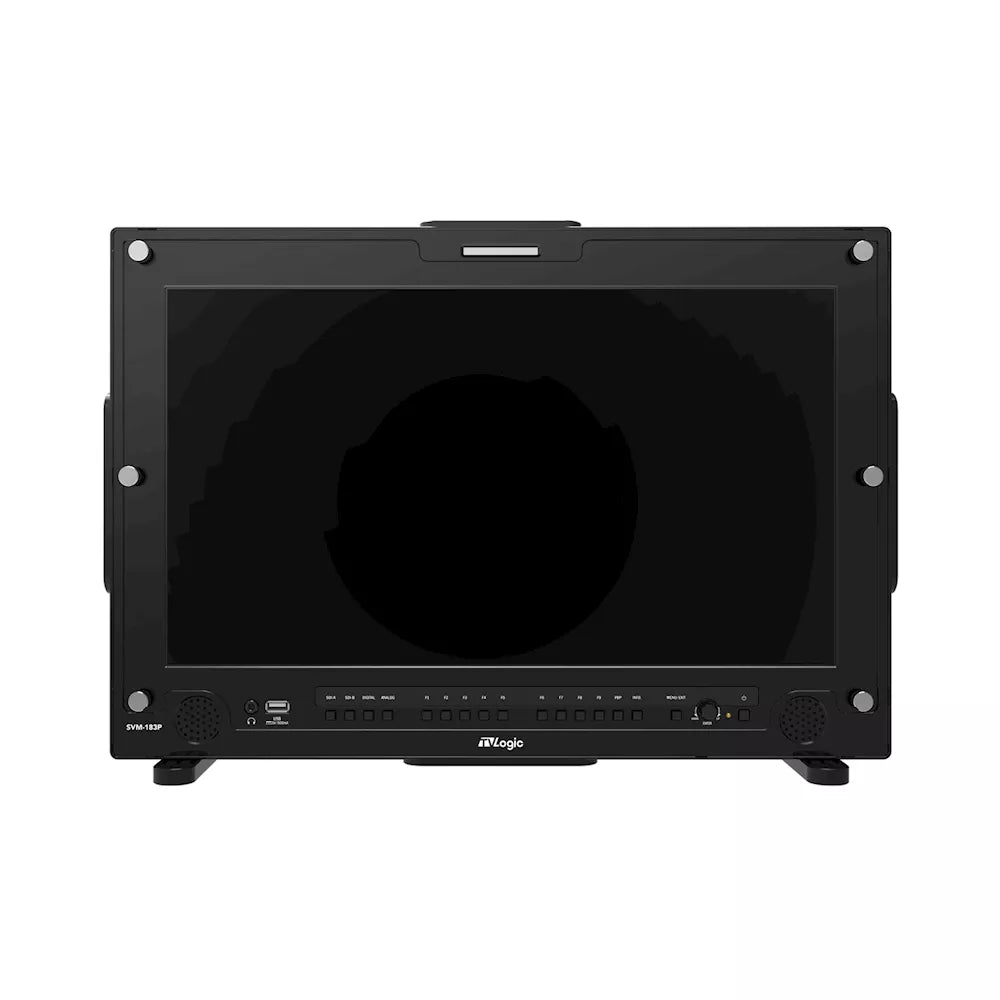

TVLogic SVM-183P 18.5-inch 12G-SDI High Brightness Field Monitor
**Items marked in stock are usually held with the EU Distributor in their EU Warehouse**
FEATURES
- 1500nits High Brightness Display
- 2 x 12G-SDI Input and Loopout
- 12G-SDI Input to 3G-SDI Downscale Output
- Processed Monitor Output

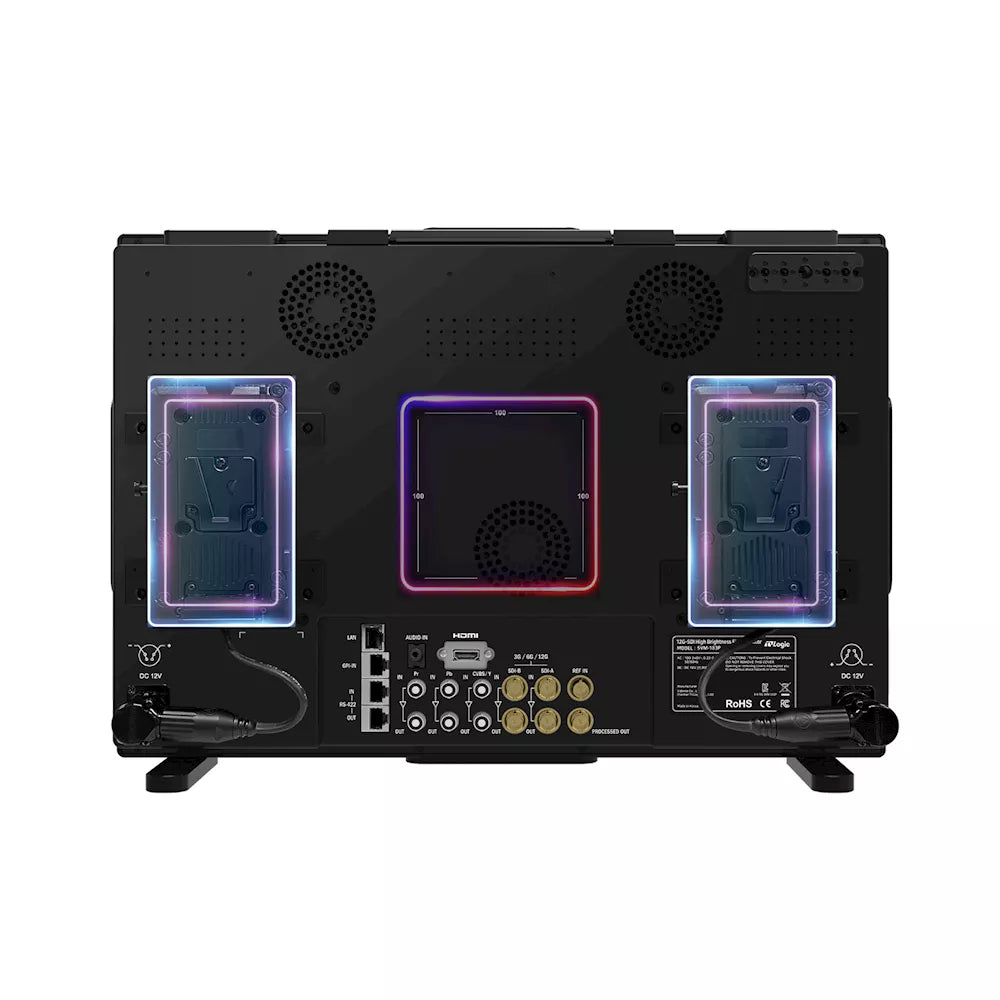

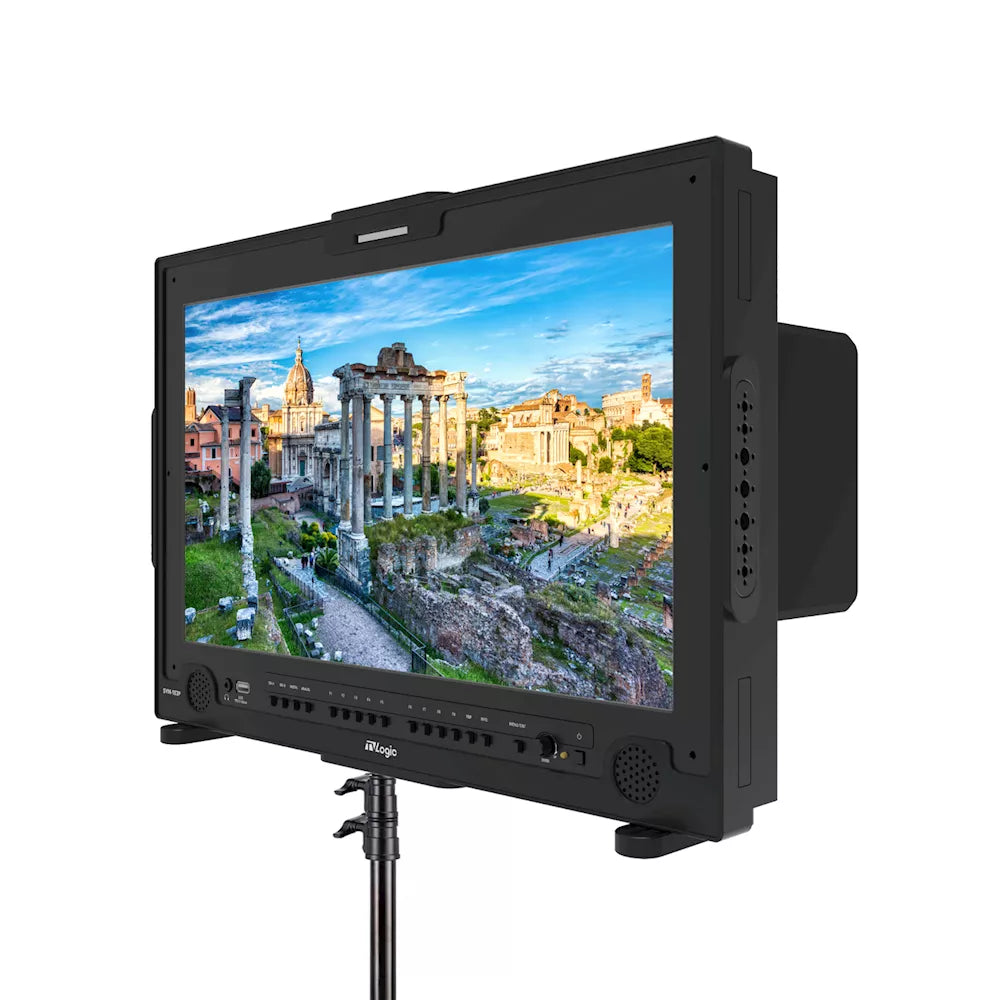

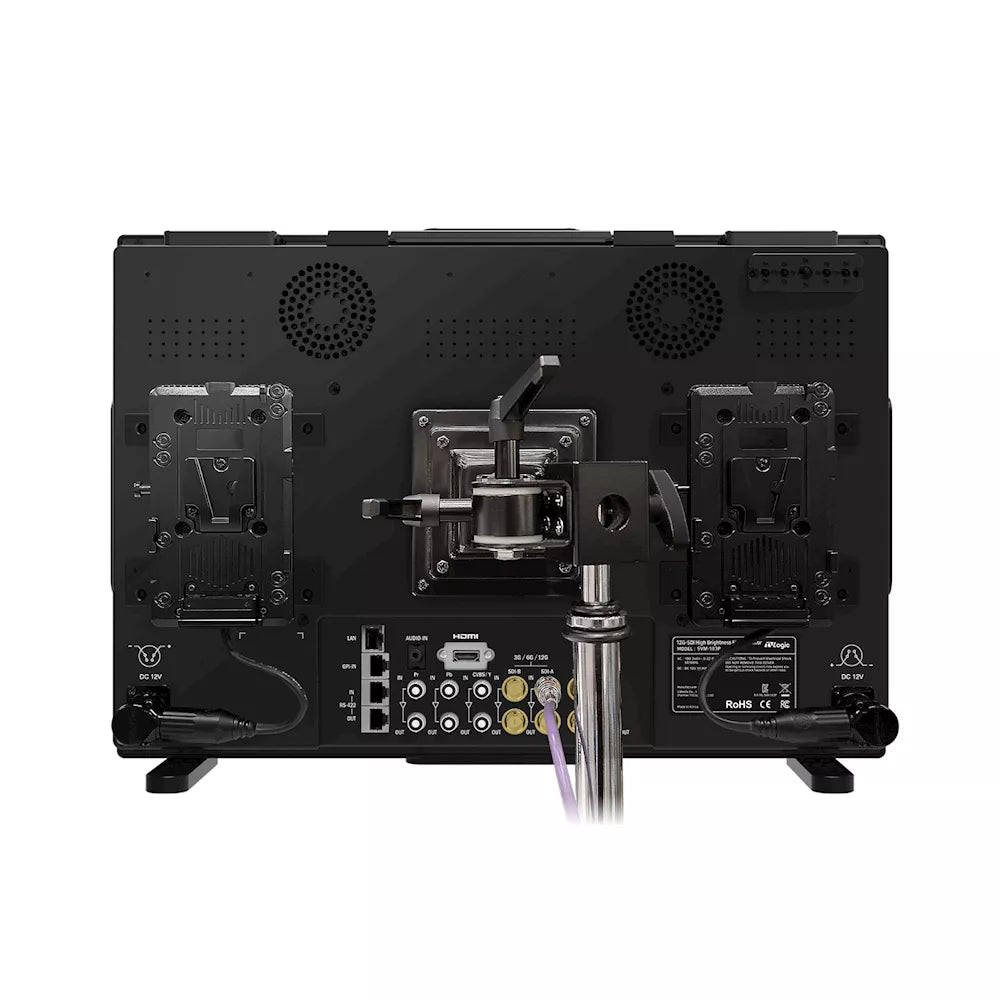

- Cheese Plates, C-stand Mountable

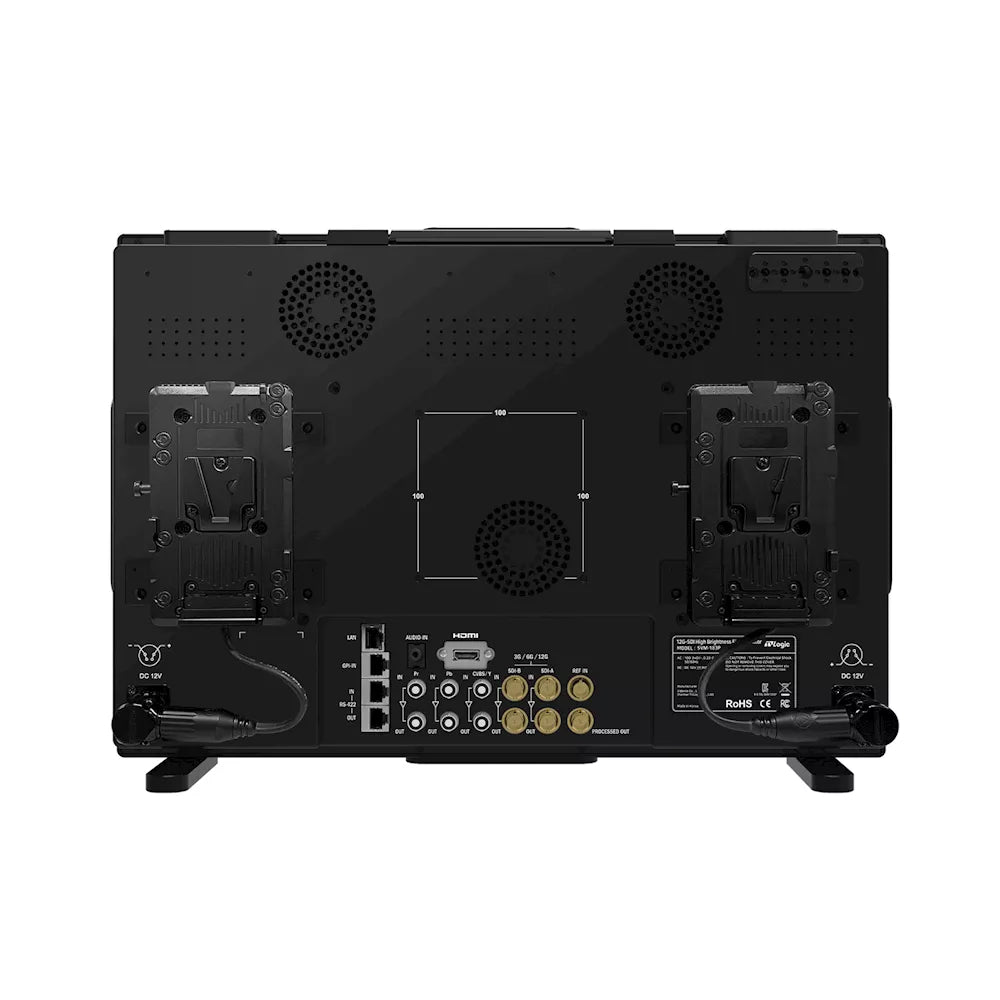

- Dual Battery Brackets (V-Mount, G-Mount)
- Picture-by-Picture Display
- HDR (PQ, HLG, S-LOG3)
- Custom 3D LUT Import by USB Flash Drive
- Auto Detection of SDI Payload ID
- Image Capture & Overlay
- Waveform (YCbCr, RGB) / Vector Scope / Histogram
- Audio Level Meter / Audio Phase Meter
- Fast Mode
- Focus Assist / Marker
- Blue/Mono Only / Timecode Display
- Remote Control & FW Update via Ethernet
- H Flip, V Flip
The new SVM-130P and SVM-183P deliver outstanding visibility in any environment with 1500nits high brightness, slim & rugged build, and broadcast-level monitoring features including 12G-SDI in/out, waveform & vectorscope, picture-by-picture, and custom 3D LUTs.
SPECIFICATIONS
| LCD PANEL | |
| Size | 18.5” |
| Resolution | 1920 × 1080 (16:9) |
| Pixel Pitch | 0.2130(H) × 0.2130(V) mm |
| Color Depth | 16.7M Colors |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance of white | 1500cd/m² |
| Contrast Ratio | 1000 : 1 |
| Display Area | 08.96(H) × 230.04(V) mm |
| INPUT | |
| 2 × BNC | 12G/6G/3G/HD/SD-SDI A/B Input |
| 3 × BNC | YPbPr, CVBS Input |
| 1 × HDMI | HDMI 1.4 Input |
| 1 × BNC | Reference Input |
| OUTPUT | |
| 2 × BNC | 12G/6G/3G/HD/SD-SDI A/B Channel Output |
| 3 × BNC | YPbPr, CVBS Output |
| 1 × BNC | Processed Output |
| SDI INPUT SIGNAL FORMATS | |
| SMPTE ST 2082 | 3840×2160 (60/50/30/25/24p) |
| SMPTE ST 2081 | 3840×2160 (30/25/24p) |
| SMPTE ST 2036-1:2009 | 3840×2160 (23.98p/24p/25p/29.97p/30p/50p/59.94p/60p) |
| SMPTE-425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98p/30sf/29.97sf/25sf/24sf/23.98sf) |
| SMPTE-274M | 1080i (60/59.94/50) |
| SMPTE-274M | 1080p (30/29.97/25/24/24sf/23.98sf/23.98F) |
| SMPTE-296M | 720p (60/59.94/50) |
| SMPTE-260M | 1035i (60/59.94) |
| SMPTE-125M | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| SMPTE ST 2048-2:2011 | 2048×1080 (23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p) |
| REMOTE CONTROL & UPDATE | |
| 1 × LAN | RJ-45 Input (Ethernet), Firmware Update & Remote Control |
| 1 × REMOTE. | RJ-45 Input, GPI Control |
| 2 × RS-422 | RJ-45 Input & Output, Monitor Control by TVLogic Protocol or TSL Protocol |
| 1 × USB | USB A type, Firmware Update |
| GENERAL | |
| Audio In | Analog Stereo (Phone Jack) |
| Audio Out | Internal Stereo Speakers, Analog Stereo (Phone Jack) |
| Power | DC 12V/24V |
| Power Consumption | TBD |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions : Main Body. | 480.8 × 333.0 × 54.0 mm / 18.93 × 13.11 × 2.13 inch |
| Dimensions : With Stand | 480.8 × 339.5 × 100.0 mm / 18.93 × 13.37 × 3.94 inch |
| Dimensions : Shipping Box | 550 × 460 × 300 mm / 21.65 × 18.11 × 11.81 inch |
| Weight (with stand) | 7.10kg / 15.65lbs |

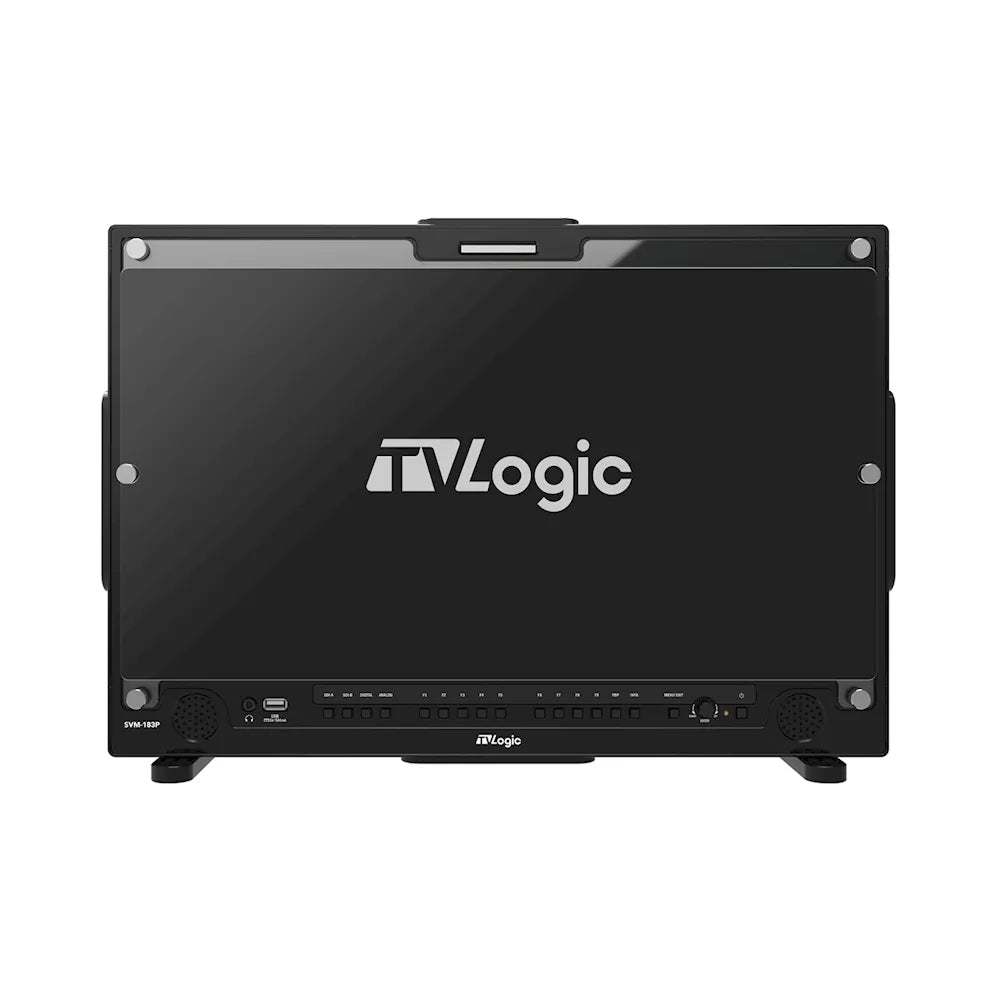

| Basic Accessories. | Stand, Handle, V-Mount, Cheese Plate, Screen Protection Film |
| Optional Accessories. | G-Mount, Acrylic Protector, Carrying Case, Sun Hood |
