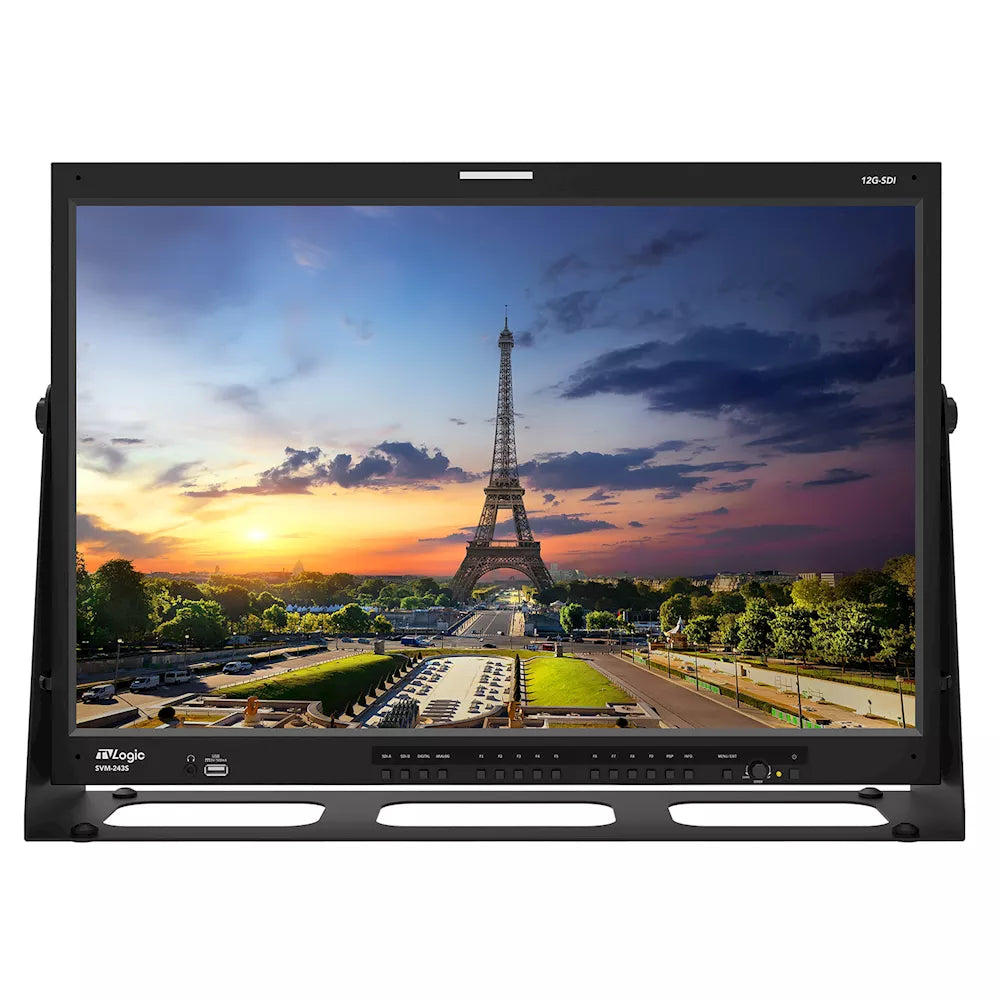

TVLogic SVM-243S 24-inch 12G-SDI with FHD LCD Monitor

TVLogicSKU: TVL-SVM-243S

Need this in a hurry? Check current lead times for TVLogic

Price:
Sale price£4,452.00(incl. VAT)
£3,710.00

(ex VAT)

Tax included

Stock:
In Stock (EU Warehouse) Lead Time 4 to 5 Days
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

TVLogic SVM-243S 24-inch 12G-SDI with FHD LCD Monitor

SVM series incorporates 12G-SDI Input(x2), 12G-SDI Output(x2), Reference(External Sync) Input, HDMI 1.4 Input, SFP Input(x2), Processed Monitor Output.

**Items marked in stock are usually held with the EU Distributor in their EU Warehouse**

FEATURES

  • Display Resolution 1920 x 1080 or 1920 x 1200
  • Wide Colour Gamut (DCI-P3 Coverage 98%)*
  • lObit {l.073 Billion) Colours*
  • 2 x 12G-SDI Input and Loopout
  • Dual SFP Input
  • HDMI 1.4 Input
  • Processed Monitor Output
  • 12G-SDI Input to 3G-SDI Processed Output
  • HDR (PQ, HLG, S-LOG3)
  • Various Colour Spaces (BT.709, DCI-P3, BT.2020, S-GAMUT3)
  • Custom 3D LUT Import by USB Flash Drive
  • Built-in Camera LUTs
  • Auto Detection of SDI Payload ID
  • Waveform (YCbCr, RGB)
  • Vector Scope
  • Histogram
  • Audio Level Meter
  • Audio Phase Meter
  • Colour Settings Save & Apply

*SVM-2435 only

These new generation of monitors feature wide viewing angle IPS panel, various HDR EOTFs, wide color gamut of DCI-P3 coverage 98%, 10bit 1.073 Billion Colors, Accurate Color Reproduction by 3D LUT. The SVM series monitors support the high-performance functions such as HDR EOTF, 12G-SDI Picture-by-Picture dispaly, Custom 3D LUT import, 12G-SDI Input to 3G-SDI Processed Output, LUT-applied output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and many more, which make the SVM monitors ideal for live production, versatile monitoring in the studio and field location, edit suite, post production.

SPECIFICATIONS

LCD PANEL
Size 24”
Resolution 1920 X 1200 (16: 10)
Pixel Pitch 0.270(H) x 0.270(V) mm
Colour Depth 1.07B Colours
Viewing Angle 178°(H) / 178°(V)
Brightness 400cd/m2
Contrast Ratio 1800 : 1
Display Area 518(H) x 324(V) mm

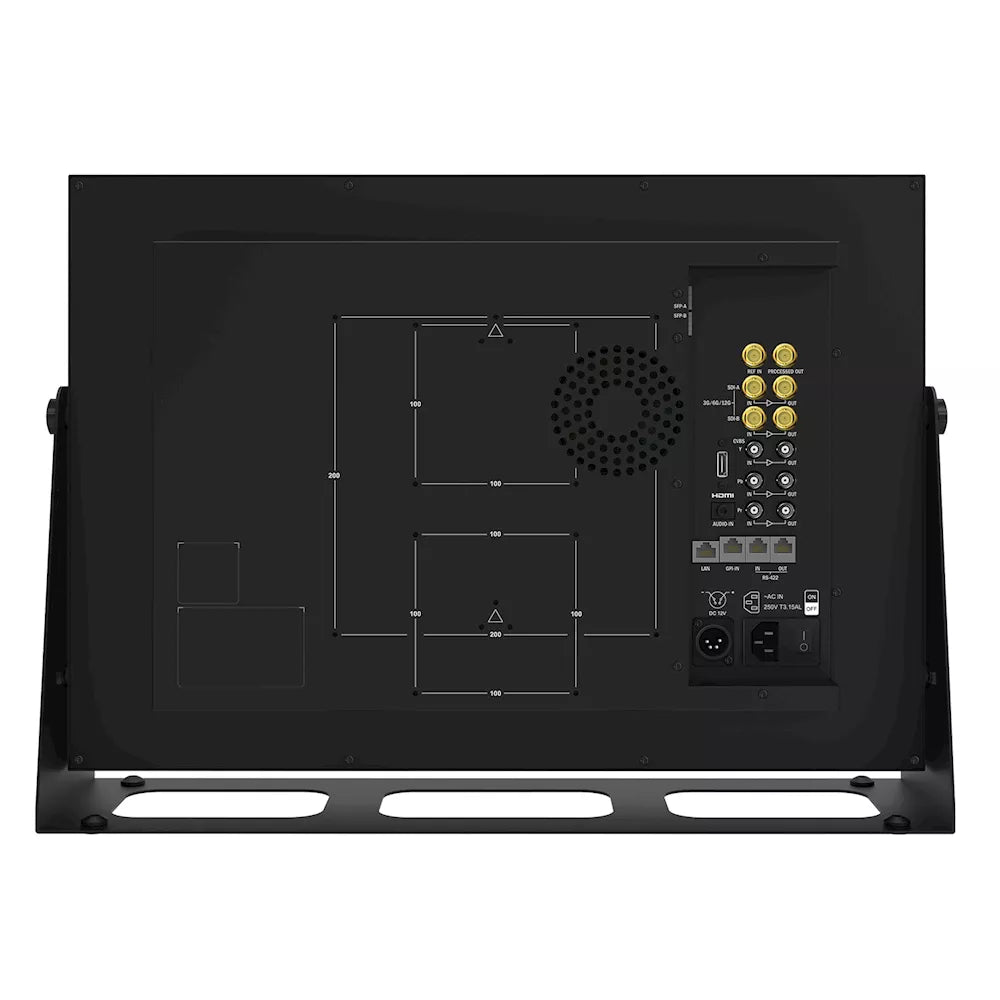

INPUT
2 x BNC 12G/6G/3G/HD/SD-SDI A/B Input
3 x BNC YPbPr, CVBS Input
1 x HDMI HDMI Input
2 x SFP SFP A/B Channel Input
1 x BNC Reference Input
OUTPUT
2 x BNC 12G/6G/3G/HD/SD-SDI A/B Channel Output
3 x BNC YPbPr, CVBS Output
1 x BNC Processed Output
SDI INPUT SIGNAL FORMATS
SMPTE ST 2082 2160(60/50/30/25/24p)
SMPTE ST 2081 2160(30/25/24p)
SMPTE ST 2036-1:2009 2160(23.98/24/25/29.97/30/50/59.94/60p)
SMPTE-425M-A/B 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i(60/59.94/50)
SMPTE-274M 1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p(60/59.94/50)
SMPTE-260M 1035i(60/59.94)
SMPTE-125M 480i(59.94)
ITU-R BT.656 576i(50)
SMPTE ST 2048-2:2011 2048x1080(23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)
REMOTE CONTROL & UPDATE
1 x LAN RJ-45 Input (Ethernet), Firmware Update & Remote Control
1 x REMOTE RJ-45 Input, GPI Control
2 x RS-422 RJ-45 Input & Output, Monitor Control by TVLogic Protocol or TSL Protocol
1 x USB USB A type, Firmware Update
GENERAL
Audio In Analog Stereo (Phone Jack)
Audio Out Internal Stereo Speakers, Analog Stereo (Phone Jack)
Power AC100240V (5060Hz)
DC 12V/24V
Power Consumption TBD
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Dimensions Main Body: 552.5 x 389 x 79.4 (mm)
21.75 x 15.31 x 3.12 (inch)
With Stand: 586.1 x 416.8 x 150 (mm)
23.07 x 16.41 x 5.9 (inch)
Shipping Box: 680 x 540 x 300 mm
26.77 x 21.26 x 11.81 inch
Weight (with stand) 10.0kg / 22.04lbs
Basic Accessories AC Power Cord, Stand
Optional Accessories V-mount, G-mount
Acrylic Filter, Rack Mount Kit
Carrying Case
