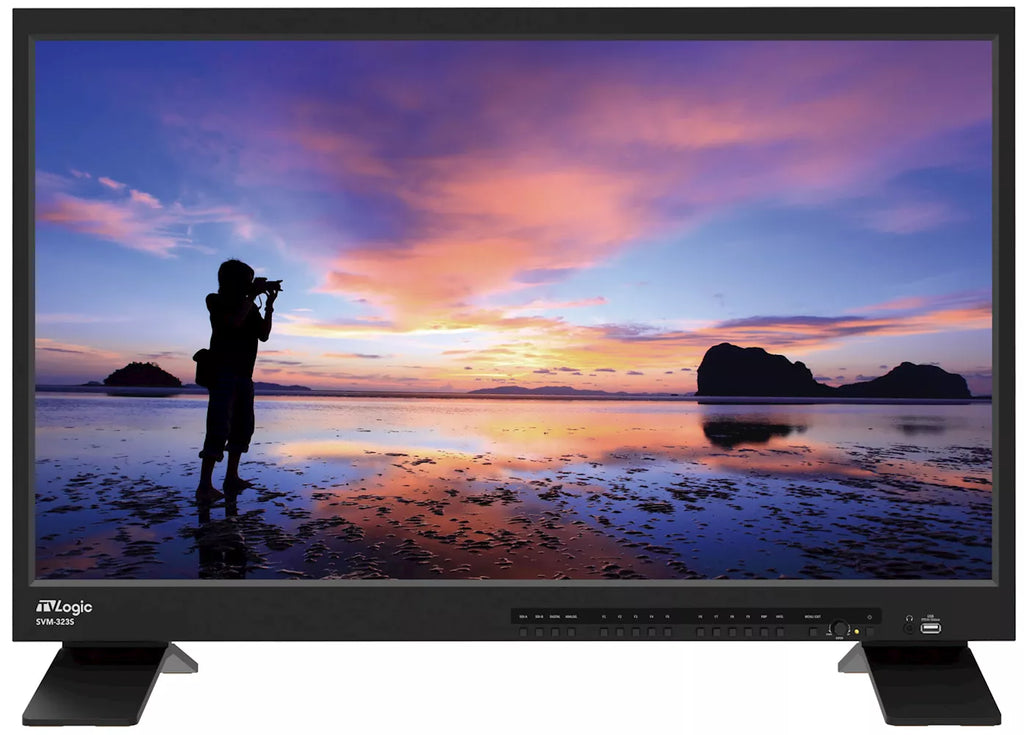

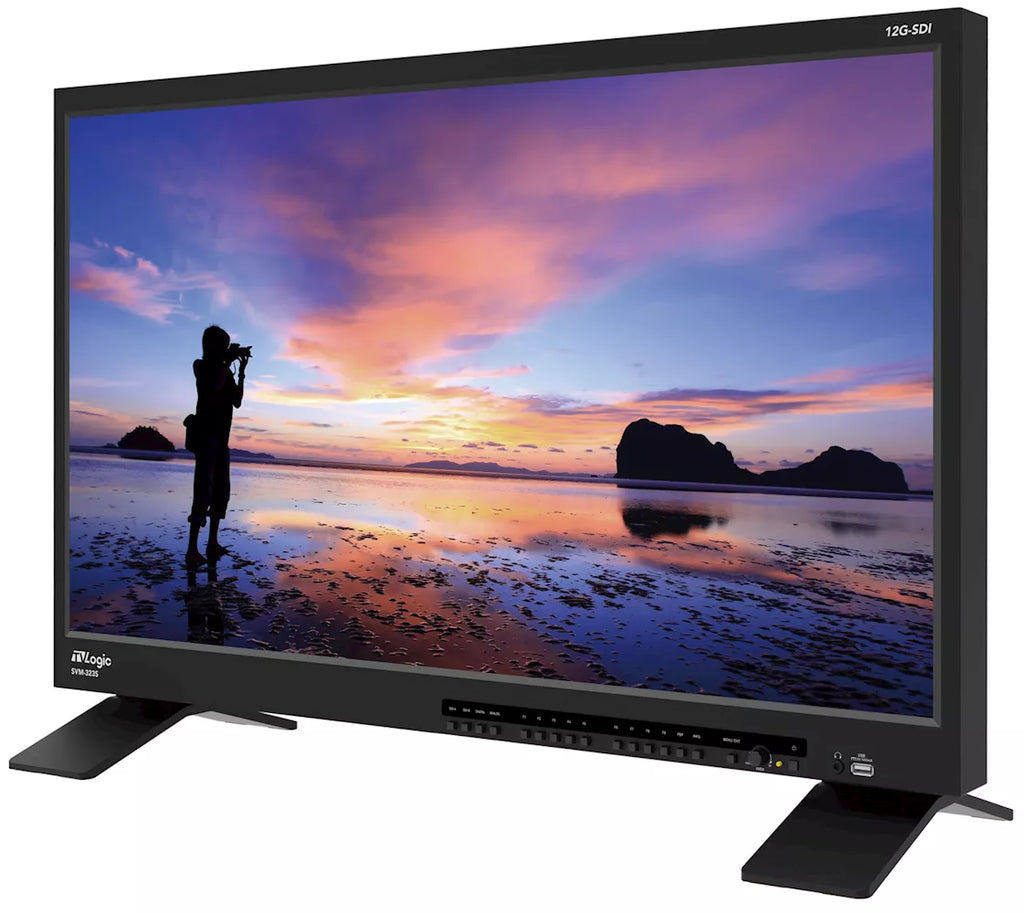

TVLogic SVM-323S 32-inch 12G-SDI with FHD LCD Monitor

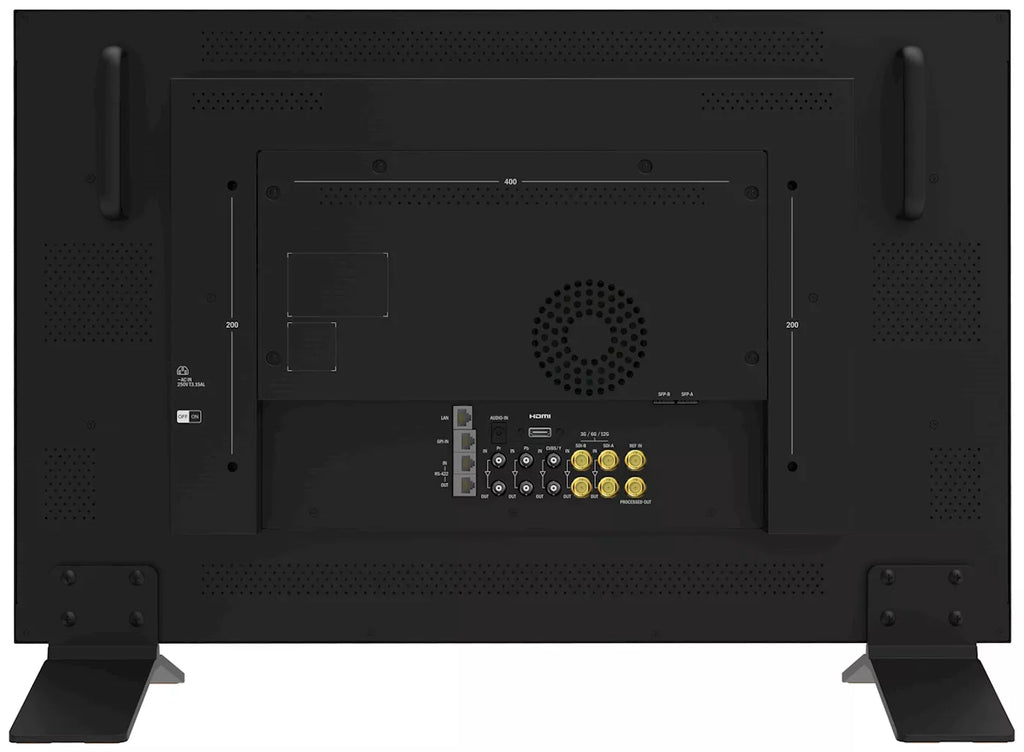

SVM series incorporates 12G-SDI Input(x2), 12G-SDI Output(x2), Reference(External Sync) Input, HDMI 1.4 Input, SFP Input(x2), Processed Monitor Output.

**Items marked in stock are usually held with the EU Distributor in their EU Warehouse**

FEATURES

• Display Resolution 1920 x 1080
• lObit {l.073 Billion) Colours*
• 2 x 12G-SDI Input and Loopout
• Dual SFP Input
• HDMI 1.4 Input
• Processed Monitor Output
• 12G-SDI Input to 3G-SDI Processed Output
• HDR (PQ, HLG, S-LOG3)
• Various Colour Spaces (BT.709, DCI-P3, BT.2020, S-GAMUT3)
• Custom 3D LUT Import by USB Flash Drive
• Built-in Camera LUTs
• Auto Detection of SDI Payload ID
• Waveform (YCbCr, RGB)
• Vector Scope
• Histogram
• Audio Level Meter
• Audio Phase Meter
• Colour Settings Save & Apply

*SVM-2435 only

These new generation of monitors feature wide viewing angle IPS panel, various HDR EOTFs,  Accurate Color Reproduction by 3D LUT. The SVM series monitors support the high-performance functions such as HDR EOTF, 12G-SDI Picture-by-Picture dispaly, Custom 3D LUT import, 12G-SDI Input to 3G-SDI Processed Output, LUT-applied output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and many more, which make the SVM monitors ideal for live production, versatile monitoring in the studio and field location, edit suite, post production.

SPECIFICATIONS
