Description

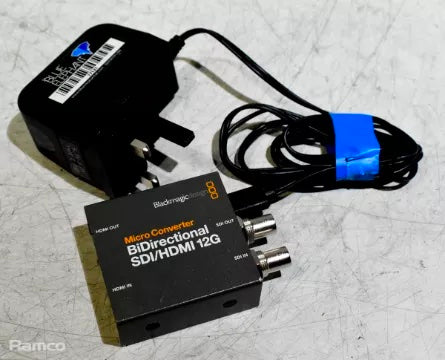

Used Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G PSU
We currently have 2 used BMD Micro BiDirect Converters in stock for sale
FEATURES
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
- Supports up to DCI/UHD 4K60 Video
- Blackmagic Camera Control, Tally Support
- SDI Re-Clocking/HDMI Timecode
- HDMI Copy Protection Support
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video & Power Signal Indicators
- A Power Supply Is Included
The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.
Incredible 12G-SDI bidirectional converter! Simultaneously converts SDI to HDMI and HDMI to SDI in different SD, HD and Ultra HD formats. Includes camera control conversion and 3D LUT on SDI to HDMI. Includes AC power supply with international socket adaptors.
Micro Converter 12G Features
- Extremely small design for portable operation.
- Supports upgrading software via USB connection.
- Includes 3D LUT for monitoring on SDI to HDMI model.
- Includes support for HDR via SDI and HDMI.
- Supports 12G-SDI and HDMI timecode standards.
- Features 12G-SDI technology with built in SDI re-clocking.
- Includes camera control features for Blackmagic ATEM switchers.
- Supports all video standards in NTSC, PAL, 720 HD, 1080 HD and 2160 Ultra HD.
- Models can be purchased with or without power supply.
SPECIFICATIONS
| CONNECTIONS | |
| SDI Video Inputs | 1 |
| SDI Video Outputs | Automatically matches the HDMI video input. |
| HDMI 2.0 Video Inputs | 1 x type A. |
| HDMI 2.0 Video Outputs | 1 x type A. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| Multi Rate Support | Auto detection of SD, HD, 2K, Ultra HD and 4K. |
| Updates, Configurations and Power | USB Type‑C. |
| Reclocking | Yes |
| STANDARDS | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 | |
| 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | |
| 1080PsF25, 1080PsF29.97, 1080PsF30 | |
| 1080i50, 1080i59.94, 1080i60 | |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI |
| 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI | |
| 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI | |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95 |
| 2160p48, 2160p50, 2160p59.94, 2160p60 | |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
| 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M |
| SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 | |
| SMPTE 2084 and SMPTE 2108-1 | |
| SDI Video Rates | SDI video connections are switchable between standard definition |
| 720p, 1080i, 1080p | |
| 2K DCI, Ultra HD and 4K DCI. | |
| SDI Color Precision | 4:2:2. A 33 point LUT can be loaded via the software utility |
| for calibrating or improving monitor color. | |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. |
| Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output. | |
| HDMI Video Standards | 525i59.94 NTSC, 625i50 PAL |
| 720p50, 720p59.94, 720p60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48 | |
| 1080p50, 1080p59.94, 1080p60 | |
| 1080i50, 1080i59.94, 1080i60 | |
| 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48 | |
| 2160p50, 2160p59.94, 2160p60 | |
| 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI | |
| 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | |
| HDMI COLOR PRECISION | |
| 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating | |
| improving monitor color. | |
| HDMI Color Space | YUV |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. |
| Always confirm copyright ownership before capture or distribution of content. | |
| Camera Control | Bidirectional signal conversion supports Blackmagic Camera Control and Tally. |
| Settings Control | Via MacOS and Windows software utility connected by USB. |
| Operating Systems | Mac 10.15 Catalina, |
| Mac 11.1 Big Sur or later. | |
| Windows 10, 64-bit. | |
| Software | Internal software upgrade via USB. |
| POWER REQUIREMENTS | |
| Power Supply | +5V universal power supply included with international socket adapters |
| for most countries. | |
| Power Consumption | 5W max. |
| Operational Voltage Range | 4.4V to 5.25V DC |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
