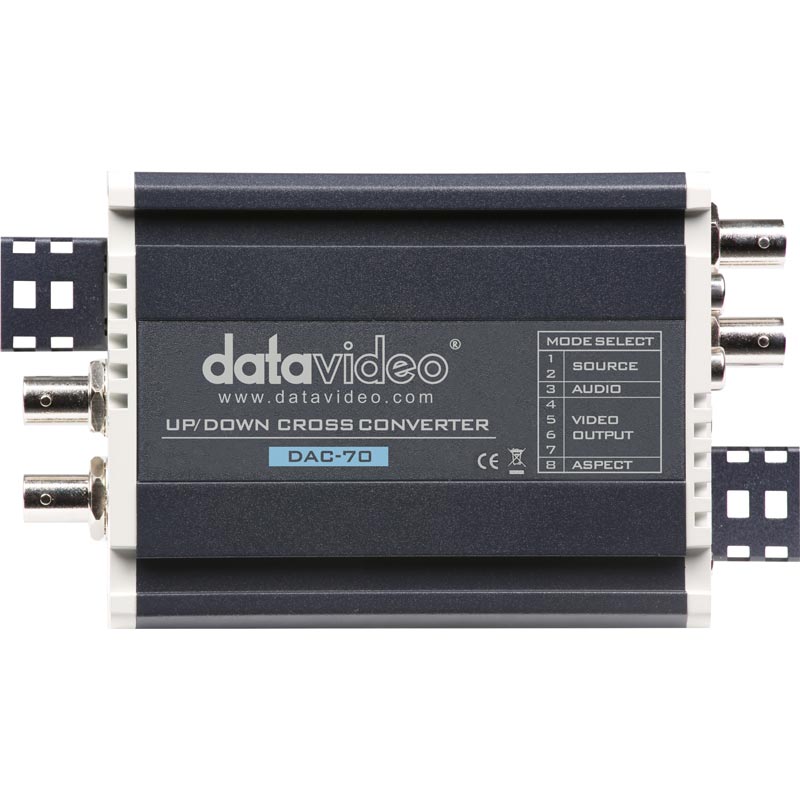

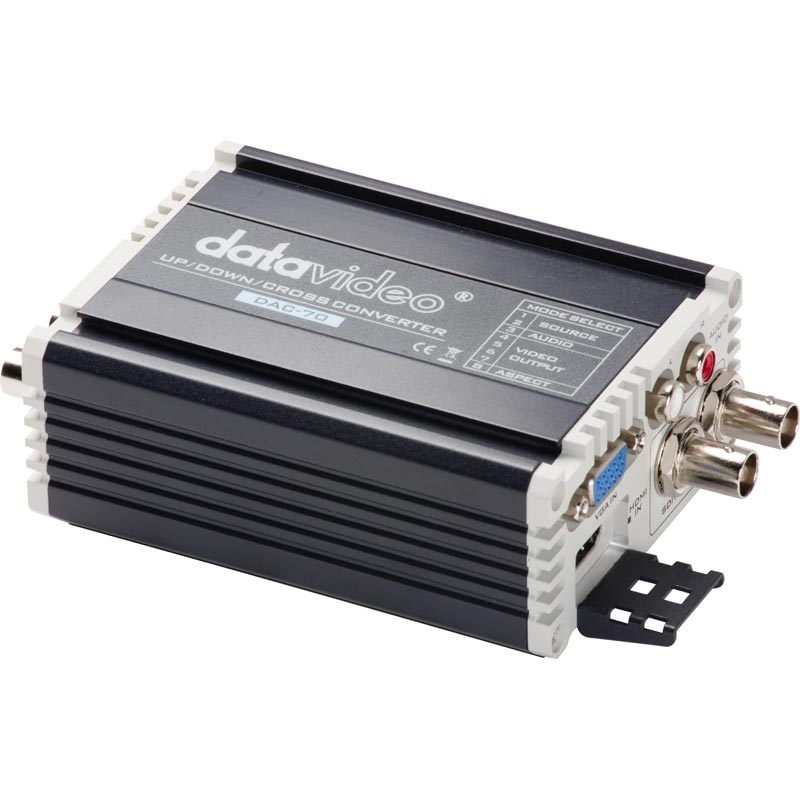

USED Datavideo DAC-70 Up / Down / Cross Converter
We currently have 13x Used Datavideo DAC-70 Up / Down / Cross Converter which are a great alternative to the Decimator Design Products.
FEATURES
- 3G/HD/SD Up/Down/Cross convert
- Audio/HDMI/SDI/VGA input
- 3G/HD/SD SDI and HDMI output
- Can be rackmounted using optional RMK-2 2RU Rack solution
- DC 12V, 3.6 watts
Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts.
Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutons like lecture theater, church, auditorium room and conference hall.
Video Input formats
- SD-SDI: 525i, 625i
- 3G-SDI: 1080p60/50, 1080p59.94 (Level A)
- HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
- HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, 1600x1200@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1280x1024@60Hz, 1024x768@60Hz, 800x600@60Hz
Video Output formats
- SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i
Supported Audio formats
- SDI embedded Audio: Up to 8-CH, PCM 48KHz
-
HDMI embedded Audio: up to 8-CH, PCM 96KHz
- Stereo audio input: 2-CH, PCM 48KHz - USB interface for firmware upgrade
SPECIFICATIONS
Conversion
VGA/HDMI/SDI to HDMI/SDI
Multi-format Up/Down/Cross
Multi-format Up/Down/Cross

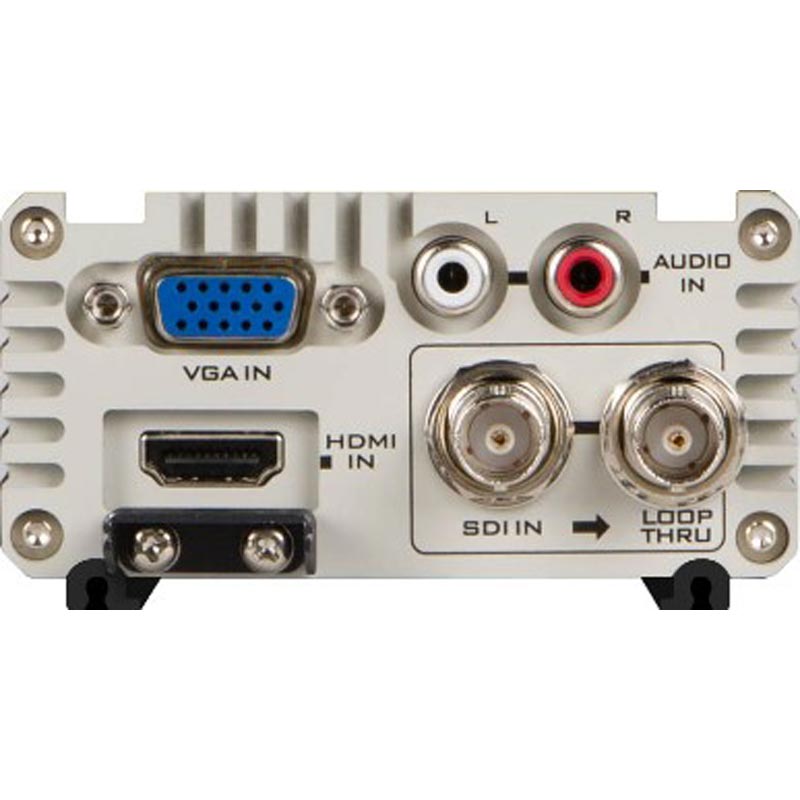

Video Inputs
1x VGA, 1x HDMI,
1x 3G/HD/SD-SDI (support Level A and Level B)
1x 3G/HD/SD-SDI (support Level A and Level B)
Loop Through
Yes

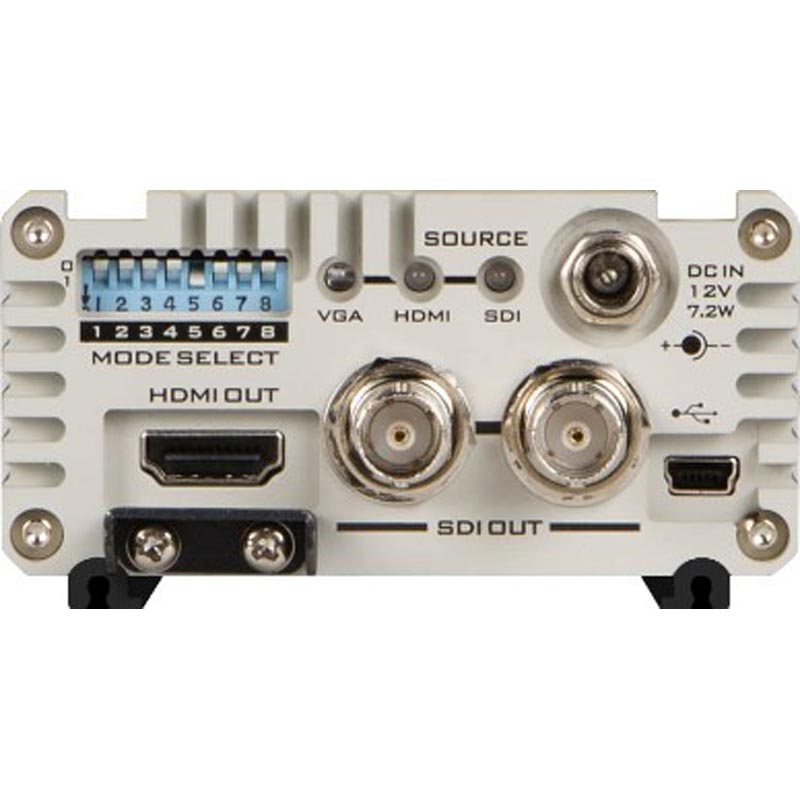

Video Outputs
2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B)
1x HDMI
1x HDMI
Audio Inputs
2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded
Audio Outputs
SDI embedded audio up to 8CH, 48KHz, PCM audio
HDMI embedded audio up to 8CH, 48KHz, PCM audio
HDMI embedded audio up to 8CH, 48KHz, PCM audio
Audio Format Selection
----
Audio Gain
----
Supported Video Input Formats
1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)
Output Resolutions
1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 525i
625i, 525i
Equalizer
Yes
Reclock
Yes
SDI Cable Drive
Yes
Updates and Configuration
Mini USB x 1
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.4 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 6W
