Description

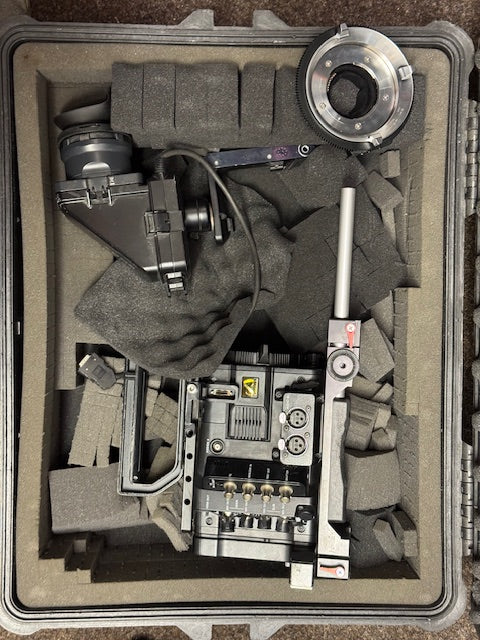

USED Sony PMW-F5 CineAlta Super 35mm 4K CMOS sensor compact camera records HD/2K/4K on SxS memory plus 16-bit RAW 2K/4K output 4K/QFHD XAVC installed complete with Sony DVF-L350 Colour Viewfinder, Vocas 0350-1000 Cage & Handle, HRS 2377, Reset 455

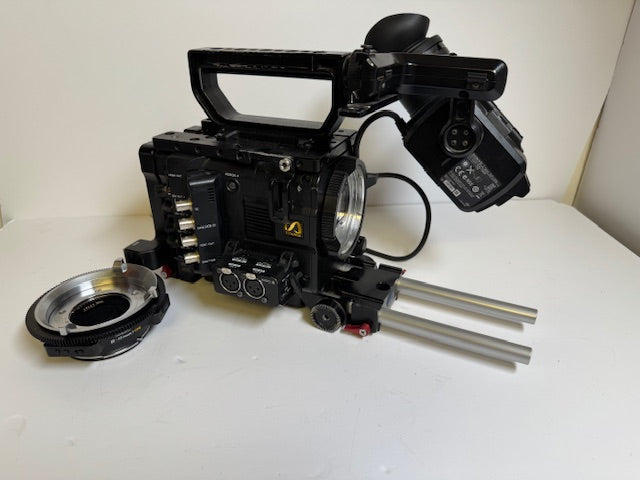

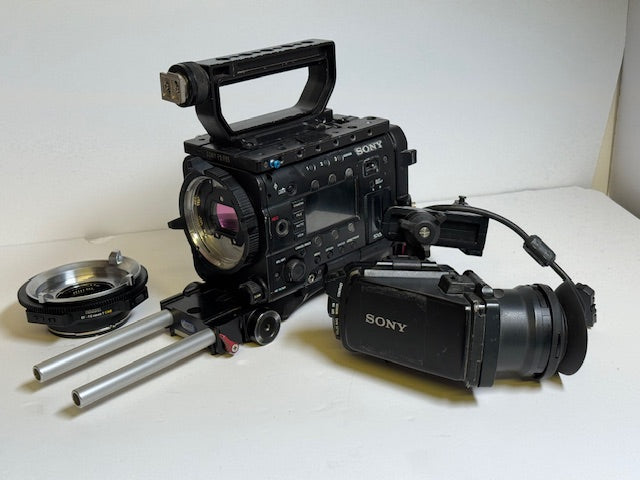

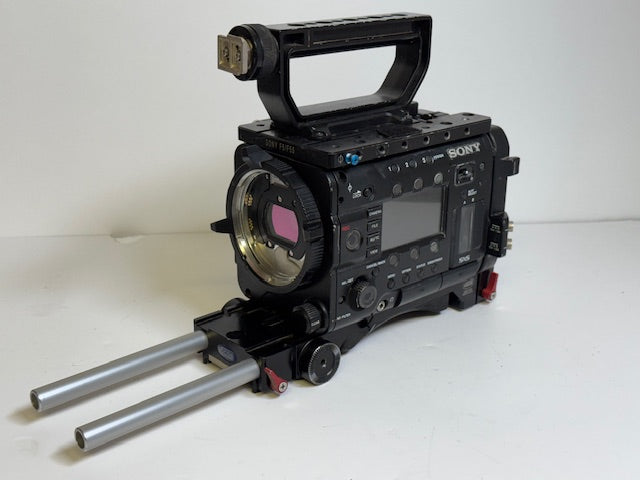

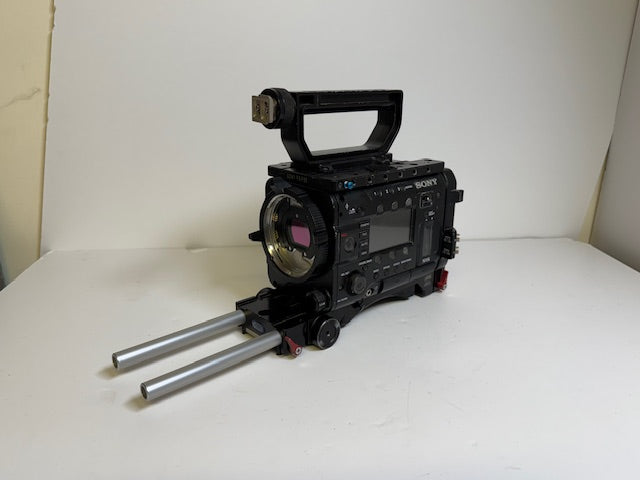

We currently have a used Sony PMW-F5 CineAlta camera in stock
Super 35mm 4K CMOS sensor compact CineAlta camera records HD/2Kon SxS memory plus 16-bit RAW 2K/4K output
The compact, flexible PMW-F5 makes serious cinematography in HD, 2K, QFHD or 4K accessible on all budgets. Modular, easy to use and highly sensitive, it’s effortlessly adaptable to suit different production agendas, from documentaries to music promos and ENG. It can even be upgraded to the PMW-F55 to match your widening creative horizons.
Shoot spectacular HD, 2K, QFHD or 4K
Even if you’re not planning on 4K production just yet, the 11.6 megapixel resolution of our 4K CMOS image sensor in the F5 lets you to shoot gorgeous, super-sampled HD right now, with visibly superior texture, detail and contrast that HD sensors just can’t touch.
Preserving all the original detail of your original shot, your future-proofed 4K master is ready to take full advantage of the fast-growing 4K Ultra HD distribution ecosystem.
SPECIFICATIONS
-
Power Requirements
DC 12 V (11 V to 17 V)
-
Power Consumption
Approx .24 W (while recording XAVC HD 60p, EVF Off, LCD monitor Off, HD-SDI On)
-
Operating Temperature
0°C to 40°C
32°F to 104°F
-
Storage Temperature
-20°C to +60°C
-4°F to +140°F
-
Mass
2.2 kg (without lens, handle, audio box and accessories)
4 lb 14 oz (without lens, handle, audio box and accessories)
-
Dimensions (W x H x D) *1
130 x 125 x 191 mm (without protrusions)
5 1/8 x 5 x 7 5/8 inches (without protrusions)
-
Battery Operating Time
Approx. 160 min with BP-FL75
Approx. 230 min with BP-GL95A
-
Recording Format (Video)
XAVC (AVC/H.264 High 4:2:2 Intra Profile)
HD: SMPTE RP2027 Class101 compliant
MPEG2 HD (MPEG-2 Long GOP)
HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P@HL
*2
-
Recording Format (Audio)
LPCM 8CH (2CH recording/playback), 24-bit, 48-kHz
-
Recording Frame Rate
XAVC 2K (2048 x 1080):
23.98p/24p/25p/29.97p/50p/59.94p
XAVC HD (1920x1080):
23.98p/25p/29.97p/50p/59.94p
MPEG4 SStP (1920 x 1080):
23.98p/24p/25p/29.97p
MPEG2 HD (1920x1080):
23.98p/25p/29.97p/50i/59.94i
MPEG2 HD (1280 x 720):
50p/59.94p
*3
-
Recording/Playback Time
XAVC HD, 23.98p: Approx. 70 min (SBP-64B)/Approx. 140 min (SBP-128B)
59.94p: Approx. 30 min (SBP-64B)/Approx. 60 min (SBP-128B)
MPEG2 HD: Approx. 60 min (SBS-32G1A)/Approx. 120 min (SBS-64G1A)
-
Imaging Device (Type)
Super 35mm equivalent Single-chip CMOS
-
Imaging Device (Pixel Count)
11.6M (total), 8.9M (effective)
-
Aspect Ratio
17:9
-
Built-in Filters
Clear, 0.9 (1/8ND), 1.8 (1/64ND)
-
Sensitivity (2000 lx, 89.9% reflectance)
Video Gamma: T14@24p (3200K light source)
-
ISO Sensitivity
S-Log2 Gamma: ISO 2000 (D55 light source)
-
Lens Mount
PL mount (with supplied lens mount adapter)
FZ mount (without supplied lens mount adapter)
-
Latitude
14-stop
-
S/N Ratio
57dB (Video Gamma, 24p, Noise Suppression OFF)
-
Shutter Speed
1/24s to 1/6,000s (23.98PsF)
-
Shutter Angle
4.2°to 360°(electrical shutter)
-
Slow Shutter (SLS)
2, 3, 4, 5, 6, 7, 8-frame accumulation
-
Slow & Quick Motion Function
XAVC 2K/HD: 1-120p (NTSC), 23.98p/29.97p
XAVC 2K/HD: 1-100p (PAL), 25p
-
White Balance
Preset (3200K, 4300K, 5500K), Memory
-
Gain
-3, 0, 3, 6, 9, 12, 18 dB, AGC
-
Gamma Curve
Standard (x6)
HG1, HG2, HG3, HG4, HG7, HG8
S-Log2 Gamma
-
Audio Input
CH-1/CH-2: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48V (AES/EBU) *4 switchable
-
DC Input
XLR-type 4-pin (male) (x1), 11 V to 17 V DC
-
DC Output
4-pin (x2), 11 V to 17 V DC (max. 1.8 A) with battery adapter
-
Viewfinder
Digital viewfinder interface (x1)
-
SDI Output
BNC (x4), SDI 1/2 Line Output, SDI 3/4 Monitor Output
-
Test Output
BNC (x1), HD-Y or HD Sync (tri-level) V1.0
-
Timecode Input/Output
TC IN/OUT (x1) switchable
-
Genlock Input
BNC (x1)
-
Remote
8-pin (x1)
-
HDMI Output
A Type (x1)
-
USB
USB device, Mini-B (x1)
USB host, type-A (x1)
-
Headphone Output
Stereo mini jack (x1)
-
Speaker Output
Monaural
-
Shutter
BNC (x1) (To be supported by future upgrades.)
-
Wi-Fi
USB host, type-A (x1)
-
Type
ExpressCard/34 slot (x2)
SD card slot (x1)
