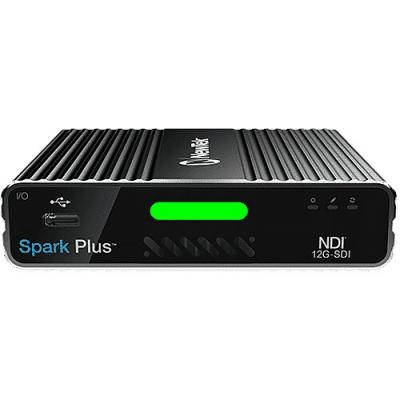

Vizrt Viz Connect Solo I/O 12G-SDI Converter

Viz Connect Solo 12G

Convert 4K video to and from NDI and 12G-SDI sources and destinations with the Viz Connect Solo I/O 12G-SDI Converter from NewTek. The Spark Plus I/O 12G-SDI is an IP video converter designed for the NewTek open-source NDI standard. It supports up to UHD 4K input and output from NDI to 12G-SDI and from 12G-SDI to NDI. It allows you to connect your camera, webcam, or computer to stream live over the internet or other broadcast platforms.

The Viz Connect Solo I/O 12G-SDI is controlled via a web-based user interface for configuration and monitoring. The Solo also features a 3.5mm analog line-level stereo audio input for embedding as well as a 3.5mm analog line-level stereo output for de-embedding audio. The 12G-SDI signal supports 16-channel audio encoding and 8-channel audio decoding.

The NDI protocol allows all NDI-compatible video equipment to freely recognize and interact with one another, as long they're connected to the same network. The Viz Connect Solo I/O 12G-SDI is designed to stream 12G-SDI video from a video source into a computer or IP-based video workflow for gaming, corporate meetings, broadcast programming, or other streaming media presentations. It also allows you to convert any 12G-SDI source for compatibility with hundreds of NDI-compatible systems, devices, and applications that can be connected on the same network, enabling you to efficiently incorporate that SDI source into IP-based video capture and production workflows. It also encodes and converts NDI signals for output via the 12G-SDI output for editing, recording, and streaming via a computer.

The Viz Connect Solo I/O 12G-SDI features PoE (Power-over-Ethernet) support, a portable form factor that is easy to mount, Program and Preview tally LED lights, NDI virtual input, multicast mode, and NDI network identification.

FEATURES

• 12G-SDI (75-ohm impedance) video input and output with embedded audio
• NDI input and output, compatible with any NDI workflow
• NDI transfer modes: unicast/multicast UDP with forward error correction (FEC) and unicast TCP
• Support for up to UHD 4K video at up to 60 frames per second
• Multicast mode
• Network identification to apply custom device and channel names
• Remote configuration and monitoring via web-based user interface
• Supports 16 channels of audio for encoding and 8 channels of audio for decoding
• 3.5mm analog stereo audio line-level input and output
• Program and Preview tally LED
• Portable and mountable
• NDI virtual input compatible with popular desktop video applications via included software driver, including Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more
